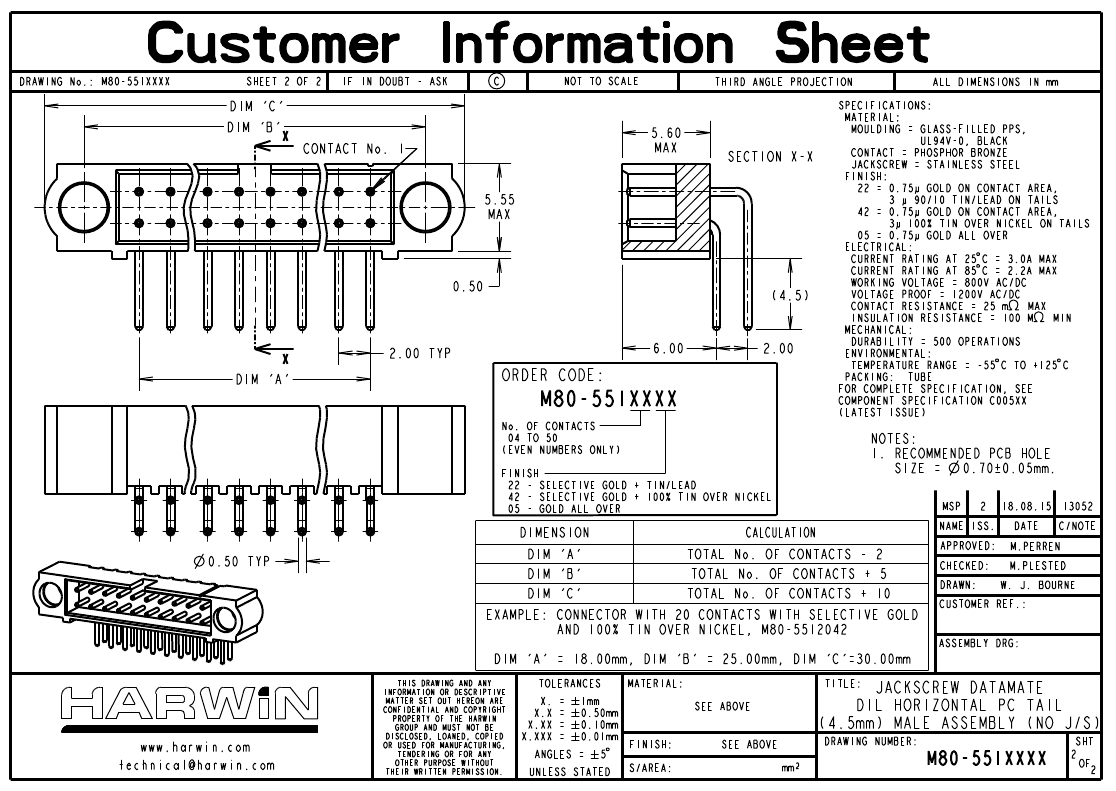

M80-5514442

Description
Headers u0026 Wire Housings 22+22 WAY M HORZ 4MM TAIL WOJS
CategoryThe connector    The connector
File Size93KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-5514442 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-5514442 - - View Buy Now

M80-5514442 Overview

Headers u0026 Wire Housings 22+22 WAY M HORZ 4MM TAIL WOJS

M80-5514442 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.238 inch
subject depth0.315 inch
body length2.126 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberM80-551
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation option 2JACKSCREW
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.177 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts44
UL Flammability Code94V-0
Base Number Matches1

M80-5514442 Related Products

M80-5514442 M80-5511642
Description Headers u0026 Wire Housings 22+22 WAY M HORZ 4MM TAIL WOJS Headers u0026 Wire Housings 08+08 WAYM HORZ 4MM TAIL WOJS
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
body width 0.238 inch 0.238 inch
subject depth 0.315 inch 0.315 inch
body length 2.126 inch 1.024 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (30) NOT SPECIFIED
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT
DIN compliance NO NO
Durability 500 Cycles 500 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force 2.78 N 2.78 N
Insulation resistance 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code e3 e3
MIL compliance NO NO
Plug contact pitch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch
Mixed contacts NO NO
Installation option 1 LOCKING LOCKING
Installation option 2 JACKSCREW JACKSCREW
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm
Plating thickness 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.177 inch 0.177 inch
Terminal pitch 2 mm 2 mm
Termination type SOLDER SOLDER
Total number of contacts 44 16
UL Flammability Code 94V-0 94V-0
