REVISIONS
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DRAWING FORMAT
DATE
02JAN14
BY
JARRY
APPR
-
45.6
TITLE:

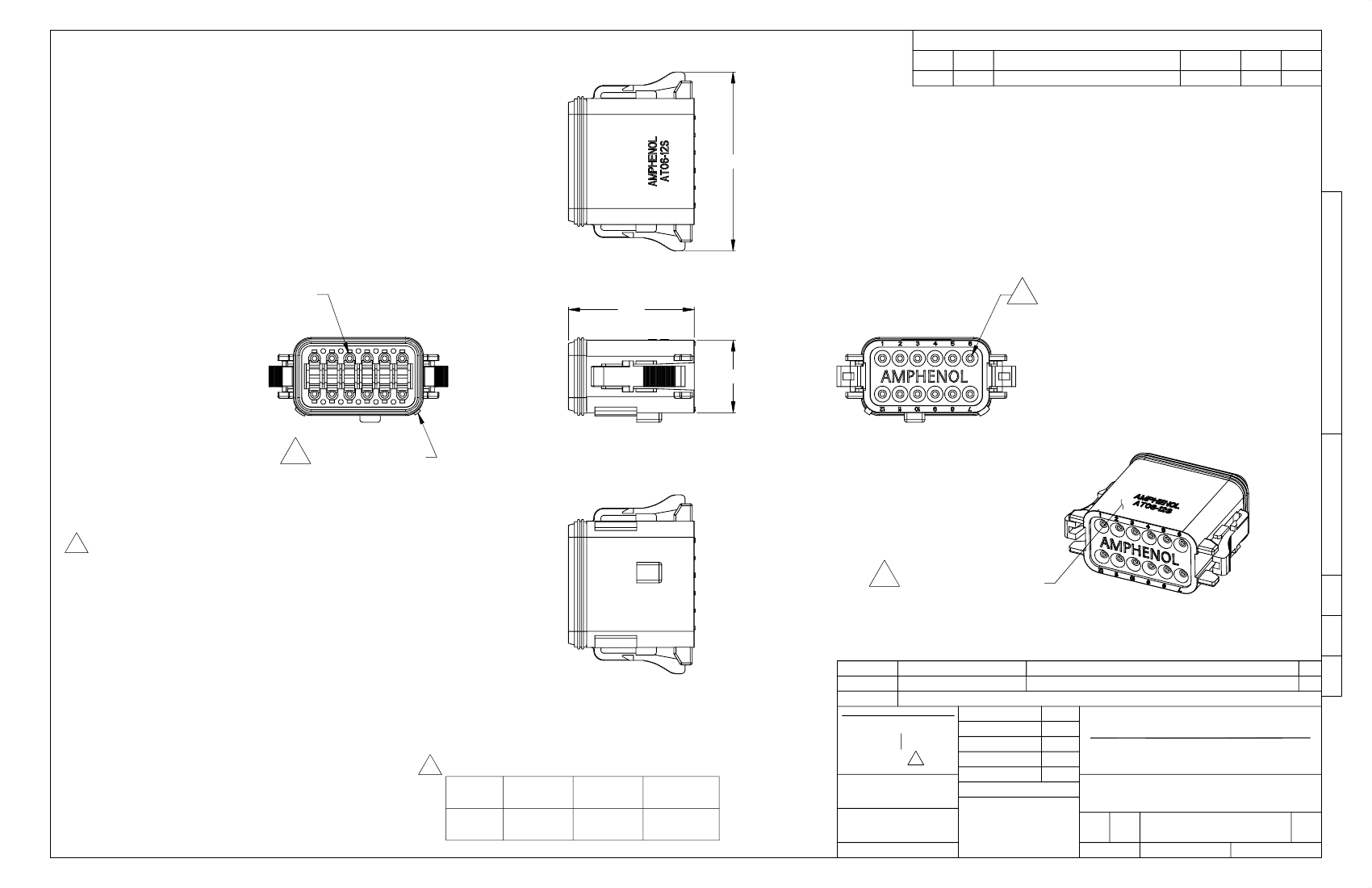

PLUG, 12 SOCKET, AT SERIES, KEYED
REQUIRES CONTACT
RETENTION WEDGE AW12S
31.3
7
18.3
DWG NO:
1
KEYWAY (3) PLACES
AT06-12SX-XXX
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: N/A
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT04-12PX* RECEPTACLE
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
1 REFER TO SHEET 2 FOR
AVAILABLE CONNECTOR COLORS
REV:
A3
SH:
1
OF:
QUANTITY
SEE SHEET 2
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
DATE
JARRY
02JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
MATERIAL SPECIFICATIONS:
CONTACT
SIZE
16
MIN. INSUL
O.D.
2.24 mm
(.088 in)
MAX. INSUL
O.D.
3.68 mm
(.145 in)
TYPICAL
WIRE RANGE
PROCESS SPECIFICATIONS:
CUSTOMER:
14 - 20 AWG
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET,
AT SERIES, KEYED
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-12SX-XXX
SHEET
A3
OF
1
2
REVISIONS
REV
ECO
DESCRIPTION
DATE
BY
APPR
P/N AT06-12SA

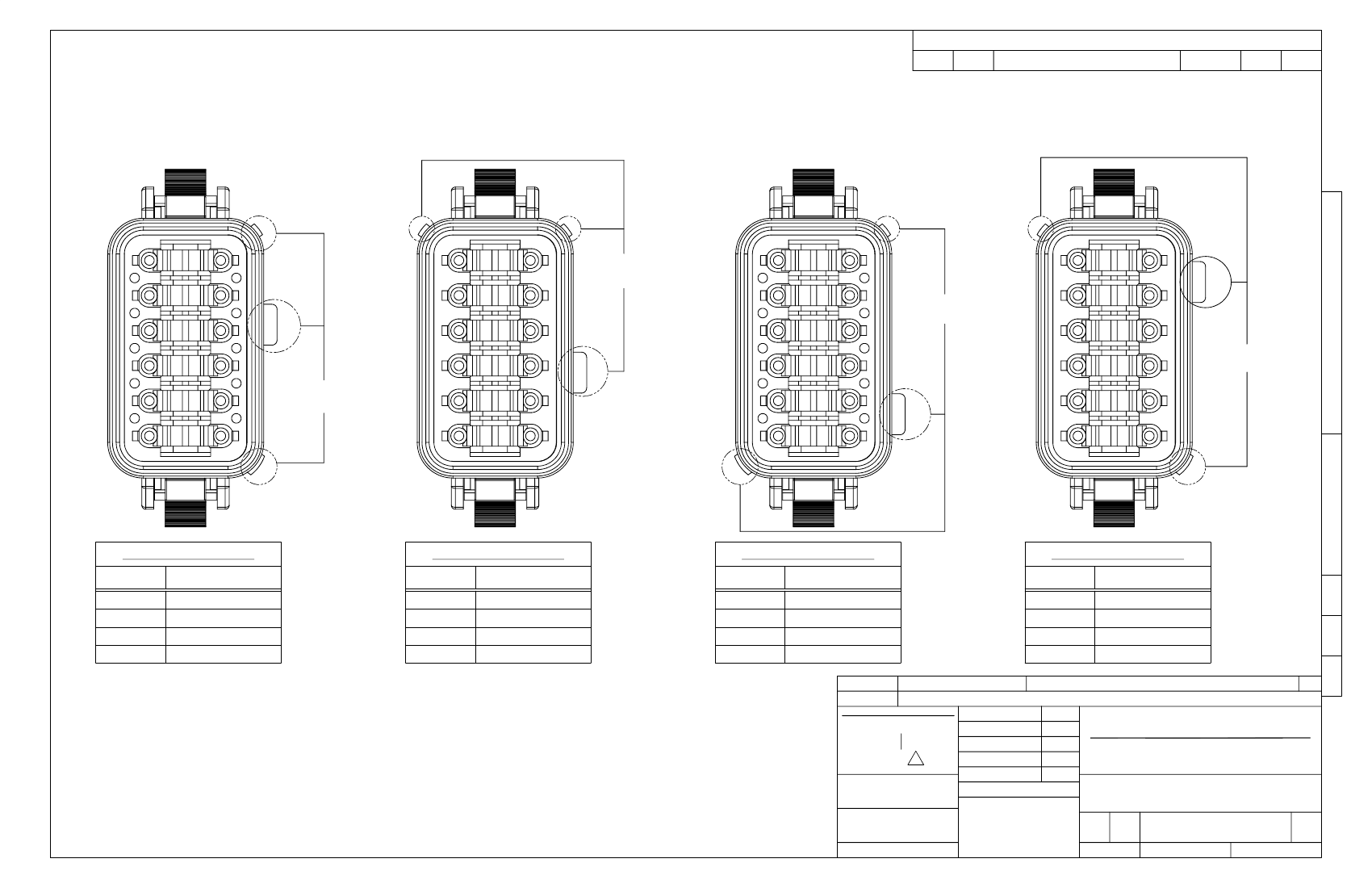

KEY-A CONFIGURATION
STANDARD COLOR: GREY
P/N AT06-12SB
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
P/N AT06-12SC
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N AT06-12SD
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
KEYWAY
(3) PLACES
KEYWAY
(3) PLACES
KEYWAY
(3) PLACES
KEYWAY
(3) PLACES
PLUG, 12 SOCKET, AT SERIES, KEYED
DWG NO:
AT06-12SX-XXX
KEY-A CONFIGURATION
COLOR
GREY
*
BLACK
GREEN
BROWN
PART NUMBER
AT06-12SA
AT06-12SA-BLK
AT06-12SA-GRN
AT06-12SA-BRN
KEY-B CONFIGURATION
COLOR
GREY
PART NUMBER
AT06-12SB-GRY
AT06-12SB
AT06-12SB-GRN
AT06-12SB-BRN
KEY-C CONFIGURATION
COLOR
GREY
BLACK
GREEN
*
BROWN
PART NUMBER
AT06-12SC-GRY
AT06-12SC-BLK
AT06-12SC
AT06-12SC-BRN
KEY-D CONFIGURATION
COLOR
GREY
BLACK
GREEN
PART NUMBER
AT06-12SD-GRY
AT06-12SD-BLK
AT06-12SD-GRN
AT06-12SD
REV:
A3
*
BLACK
GREEN
BROWN
SH:
2
*
BROWN
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
NOTE:
AN ASTERISKS (
*
) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE.
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
DATE
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
JARRY
02JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET,
AT SERIES, KEYED
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-12SX-XXX
SHEET
A3
OF
2
2
