87641-1002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87641-1002

87641-1002: DescriptionDIMM Connectors 1.27mm Plg SILSMT O/ LctrPn .76AuLF 40Ckt; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87641-1002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87641-1002	-	-	View	Buy Now

87641-1002 Overview

DIMM Connectors 1.27mm Plg SILSMT O/ LctrPn .76AuLF 40Ckt

87641-1002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS & ELV COMPL. W/TRAY PKG
Board mount options	SPLIT BOARD LOCK
body width	0.276 inch
body length	1.618 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87641
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

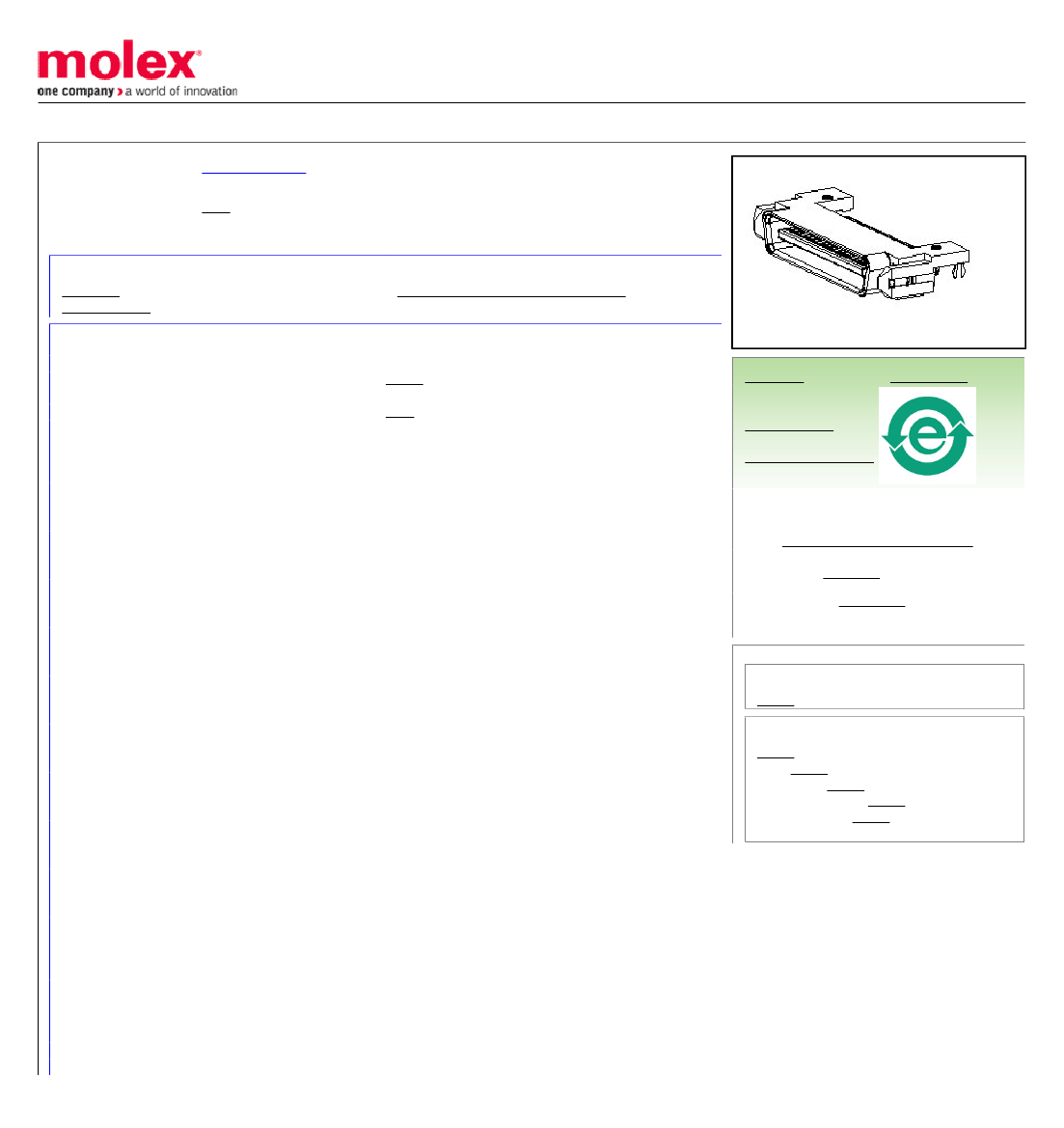

Preview

Download Datasheet

View All

This document was generated on 09/07/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0876411002

Active

sca2

1.27mm (.050") Pitch SCA-2 Plug, Surface Mount, Right Angle, 40 Circuits, 0.76µm

(30µ") Gold (Au) Plating, with Plastic Locating Pegs, Lead-Free

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87641

Board-to-Board, Signal

sca2

SCA-2

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

500

Yes

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

Yes

Tray

1.27mm (.050")

0.762µm (30µ")

3.810µm (150µ")

Yes

Fully

N/A

-55°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87641Series

Mates With

73829 PCB Receptacle with Beveled Metal

Pins, 87557 SCA-2 Receptacle with Beveled

Metal Pins, 73826 PCB Receptacle with

Press-fit PC Tails, 71743 PCB Receptacle

Vertical SCA-2, 71744 PCB Receptacle with

Extended Height

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.5A

30V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Reflow Capable (SMT only)
