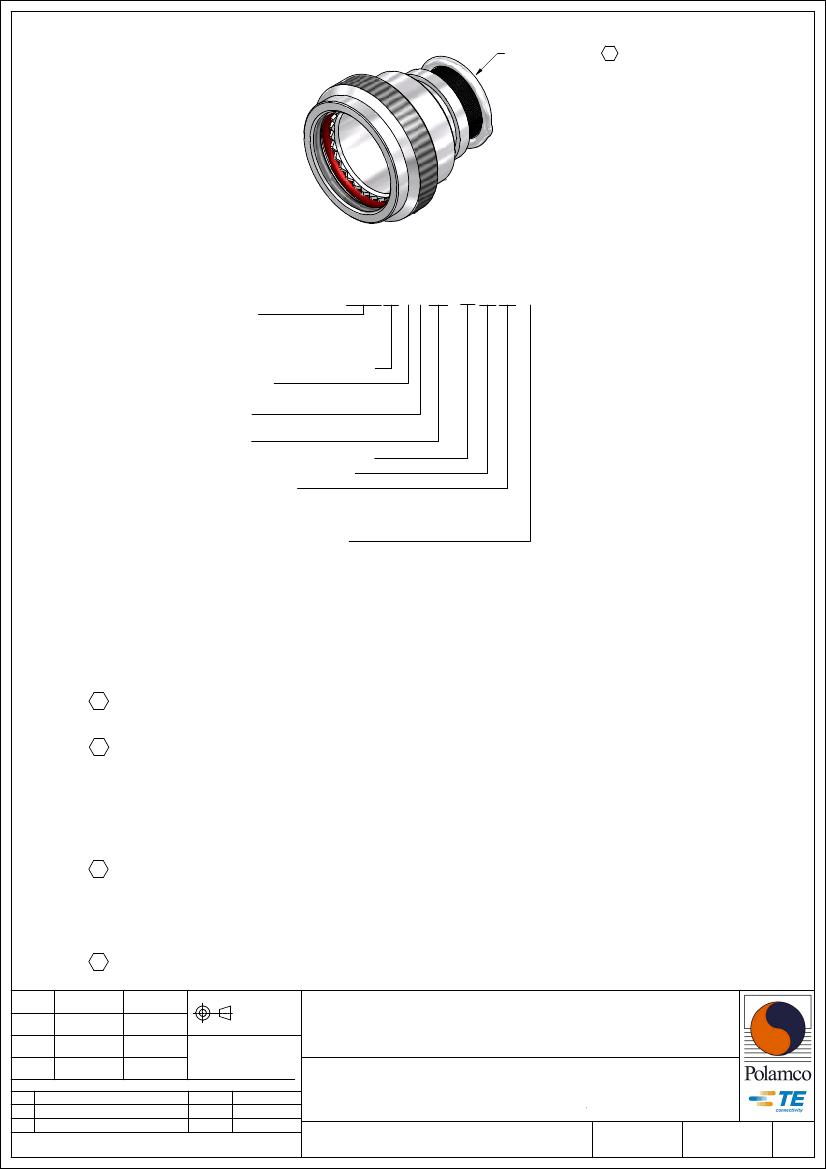

TINEL LOCK RING 3
CODE 41 - TINEL-LOCK BACKSHELL
TXR41AB00-1608AI-S
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
DASH NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
REFER TO CH00-0250-008
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR41AB00-1206).
RING SHALL BEAR NO MARKING.
5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-DTL-38999, SERIES I AND II, CLASS E AND T,
MS27466, MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480, MS27481,
MS27484, MS27497, MS27652, MS27653, MS27656 CONNECTORS.
7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
04/12/2014
16/02/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECO-12-021161
J
REVISED PER ECO-15-002319
DATE
04.12.12
16.02.15
APPROVED
G.WELLS
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR41
J
1
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
16,80
`
0,50
SILICONE
O-RING
26,80
26,50
A THREAD
ØB
ØS
ØY
ØZ
A THREAD
ØK
ØB
XXXX
PART MARK
HERE
PART MARK
HERE
XXXX
5

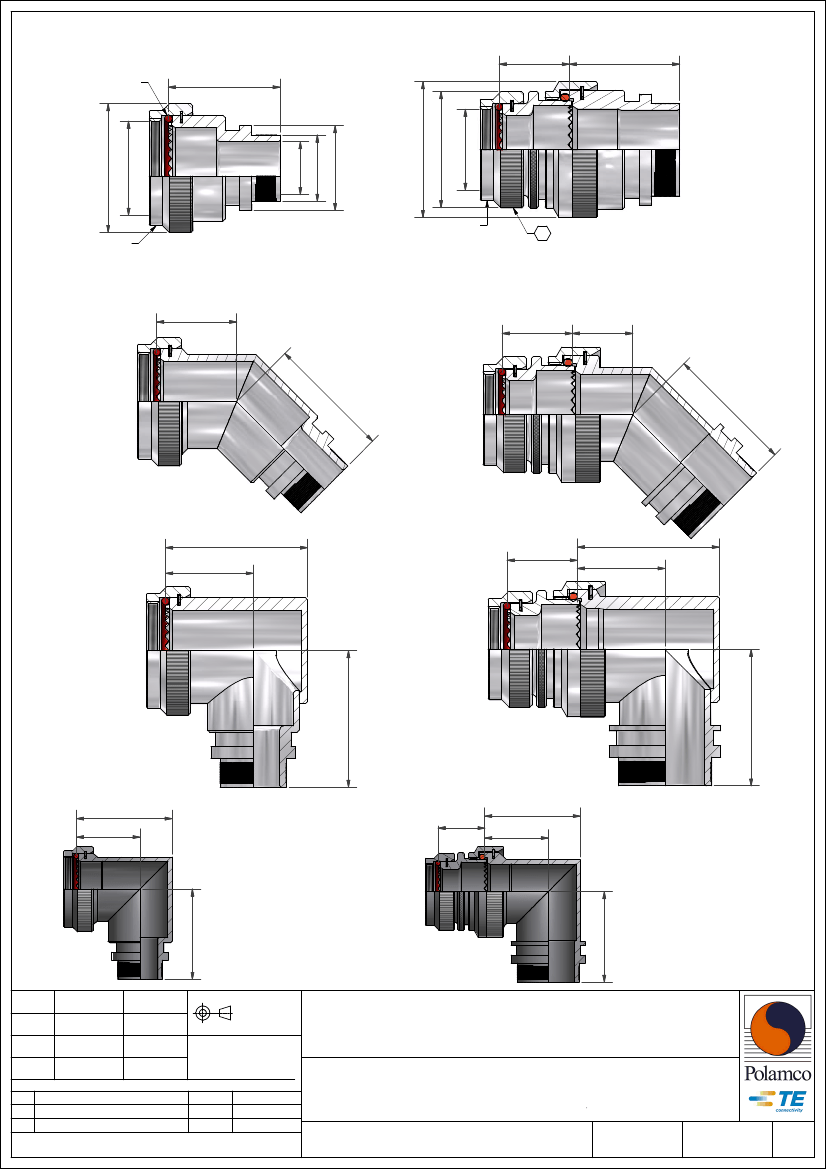

STRAIGHT BACKSHELL - TYPE 1
STRAIGHT BACKSHELL - TYPE 2
C
16,80
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
16,80
`
0,50
T
M
H
90° BACKSHELL - TYPE 1
W
16,80
`
0,50
T
M
H
E
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
04/12/2014
04/12/2014
04/12/2014
16/02/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECO-12-021161
J
REVISED PER ECO-15-002319
DATE
04.12.12
16.02.15
APPROVED
G.WELLS
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
J
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR41
J
2

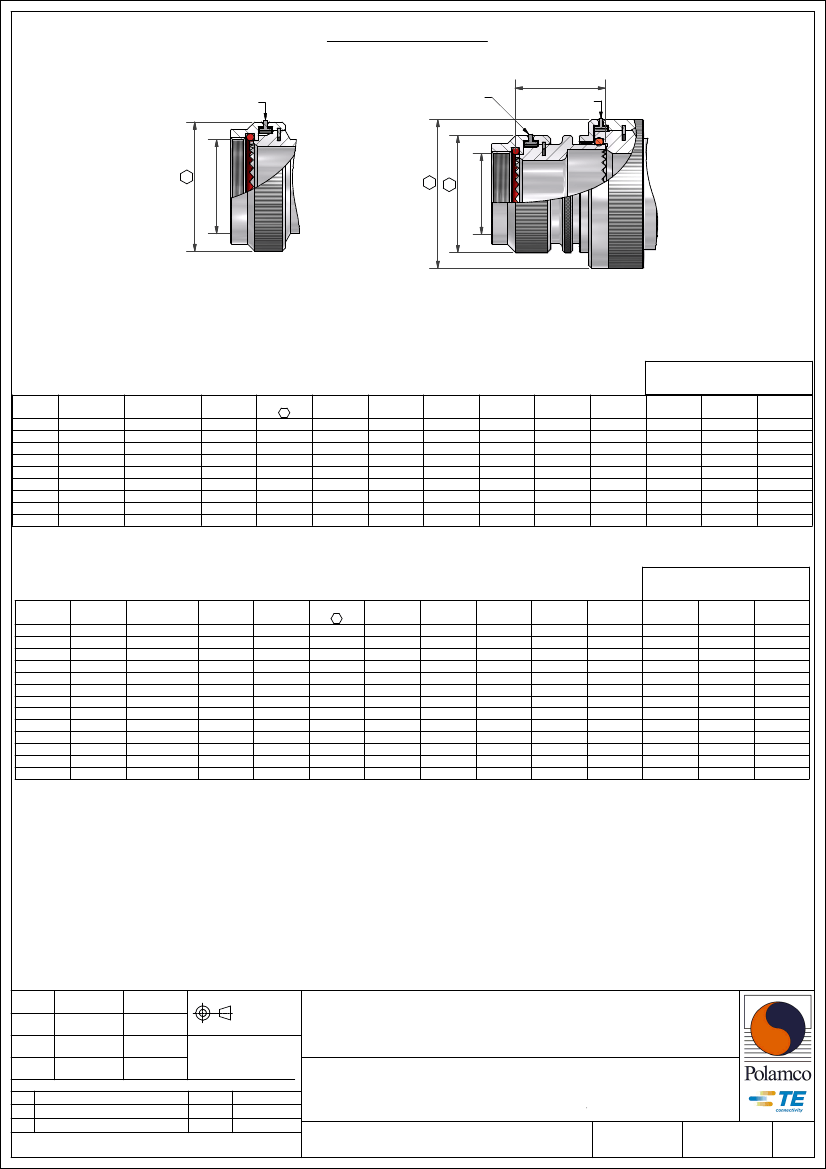

MODIFICATION S
(SELF-LOCKING COUPLING NUT)
21,60
`
0,50
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
A THREAD
BACKSHELL - TYPE 1
A THREAD
ØB 7
ØK 7
ØB 7
BACKSHELL - TYPE 2
TABLE 1
ORDER SHELL SIZE
NO.
SER I/ SER II
08
9/8
10
11 / 10
12
13 / 12
14
15 / 14
16
17 / 16
18
19 / 18
20
21 / 20
22
23 / 22
24
25 / 24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
A THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,3
21,5
24,5
27,8
30,8
34,1
37,3
40,5
43,7
ØB MAX
7
18,0
21,0
25,0
28,0
31,0
34,0
37,0
40,0
43,5
MAX
ENTRY
04
07
08
10
12
14
16
18
20
C
±0,5
16,4
17,2
17,6
18,5
19,2
19,6
20,4
20,8
21,7
D
±0,5
26,8
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
W
±0,5
21,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
T
±0,5
14,0
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
E
±0,5
26,20
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
W
±0,5
21,3
24,4
28,4
31,2
34,3
38,6
40,8
43,8
46,5
T
±0,5
16,4
17,3
19,5
21,0
22,8
25,3
26,1
27,6
29,1
E
±0,5
26,4
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
21,0
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
ØK MAX
7
NA
24,6
24,6
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
50,0
56,0
F
±0,5
NA
12,5
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
27,5
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
24,0
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
15,5
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
27,95
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
H
±0,5
NA
24,3
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
17,2
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
28,2
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
04/12/2014
16/02/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECO-12-021161
J
REVISED PER ECO-15-002319
DATE
04.12.12
16.02.15
APPROVED
G.WELLS
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR41
J
3
