"N" PLCS
CLAMPLING SCREW
ACCESS PORT (TYP.)
NOTES:
1. UL486A-UL486B LISTED, DUAL RATED CU9AL FOR ALUMINUM
OR COPPER CONDUCTORS. MEETS OR EXCEEDS ANSI C119.4
.35
.53
(TYP.)
L
LISTED
CERTIFIED
2. SEE TABLE FOR WIRE RANGE.
3. STRIP LENGTH: 1.06 +.06/-0
4. FOR TIGHTENING TORQUE SEE TABLE
THREE PORT CONNECTOR BLOCK SHOWN
WITH PLASTIC CLOSURE PLUGS REMOVED.
SEE TABLE FOR DIMENSIONS OF PARTS
WITH ADDITIONAL PORTS
CONDUCTOR
PORT (TYP.)
5. VOLTAGE RATING: 600 V. MAX. BUILDING WIRE,
1000 V. MAX. IN SIGNS & FIXTURES.
6. TEMPERATURE RATING: 90 C (CU9AL).
7. CONNECTOR BLOCK BODY ARE MADE FROM ALUMINUM.
CONDUCTOR PORTS IN CONNECTOR BLOCK
ARE PREFILLED WITH AN OXIDE-INHIBITING COMPOUND.
8. CONNECTOR TO INCLUDE TIN PLATED ALUMINUM CLAMPING
SCREWS FOR EACH CONDUCTOR PORT.
"N" PLCS
9. INSULATION MATERIAL IS CLEAR PVC.
10. CLAMPING SCREW ACCESS PORTS AND ALL WIRE ENTRY PORTS ARE
PROVIDED WITH REMOVABLE PLASTIC CLOSURE PLUGS.
11. ALL DIMENSIONS SHOWN ARE NOMINAL.
12 ONLY ONE CONDUCTOR PER PORT ALLOWED.
13 PACKAGE QTY: -12 = 12 PCS.
-6 = 6 PCS.
-4 = 4 PCS.
-3 = 3 PCS.
-2 = 2 PCS.
14 THIS PART IS RoHs COMPLIANT
1.25
.35
.53
(TYP.)
A
1.25

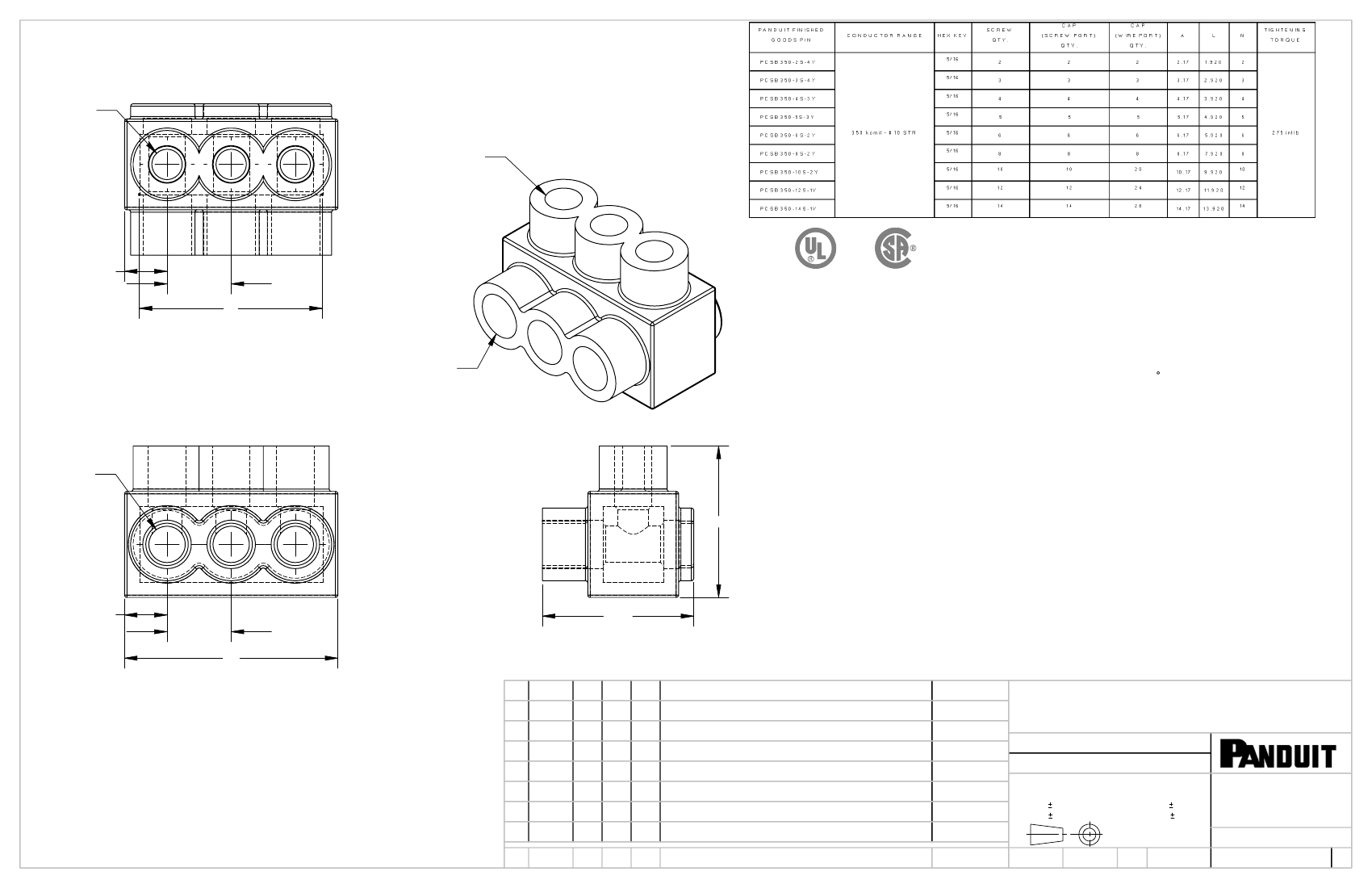

TITLE
MULTI-TAP INSULATED CONNECTORS
PCSB350 SERIES SINGLE SIDED
CUSTOMER DRAWING
N41527BB-C41527/05
C41527/05.SLDDRW
MATERIAL
ITEM REVISION NAME
DATASET FILE NAME
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XXX
.XX
.02
ANGLES
05
2/13
JHNU JHNU RGB
REVISED TITLE BLOCK
N41527BB-C41527
SEE NOTES
DRAWING NUMBER
THIRD ANGLE
PROJECTION
DRAWN BY
C41527_05
SIZE
REV
DATE
BY
CHK APR
DESCRIPTION
ECN
MS
DATE
8/99
CHK
RLS
SCALE
NONE
SHEET 1 0F 1
B
