Pin strip - PST 1,3/ 3-5,0-SF - 1805630
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5 mm, color: black,
contact surface: Tin, mounting: THR soldering, Specifically for PTS 1,5/..-PH

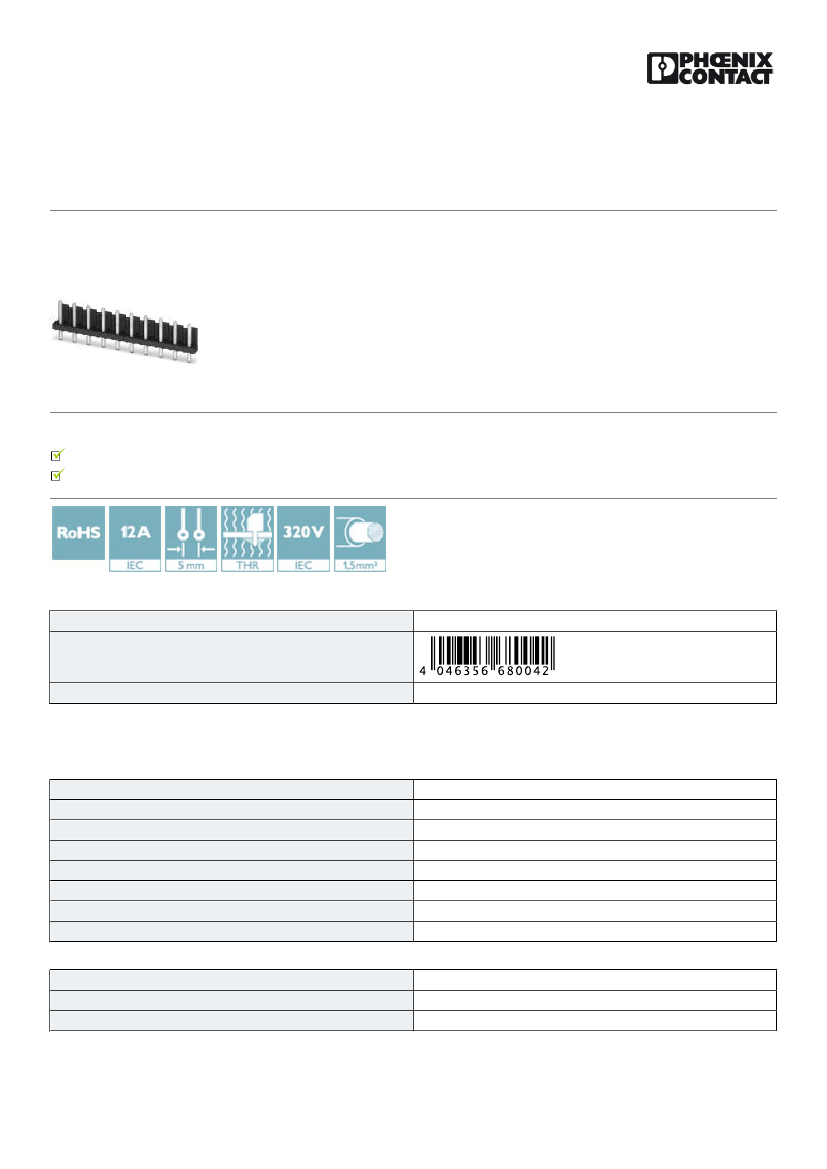

The figure shows a 10-position
version of the product
Your advantages
Suitable for wave and reflow soldering processes
Locking mechanism on back of component for increased mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
4046356680042
250 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Pin dimensions
Length
5.65 mm
14.8 mm
5 mm
10 mm
14.8 mm
13 mm
ø 1.3 mm
5.65 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
PST 1,3/..-SF
IIIa
4 kV
11/29/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1805630
Pin strip - PST 1,3/ 3-5,0-SF - 1805630
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
4 kV
4 kV
250 V
320 V
600 V
EN-VDE
12 A
12 A (depends on the plug used)
PA
V0
black
3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Drilling diagram
a
2,4
5
Dimensional drawing
a+4,8
a
5,65
4,85
4,85
5,65
1,4
13
1,9
Ø1,5
7,5
Ø1,3
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC
Ex Approvals
11/29/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1805630
Pin strip - PST 1,3/ 3-5,0-SF - 1805630
Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-58429
320 V
10 A
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
320 V
10 A
40040542
EAC
B.01742
