25-7650-10

Description
IC u0026 Component Sockets ELEVATOR STRIP LINE 25 PINS
CategoryThe connector
File Size329KB,1 Pages
ManufacturerAries Electronics
Download Datasheet Parametric View All

25-7650-10 Online Shopping

Suppliers Part Number Price MOQ In stock
25-7650-10 - - View Buy Now

25-7650-10 Overview

IC u0026 Component Sockets ELEVATOR STRIP LINE 25 PINS

25-7650-10 Parametric

Parameter NameAttribute value
Product CategoryIC & Component Sockets
ManufacturerAries Electronics
RoHSIn Transitionzdzffyffrxwfsveaubu
Termination StyleSolder Pin
Contact PlatingTin
Factory Pack Quantity1

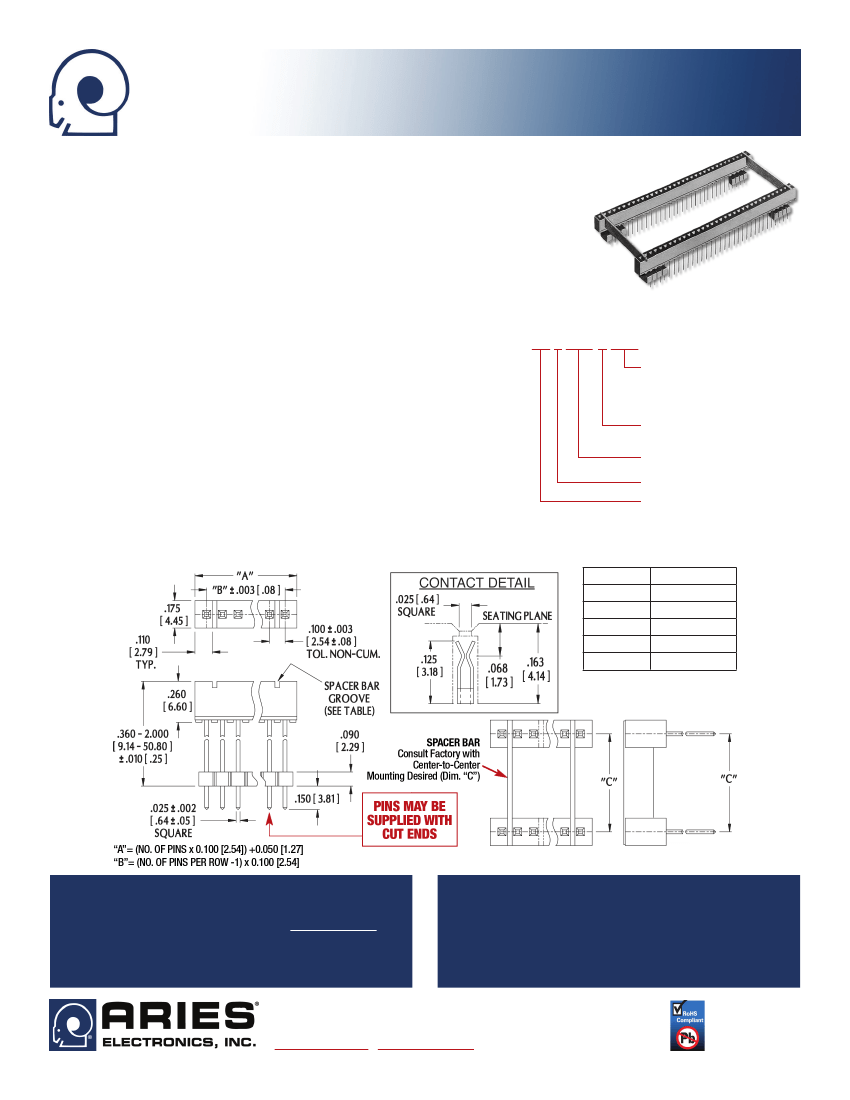

Series 700 Elevator Strip-Line Socket
w/Bifurcated Contacts & Solder Pin Tails
FEATURES
• Elevated Mounting of LCDs or Other Odd-centered or High Pin-count Components
• Any Height from 0.360 to 2.000 [9.14 to 50.80]
• Optional Spacer for Mounting on 0.300 [7.62], 0.600 [15.24], 0.900 [22.86], 1.100 [27.94], and
1.300 [33.02] Centers
GENERAL SPECIFICATIONS
BODY: black UL 94V-0 glass-filled 4/6 Nylon
PIN: Grade A Phosphor Bronze per QQ-B-750
OPTIONAL SPACER: FR-4 0.032 [0.81] thick
PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per
ORDERING INFORMATION
SAE AMS-QQ-N-290B; –OR– 200µ [5.08µ] min. matte Sn per ASTM B545-97(2004)
XX 7 XXX-X XXX
e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; –OR– 200µ [5.08µ] min.
90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-
Plating
0 = Sn
290B
0TL = Sn/Pb
CURRENT RATING: 1.5 amps
1 = Au
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb plating;
Termination
-67°F to 257°F [-55°C to 125°C] Au
1 = Solder Pin Tail
INSERTION FORCE: 110g/pin average
Elevated Height
WITHDRAWAL FORCE: 75g/pin average
0.360-2.000 [9.14-50.80]
ACCEPTS LEADS: flat leads up to 0.014 x 0.020 wide [0.36-0.51], Round Leads up to
Series
0.020 [0.51] dia.
No. of Pins
LEAD LENGTHS: from seating plane 0.080-0.160 [2.03-4.06]
(See Table)
MOUNTING CONSIDERATIONS
SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14 ±0.05] dia.
No. of Pins
20
25
30
34
40
No. of Grooves
2
2
2
3
2
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLET SOCKETS WITH SOLDER PIN TAILS, SEE DATA SHEETS 12012
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
Bristol, PA 19007-6810 USA
TEL 215-781-9956
FAX 215-781-9845
WWW.ARIESELEC.COM
INFO@ARIESELEC.COM
12010
Rev. 6.1
1 of 1
