311-050P29C: DescriptionD Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

311-050P29C Overview

D Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug

311-050P29C Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.37 inch
body length	2.065 inch
Body/casing type	PLUG
Connector type	OTHER D TYPE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	311
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	PLASTIC
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	30 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

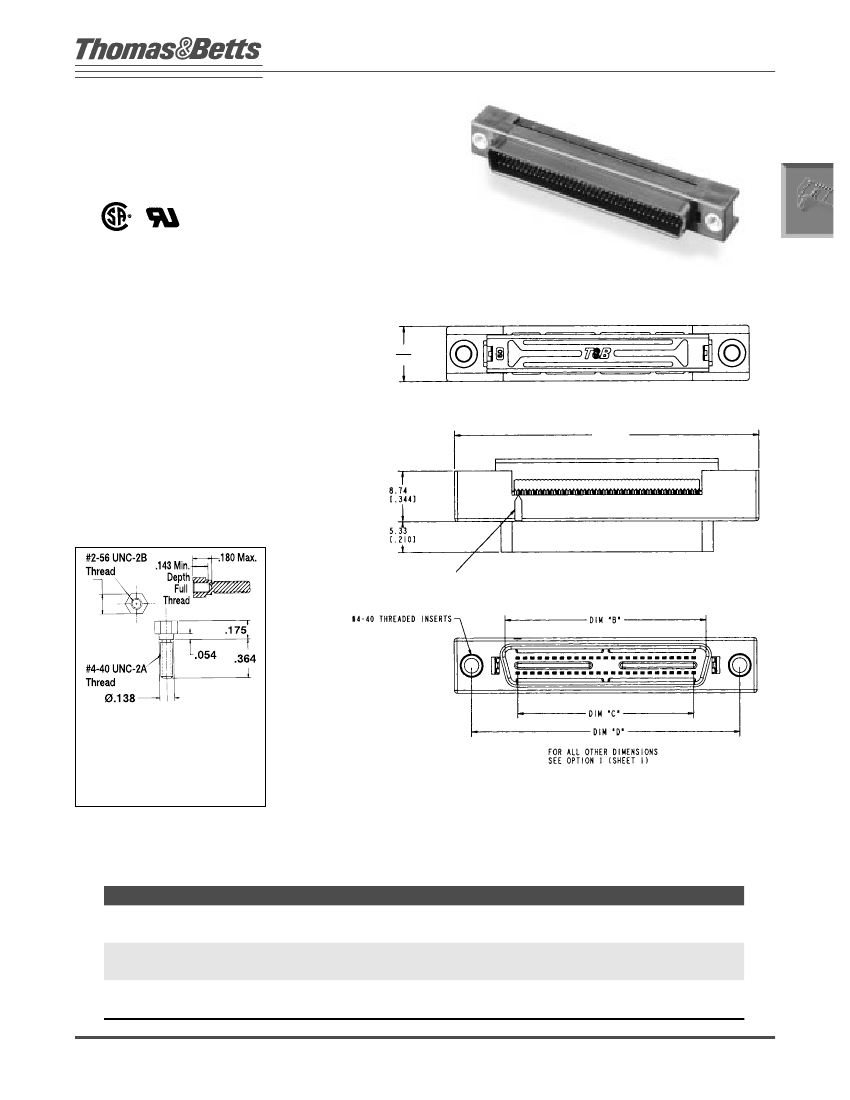

IDC Systems

D-Subminiature

IDC MALE ALL PLASTIC

“D” PLUG

.050" x .100" CENTERS

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass reinforced thermoplastic

rated UL 94V-0

C

OLOR

:

Black

C

ONTACTS

:

Beryllium copper, 30 microinches gold

over nickel plating in the mating area, tin/lead

plating in the termination area.

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1 Amp

I

NSULATION

R

ESISTANCE

:

>1000 Megohms

D

IELECTRIC

S

TRENGTH

:

>1000 VAC (Sea Level)

9.40

(.370)

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55 C to 125 C

DIM “A”

A

PPLICATION

T

OOLING

H

AND

T

OOL

P

LATEN

:

779-3112168A

B

ENCH

P

RESS

P

LATEN

:

779-3113168A

C

ABLE

See pages 97-104

M

OUNTING

H

ARDWARE

PIN ONE INDICATOR

Jacksocket Kit

Catalog Number: 8700040001

(for mounting style “C”)

Kit includes:

— 2 Jacksockets (shown above)

— 2 Split Lockwashers

Ordering Information

PART NUMBER

311-026P29C

311-040P29C

311-050P29C

311-068P29C

311-080P29C

311-100P29C

NUMBER OF CONTACTS

26

40

50

68

80

100

A

37.21 (1.465)

46.10 (1.815)

52.45 (2.065)

63.88 (2.515)

71.50 (2.815)

84.20 (3.315)

B

19.61 (0.772)

28.50 (1.122)

34.85 (1.372)

46.28 (1.822)

53.90 (2.122)

66.60 (2.622)

C

15.24 (0.600)

24.13 (0.950)

30.48 (1.200)

41.91 (1.650)

49.53 (1.950)

62.23 (2.450)

D

31.24 (1.230)

40.13 (1.580)

46.48 (1.830)

57.91 (2.280)

65.53 (2.580)

78.23 (3.080)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

65

311-050P29C Related Products

	311-050P29C	311-080P29C	311-068P29C	311-040P29C	311-026P29C	311-100P29C
Description	D Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 80 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 40 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 26 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.37 inch	0.37 inch	0.37 inch	0.37 inch	0.37 inch	0.37 inch
body length	2.065 inch	2.815 inch	2.515 inch	1.815 inch	1.465 inch	3.315 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	311	311	311	311	311	311
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	50	80	68	40	26	100
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Minimum wire diameter	32 AWG	32 AWG	32 AWG	32 AWG	32 AWG	32 AWG
Base Number Matches	1	1	1	1	1	1
Maker	Thomas & Betts Corporation	-	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation
