M8438ADIE1 datasheet, PDF - EEWORLD Datasheet

M8438ADIE1: DescriptionSERIAL INPUT LCD DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size304KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

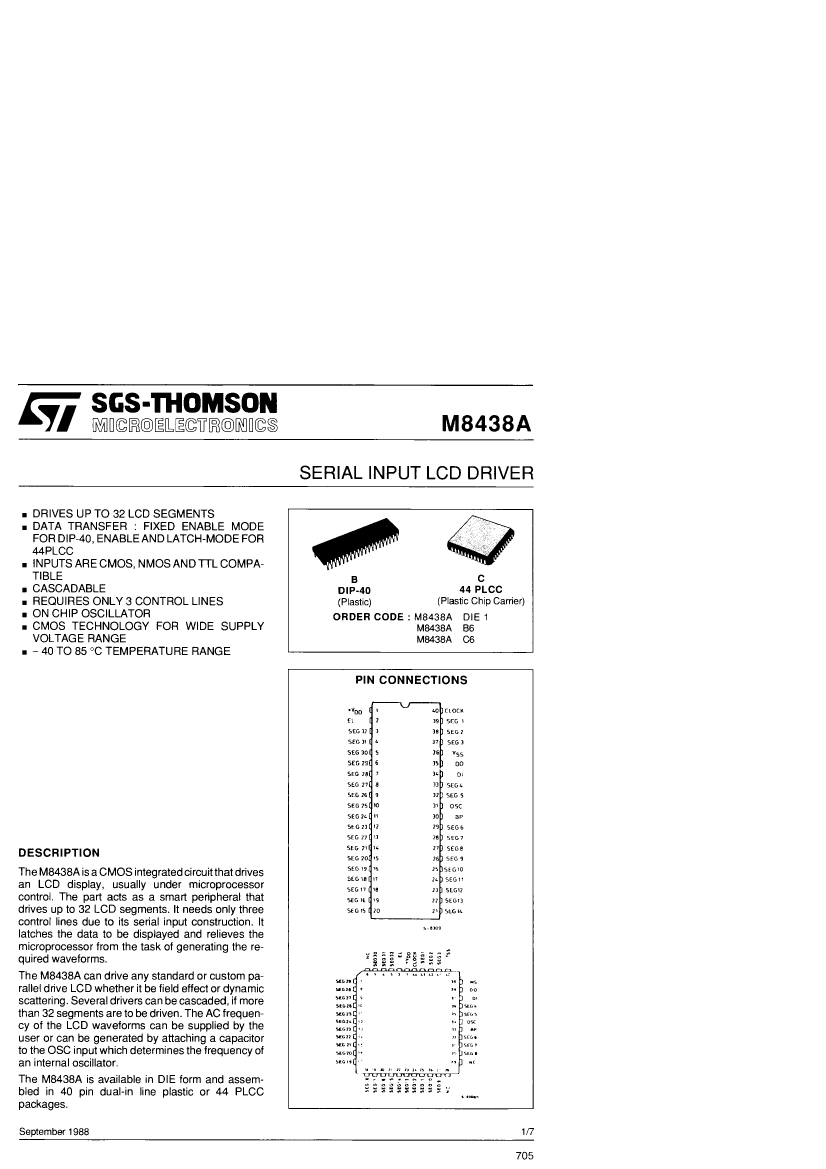

M8438ADIE1 Overview

SERIAL INPUT LCD DRIVER

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	DIE
package instruction	DIE,
Contacts	41
Reach Compliance Code	unknow
ECCN code	EAR99

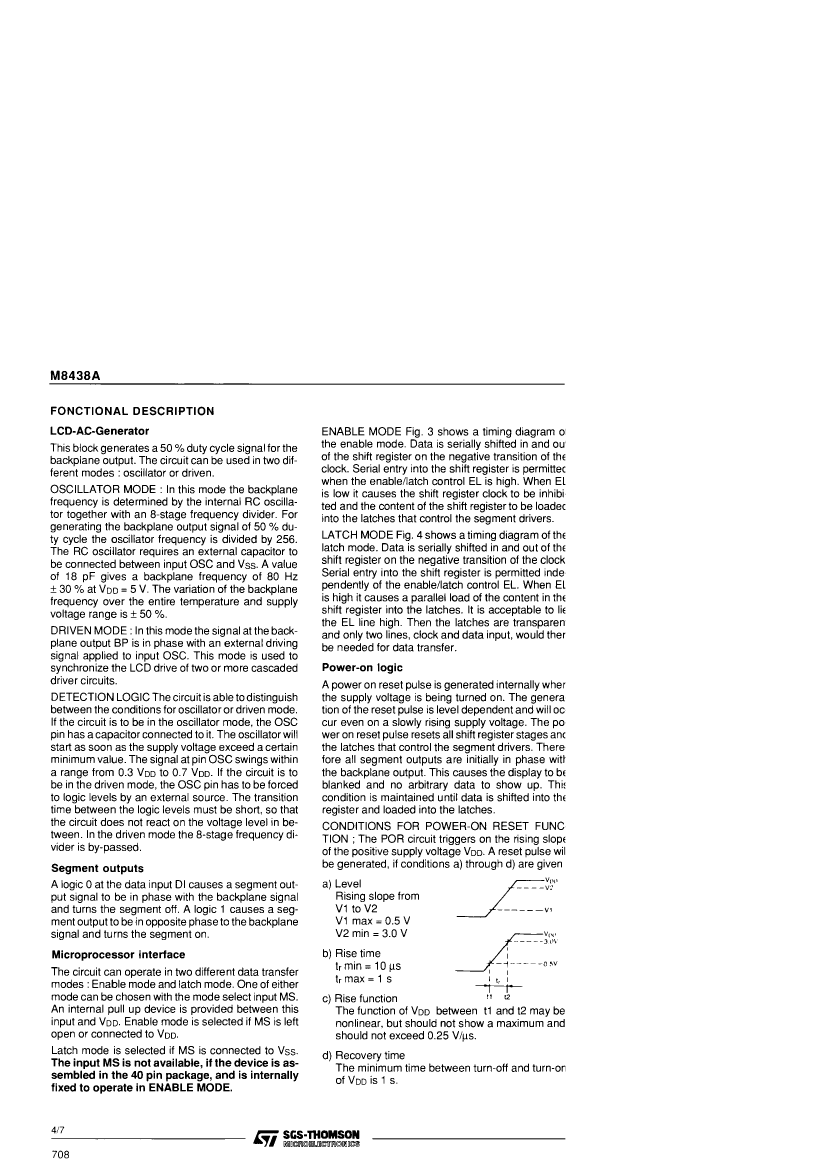

data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N41
Multiplex display function	NO
Number of functions	1
Number of segments	32
Number of terminals	41
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified

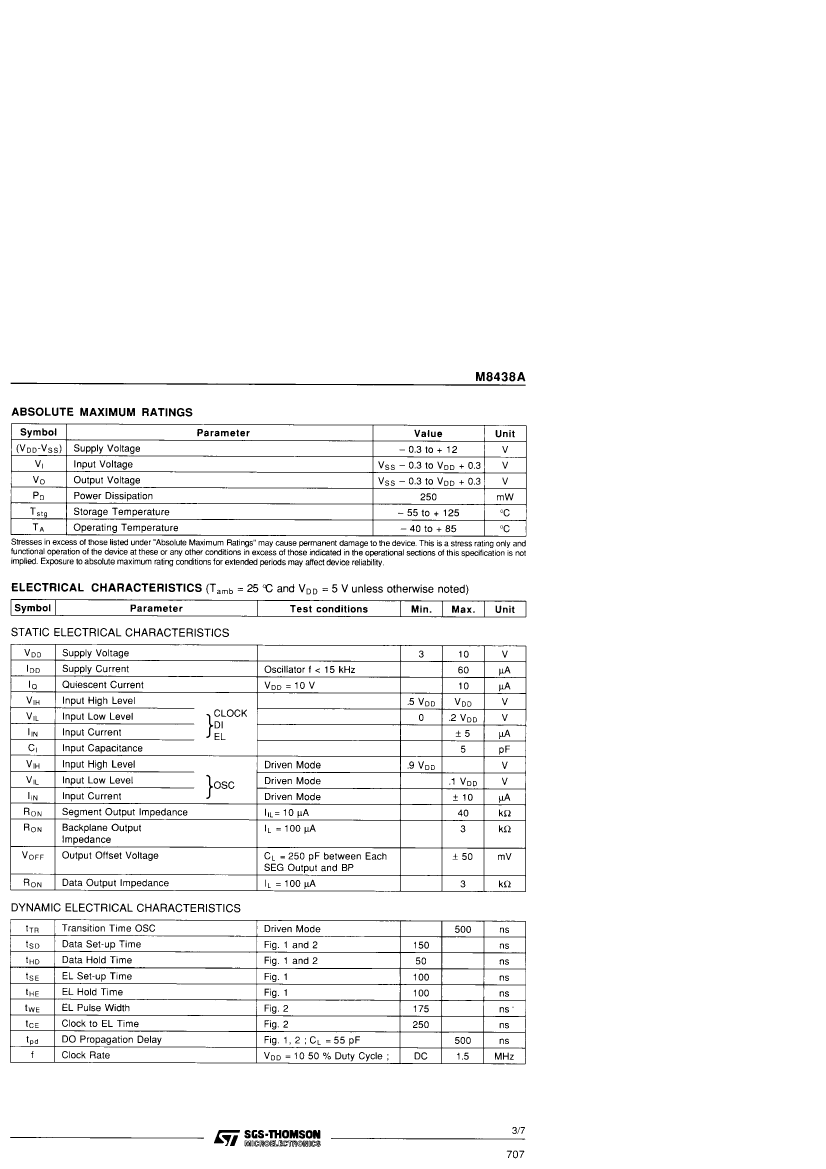

Maximum supply voltage	10 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER

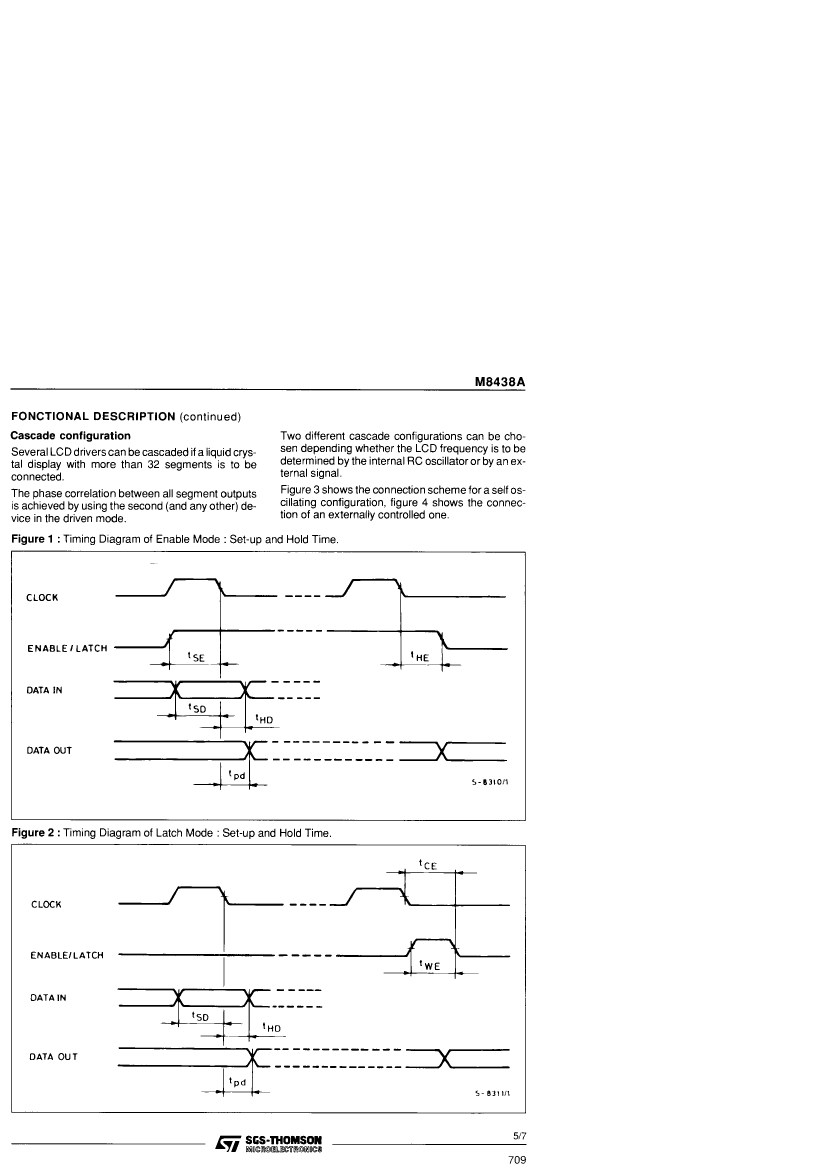

minfmax	1.5 MHz

	M8438ADIE1	M8438A	M8438AC6	M8438AB6
Description	SERIAL INPUT LCD DRIVER	SERIAL INPUT LCD DRIVER	SERIAL INPUT LCD DRIVER	SERIAL INPUT LCD DRIVER
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
Parts packaging code	DIE	-	LCC	DIP
package instruction	DIE,	-	PLASTIC, LCC-44	PLASTIC, DIP-40
Contacts	41	-	44	40
Reach Compliance Code	unknow	-	_compli	_compli
ECCN code	EAR99	-	EAR99	EAR99
data entry mode	SERIAL	-	SERIAL	SERIAL
display mode	DOT MATRIX	-	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	-	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N41	-	S-PQCC-J44	R-PDIP-T40
Multiplex display function	NO	-	NO	NO
Number of functions	1	-	1	1
Number of segments	32	-	32	32
Number of terminals	41	-	44	40
Package body material	UNSPECIFIED	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIE	-	QCCJ	DIP
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR
Package form	UNCASED CHIP	-	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage	10 V	-	10 V	10 V
Minimum supply voltage	3 V	-	3 V	3 V
Nominal supply voltage	5 V	-	5 V	5 V
surface mount	YES	-	YES	NO
technology	CMOS	-	CMOS	CMOS
Terminal form	NO LEAD	-	J BEND	THROUGH-HOLE
Terminal location	UPPER	-	QUAD	DUAL
minfmax	1.5 MHz	-	1.5 MHz	1.5 MHz
