5-1971773-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-1971773-4

5-1971773-4: DescriptionPTL 1X4 PLUG HSG HIGH TEMP KEY A LGR; CategoryThe connector; File Size477KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-1971773-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1971773-4	-	-	View	Buy Now

5-1971773-4 Overview

PTL 1X4 PLUG HSG HIGH TEMP KEY A LGR

5-1971773-4 Parametric

Parameter Name	Attribute value
Housing type	plug
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	female end
Number of Positions	4
Number of power supply locations	4
Rows	1
keying	A
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Without
Terminal layout	Direct plug-in
Cable termination method	crimp
Panel mount features	Without
Connector mounting type	Cable installation
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	grey
Shell material	nylon
Outgoing angle	Straight
Height (mm)	14.95
Working group temperature range	-55 – 150 °C [ -67 – 302 °F ]
Circuit Application	Power
Circuit identification characteristics	with
Glow Wire Ratings	High Temperature Components - Non-Glow Wire
Agencies/Standards	UL, VDE
Tested by VDE	yes
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, Connector Assemblies, Receptacle Housings, Receptacle (Socket) Terminals, Terminal Locking Tabs
Comment	Complies with IEC 61984 specifications

Preview

Download Datasheet

View All

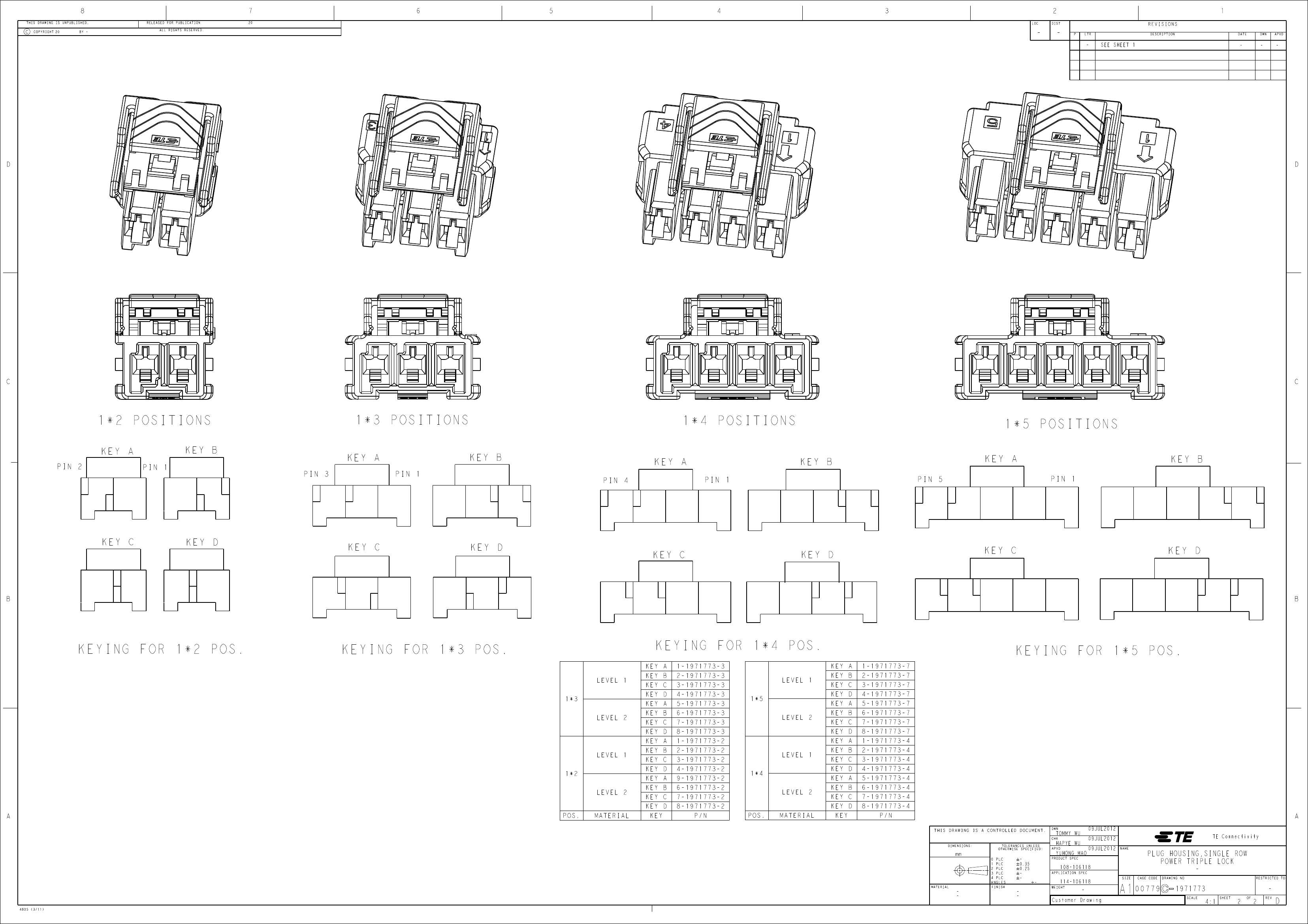

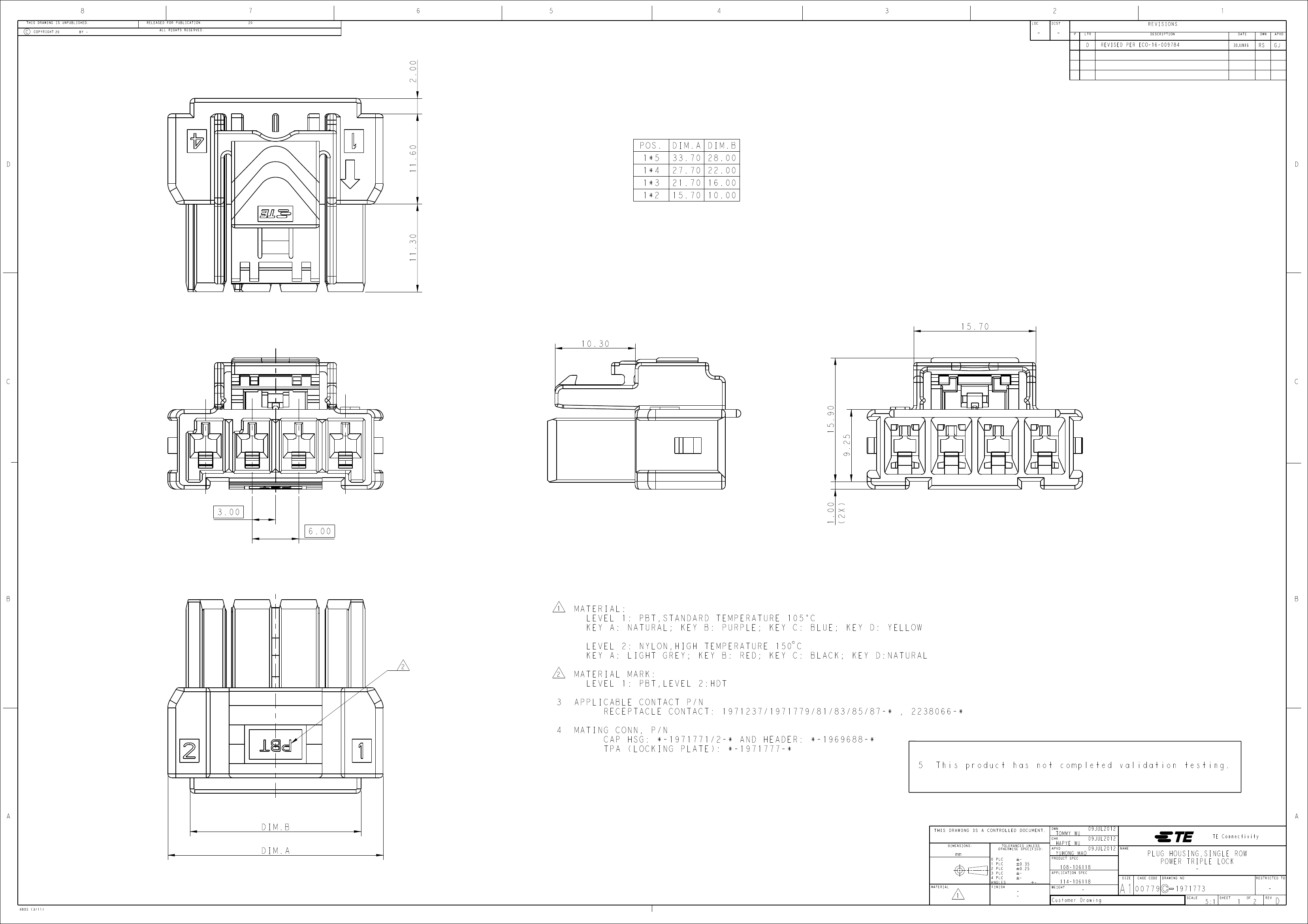

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-16-009784

30JUN16

2.00

11.60

POS.

1*5

1*4

1*3

1*2

DIM.A

33.70

27.70

21.70

15.70

DIM.B

28.00

22.00

16.00

10.00

11.30

15.70

10.30

15.90

3.00

6.00

1.00

(2X)

9.25

MATERIAL:

LEVEL 1: PBT,STANDARD TEMPERATURE 105°C

KEY A: NATURAL; KEY B: PURPLE; KEY C: BLUE; KEY D: YELLOW

LEVEL 2: NYLON,HIGH TEMPERATURE 150 $ C

KEY A: LIGHT GREY; KEY B: RED; KEY C: BLACK; KEY D:NATURAL

MATERIAL MARK:

LEVEL 1: PBT,LEVEL 2:HDT

APPLICABLE CONTACT P/N

RECEPTACLE CONTACT: 1971237/1971779/81/83/85/87-* , 2238066-*

MATING CONN, P/N

CAP HSG: *-1971771/2-* AND HEADER: *-1969688-*

TPA (LOCKING PLATE): *-1971777-*

This product has not completed validation testing.

DIM.B

DIM.A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

09JUL2012

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.35

0.25

PRODUCT SPEC

APPLICATION SPEC

4805 (3/11)

WEIGHT

Customer Drawing

00779

SIZE

CAGE CODE

PLUG HOUSING,SINGLE ROW

POWER TRIPLE LOCK

DRAWING NO

RESTRICTED TO

1971773

SCALE

5:1

SHEET

REV
