with Self-Locking Coupling
CONNECTOR DESIGNATOR:
AS50151 Series AS34001
MIL-DTL-26482 Series II
AS81703 Series III
MIL-DTL-83723 Series I and III
40M39569, DEF 5326-3, EN 2997,
EN 3646
ESC 10, ESC 11, LN 29504
NFC93422 Series HE302
PAN 6432-1, PAN 6432-2, PATT 602
Basic Part Number
M85049/82
= Straight
M85049/83
= 45°
M85049/84
= 90°
––
= Detented
N
= Non-Detented
Shell Size
(Table I)
Entry Size
(Table I)
A
M85049/82
N
16
P
02
Finish
N
= Electroless Nickel
P
= Cadmium, Olive Drab over Electroless Nickel with
Polysulfide Sealant Strips
W
= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel
X
= Aluminum, Nickel Fluorocarbon Polymer
YP
=
Aluminum, Pure Dense Electrodeposited Aluminum with Polysulfide Sealant Strips
Z
= Aluminum, Zinc-Nickel, Black
ZP
= Aluminum, Zinc Nickel with Polysulphide Sealant Strips
B
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s
name and part number, space permitting.
For complete dimensions, see the
applicable Military Specification.
Metric dimensions (mm) are in
parentheses.
For use with AS85049/128 Bands.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-97
E-Mail: sales@glenair.com
AS85049
AS85049/82, AS85049/83 and AS85049/84
Straight, 45° and 90° Banding Backshells
AS85049/82, AS85049/83 and AS85049/84
Straight, 45° and 90° Banding Backshells
with Self-Locking Coupling
B
AS85049
Shell
Size
08
10
12
14
16
18
20
22
24
28
A Thread
Class 2B
.500 - 20 UNF
.625 - 24 UNEF
.750 - 20 UNEF
.875 - 20 UNEF
1.000 - 20 UNEF
1.062 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
1.750 - 18 UNS
C Dia
Max
.886
1.010
1.130
1.260
1.386
1.510
1.636
1.760
1.886
2.136
(22.4)
(25.7)
(28.7)
(32.0)
(35.1)
(38.4)
(41.4)
(44.7)
(47.8)
(54.1)
© 2013 Glenair, Inc.

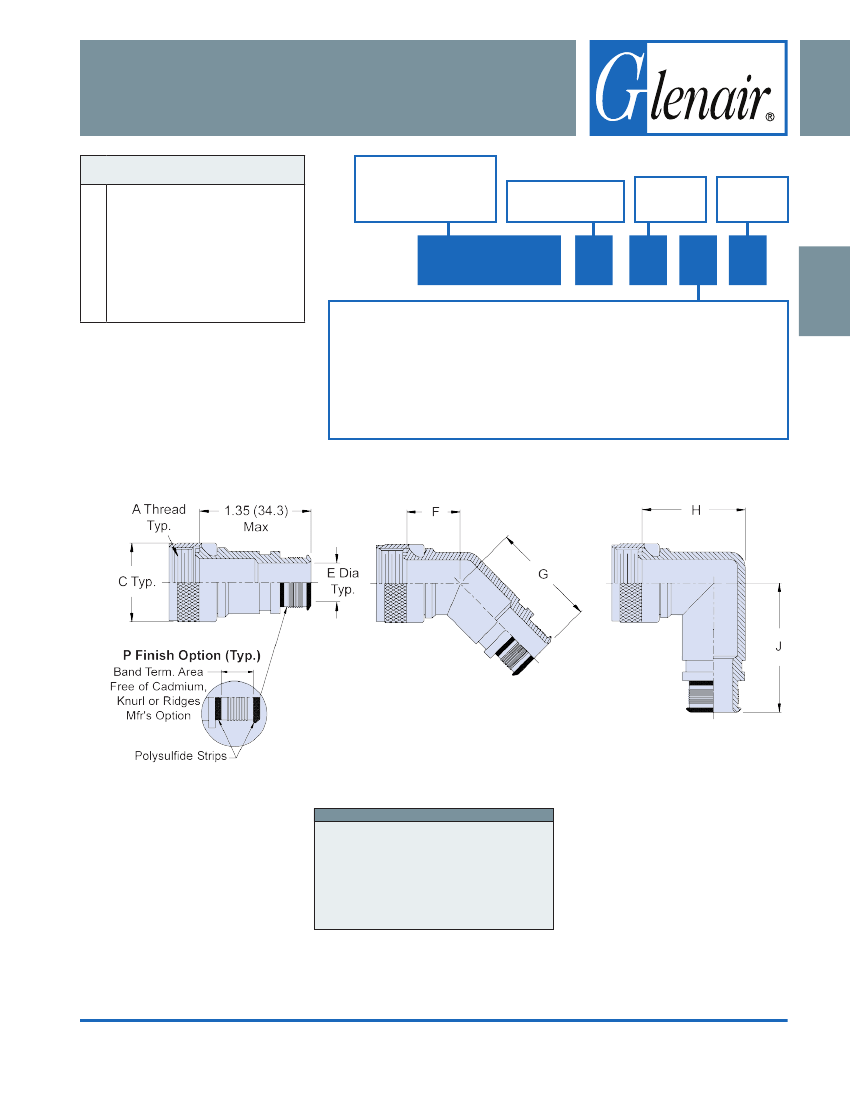

TABLE I: Shell Size, Cable Entry and Backshell Dimensions
E Dia
Cable Entry
Size 02
±.010 (0.30)
E Dia
Cable Entry
Size 03
±.010 (0.30)
F
Max
.870
.890
.920
.940
.960
.980
1.00
1.030
1.050
1.100
(22.1)
(22.6)
(23.4)
(23.9)
(24.4)
(24.9)
(25.4)
(26.2)
(26.7)
(27.9)
G
Max
1.160
1.180
1.200
1.220
1.250
1.260
1.290
1.310
1.340
1.380
(29.5)
(30.0)
(30.5)
(31.0)
(31.8)
(32.0)
(32.8)
(33.3)
(34.0)
(35.1)
H
Max
1.188
1.281
1.406
1.531
1.656
1.718
1.844
1.938
2.093
2.531
(30.2)
(32.5)
(35.7)
(38.9)
(42.1)
(43.6)
(46.8)
(49.2)
(53.2)
(64.3)
J
Max
1.417
1.480
1.542
1.605
1.667
1.730
1.792
1.850
1.917
2.042
(36.0)
(37.6)
(39.2)
(40.8)
(42.3)
(43.9)
(45.5)
(47.0)
(48.7)
(51.9)
N/A
.250 (6.4)
N/A
.312 (7.9)
.312 (7.9)
.438 (11.1)
.438 (11.1) .562 (14.3)
.500 (12.7) .625 (15.9)
.625 (15.9) .750 (19.1)
.625 (15.9) .812 (20.6)
.688 (17.5) .938 (23.8)
.750 (19.1) 1.000 (25.4)
.875 (22.2) 1.125 (28.6)
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-98
E-Mail: sales@glenair.com
