M85049-3A8A1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049-3A8A1

M85049-3A8A1: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters ENV BKSHLL PLG CAP SH SZ 18 ANODIZE; CategoryThe connector; File Size131KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-3A8A1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-3A8A1	-	-	View	Buy Now

M85049-3A8A1 Overview

Circular MIL Spec Strain Reliefs u0026 Adapters ENV BKSHLL PLG CAP SH SZ 18 ANODIZE

M85049-3A8A1 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair
Product	Adapters
MIL Type	MIL-DTL-22992

Preview

Download Datasheet

View All

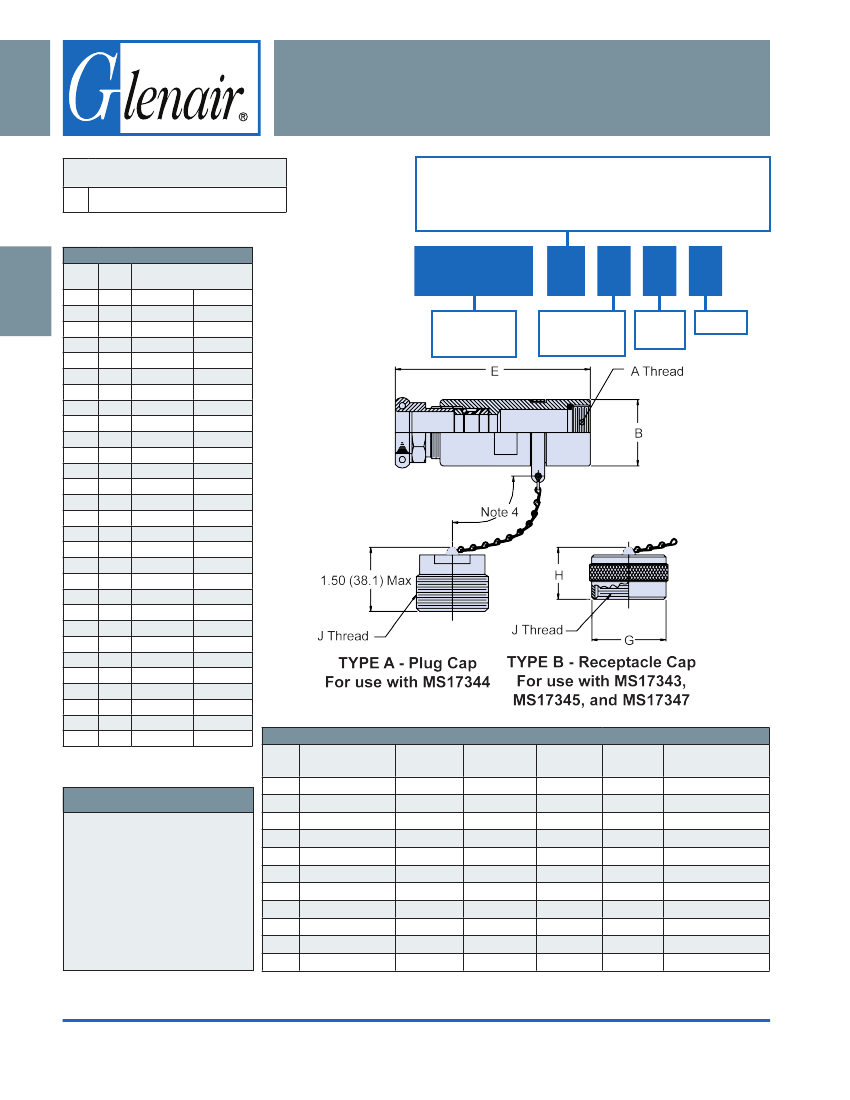

AS85049/3 Style 1

Straight Environmental Backshell

Finish

= Nickel Fluorocarbon Polymer

= Zinc Nickel

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-22992 Classes C, J and R

= Black Anodize

= Cadmium, Olive Drab

= Pure Dense

Electrodeposited Aluminum

TABLE II: Cable Range

Dash

No.

Shell

Size

Cable Range

Min

Max

.281 (7.1)

.188 (4.8)

.344 (8.7)

.511 (13.0)

.436 (11.1)

.311 (7.9)

.531 (13.5)

.605 (15.4)

.406 (10.3)

.361 (9.2)

.715 (18.2)

.449 (11.4)

.637 (16.2)

.787 (20.0)

.692 (17.6)

.930 (23.6)

.675 (17.1)

.984 (25.0)

.755 (19.2)

1.055 (26.8)

1.105 (28.1)

1.185 (30.1)

1.320 (33.5)

1.406 (35.7)

1.250 (31.8)

1.531 (38.9)

1.437 (36.5)

2.105 (53.5)

2.025 (51.4)

.375

.281

(9.5)

(7.1)

M85049/3

Basic

Part Number

Type

Style 1

.438 (11.1)

.605 (15.4)

.530 (13.5)

.405 (10.3)

.625 (15.9)

.699 (17.8)

.500 (12.7)

.455 (11.6)

.828 (21.0)

.562 (14.3)

.750 (19.1)

.900 (22.9)

.805 (20.4)

1.055 (26.8)

1.000 (25.4)

1.109 (28.2)

.880 (22.4)

1.180 (30.0)

1.230 (31.2)

1.310 (33.3)

1.455 (37.0)

1.531 (38.9)

1.375 (34.9)

1.656 (42.1)

1.562 (39.7)

2.250 (57.2)

2.170 (55.1)

Dash Number

(Table II)

TABLE I : Shell Size and Dimensions

Shell

Size

A Thread

Class 2B-LH

.7500 - 20 UNEF

B Dia

±.015 (0.4)

Max

G Dia

Max

J Thread (Plated)

Class 2 (A or B)

APPLICATION NOTES

For complete dimensions see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as the

accommodation range for the wire

bundle or cable. Dimensions shown

are not intended for inspection

criteria.

Approximate chain lengths: Dash

No. 01-12 = 5.0 (127.0); Dash No.

13-29 = 6.0 (152.4).

.933 (23.7) 3.365 (85.5) 1.094 (27.8) .765 (19.4) 0.875-0.1P-0.2L-DS

.8750 - 20 UNEF 1.057 (26.8) 3.678 (93.4) 1.219 (31.0) .765 (19.4) 1.000-0.1P-0.2L-DS

1.0000 - 20 UNEF 1.183 (30.0) 4.177 (106.1) 1.344 (34.1) .980 (24.9) 1.125-0.1P-0.2L-DS

1.1250 - 18 UNEF 1.307 (33.2) 4.489 (114.0) 1.469 (37.3) .980 (24.9) 1.250-0.1P-0.2L-DS

1.2500 - 18 UNEF 1.433 (36.4) 4.615 (117.2) 1.562 (39.7) .980 (24.9) 1.375-0.1P-0.2L-DS

1.3750 - 18 UNEF 1.557 (39.5) 4.647 (118.0) 1.608 (40.8) .980 (24.9) 1.500-0.1P-0.2L-DS

1.6250 - 18 UNEF 1.807 (45.9) 4.896 (124.4) 1.938 (49.2) .980 (24.9) 1.750-0.1P-0.2L-DS

1.8750 - 16 UN 2.057 (52.2) 4.959 (126.0) 2.219 (56.4) .980 (24.9) 2.000-0.1P-0.2L-DS

2.0625 - 16 UNS 2.307 (58.6) 5.021 (127.5) 2.469 (62.7) .980 (24.9) 2.250-0.1P-0.2L-DS

2.3125 - 16 UNS 2.557 (64.9) 5.083 (129.1) 2.719 (69.1) .980 (24.9) 2.500-0.1P-0.2L-DS

2.8750 - 16 UN 3.120 (79.2) 6.471 (164.4) 2.969 (75.4) .980 (24.9) 3.000-0.1P-0.2L-DS

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-4
