BND40AC00-1607A datasheet, PDF

Datasheet> All Categories > The connector> BND40AC00-1607A

BND40AC00-1607A: DescriptionBND40AC00-1607A; CategoryThe connector; File Size1MB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BND40AC00-1607A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BND40AC00-1607A	-	-	View	Buy Now

BND40AC00-1607A Overview

BND40AC00-1607A

BND40AC00-1607A Parametric

Parameter Name	Attribute value
Pluggable I/O Accessory Types	strip, strip
Adapter angle	00
type	strip adapter
Termination device type	Bands
Connector housing size	17, E
Includes termination device	Bands
color	bright light
Material	aluminum
Adapter plating material	Electroless Nickel Plating (AMS-C-26074)
TE adapter code	40
Adapter inlet size	7
Braid Termination	Bands
Cable diameter range	5.6 – 8.9 mm [ .219 – .35 in ]
Cable entry diameter	.2 – 11.1 mm [ .01 – .44 in ]
Working group temperature range	-65 – 200 °C [ -85 – 392 °F ]
Salt spray resistance (Hr)	48
Connector detailed specification number	D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47
Connector general specification number	MIL-DTL-38999 Series III/Classes C, F, K, W, MIL-DTL-38999 Series IV/Classes C, F, W, MIL-DTL-38999 Series IV/Classes C, W, MIL-DTL-3899

Preview

Download Datasheet

View All

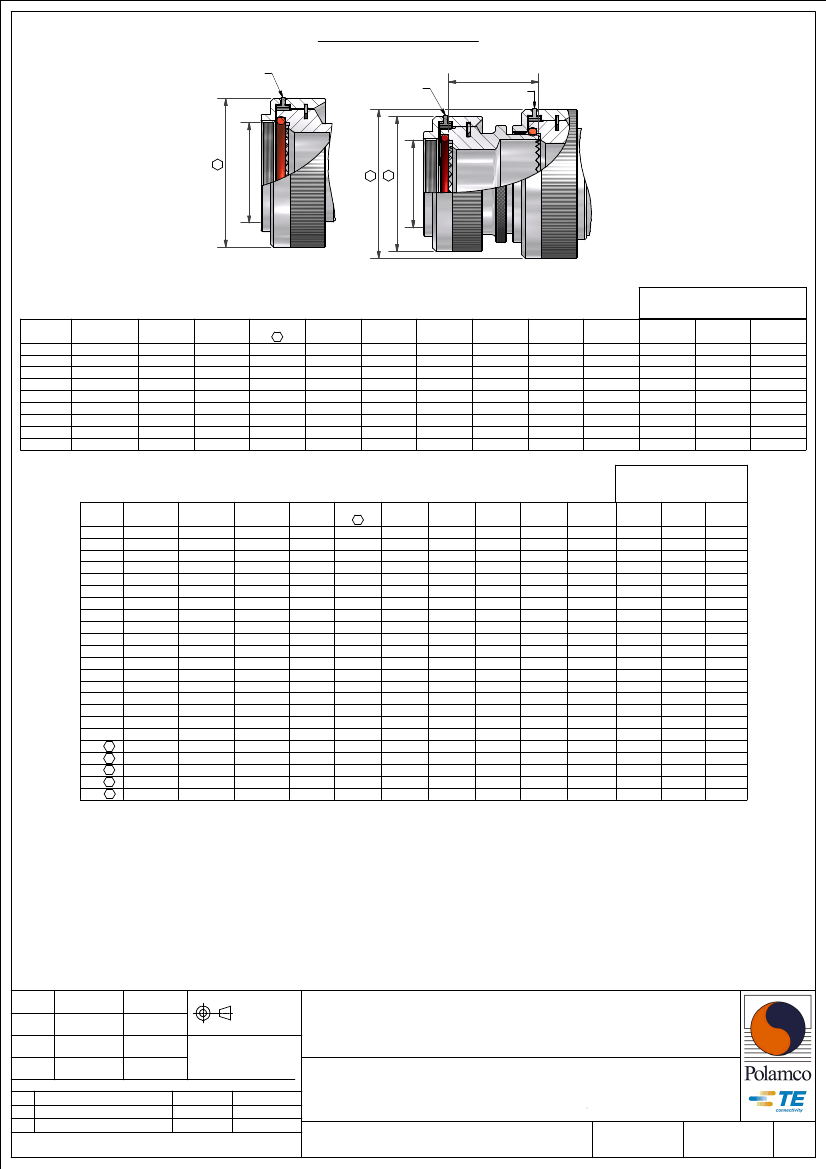

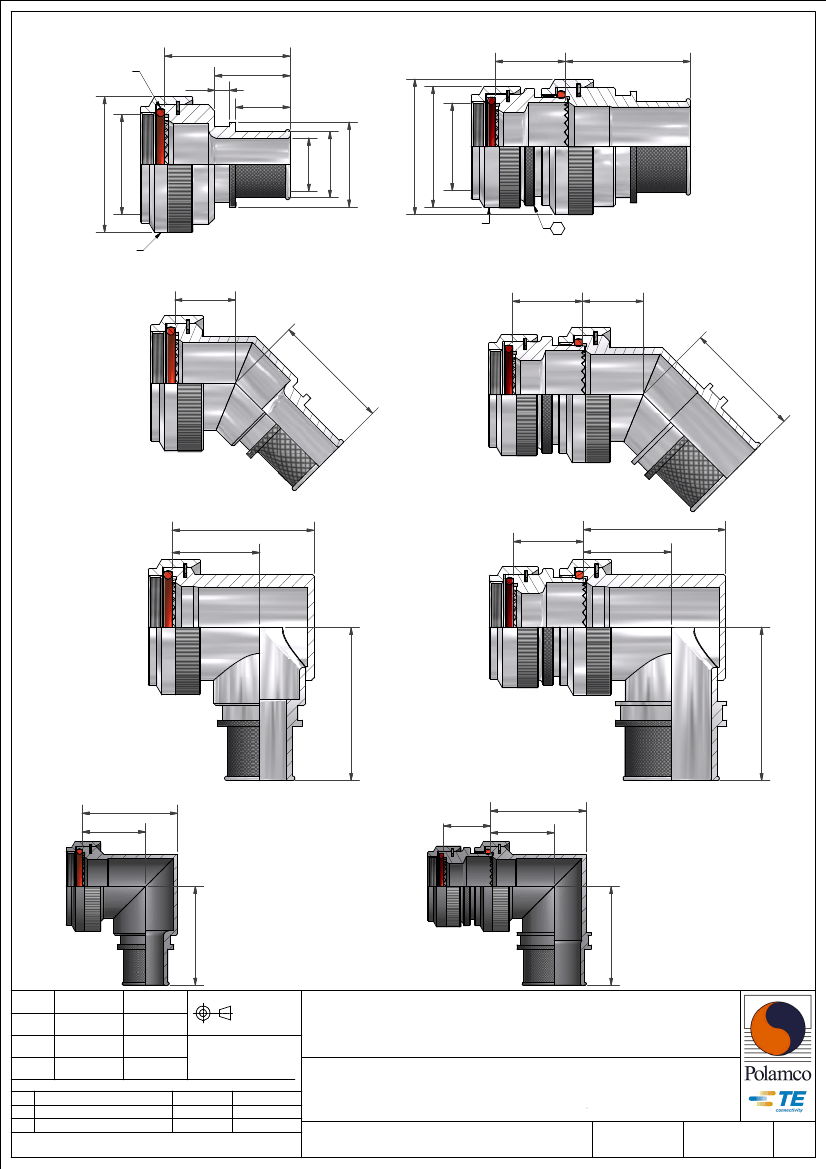

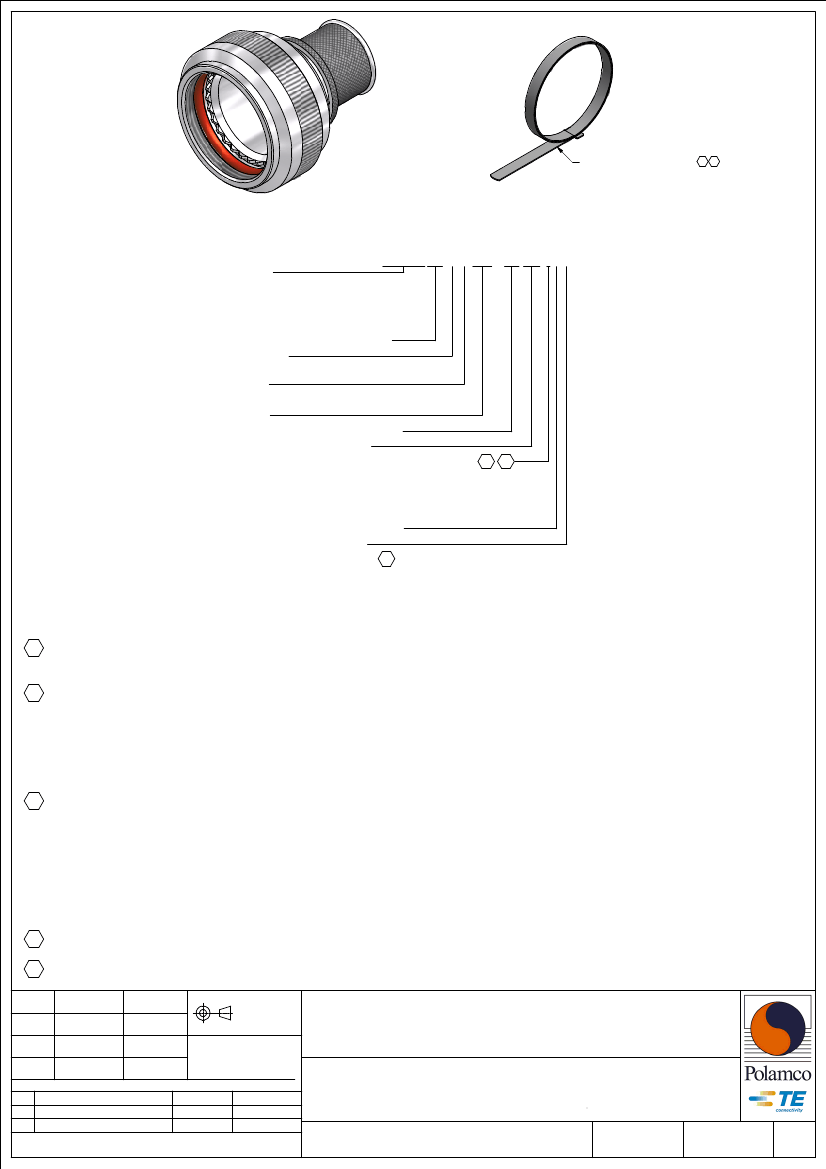

BAND (SUPPLIED FLAT) 3 8

(SEE PART NUMBER BREAKDOWN

FOR OPTIONS)

CODE 40 - BANDING BACKSHELL

SERIES

BNX40AB00-1608 -S

BNX - BAND STRAP NOT INCLUDED

BND - BAND STRAP INCLUDED

(SEE BAND TERMINATION

CONFIGURATION)

CONNECTOR INTERFACE

MATERIAL

REFER TO CH00-0250-016

FINISH

REFER TO CH00-0250-016

ANGLE

ORDER NUMBER (TABLE 1)

ENTRY SIZE (TABLE 2)

BAND TERMINATION CONFIGURATION 3 8

V - ONE STEP STANDARD BAND

W - ONE STEP MICROBAND

U - TWO STEP STANDARD BAND

FOR BNX, LEAVE BLANK

OPTION FIELD SEPARATOR

MODIFICATION CODE

NOTES:

REFER TO CH00-0250-016 2

1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD BY MEANS

OF A BAND STRAP AND A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.

2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,

SEE CH00-0250-016.

3. SEE DRAWING BND-XXXXX FOR MORE INFORMATION.

4. BACKSHELL TO BE PERMANENTLY MARKED WITH CODE IDENTIFICATION NUMBER AND FULL BASIC

PART NUMBER (e.g. 06090-BND40AB00-1814). BACKSHELL TO BE MARKED WITH "BND" EVEN IF

NO BAND IS ORDERED. THE BAND TERMINATION CONFIGURATION CODE IS FOR ORDERING INFORMATION ONLY

AND IS NOT A PART MARKING REQUIREMENT.

5. ALL ENTRY SIZES ARE SHOWN IN TABLE 2. MAXIMUM ENTRY SIZES ARE SHOWN IN TABLE 1.

IF MAX ENTRY IS EXCEEDED, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.

SEE CH00-0250-016 FOR FURTHER DETAILS.

6. BACKSHELL MATES TO MIL-DTL-38999, SERIES III AND IV, CLASS C, F, K, AND W,

D38999/20, /24, /26, /40, /46 AND /47 CONNECTORS, AND WHEN SO

MATED SHALL PROVIDE A WATER-TIGHT SEAL MEETING THE REQUIREMENTS OF

MIL-C-85049, PARA. 3. 5. 7.

7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED

8. V AND U BANDS ARE SUITABLE FOR ENTRY SIZES 03-24, W IS SUITABLE FOR ENTRY SIZES 03-12 ONLY.

CONTACT FACTORY FOR BAND OPTIONS ON LARGER ENTRY SIZES.

DRAWN

K.WINCZURA

CHECKED

APPROVED

K.SHEPPARD

APPROVED

DATE

15/09/2015

3RD ANGLE

PROJECTION

NOT TO

SCALE

UNLESS OTHERWISE SPECIFIED

ALL DIMENSIONS IN MILLIMETRES

GENERAL TOL

LINEAR +/-0,25MM

ANGULAR +/- 1°

TITLE:

BANDING BACKSHELL

ASSY USED ON:

H.SMITH

REVISIONS

LTR

DESCRIPTION

REVISED PER ECO-15-010973

REVISED PER ECO-15-016545

DATE

15/09/2015

17/11/2015

APPROVED

H.SMITH

MIL-DTL-38999 SERIES III & IV

TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING

AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD

INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.

TE CAGE CODE: 06090

POLAMCO/TE CAGE CODE: U5792

DRAWING NO:

DRAWING REV:

SHT

BND40A

BND40AC00-1607A Related Products

	BND40AC00-1607A	BND40AC00-1605A	BND40AB00-2214A
Description	BND40AC00-1607A	BND40AC00-1605A	BND40AB00-2214A
Pluggable I/O Accessory Types	strip, strip	strip, strip	strip, strip
Adapter angle	00	00	00
type	strip adapter	strip adapter	strip adapter
Termination device type	Bands	Bands	Bands
Connector housing size	17, E	17, E	23, H
Includes termination device	Bands	Bands	Bands
color	bright light	bright light	Grass green
Material	aluminum	aluminum	aluminum
Adapter plating material	Electroless Nickel Plating (AMS-C-26074)	Electroless Nickel Plating (AMS-C-26074)	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)
TE adapter code	40	40	40
Adapter inlet size	7	5	14
Braid Termination	Bands	Bands	Bands
Cable diameter range	5.6 – 8.9 mm [ .219 – .35 in ]	4 – 6.4 mm [ .156 – .25 in ]	11.1 – 17.8 mm [ .438 – .7 in ]
Cable entry diameter	.2 – 11.1 mm [ .01 – .44 in ]	.2 – 7.9 mm [ .01 – .31 in ]	.2 – 22.2 mm [ .01 – .88 in ]
Working group temperature range	-65 – 200 °C [ -85 – 392 °F ]	-65 – 200 °C [ -85 – 392 °F ]	-65 – 175 °C [ -85 – 347 °F ]
Salt spray resistance (Hr)	48	48	500
Connector detailed specification number	D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47	D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47	D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47
Connector general specification number	MIL-DTL-38999 Series III/Classes C, F, K, W, MIL-DTL-38999 Series IV/Classes C, F, W, MIL-DTL-38999 Series IV/Classes C, W, MIL-DTL-3899	MIL-DTL-38999 Series III/Classes C, F, K, W, MIL-DTL-38999 Series IV/Classes C, F, W, MIL-DTL-38999 Series IV/Classes C, W, MIL-DTL-3899	MIL-DTL-38999 Series III/Classes C, F, K, W, MIL-DTL-38999 Series IV/Classes C, F, W, MIL-DTL-38999 Series IV/Classes C, W, MIL-DTL-3899
