360GS003NF2508A5 datasheet, PDF

Datasheet> All Categories > The connector> 360GS003NF2508A5

360GS003NF2508A5: DescriptionCircular MIL Spec Backshells NON ENV BS STRN RLF ROTATE STRT MED DUTY; CategoryThe connector; File Size50KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

360GS003NF2508A5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	360GS003NF2508A5	-	-	View	Buy Now

360GS003NF2508A5 Overview

Circular MIL Spec Backshells NON ENV BS STRN RLF ROTATE STRT MED DUTY

360GS003NF2508A5 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-28840
Factory Pack Quantity	1

Preview

Download Datasheet

View All

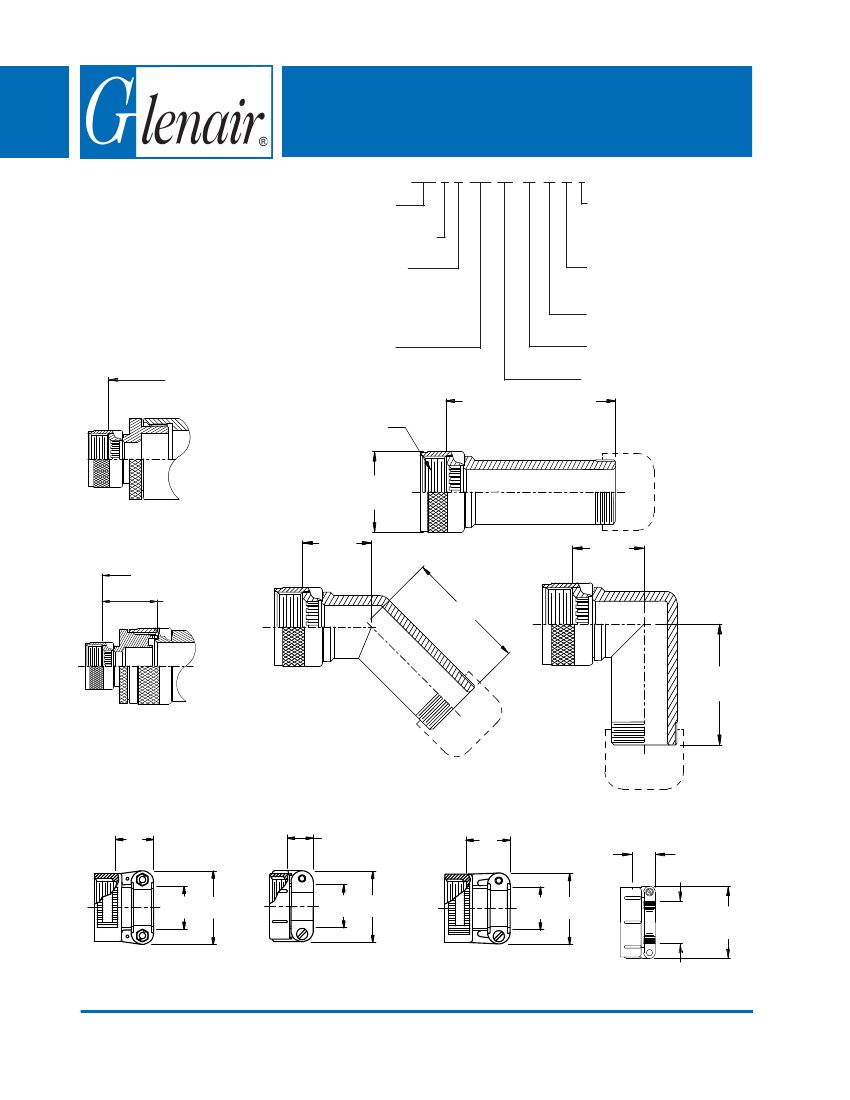

360-003

Non-Environmental Backshell

with Strain Relief

Standard Profile - Rotatable Coupling

360 G S 003 NF 17 10 M 6

CONNECTOR

DESIGNATOR

Product Series

Connector Designator

Angle and Profile

H = 45°

J = 90°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, F)

Cable Entry (Tables X, XI, XII)

Shell Size (Table I)

Finish (Table II)

ROTATABLE

COUPLING

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

Length ± .060 (1.52)

1.25 (31.8)

Max

C Typ.

(Table I)

(Table III)

F (Table III)

H (Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE F

Light Duty

(Table XII)

.416 (10.5)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 36 - Page 6
