Base strip - ICV 2,5/12-GF-5,08 - 1825792
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 12, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Mounting: Wave soldering

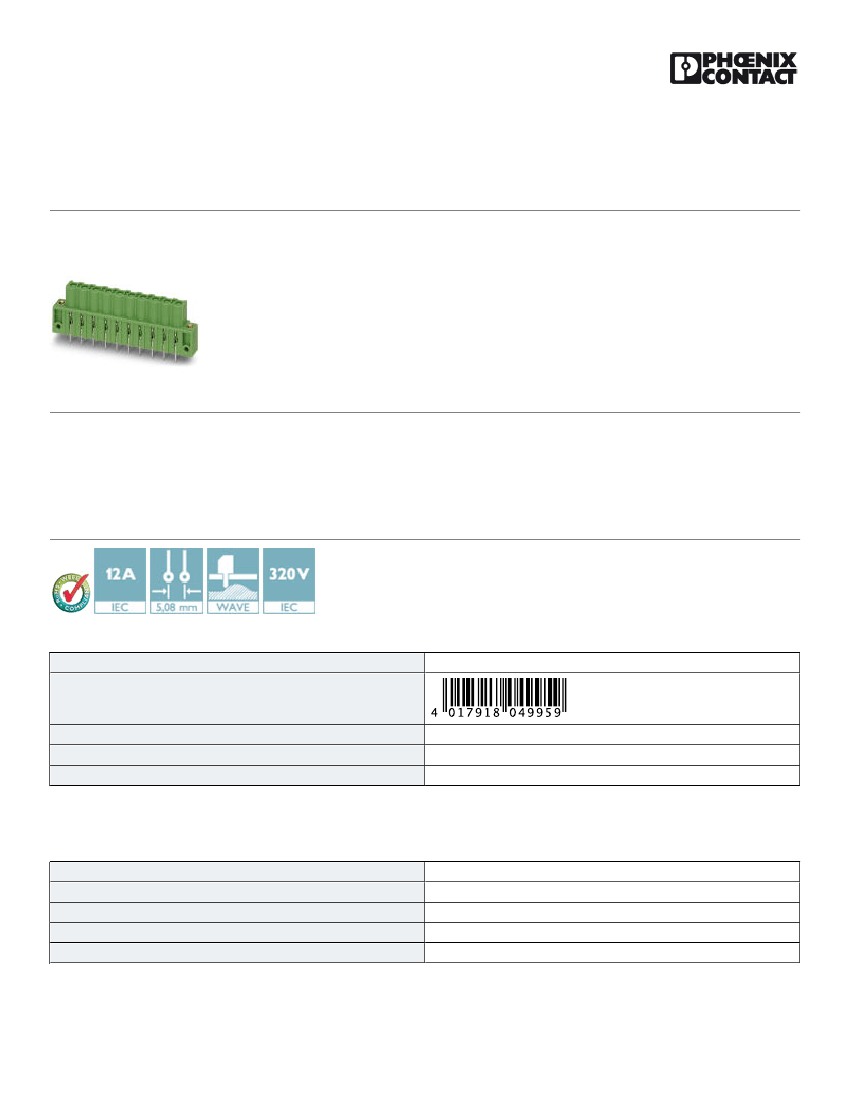

The figure shows a 10-position
version of the product
Product Features
■
■
■
■
Combination with MSTB 2,5 headers for primary/secondary/PCB connection
Pairs of guide rails can be used as a 90° board-to-board connection
Use in shock-proof applications
Clear separation of PCB inputs/outputs
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
12.95 g
85366990
Germany
1 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
10.2 mm
5.08 mm
55.88 mm
19 mm
3.6 mm
04/22/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1825792
Base strip - ICV 2,5/12-GF-5,08 - 1825792
Technical data
Dimensions
Pin dimensions
Hole diameter
1,2 x 0,5
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
ICV 2,5/..-GF
I
4 kV
4 kV
4 kV
320 V
320 V
630 V
EN-VDE
12 A
12 A
PA
V0
green
12
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
04/22/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1825792
Base strip - ICV 2,5/12-GF-5,08 - 1825792
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
Nominal current IN
Nominal voltage UN
B
10 A
300 V
D
10 A
300 V
UL Recognized
Nominal current IN
B
12 A
D
10 A
04/22/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1825792
Base strip - ICV 2,5/12-GF-5,08 - 1825792
Approvals
Nominal voltage UN
B
250 V
D
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
12 A
250 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
12 A
250 V
D
10 A
300 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
12 A
250 V
EAC
EAC
cULus Recognized
Accessories
Accessories
Coding element
04/22/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1825792
Base strip - ICV 2,5/12-GF-5,08 - 1825792
Accessories

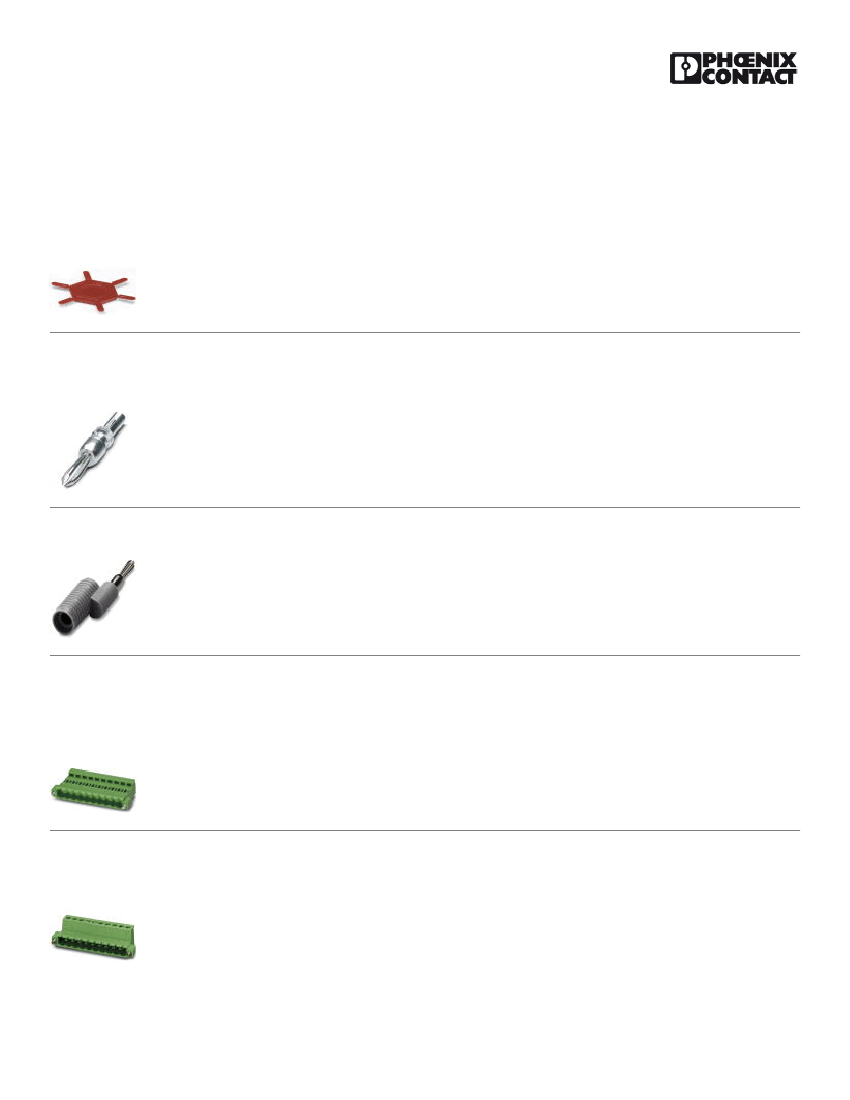

Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
Test plug terminal block
Test plugs - MPS-MT - 0201744
Test plugs, Color: silver
Reducing plug - RPS - 0201647
Reducing plug, Color: gray
Additional products
Printed-circuit board connector - ICC 2,5/12-STZF-5,08 - 1823480
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 12, Pitch: 5.08 mm,
Connection method: Crimp connection, Color: green, Corresponding male crimp contacts with current [A] and conductor
cross section range [mm²] data: 10A/ICC-MT 0,5-1,0 (3190577); 10A/ICC-MT 0,5-1,0 BA (3190603); 12A/ICC-MT 1,5-2,5
(3190580); 12A/ICC-MT 1,5-2,5 BA (3190593). BA = Bandkontakte
Printed-circuit board connector - IC 2,5/12-STF-5,08 - 1825417
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 12, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
04/22/2016 Page 5 / 6
