• High temperature insulator compatible with IR and
wave soldering
• Solder brackets increase connector stability to protect
contact solder joint integrity
• Polarized alignment posts insure correct mating
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 4, 2010
TS-2056-B
Sheet 1 of 2
Physical
Insulator:
Material: Glass Filled Nylon
Flammability: UL 94V-0
Color: Brown
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: Gold Flash
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility: TS-2055
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC MSL1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

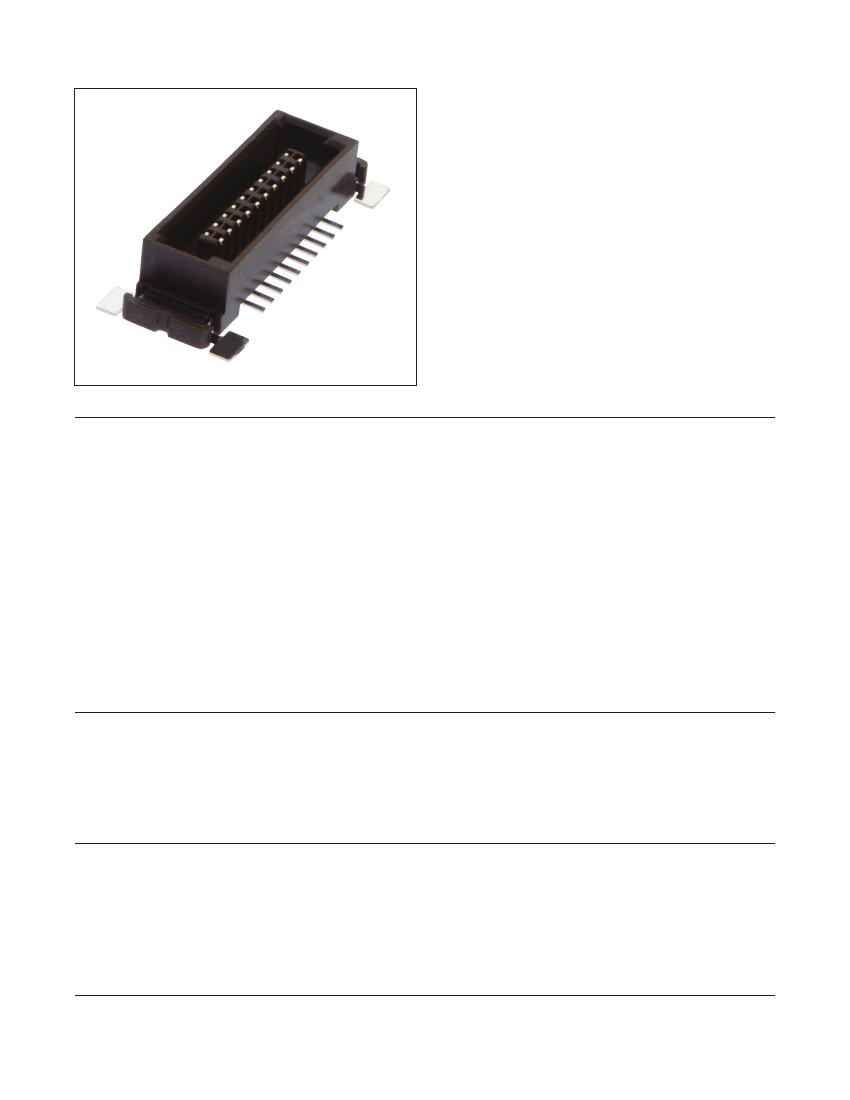

Pak 50 Low Profile Plug
.050" Surfacemount Plug .276" and .315" Mating Heights
Contact
Quantity
20
30
40
50
60
80
100
120
A
24.03
[0.946]
30.38
[1.196]
36.73
[1.446]
43.08
[1.696]
49.43
[1.946]
62.13
[2.446]
74.83
[2.946]
87.53
[3.446]
B
21.03
[0.828]
27.38
[1.078]
33.73
[1.328]
40.08
[1.578]
46.43
[1.828]
59.13
[2.328]
71.83
[2.828]
84.53
[3.328]
C
17.43
[0.686]
23.78
[0.936]
31.13
[1.186]
36.48
[1.436]
42.83
[1.686]
55.53
[2.186]
68.23
[2.686]
80.93
[3.186]
D
15.83
[0.623]
22.18
[0.873]
28.53
[1.123]
34.88
[1.373]
41.23
[1.623]
53.93
[2.123]
66.63
[2.623]
79.33
[3.123]
E
13.13
[0.517]
19.48
[0.767]
25.83
[1.017]
32.18
[1.267]
38.53
[1.517]
51.23
[2.017]
63.93
[2.517]
76.63
[3.017]
F
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
G
14.23
[0.560]
20.58
[0.810]
26.93
[1.060]
33.28
[1.310]
39.63
[1.560]
52.33
[2.060]
65.03
[2.560]
77.73
[3.060]

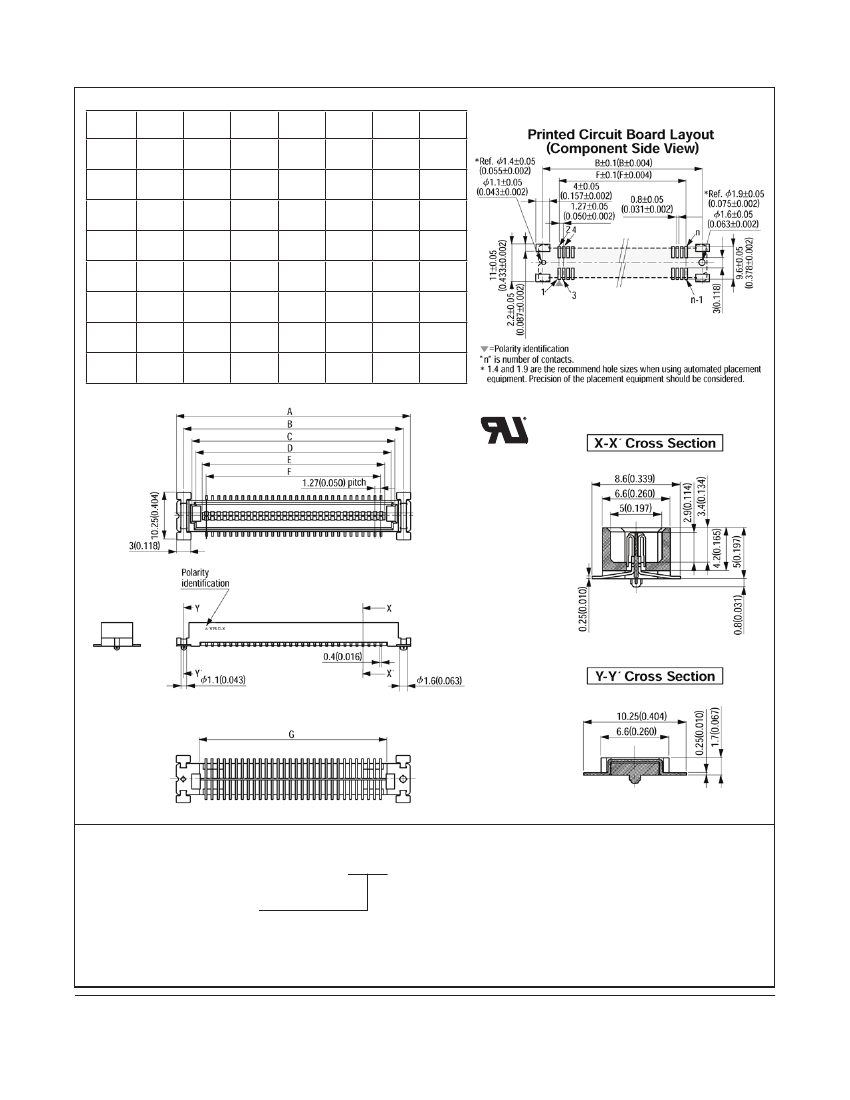

P50L Series
Ordering Information
P50L - XXXP - AS - DA
Contact Quantity:
See Table
(RIA E1 and C1 apply)
TS-2056-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
