3M
™
Pak 8 Plug Connector
0.8 mm, Vertical, Surfacemount, 3 mm Stack Height
•
•
•
•
P08 Series
0.8 mm pitch connector system
3 mm mated stack height
Surface mount design
Locking mechanism with audible click when
fully-mated
• Tape and reel with suction covers available for
automated assembly placement
• RoHS Compliant.
See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: February 23, 2017
TS-1096-G
Sheet 1 of 2
Physical
Insulation
Material:
High Temp Thermo Plastic
Flammability:
UL 94V-0
Color:
Natural
Contact:
Material:
Copper Alloy
Plating:
Underplating:
50 µ” [1.25 µm] Nickel
Wiping Area:
8 µ” [ 0.20 µm ] Gold
Solder Tails:
Gold Flash
Mating Compatibility:
P08 Series Sockets. TS-1150
Electrical
Current Rating:
0.5 A
Voltage Rating:
60 V
AC/DC
Insulation Resistance:
10
3
MW min. at 500 V
DC
Withstanding Voltage:
250 V
AC
for 1 minute
Environmental
Temperature Rating:
-55˚C to +85˚C
Process Rating:
245°C (profile per J-STD-020)
Moisture Sensitivity Level:
MSL 1 (per J-STD-020)
Electronics Materials Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

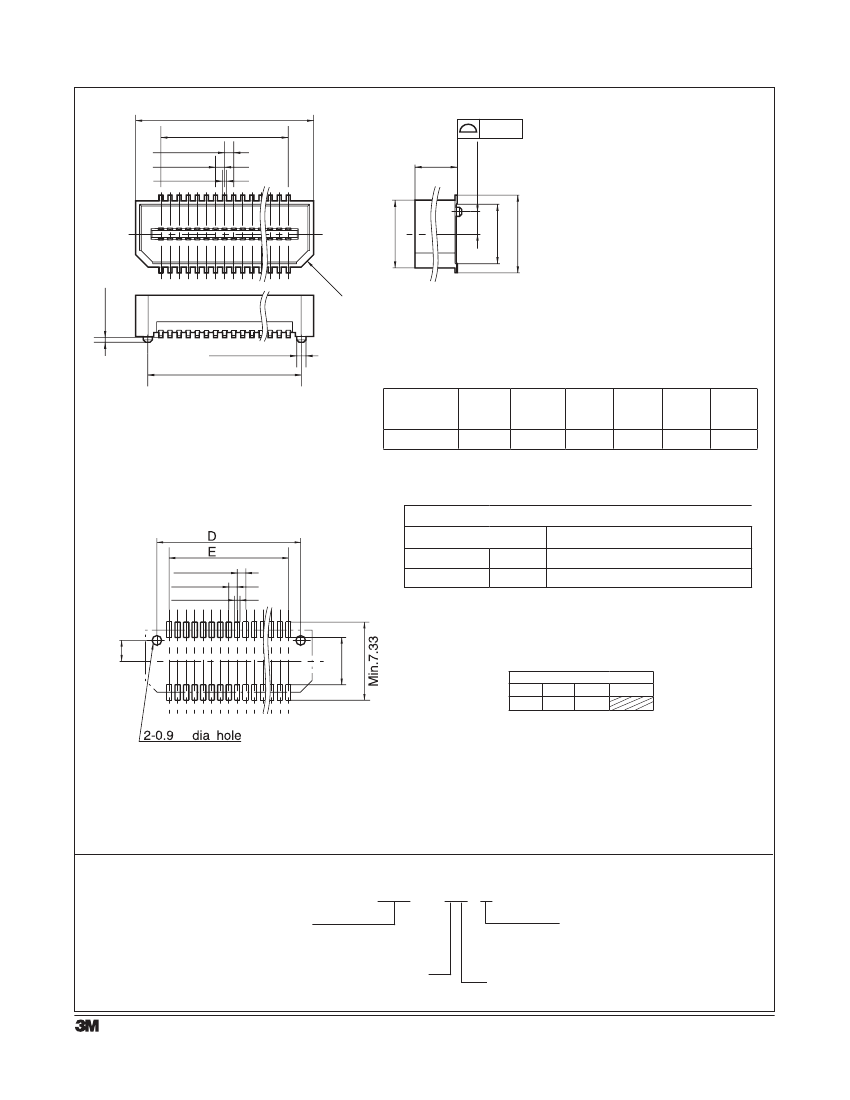

Pak 8 Plug Connector
A
B±0.15
0.80±0.1
0.80±0.1
0.35±0.1
0.8 mm, Vertical, Surfacemount, 3 mm Stack Height
Terminal coplanarity
F
G
1.95±0.1
P08 Series
5.95
0.40
+0.2
–0.1
0.8±0.05 dia.
C±0.1
5.23
6.83
C
10
1.
Dimensions
No of
Contacts
20
A
11.65
B
7.2
C
9.5
D
9.5
E
7.2
F
0.1
Stacking Matrix
±0.05
±0.05
0.80±0.05
0.80±0.05
0.50±0.05
1.95±0.1
4.43±0.1
Stack Height When Mated To:
Plug Type
A
Dim G
2.72
A Skt
3
mm
(inch)
Tolerance Unless Noted
mm
+0.1
0
.
( ) Dimensions used for
Reference Only
.0
±.3
.00
±.3
.000
Ordering Information
Contact Quantity
See Table
P08 ‑ XXX ‑ PLXX ‑ A ‑ G
(RIA E1 & C1 apply)
Height Options:
A = 2.72 mm Height
Packaging:
T = Tape & Reel (opt)
Blank = Tube Pack
C = Suction Cover
Blank = none
TS-1096-G
Sheet 2 of 2
Electronics Materials Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory: For regulatory information about this product, contact your 3M representative.
Technical Information: The technical information, recommendations and other statements contained in this document are
based upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not
guaranteed.
Product Use: Many factors beyond 3M’s control and uniquely within user’s control can affect the use and performance of a
3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product,
user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable
for user’s method of application.
Warranty, Limited Remedy, and Disclaimer: Unless an additional warranty is specifically stated on the applicable 3M product
packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the time
3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE
OR TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M’s option,
replacement of the 3M product or refund of the purchase price.
Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M
product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including
warranty, contract, negligence or strict liability.
3M Electronics Materials Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
3M is a trademark of 3M Company.
Please recycle. Printed in USA.
© 3M 2017. All rights reserved.
RIA-2217B-E
