Plug - SPDB 2,5/ 6 - 3040452
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Spring-cage connection, Number of positions: 6, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 31.2 mm, Height: 39 mm, Color: gray

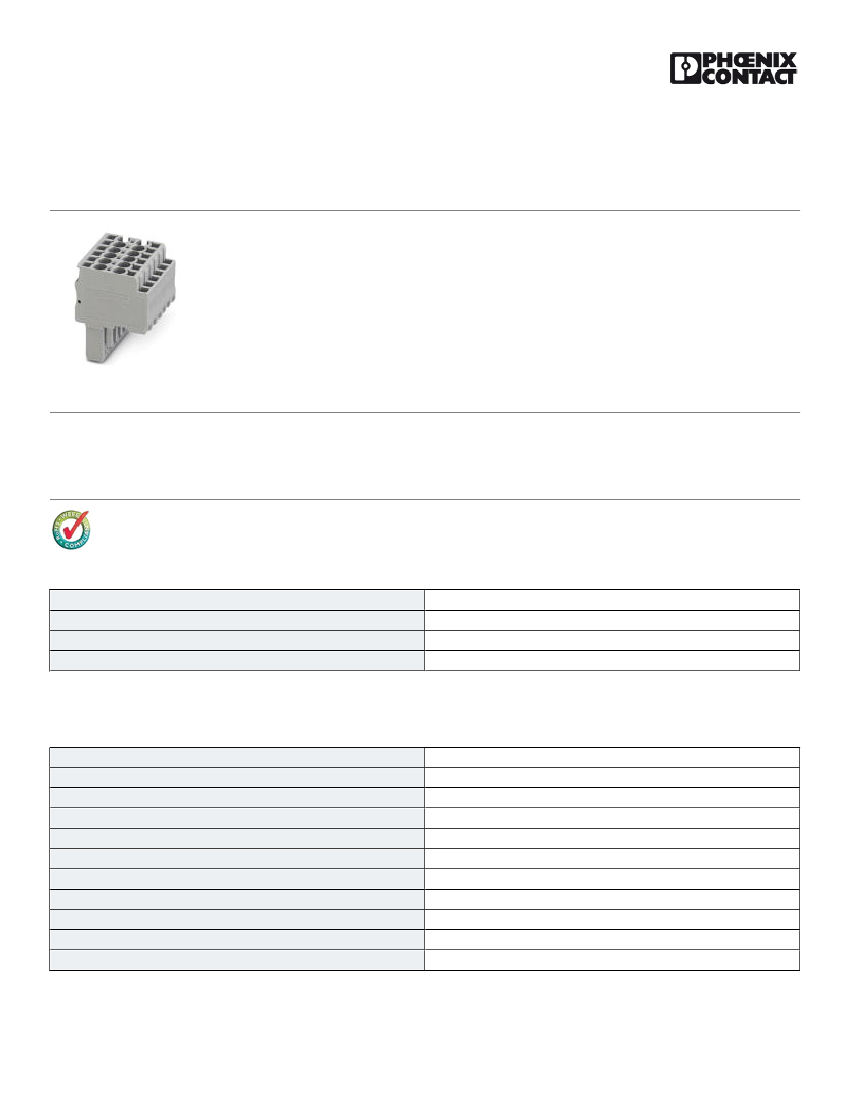

The illustration shows a 6-position
version
Product Features
■
■
Plug with bridging option, for use with basic terminal blocks
Tested for railway applications
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
30.46 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
6
2.5 mm²
gray
PA
V0
Railway industry
Machine building
Plant engineering
Maximum load current
Rated surge voltage
24 A (with a 2.5 mm² conductor cross section)
6 kV
04/27/2016 Page 1 / 16
https://www.phoenixcontact.com/us/products/3040452
Plug - SPDB 2,5/ 6 - 3040452
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
3
III
I
24 A (with 4 mm² conductor cross section)
24 A
500 V
No
Dimensions
Width
Length
Height
Pitch
31.2 mm
32.7 mm
39 mm
24.00 mm
5.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Spring-cage connection
IEC 61984
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
Connection method
8 mm ... 10 mm
A3
Plug connection
Standards and Regulations
Connection in acc. with standard
CSA
IEC 61984
04/27/2016 Page 2 / 16
https://www.phoenixcontact.com/us/products/3040452
Plug - SPDB 2,5/ 6 - 3040452
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141151
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / LR / GL / BV / RS / EAC / cULus Recognized
Ex Approvals
04/27/2016 Page 3 / 16
https://www.phoenixcontact.com/us/products/3040452
Plug - SPDB 2,5/ 6 - 3040452
Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-12
20 A
300 V
C
24-12
20 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
LR
GL
BV
RS
EAC
04/27/2016 Page 4 / 16
https://www.phoenixcontact.com/us/products/3040452
Plug - SPDB 2,5/ 6 - 3040452
Approvals
cULus Recognized

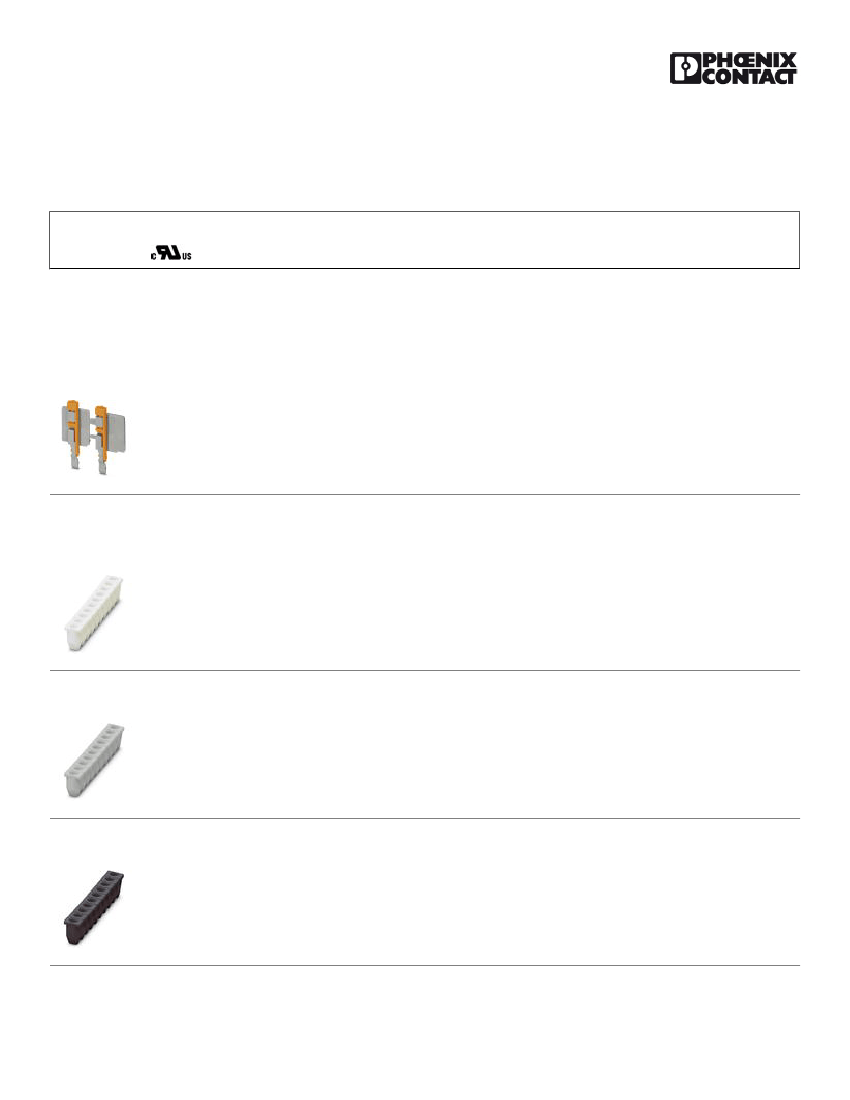

Accessories
Accessories
Flange
Flange cover - DFS-SPDB 2,5 - 3061457
Flange cover, Length: 35.8 mm, Width: 4.5 mm, Height: 24.7 mm, Color: gray
Insulating sleeve
Insulating sleeve - ISH 2,5/0,2 - 3002843
Insulating sleeve, Color: white
Insulating sleeve - ISH 2,5/0,5 - 3002856
Insulating sleeve, Color: gray
Insulating sleeve - ISH 2,5/1,0 - 3002869
Insulating sleeve, Color: black
