850-002-22-360: DescriptionCircular MIL Spec Contacts PIN 22D GA CRIMP 22-28 AWG; CategoryThe connector; File Size480KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

850-002-22-360 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	850-002-22-360	-	-	View	Buy Now

850-002-22-360 Overview

Circular MIL Spec Contacts PIN 22D GA CRIMP 22-28 AWG

850-002-22-360 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Contacts
Manufacturer	Glenair

Preview

Download Datasheet

View All

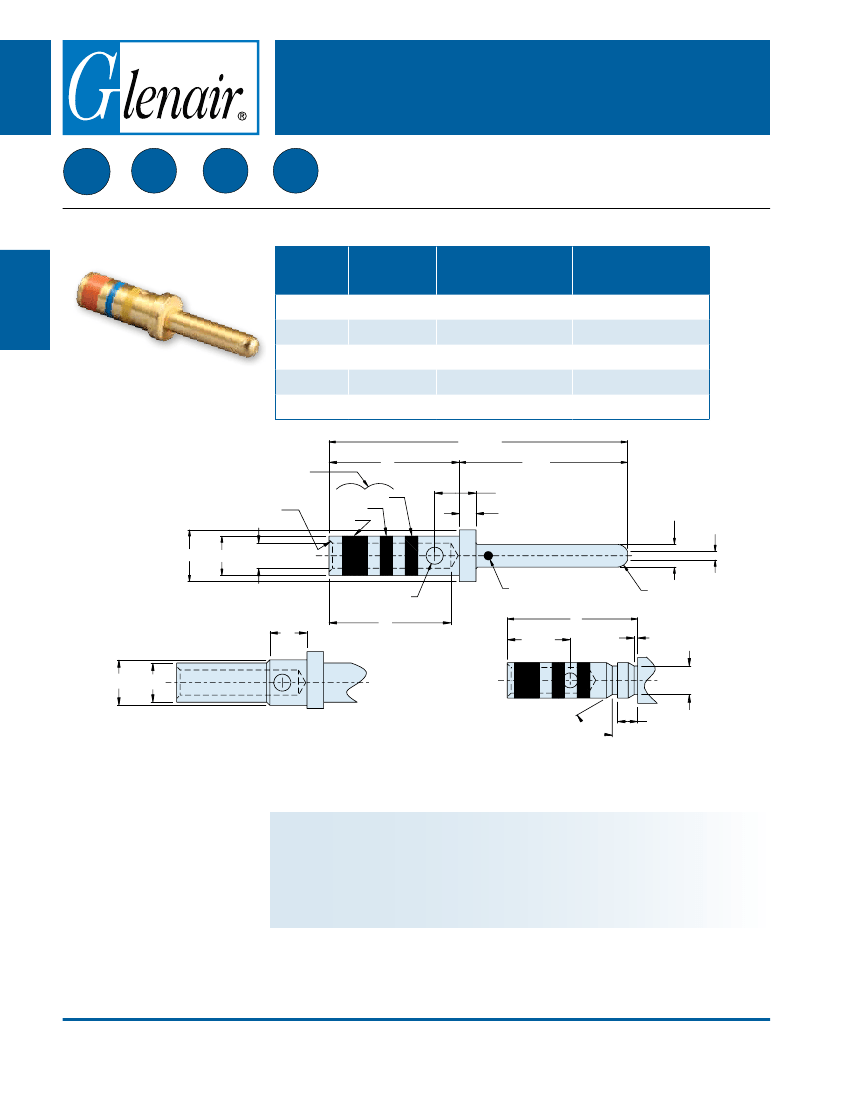

Standard Duty Electrical Pin Contact

D38999

M39029/58

850-002

A

AS39029

Ser. I, II, III, IV

M24308

M55302

M83733

Standard Pin Crimp Contact for MIL-DTL-38999 Series I, II, III and IV Connectors

Mating End

Size

22

20

16

12

10

Wire

Accomodation

22-28 AWG

20-24 AWG

16-20 AWG

12-14 AWG

10 AWG

Military Part Number

M39029/58-360

M39029/58-363

M39029/58-364

M39029/58-365

M39029/58-528

T (Ref)

Color Bands

H x 45°

2nd

1st

S

3rd

M

.033

.029

.300

.295

Glenair Part Number

850-002-22-360

850-002-20-363

850-002-16-364

850-002-12-365

850-002-10-528

ØB

Ø F (Flat)

ØC

ØG

ØE

Ø D Thru

One Side Only

V

K

Manufacturer

Symbol

S

.129

.122

A Rad

.010 Typ

.004

.041

Ø.036

ØG

ØU

.040

.030

-10-528 Only

60°

Typ

Material and Finish*

Pin Contact: Copper Alloy/Gold Plated

Socket Contact: Copper Alloy/Gold Plated

Socket Contact Hood: Passivated Stainless Steel

* See pages A-4 and A-5 for detailed material specifications

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

A-10
