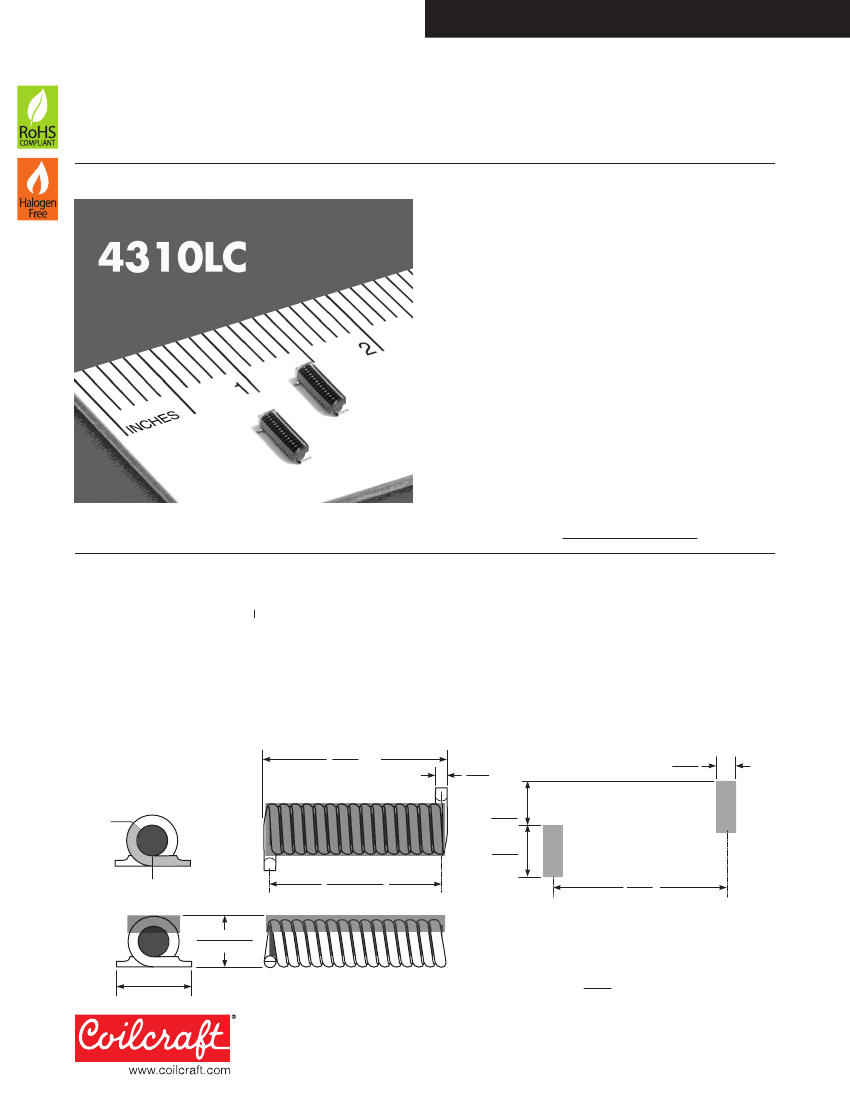

Document 878-1
Wideband Bias Chokes – 4310LC
• Flat bandwidth with high impedance to 6 GHz
• Low DCR and excellent current handling
• Ideal for use in high current bias Tee applications
Core material
Ferrite
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver (96.5/3.5) over copper.
Other terminations available at additional cost.
Weight
0.42 g
Ambient temperature
–40°C to +85°C with
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise)
Storage temperature
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
350/7″ reel,1500/13″ reel; Plastic tape: 24 mm wide,
0.3 mm thick, 12 mm pocket spacing, 3.5 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
4310LC-132KE_
4310LC-352KE_
Inductance
2
±10% (µH)
1.30
3.50
SRF (typ)
3
(MHz)
235
188
DCR (max)
4
(mOhm)
15.1
49.0
Irms
(A)
5
20°C rise
40°C rise
2.7
2.3
4.2
3.1
1. When ordering, please specify
packaging
code:
Packaging:
4310LC-132KEC
C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (350 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (1500 parts per
full reel).
0.460
max
11,68
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP
16193 fixture in Agilent/HP 4284A impedance analyzer. or equivalents.
3. SRF measured using Agilent/HP 8753D network analyzer or equivalent
and a Coilcraft SMD-F test fixture.
4. DCR measured on Keithley 580 micro-ohmmeter or equivalent.
5. Current that causes the specified temperature rise from 25°C ambient.
Because of their open construction, these parts will not saturate.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Strip
Length
135°
max
0.030
0,76
0.110
2,79
0.130
3,30
0.050
1,27
Recommended
Land Pattern
0.420
10,67
0° min
0.420 ±0.015
10,67 ±0,381
0.130 ±0.010
3,30 ±0,254
0.190 ±0.030
4,826 ±0,76
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 878-1
Revised 01/04/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 878-2

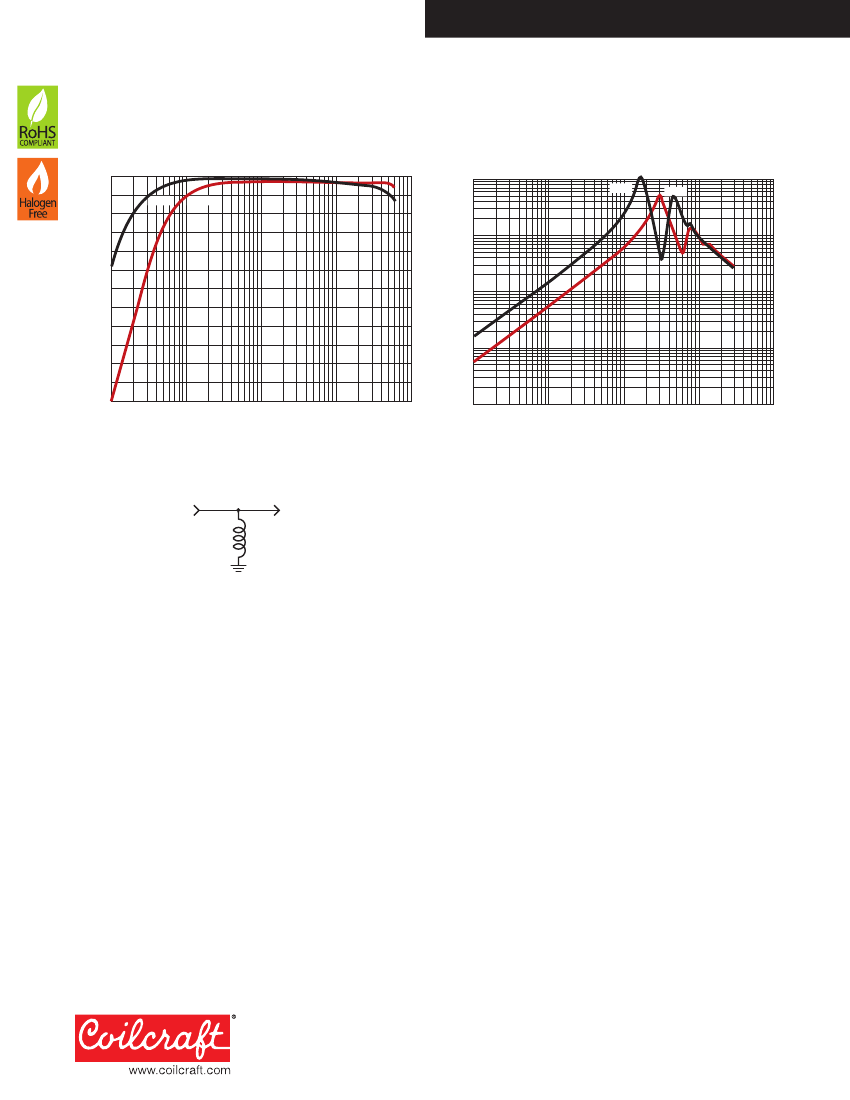

Wideband Bias Chokes – 4310LC
Insertion Loss
(Ref: 50 Ohms)
0
1
2
-352
-132
Impedance vs Frequency
10000
-352
-132
Impedance (Ohms)
1
10
100
1000
10000
3
4
1000
S21 (dB)
5
6
7
8
9
10
11
12
100
10
1
Frequency (MHz)
Insertion loss measured in a bias tee configuration with an Agilent/HP 8753ES
network analyzer.
1
10
100
1000
10000
Frequency (MHz)
Port 1
Port 2
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 878-2
Revised 01/04/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
