ZTB800J: DescriptionBoard Mount Motion u0026 Position Sensors; CategoryPassive components; File Size496KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

ZTB800J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZTB800J	-	-	View	Buy Now

ZTB800J Overview

Board Mount Motion u0026 Position Sensors

ZTB800J Parametric

Parameter Name	Attribute value
Product Category	Resonators
Manufacturer	ECS
RoHS	Details
Frequency	800 kHz
Termination Style	Through Hole
Packaging	Bulk
Factory Pack Quantity	400

Preview

Download Datasheet

View All

ZTB455E

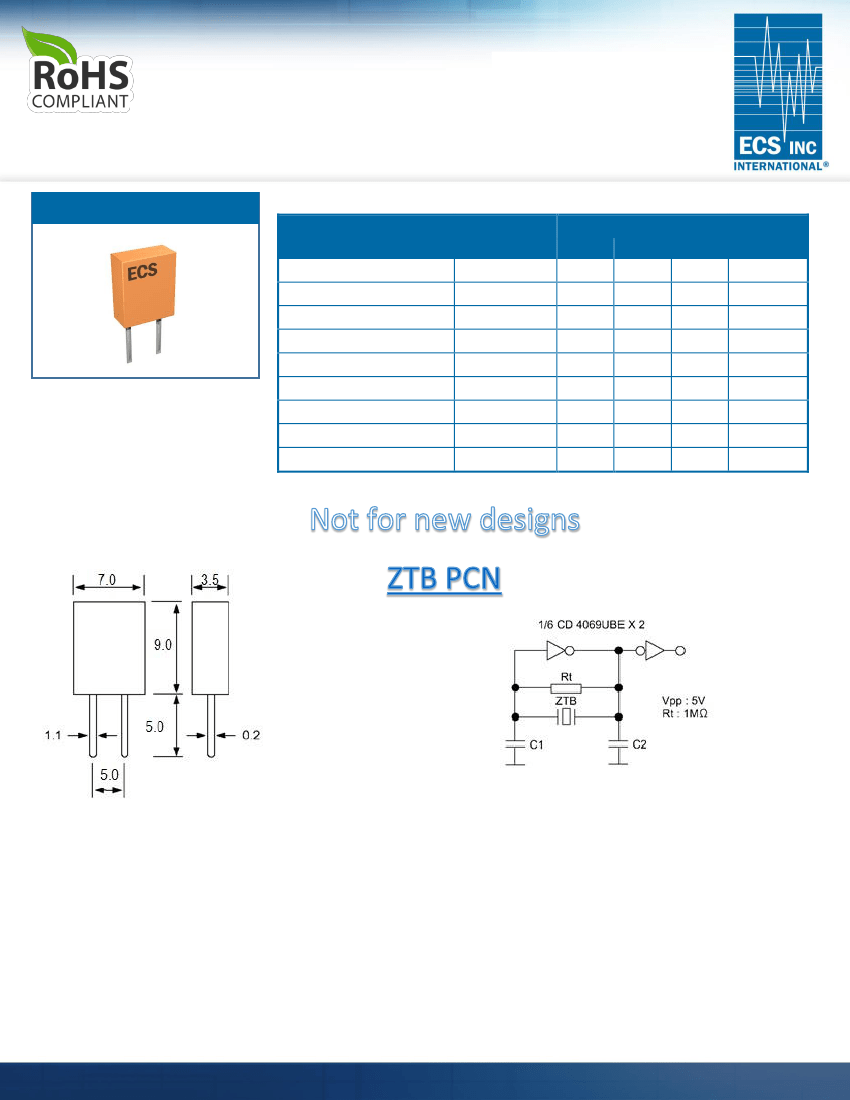

The ZTB 455E ceramic resonator offers low frequency 455 KHz

and exended temp range.

455 KHz

Ceramic resonator

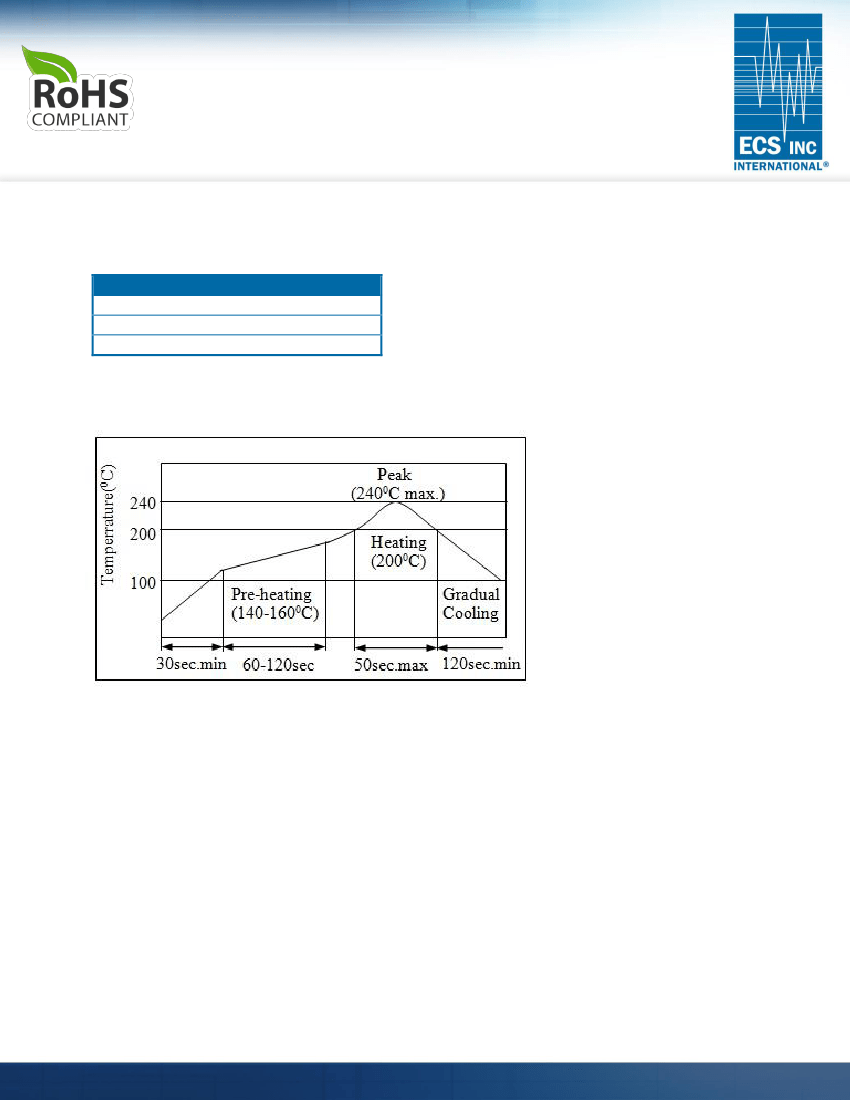

ZTB455E Ceramic Resonator

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability

Aging

ESR

C1

@ +25°C

-20 ~ +80°C

CONDITIONS

MIN

ZTB455E

TYP

MAX

UNITS

KHz

±2

±0.3

±0.5

20

KHz

%

Ohms

pF

+80

+85

°C

455.0

10 Years

100

T

opr

T

stg

-20



Low Frequency Resonator



RoHS Compliant (Note 7

exemption)



Extended temp range

C2

Operating Temperature

Storage Temperature

DIMENSIONS (mm)

Figure 1)

Top, and Side Views

Figure 2)

Test Circuit

PART NUMBER: ZTB455E

Rev.2017

1105 South Ridgeview Road

|

Olathe, KS 66062

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com
