9220-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 9220-06

9220-06: DescriptionFixed Inductors 360uH 5%; CategoryPassive components inductor; File Size202KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

9220-06 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9220-06	-	-	View	Buy Now

9220-06 Overview

Fixed Inductors 360uH 5%

9220-06 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bourns
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Flame Retardant Coat
core material	FERRITE
DC Resistance	9.6 Ω
Nominal inductance(L)	360 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.635 mm
Lead length	25.4 mm
Manufacturer's serial number	9220
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	4.826 mm
Package length	11.176 mm
Package form	Axial
Minimum quality factor (at nominal inductance)	65
Maximum rated current	0.102 A
self resonant frequency	4.7 MHz
series	9220
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	7.9 MHz
Tolerance	5%
Base Number Matches	1

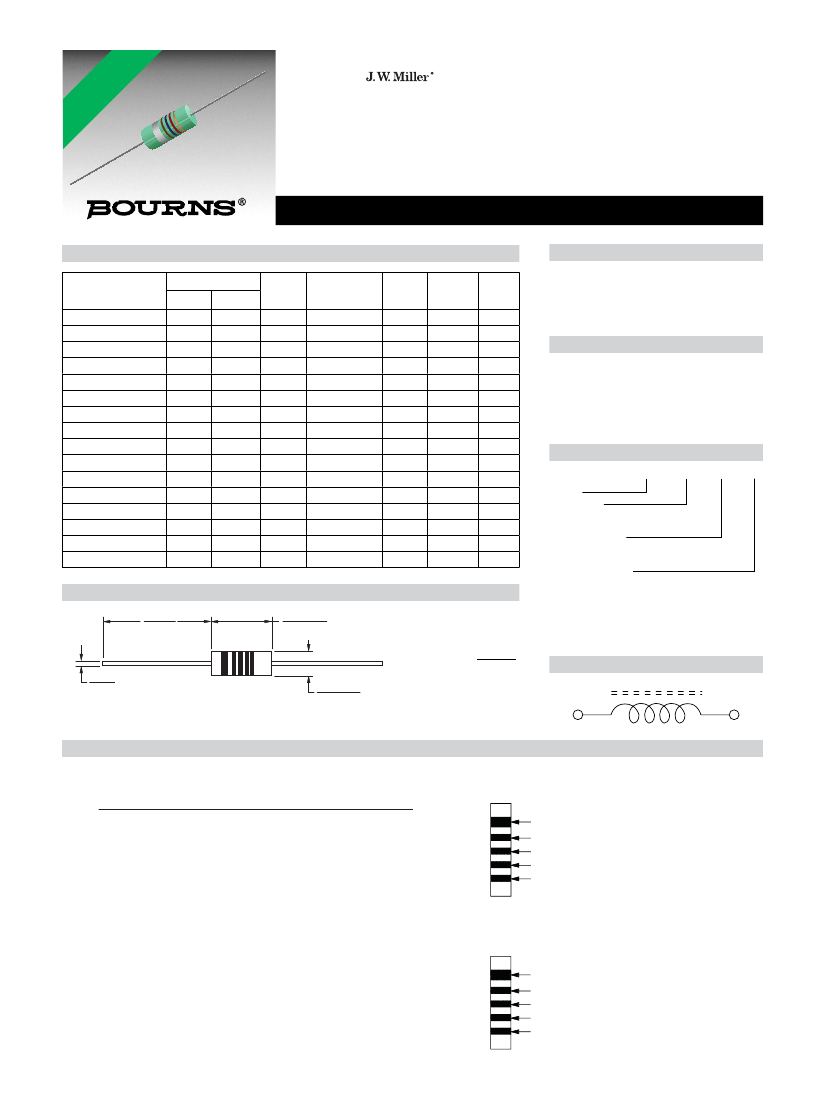

Preview

Download Datasheet

View All

Features

■

Formerly

■

High Q value

■

Inductance range: 270

μH

to 1000

μH

■

RoHS compliant*

Applications

model

■

Filters

■

Output chokes

9220 Series Molded Axial Inductor

Electrical Speciﬁcations

Inductance

Bourns Part No.

9220-00-RC

9220-02-RC

9220-04-RC

9220-06-RC

9220-08-RC

9220-10-RC

9220-12-RC

9220-14-RC

9220-15-RC

9220-16-RC

9220-18-RC

9220-20-RC

9220-22-RC

9220-24-RC

9220-26-RC

9220-28-RC

(μH)

270

300

330

360

390

430

470

500

510

560

620

680

750

820

910

1000

Tol. (%)

±5

Min.

Test

Frequency

(MHz)

0.79

SRF

(MHz)

Min.

5.6

5.3

5.0

4.7

4.5

4.3

4.0

3.8

3.6

3.5

3.4

3.3

3.1

2.9

2.8

DCR

(Ω)

Max.

8.2

8.7

9.1

9.6

10.0

10.6

11.1

11.6

12.3

13.0

13.7

14.4

15.1

15.8

16.5

Idc

(mA)

110

107

105

102

100

General Speciﬁcations

Temperature Rise ................ 35 °C at Idc

Operating Temperature

..................................-55 °C to +105 °C

Storage Temperature ...-55 °C to +105 °C

Dielectric Strength ................. 1000 Vrms

Materials

Core .............................................. Ferrite

Wire ............................ Enameled copper

Terminal Coating................................. Sn

Packaging

Standard..................1000 pcs. per bag

Optional ......2500 pcs. per 14-inch reel

How to Order

9220 - 02 - __ - RC

Model

Value Code

Two-digit code from table

(Example: -02 = 300

μH)

Packaging Code

Blank = 1000 pcs./bag

TR = 2500 pcs./14-inch reel

Compliance Code

RC = RoHS compliant*

Examples:

• 9220-00-RC = 270

μH

packaged

1000 pcs./bag.

• 9220-16-TR-RC = 560

μH

packaged

2500 pcs./14-inch reel.

Product Dimensions

25.4

(1.0)

MIN.

11.18 ± 0.25

(0.44 ± 0.01)

DIMENSIONS:

0.65

(0.025)

4.83 ± 0.25

(0.19 ± 0.01)

(INCHES)

Electrical Schematic

Typical Part Marking - MIL-STD Color Code

Color

1st & 2nd

Signiﬁ cant Figure

or Decimal Point

Multiplier

Tolerance

Example for L value less than 10 µH

6.8 µH, ±10 %

Mil. identiﬁ er (Silver, twice the width

of other bands)

1st signiﬁ cant ﬁ gure (Blue)

Decimal point (Gold)

2nd signiﬁ cant ﬁ gure (Gray)

Tolerance (Silver)

Black

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

Silver

Gold

REV. 06/09

Decimal Point

100

1000

Example for L value 10 µH and higher

270 µH, ±5 %

± 10 %

±5%

Mil. identiﬁ er (Silver, twice the width

of other bands)

1st signiﬁ cant ﬁ gure (Red)

2nd signiﬁ cant ﬁ gure (Purple)

Multiplier (Brown)

Tolerance (Gold)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications

9220-06 Related Products

	9220-06	9220-08	9220-10	9220-18
Description	Fixed Inductors 360uH 5%	Fixed Inductors 390uH 5%	Fixed Inductors YEL/ORG/BRN 430UH	Fixed Inductors 620uH 5%
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Bourns	Bourns	Bourns	Bourns
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
structure	Flame Retardant Coat	Flame Retardant Coat	Flame Retardant Coat	Flame Retardant Coat
core material	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	9.6 Ω	10 Ω	10.6 Ω	13 Ω
Nominal inductance(L)	360 µH	390 µH	430 µH	620 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Lead length	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	4.826 mm	4.826 mm	4.826 mm	4.826 mm
Package length	11.176 mm	11.176 mm	11.176 mm	11.176 mm
Package form	Axial	Axial	Axial	Axial
Minimum quality factor (at nominal inductance)	65	65	65	60
Maximum rated current	0.102 A	0.1 A	0.097 A	0.088 A
self resonant frequency	4.7 MHz	4.5 MHz	4.3 MHz	3.5 MHz
Shape/Size Description	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
shield	NO	NO	NO	NO
surface mount	NO	NO	NO	NO
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE
Test frequency	7.9 MHz	7.9 MHz	7.9 MHz	7.9 MHz
Tolerance	5%	5%	5%	5%
Manufacturer's serial number	9220	-	9220	9220
series	9220	-	9220	9220
