ATFC-0603-3N9-BT

Description
Fixed Inductors 3.9nH +/-.1nH -25C +85C
CategoryPassive components
File Size206KB，2 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Download Datasheet Parametric Compare View All

ATFC-0603-3N9-BT Online Shopping

Suppliers Part Number Price MOQ In stock
ATFC-0603-3N9-BT - - View Buy Now

ATFC-0603-3N9-BT Overview

Fixed Inductors 3.9nH +/-.1nH -25C +85C

ATFC-0603-3N9-BT Parametric

Parameter NameAttribute value
Product CategoryFixed Inductors
ManufacturerAbracon
RoHSDetails
Inductance3.9 nH
Tolerance0.1 nH
Maximum DC Current300 mA
Maximum DC Resistance450 mOhms
Minimum Operating Temperature- 25 C
Maximum Operating Temperature+ 85 C
ProductInductors
ShieldingUnshielded
Termination StyleSMD/SMT
Termination-
Package / Case0603 (1608 metric)
Length1.6 mm
Width0.8 mm
Height0.45 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
Case Code - in0603
Case Code - mm1608
Core MaterialCeramic
Mounting StyleSMD/SMT
Q Minimum15
Self Resonant Frequency6 GHz
Factory Pack Quantity5000
TypeThin Film Chip Inductor
Unit Weight0.000141 oz

Preview

Download Datasheet

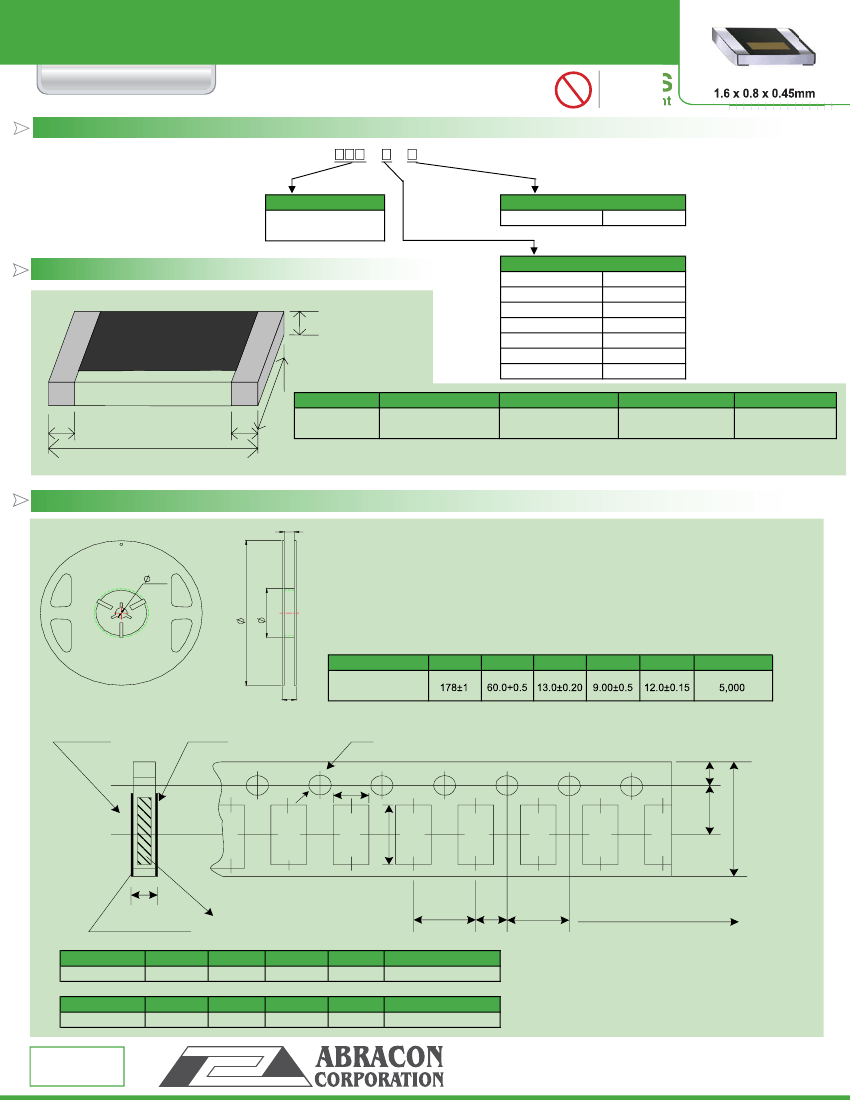

THIN FILM CHIP INDUCTOR
ATFC-0603
FEATURES:
• A photo-lithographic single layer ceramic chip
• High SRF; Excellent Q
• Superior Temperature Stability
• Tight Tolerance of
±
1% or
±
0.1nH
• Self Resonant Frequency Controlled within 10%
• Stable Inductance in High Frequency Circuit
• Highly Stable Design for Critical Needs
APPLICATIONS:
• Cellular Telephones
• Pagers and GPS Products
• Wireless LAN
• Communication Appliances
• Bluetooth Module
• VCO,TCXO Circuit and RF Transceiver Modules
Pb
RoHS
Compliant
1.6 x 0.8 x 0.45mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
ABRACON
Inductance
p/n
(nH)
ATFC-0603-1N0
1.0
1.2
ATFC-0603-1N2
ATFC-0603-1N5
1. 5
ATFC-0603-1N8
1.8
ATFC-0603-2N2
2.2
2.7
ATFC-0603-2N7
ATFC-0603-3N3
3.3
ATFC-0603-3N9
3.9
ATFC-0603-4N7
4.7
ATFC-0603-5N6
5.6
ATFC-0603-6N8
6.8
ATFC-0603-8N2
8.2
ATFC-0603-10N
10
ATFC-0603-12N
12
15
ATFC-0603-15N
ATFC-0603-18N
18
ATFC-0603-22N
22
ATFC-0603-27N
27
ATFC-0603-33N
33
39
ATFC-0603-39N
ATFC-0603-47N
47
ATFC-0603-56N
56
ATFC-0603-68N
68
ATFC-0603-R10
100
ATFC-0603-xxx Series
-25°C to + 85°C
25±3; Humidity <80%RH
Standard Tolerance
Quality Factor (Q)
(% or nH)
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
2%
min
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
Resistance
DC/Max (Ohm)
0.35
0.35
0.35
0.35
0.35
0.45
0.45
0.45
0.55
0.65
0.75
0.95
0.95
1.05
1.35
1.65
1.95
2.35
2.75
3.00
3.00
5.00
5.00
7.50
Current
DC/Max (mA)
800
800
800
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
250
200
200
150
150
100
Self Resonant
Frequency /min (GHz)
13
13
10
10
8
6
6
6
5
5
5
4
4
3
3
2
2
2
1.5
1.5
1.5
1
1
1
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.24.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
