PCF1A151MCL6GS

Description
Aluminum Organic Polymer Capacitors 10volts 150uF SMD Polymer Solid
CategoryPassive components
File Size665KB,3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

PCF1A151MCL6GS Online Shopping

Suppliers Part Number Price MOQ In stock
PCF1A151MCL6GS - - View Buy Now

PCF1A151MCL6GS Overview

Aluminum Organic Polymer Capacitors 10volts 150uF SMD Polymer Solid

PCF1A151MCL6GS Parametric

Parameter NameAttribute value
Product CategoryAluminum Organic Polymer Capacitors
ManufacturerNichicon
RoHSDetails
ProductCan
Termination StyleSMD/SMT
Capacitance150 uF
Voltage Rating DC10 VDC
Tolerance20 %
ESR23 mOhms
Ripple Current3200 mA
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 105 C
Diameter8 mm
Length7 mm
Life2000 Hour
PackagingReel
PackagingMouseReel
PackagingCut Tape
Dissipation Factor DF0.12
Leakage Current300 uA
Factory Pack Quantitybcedvdffvuuysfbvbdcbdevzwydtcswrtyf1000
TypeOrganic Polymer Aluminum - SMD Capacitors
Unit Weight0.017637 oz

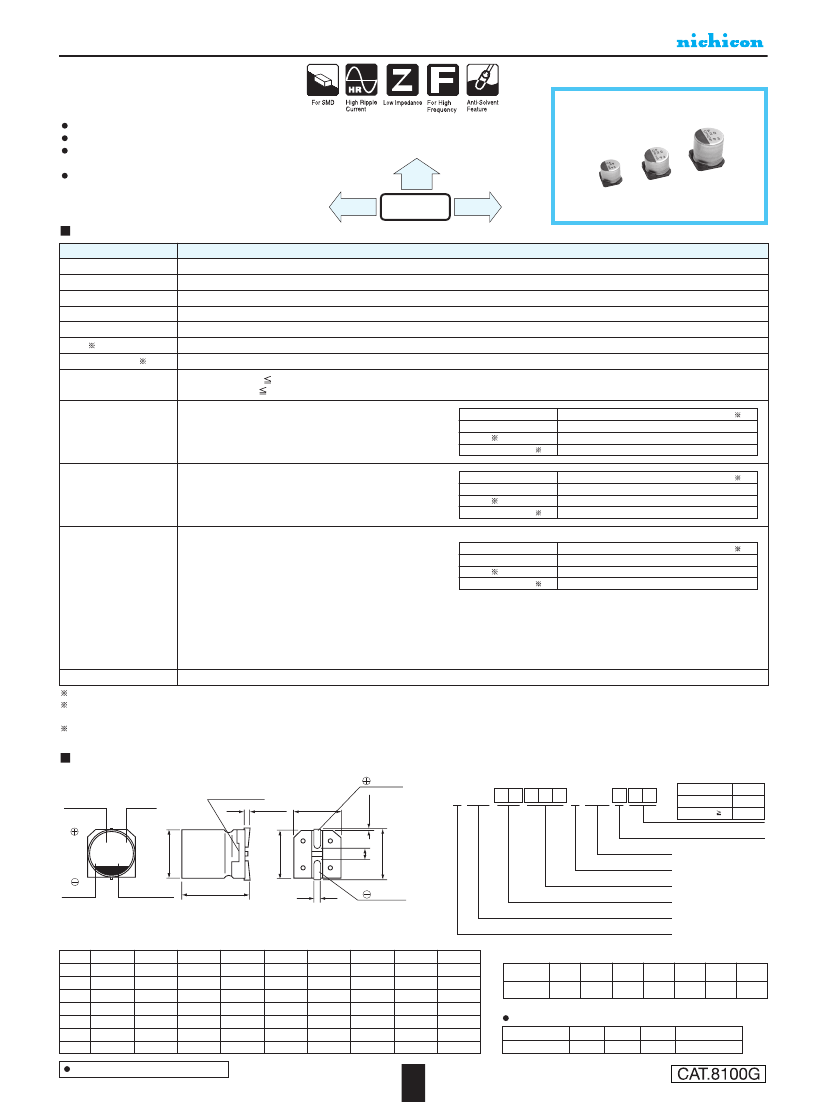

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
PCF
Specifications
Item
Category Temperature Range
Rated Voltage Range
Chip Type, Standard
Low ESR, High ripple current.
Load life of 2000 hours at 105°C.
SMD type : Lead free reflow soldering condition at 260°C
peak correspondence.
Compliant to the RoHS directive (2011/65/EU).
PCG
Higher
Capacitance,
PCS
Long Life
PCF
Low ESR
Higher Capacitance
PCJ
Performance Characteristics
– 55 to +105°C
2.5 to 25V
3.3 to 1500µF
± 20%
at 120Hz, 20°C
Rated Capacitance Range
Capacitance Tolerance
ESR (
1)
2)
Tangent of loss angle (tan
δ)
Less than or equal to the specified value at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Less than or equal to the specified value.
Z+105°C / Z+20°C
Z– 55°C / Z+20°C
1.25
1.25
(100kHz)
After 2 minutes' application of rated voltage at 20°C
Leakage Current (
Temperature Characteristics
(Max.Impedance Ratio)
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 105°C
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Damp Heat
(Steady State)
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.
After soldering the capacitor under the soldering conditions
prescribed here, the capacitor shall meet the specifications listed
at right.
Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.
The duration for over +230°C temperature at capacitor surface
shall not exceed 60 seconds.
In case peak temperature is 250°C or less, reflow soldering shall
be two times maximum.
In case peak temperature is 260°C or less, reflow soldering shall
be once.
Measurement for solder temperature profile shall be made at the
capacitor top and the terminal.
Navy blue print on the case top
Resistance to
Soldering Heat
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Marking
1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
Dimensions
Positive
Type numbering system (Example : 6.3V 150µF)
1
2
3
4
5
6
7
8
9 10 11 12 13 14
Taping code
0.5 MAX.
Plastic platform
Capacitance
Lot No.
0.3 MAX.
C±0.2
PC F 0 J 1 5 1 MC L 1 GS
φD
4 to 6.3 5.5L)
5 to 10 L
6)
Code
GB
GS
Size code
φD±0.5
B
±
0.2
A±0.2
CF
150
j
841
Configuration
Capacitance tolerance (±20%)
Rated capacitance (150µF)
Series
Voltage
( j:6.3v)
L
+0.1
-0.4
H
E
Negative
Rated voltage (6.3V)
Series name
Type
Size
φD
L
A
B
C
E
H
φ4
×
5.5L
4.0
5.4
5.0
4.3
4.3
φ5
×
6L
5.0
5.9
6.0
5.3
5.3
φ6.3
×
5.5L
φ6.3
×
6L
6.3
6.3
5.4
7.3
6.6
6.6
5.9
7.3
6.6
6.6
φ8
×
7L
8.0
6.9
9.0
8.3
8.3
φ8
×
12L
8.0
11.9
9.0
8.3
8.3
(mm)
φ10
×
8L
φ10
×
10L
φ10
×
12.7L
10.0
10.0
10.0
7.9
11.0
10.3
10.3
9.9
11.0
10.3
10.3
12.6
11.0
10.3
10.3
Voltage
V
Code
2.5
e
4
g
6.3
j
10
A
16
C
20
D
25
E
Frequency coefficient of rated ripple current
0
Frequency0/ 120Hz
Coefficient
0.05
1kHz
0.30
10kHz 100kHz or more
0.70
1.00
2.1
4.6
1.0
1.6
2.1
3.2
3.2
4.6
4.6
0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1
Dimension table in next page.
