PM1008-6R8K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM1008-6R8K

PM1008-6R8K: DescriptionFixed Inductors 6.8uH 10%; CategoryPassive components inductor; File Size246KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

PM1008-6R8K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM1008-6R8K	-	-	View	Buy Now

PM1008-6R8K Overview

Fixed Inductors 6.8uH 10%

PM1008-6R8K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	1111
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1111
structure	Wirewound
core material	CERAMIC
DC Resistance	8 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM1008
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.29 mm
Package length	2.92 mm
Package form	SMT
Package width	2.79 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.18 A
self resonant frequency	45 MHz
series	PM1008
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 25 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.9 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Formerly

■

1008 size

■

Available in E12 series

■

High Q up to 60 typ.

■

High operating temperature of 125 °C

■

RoHS compliant*

Applications

model

■

Mobile phones

■

Cellular phones

■

CTV, VCR, HIC, FDD

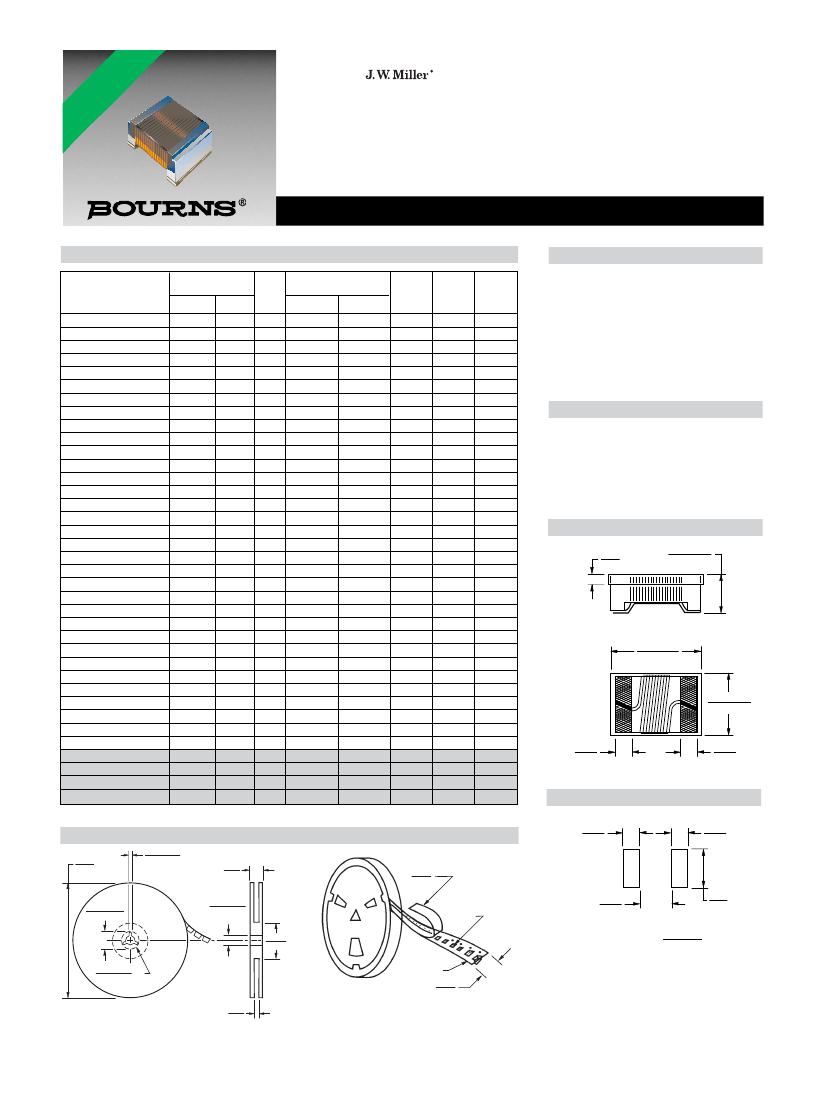

PM1008 Series - High Q Chip Inductors

Electrical Speciﬁcations

Inductance

Test Frequency (MHz)

General Speciﬁcations

Min.

SRF

Min.

(MHz)

4100

3300

2500

2400

1600

1500

1300

1000

950

850

750

700

600

570

500

450

415

375

350

290

250

200

160

RDC

Max.

(Ω)

0.08

0.09

0.10

0.11

0.12

0.13

0.14

0.15

0.16

0.18

0.20

0.22

0.56

0.63

0.70

0.77

0.84

0.91

1.05

1.12

1.19

1.33

1.55

2.30

1.75

2.00

2.30

2.60

2.80

3.20

3.24

3.60

4.00

4.90

6.00

8.00

4.20

I rms

Max.

(mA)

600

500

600

500

400

470

400

360

330

280

270

250

195

185

180

175

180

150

100

200

Bourns Part No.

PM1008-10NM-RC

PM1008-12NM-RC

PM1008-15NM-RC

PM1008-18NM-RC

PM1008-22NM-RC

PM1008-27NM-RC

PM1008-33NM-RC

PM1008-39NM-RC

PM1008-47NM-RC

PM1008-56NK-RC

PM1008-68NK-RC

PM1008-82NK-RC

PM1008-R10K-RC

PM1008-R12K-RC

PM1008-R15K-RC

PM1008-R18K-RC

PM1008-R22K-RC

PM1008-R27K-RC

PM1008-R33K-RC

PM1008-R39K-RC

PM1008-R47K-RC

PM1008-R56K-RC

PM1008-R68K-RC

PM1008-R82K-RC

PM1008-1R0K-RC

PM1008-1R2K-RC

PM1008-1R5K-RC

PM1008-1R8K-RC

PM1008-2R2K-RC

PM1008-2R7K-RC

PM1008-3R3K-RC

PM1008-3R9K-RC

PM1008-4R7K-RC

PM1008-5R6K-RC

PM1008-6R8K-RC

PM1008-8R2K-RC

PM1008-100K-RC

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

Tol. %

±20

±10

100

7.9

2.5

500

350

100

7.9

Temperature Rise

.................40 ˚C max. at rated current

Operating Temperature

................................-40 °C to +125 °C

Storage Temperature

................................-40 °C to +125 °C

Reﬂow Soldering .. 230 °C, 50 sec. max.

Resistance to Soldering Heat

...............................260 ˚C, 5 seconds

Materials

Core Material

-10NM thru -R82K ..................Ceramic

-1R0K thru -100K ......................Ferrite

Wire ......Enamelled Copper (1W1E180)

Terminal ...........................Mo/Mn+Ni+Au

Packaging .................. 2,000 pcs per reel

Product Dimensions

0.5

(.020)

1.6

0.2

(.062

.008)

2.50

0.2

(.098

.008)

2.0

0.2

(.079

.008)

0.5

(.020)

0.5

(.020)

Recommended Layout

REF.

0.65

(.026)

0.65

REF.

(.026)

NOTE: Shaded models are not recommended for new designs.

Packaging Speciﬁcations

178.0

(7.00)

DIA.

2.0

0.5

(.079

.020)

12.5

(.492)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

50.0

(1.969)

21.0

0.8

(.827

.031)

13.0

0.5

(.512

.020)

DIA.

REF.

1.20

(.047)

2.3

REF.

(.091)

DIMENSIONS:

EMBOSSED

CARRIER

8.0

(.315)

(INCHES)

13.0

0.5

DIA.

(.512

.020)

10.0

(.393)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

REV. 01/15

PM1008-6R8K Related Products

	PM1008-6R8K	PM1008-10NM	PM1008-R12K	PM1008-4R7K	PM1008-R39K	PM1008-3R3K	PM1008-15NM	PM1008-R18K	PM1008-27NM	PM1008-56NK
Description	Fixed Inductors 6.8uH 10%	Fixed Inductors 10nH 20%	Fixed Inductors 0.12uH 10%	Fixed Inductors 4.7uH 10%	Fixed Inductors 0.39uH 10%	Fixed Inductors 3.3uH 10%	Fixed Inductors 15nH 20%	Fixed Inductors 0.18uH 10%	Fixed Inductors 27nH 20%	Fixed Inductors 56nH 10%
Tolerance	10%	20%	10%	10 %	10%	10%	20%	10%	20%	10%
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	1111	1111	1111	-	1111	1111	1111	1111	1111	1111
Reach Compliance Code	compliant	compliant	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1111	1111	1111	-	1111	1111	1111	1111	1111	1111
structure	Wirewound	Wirewound	Wirewound	-	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound
core material	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
DC Resistance	8 Ω	0.08 Ω	0.68 Ω	-	1.12 Ω	3.4 Ω	0.1 Ω	0.77 Ω	0.13 Ω	0.18 Ω
Nominal inductance(L)	6.8 µH	0.01 µH	0.12 µH	-	0.39 µH	3.3 µH	0.015 µH	0.18 µH	0.027 µH	0.056 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM1008	PM1008	PM1008	-	PM1008	PM1008	PM1008	PM1008	PM1008	PM1008
Number of functions	1	1	1	-	1	1	1	1	1	1
Number of terminals	2	2	2	-	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	2.29 mm	2.29 mm	2.29 mm	-	2.29 mm	2.29 mm	2.29 mm	2.29 mm	2.29 mm	2.29 mm
Package length	2.92 mm	2.92 mm	2.92 mm	-	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm
Package form	SMT	SMT	SMT	-	SMT	SMT	SMT	SMT	SMT	SMT
Package width	2.79 mm	2.79 mm	2.79 mm	-	2.79 mm	2.79 mm	2.79 mm	2.79 mm	2.79 mm	2.79 mm
method of packing	TR	TR	TR	-	TR	TR	TR	TR	TR	TR
Minimum quality factor (at nominal inductance)	20	50	60	-	45	22	50	45	55	65
Maximum rated current	0.18 A	1 A	0.65 A	-	0.47 A	0.29 A	1 A	0.62 A	1 A	1 A
self resonant frequency	45 MHz	4100 MHz	950 MHz	-	500 MHz	110 MHz	2500 MHz	750 MHz	1600 MHz	1300 MHz
series	PM1008	PM1008	PM1008	-	PM1008	PM1008	PM1008	PM1008	PM1008	PM1008
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 25 MHZ	Q MEASURED AT 500 MHZ	Q MEASURED AT 350 MHZ	-	Q MEASURED AT 100 MHZ	Q MEASURED AT 25 MHZ	Q MEASURED AT 500 MHZ	Q MEASURED AT 100 MHZ	Q MEASURED AT 350 MHZ	Q MEASURED AT 350 MHZ
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	7.9 MHz	50 MHz	25 MHz	-	25 MHz	7.9 MHz	50 MHz	25 MHz	50 MHz	50 MHz
Maker	-	Bourns	Bourns	-	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
