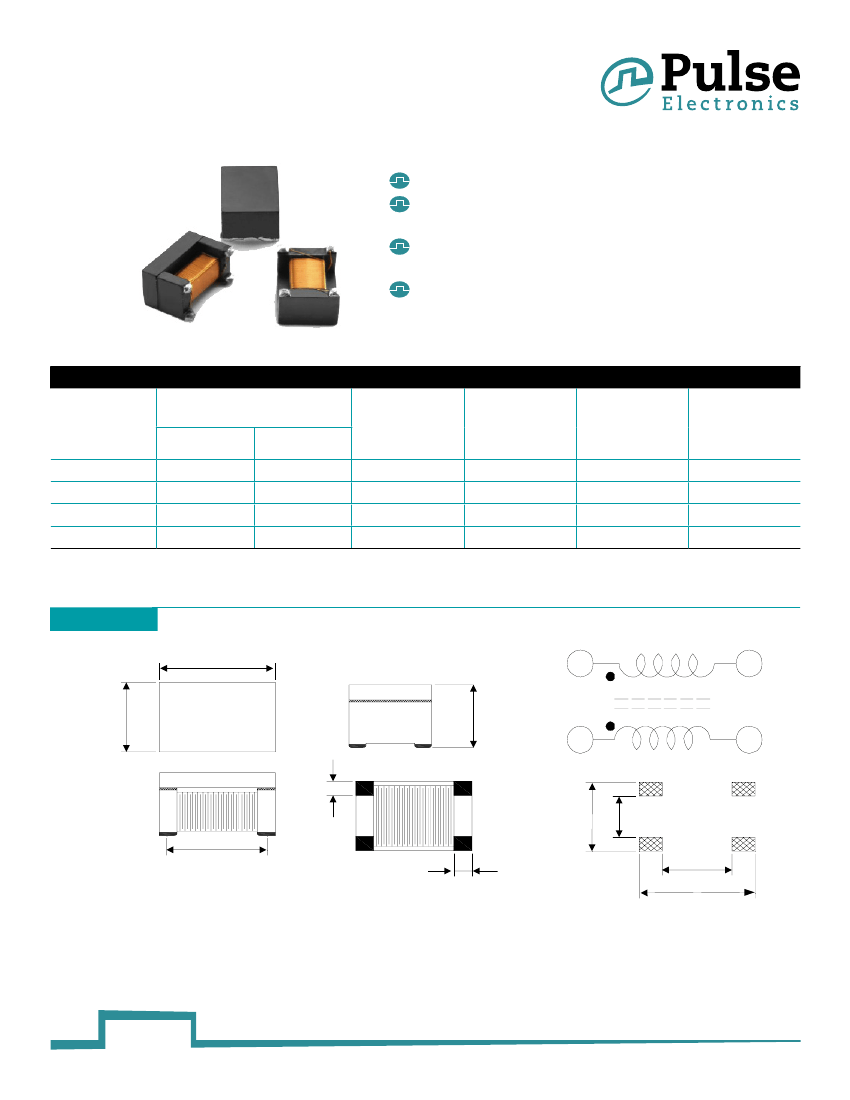

Automotive Chip Choke
®
EMI Suppression for CAN-Bus Networks
2-Line Common Mode Chokes
Reliability Test
Item
1. High Temperature Exposure
Reference documents
MIL-STD-202 Method 108
Test Condition
1. Temperature: 125½C
2. Time: 96 hours
1. Temperature: 40½C~125½C
2. Number of cycles: 96 cycle
3.Dwell time: 30 minutes
1. Temperature: 85±5½C
2. Time: 96 hours
3. Humidity: 85±5% RH
1. Temperature: 125½C
2. Time: 96 hours
3. Apply rated current
Inspect product construction, marking and
workmanship
Test Specification
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
Per product specification standard
2. Temperature Cycling
JESD22 Method JA-104
3. Biased Humidity Test
MIL-STD-202 Method 103
4. Operational Life
5. External Visual
6. Physical Dimensions
MIL-PRF-27
MIL-STD-883 Method 2009
JESD22 Method JB-100
Verify physical dimensions to the applicable product Per product specification standard
detail specification
Immerse into solvent for 3±0.5 minutes & brush 10 1. No body change in appearance
times for their cycles.
2. No marking blurred.
3. Inductance shall not change more than
±30%
1. Frequency and Amplified: 10-2000-10 Hz, 1.5mm
2. Direction: X, Y, Z
1. No mechanical and electrical damage
3. Test duration: 2 hours for each direction, 6 hours 2. Inductance shall not change more than
±30%
in total
1. Temperature: 250±5½C
2. Time: (temp.≥217½C) 60~150 Second
3. IR reflow times: 3 times
Apply rated current for 5 seconds.
Apply rated current for 10 minutes.
Apply twice as rated current for 5 minutes.
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
7. Resistance to solvents
MIL-STD-202 Method 215
8. Vibration Test
MIL-STD-202 Method 204
9. Resistance to Soldering Heat Test
10. Rated Current
11. Temperature Rise
12. Over load
MIL-STD-202 Method 210
MIL-STD-202 Method 330
MIL-PRF-27
MIL-PRF-27
13. Solderability Test
J-STD-002
1. Bakeing in pre-testing: 155±5½C / 16Hours±30min.
2. Peak temperature: 240±5½C
The terminal shall be at least 95% covered with fresh
3. Time: (temp.≥217½C) 60~150 Second
solder.
4. IR reflow times: 1 time
1. Operating temperature:-40½C~125½C
2. Room Temperature: 25½C
1. DV: 500V
2. Time: 1 minute
Package & Drop down from 1m. In 1 angle 1 ridge
& 2 surfaces orientation
1. Apply push force to samples mounted on PCB.
2. Force of 1.8 kg for 60±1 seconds.
1. No mechanical and electrical damage
2. Inductance shall not change more than
±30%
1. During the test no breakdown.
2. The characteristic is normal after test.
1. No case deformation or change in appearance.
2. Inductance shall not change more than
±30%
After test, inductors shall be on mechanical damge.
W717.B (11/15)
14. Electrical Characterization
15. Withstanding Voltage Test
16. Drop
17. Terminal Strength Test
4
User Spec.
MIL-STD-202 Method 201
JESD22-B111
JIS-C-6429
pulseelectronics.com
Automotive Chip Choke
®
EMI Suppression for CAN-Bus Networks
2-Line Common Mode Chokes

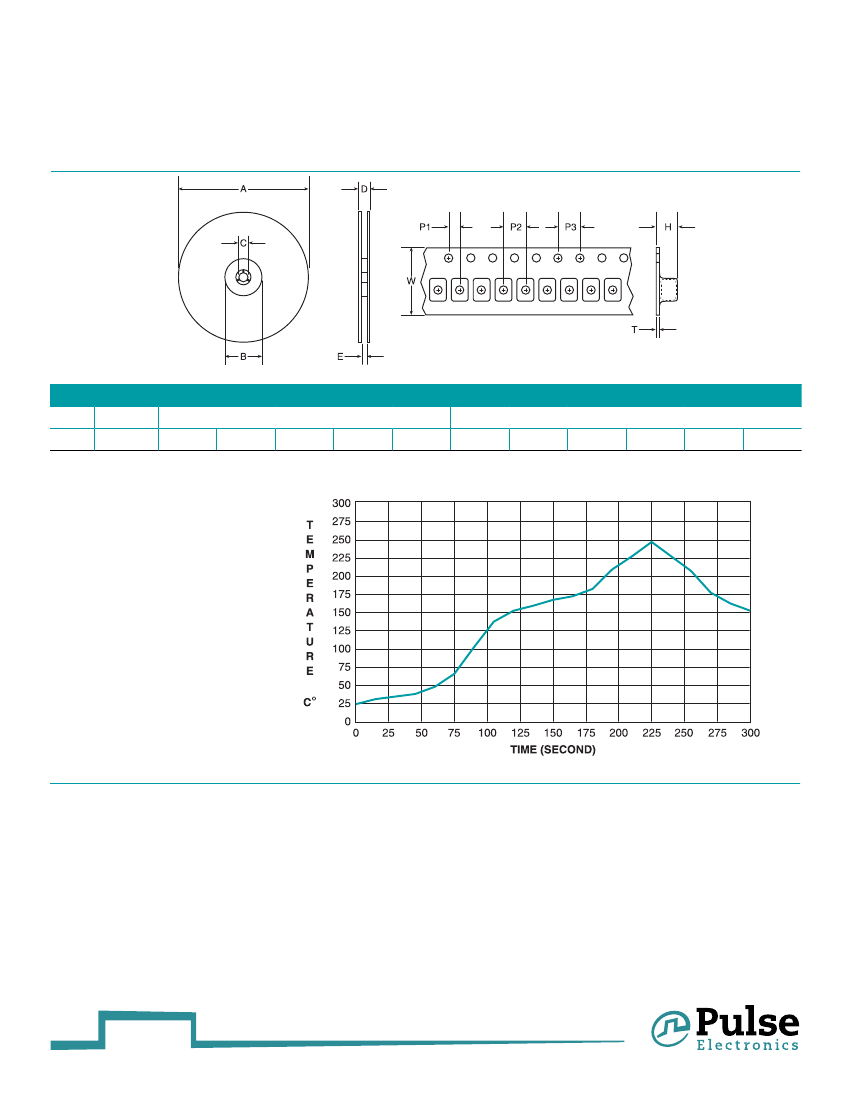

Tape and Reel Specifications
Reel Dimensions (mm)
Series
1812 ACC
Parts per Reel
500
A
178
B
60
C
13
D
17
E
14
W
12
P1
2
Tape Dimensions (mm)
P2
P3
8
4
H
4
T
0.35
III. Description:
a. Ferrite drum core construction
b. Magnetically shielded
c. Enameled copper wire: H class
d. Product weight: 0.15g (ref.)
e. Moisture sensitivity Level 1
f. Products comply with RoHS’ requirements
g. Halogen Free available
IV. General specification:
a. Storage temp: -40½Cto+125½C
b. Operating temp: -40½Cto+125½C
(Temp. rise included)
c. Resistance to solder heat: 250½C 10 secs.
Recommended Solder Heat Resistance Profile
For More Information
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technol-
Super Ocean Finance
#03-02
Zhongyuan Road
ogy Bldg.
Ctr.
PM Industrial Bldg.
Zhongli City
10th Kejinan Road
2067 Yan An Road
Singapore 368363
Taoyuan County 320
High-Tech Zone
West
Taiwan R. O. C.
Nanshan District
Shanghai 200336
Tel: 886 3 4356768
Shenzen, PR China
China
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Tel: 858 674 8100
Tel: 49 7032 78060
518057
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Tel: 86 755 33966678
Tel: 86 21 62787060
Fax: 86 755 33966700
Fax: 86 2162786973
