Datasheet> All Categories > Passive components> B953AS-390M=P3

Preview

B953AS-390M=P3: DescriptionFixed Inductors 39uH 74mOhms 3.5A +/-20%; CategoryPassive components; File Size976KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

B953AS-390M=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B953AS-390M=P3	-	-	View	Buy Now

B953AS-390M=P3 Overview

Fixed Inductors 39uH 74mOhms 3.5A +/-20%

B953AS-390M=P3 Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	Murata
RoHS	Details
Inductance	39 uH
Tolerance	20 %
Maximum DC Current	3.5 A
Maximum DC Resistance	74 mOhms
Product	Power Inductors
Termination Style	SMD/SMT
Termination	-
Package / Case	-
Length	12.8 mm
Width	12.8 mm
Height	6.8 mm
Diameter	-
Packaging	MouseReel
Packaging	Reel
Packaging	Cut Tape
Core Material	Ferrite
Lead Diameter	-
Lead Spacing	-
Mounting Style	SMD/SMT
Operating Temperature Range	-
Q Minimum	-
Self Resonant Frequency	-
Factory Pack Quantity	500
Test Frequency	-
Type	Ferrite Inductors

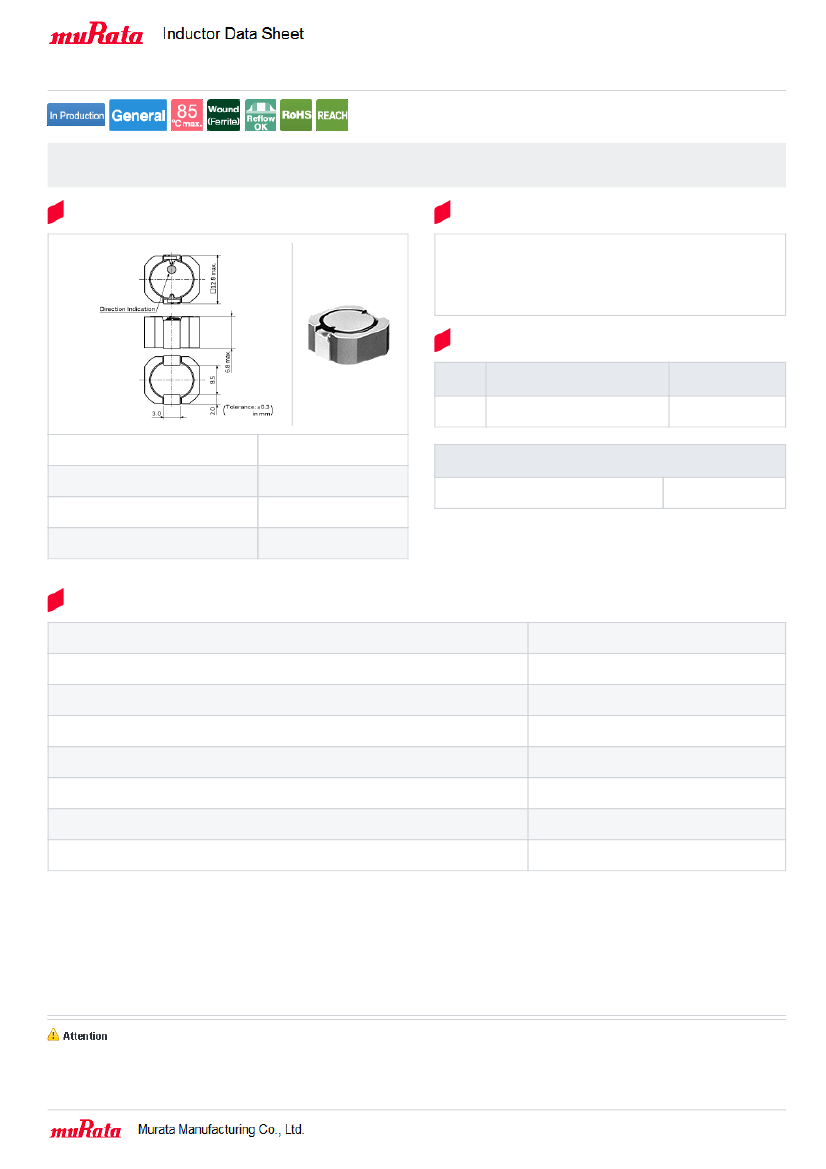

Preview

Download Datasheet

View All

#B953AS-390M=P3

< List of part numbers with package codes >

#B953AS-390M=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 10%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

500

L size

W size

T size

Size code in inch (mm)

12.5 ±0.3mm

6.8 mm

4949 (125125)

Mass (Typ.)

1 piece

3.688g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

39µH ±20%

0.1MHz

2700mA

2200mA

0.074Ω

-40〜85℃

Ferrite Core

DS126C2

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/12/23
