• Available in four sizes (0603, 1005, 1608, 2012mm) and as thin as
0.22mm.
• Capacitance offering from 0.1µF and up to 10µF.
• Ideal for height-restricted applications such as mobile devices
Applications
• Smart phone, mobile devices
• LCD modules
• Height restricted applications
Shape &
Dimensions
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal
Spacing

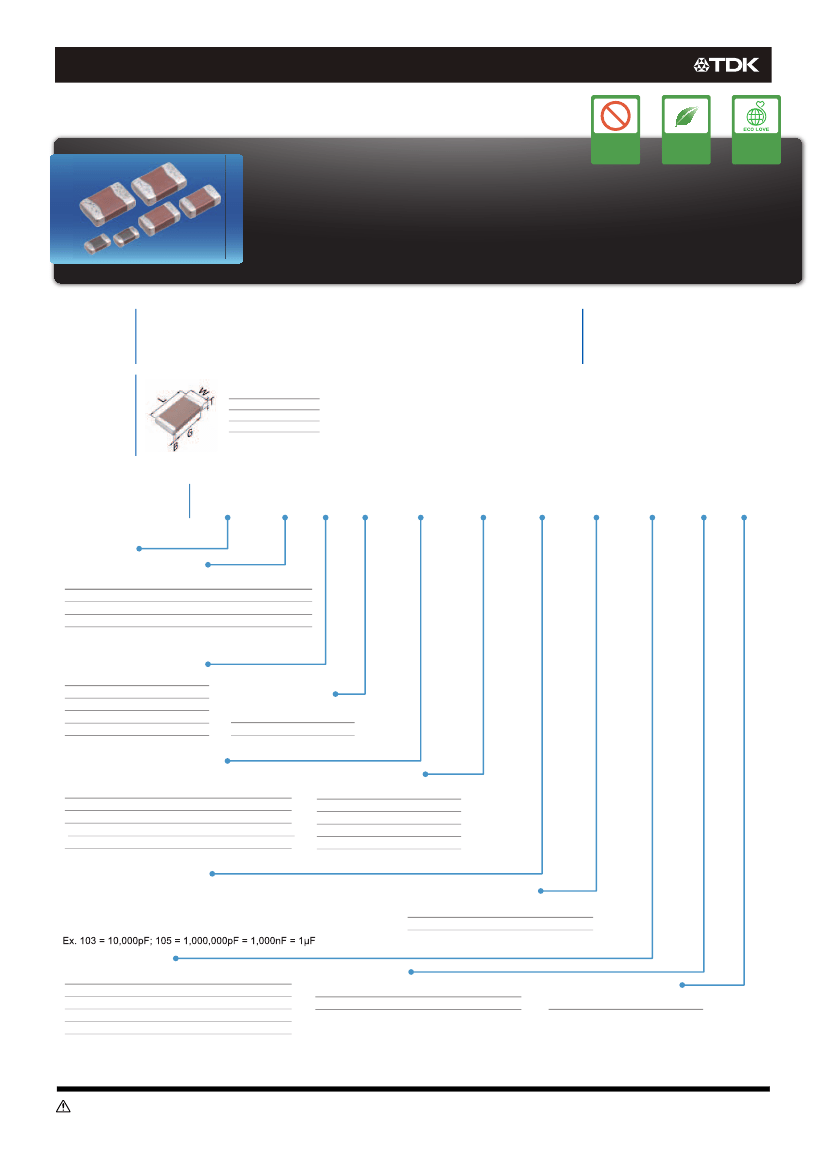

Catalog Number
Construction
Series Name
Dimensions L x W (mm)
CGB • 3 •
S
• 1 • X5R • 0J • 106 • M • 050 • A •
C
Teminal width
0.10 min.
0.10 min.
0.20 min.
0.20 min.
Code
Length
Width
0.60 ± 0.03 0.30 ± 0.03
1
1.00 ± 0.05 0.50 ± 0.05
2
1.60 ± 0.10 0.80 ± 0.10
3
2.00 ± 0.20 1.25 ± 0.20
4
∗
Dimension tolerance
are
typical values
Thickness T Code (mm)
Code
T
A
S
B
C
Thickness
0.22 mm max.
0.33 mm max.
0.50 mm max.
0.55 mm max.
0.65 mm max.
Voltage Condition
for Life Test
Symbol
1
3
Condition
1 × R.V.
1.5 × R.V.
Temperature Characteristics
Temperature
Characteristics
JB
X5R
X6S
X7R
X7S
Capacitance
Change
± 10%
± 15%
± 22%
± 15%
± 22%
Temperature
Range
-25 to +85°C
-55 to +85°C
-55 to +105°C
-55 to +125°C
55 to +125°C
Rated Voltage (DC)
Code
0G
0J
1A
1C
1E
Voltage (DC)
4.0V
6.3V
10V
16V
25V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of pico
Farads (pF). The first and second digits identify the first and second
significant figures of the capacitance. The third digit identifies the
multiplier.
Capacitance Tolerance
Code
K
M
Tolerance
± 10%
± 20%
Nominal Thickness
Code
022
033
050
055
065
Thickness
0.22 mm max.
0.33 mm max.
0.50 mm max.
0.55 mm max.
0.65 mm max.
Packaging Style
Code
A
B
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 2 mm Pitch
Special Reserved Code
Code
B, C
Description
TDK Internal Code
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20161124 / mlcc_commercial_lowprofile_en.fm
(2/6)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature
Characteristics: X5R (±15%), X6S (±22%)
Rated
voltage: 6.3V (0J), 4V (0G)
Capacitance
Tolerance
(pF)
100,000
CGB1(0603) [EIA CC0201]
X5R
0J
(6.3V)
X6S
0G
(4V)
Standard thickness
0.22 mm max.
Code
104
M : ±20%
■Please
refer to a capacitance range table after P-4 for the details such as product thickness, a capacitance tolerance.
refer to a capacitance range table after P-4 for the details such as product thickness, a capacitance tolerance.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
refer to a capacitance range table after P-4 for the details such as product thickness, a capacitance tolerance.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
