SRR5028-120Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SRR5028-120Y

SRR5028-120Y: DescriptionEEPROM 2 Mbit serial I2C 1.8V to 5.5V EEPROM; CategoryPassive components inductor; File Size389KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SRR5028-120Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRR5028-120Y	-	-	View	Buy Now

SRR5028-120Y Overview

EEPROM 2 Mbit serial I2C 1.8V to 5.5V EEPROM

SRR5028-120Y Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2323
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
uppercase and lowercase codes	2323
structure	Shielded
core material	FERRITE
DC Resistance	0.08 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	5.8 mm
Package form	SMT
Package width	5.8 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	11
Maximum rated current	1.25 A
self resonant frequency	28 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Silver/Nickel/Tin (Ag/Ni/Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Height of 3.0 mm max.

■

Current rating up to 3.0 A

■

RoHS compliant*

Applications

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

•

Camcorders

•

LCD TVs

•

Car radios

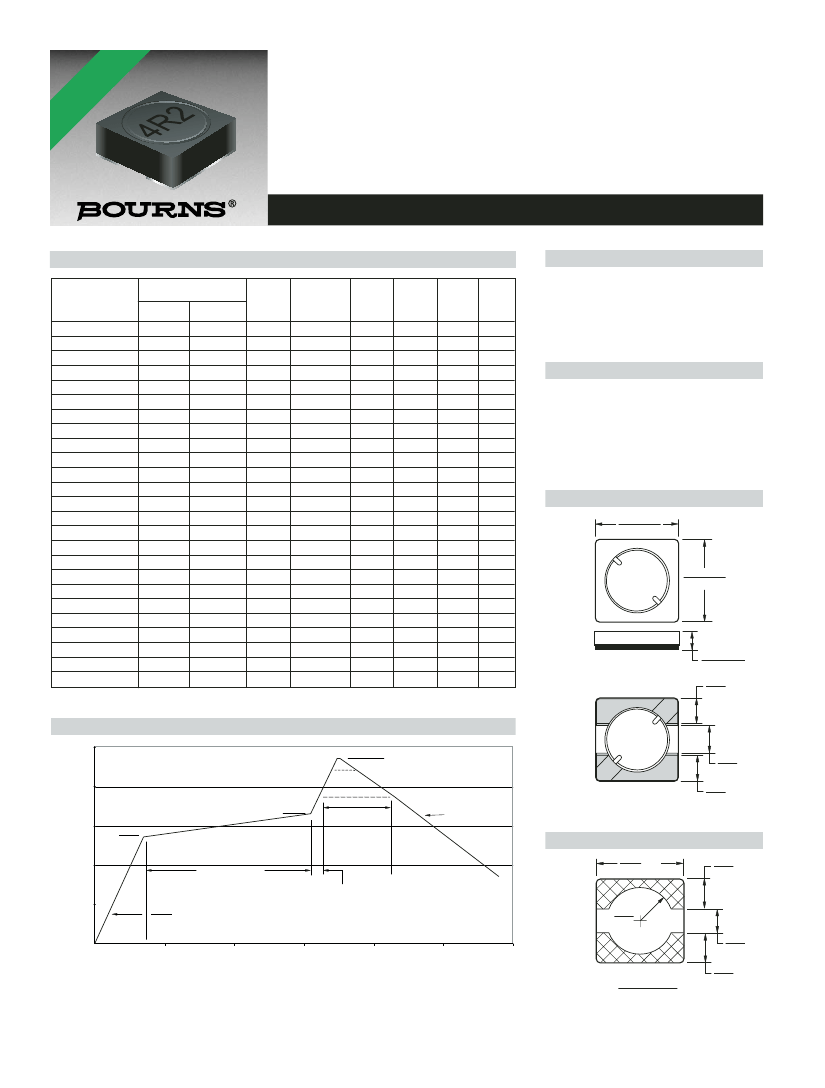

SRR5028 Series - Shielded SMD Power Inductors

Electrical Specifications

Inductance 100 kHz

Bourns Part No.

(µH)

Tol. %

Test

Frequency

(MHz)

SRF

Typ.

(MHz)

DCR

Max.

Ω

(mΩ)

Ref.

Irms

(A)

Isat

(A)

SRR5028-2R6Y

SRR5028-3R0Y

SRR5028-4R2Y

SRR5028-5R3Y

SRR5028-6R2Y

SRR5028-8R2Y

SRR5028-100Y

SRR5028-120Y

SRR5028-150Y

SRR5028-180Y

SRR5028-220Y

SRR5028-270Y

SRR5028-330Y

SRR5028-390Y

SRR5028-470Y

SRR5028-560Y

SRR5028-680Y

SRR5028-820Y

SRR5028-101Y

SRR5028-151Y

SRR5028-221Y

SRR5028-331Y

SRR5028-471Y

SRR5028-561Y

SRR5028-681Y

2.6

3.0

4.2

5.3

6.2

8.2

100

150

220

330

470

560

680

±30

7.96

2.52

0.796

7.5

6.5

100

110

120

160

190

210

250

300

350

430

480

900

1250

2000

2500

3920

4300

3.00

2.80

2.50

2.30

2.20

2.10

1.50

1.46

1.37

1.25

1.15

1.05

0.90

0.86

0.82

0.72

0.62

0.52

0.45

0.33

0.30

0.20

0.30

0.14

0.13

2.70

2.50

2.20

1.90

1.80

1.60

1.40

1.25

1.15

1.10

1.00

0.90

0.78

0.72

0.65

0.60

0.56

0.50

0.45

0.35

0.30

0.20

0.23

0.14

General Specifications

Test Voltage .....................0.1 V, 100 KHz

Reflow Soldering .....230 ˚C; 50 sec max.

Operating Temperature ..-40 °C to +125 °C

(Temperature rise included)

Storage Temperature..-40 °C to +125 °C

Resistance to Soldering Heat

................................260 °C for 10 sec.

Materials

Core Material.................................Ferrite

Wire ............................Enameled Copper

Adhesive..............................Epoxy Resin

Terminal.....................................Ag/Ni/Sn

Rated Current .........Ind. drop of 35 % typ.

at Isat

Temperature Rise .............30 ˚C typ. at Irms

Packaging.....................400 pcs. per reel

Product Dimensions

5.80 ± 0.30

(.228 ± .012)

6R2

5.80 ± 0.30

(.228 ± .012)

2.80 ± 0.20

(.110 ± .008)

1.90

(.075)

TYP.

Soldering Profile

275

<1> Maximum of 10 seconds between

+255°C and +260°C

260°C peak

<1> 255°C

TYP.

2.00

(.079)

1.90

(.075)

TYP.

225

220°C

190°C

60 - 90

seconds

Ramp Down

6°C/second

maximum

Temperature (°C)

175

150°C

Recommended Layout

120 - 150 seconds

10 seconds minimum

125

6.30

REF.

(.248)

2.20

(.087)

REF.

Ramp Up

3°C/second maximum

2.20

(.087)

REF.

100

150

200

250

Rev. 02/22/05

300

REF.

1.90

(.075)

2.20

(.087)

REF.

Time (seconds)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

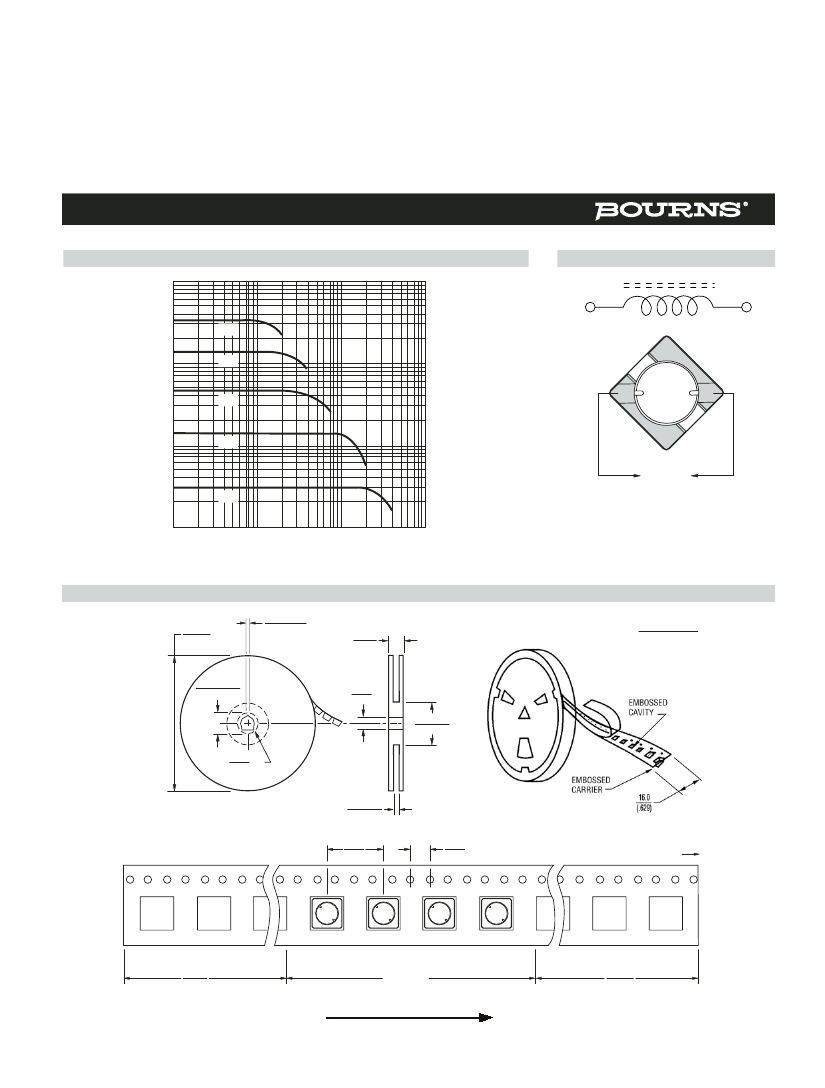

SRR5028-120Y Related Products

	SRR5028-120Y	BLU1206P-1270-DT10	SRR5028-471Y	FP6048-2184-DBQ	SRR5028-181Y	SRR5028-220Y	SRR5028-681Y	CL05C181GB5GLNP
Description	EEPROM 2 Mbit serial I2C 1.8V to 5.5V EEPROM	Res,SMT,Thin Film,127 Ohms,150WV,.5% +/-Tol,10ppm TC,1206 Case	Analog Front End - AFE Analog Front-End	Fixed Resistor, Metal Film, 0.5W, 2180000ohm, 350V, 0.5% +/-Tol, 200ppm/Cel,	Fixed Inductors MAGNETICS - SHIELDED POWER INDUCTOR	RS-485 Interface IC 30V Fault-Prot RS485 Transceivers	Fixed Inductors SMD 680uH 0.2amps	Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.00018uF, 0402,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	155 °C	125 °C	160 °C	125 °C	125 °C	125 °C	125 °C
Package form	SMT	SMT	SMT	Axial	SMT	SMT	SMT	SMT
method of packing	TR	TR	TR	Bulk	TR, Embossed, 7 Inch	TR	TR	Bulk
Is it lead-free?	Lead free	-	Lead free	-	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to	conform to	conform to	conform to
package instruction	2323	-	2323	-	2323	2323	2323	, 0402
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Factory Lead Time	18 weeks	-	18 weeks	-	15 weeks	18 weeks	18 weeks	-
uppercase and lowercase codes	2323	-	2323	-	2323	2323	2323	-
structure	Shielded	Chip	Shielded	Flameproof	Rectangular	Shielded	Shielded	-
core material	FERRITE	-	FERRITE	-	FERRITE	FERRITE	FERRITE	-
DC Resistance	0.08 Ω	-	2.5 Ω	-	1 Ω	0.12 Ω	4.3 Ω	-
Nominal inductance(L)	12 µH	-	470 µH	-	180 µH	22 µH	680 µH	-
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-
JESD-609 code	e2	-	e2	e0	e3	e2	e2	e3
Number of functions	1	-	1	-	1	1	1	-
Minimum operating temperature	-40 °C	-	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C
Package height	2.8 mm	0.5 mm	2.8 mm	-	2.8 mm	2.8 mm	2.8 mm	-
Package length	5.8 mm	3.2 mm	5.8 mm	9 mm	5.8 mm	5.8 mm	5.8 mm	-
Package width	5.8 mm	1.6 mm	5.8 mm	-	5.8 mm	5.8 mm	5.8 mm	-
Maximum rated current	1.25 A	-	0.23 A	-	0.32 A	1 A	0.14 A	-
self resonant frequency	28 MHz	-	5 MHz	-	6.3 MHz	20 MHz	3 MHz	-
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
shield	YES	-	YES	-	YES	YES	YES	-
surface mount	YES	-	YES	-	YES	YES	YES	-
Terminal surface	Silver/Nickel/Tin (Ag/Ni/Sn)	-	Silver/Nickel/Tin (Ag/Ni/Sn)	Tin/Lead (Sn/Pb)	Tin (Sn) - with Nickel (Ni) barrier	Silver/Nickel/Tin (Ag/Ni/Sn)	Silver/Nickel/Tin (Ag/Ni/Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	-	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	-
Terminal shape	ONE SURFACE	-	ONE SURFACE	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	-
Test frequency	0.1 MHz	-	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	-
Tolerance	30%	0.5%	30%	0.5%	30%	30%	30%	-
Base Number Matches	1	-	1	-	1	1	1	-
