DS1033Z-08 datasheet, PDF - EEWORLD Datasheet

DS1033Z-08: DescriptionSilicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8,; Categorylogic logic; File Size278KB，6 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

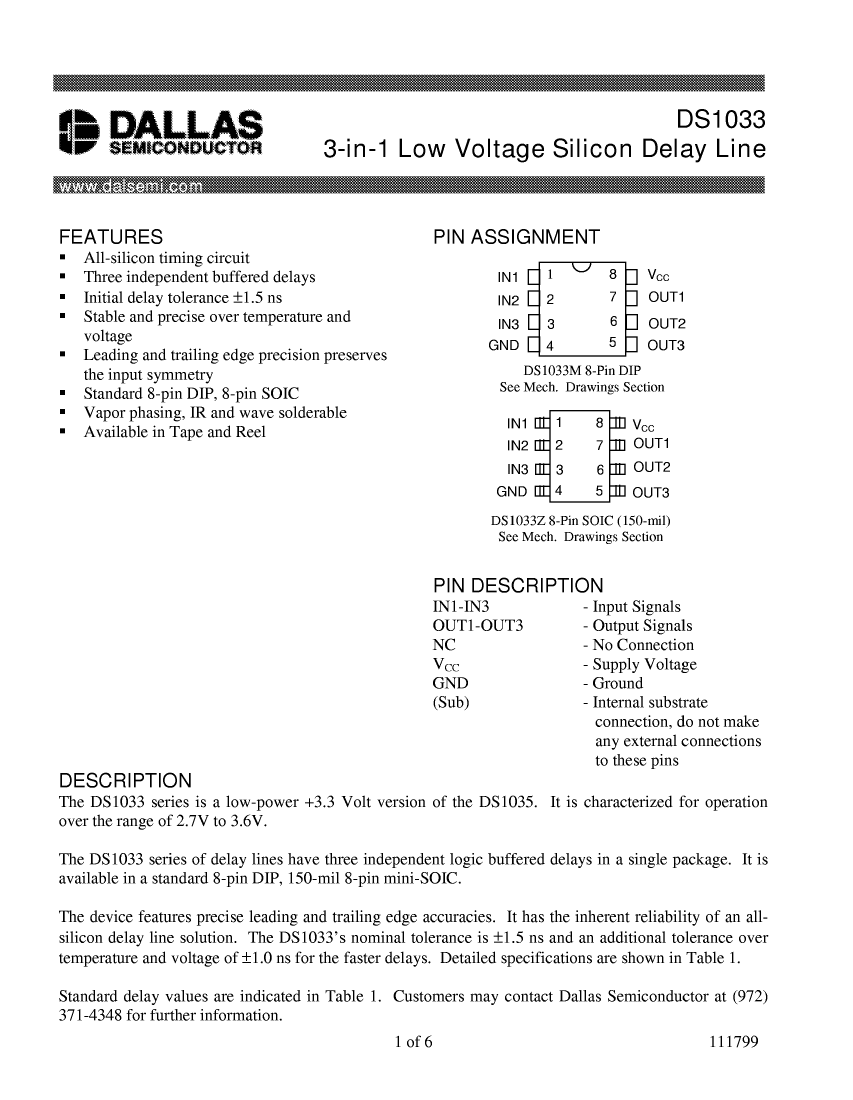

DS1033Z-08 Overview

Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8,

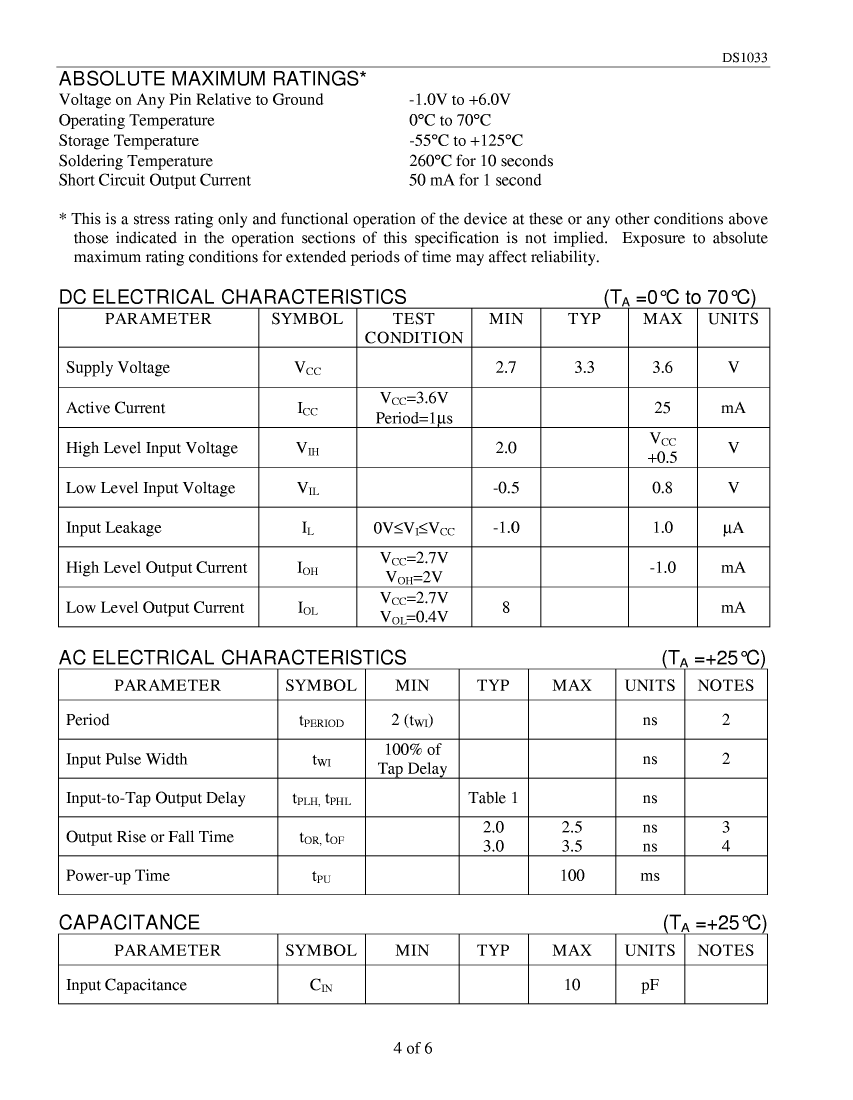

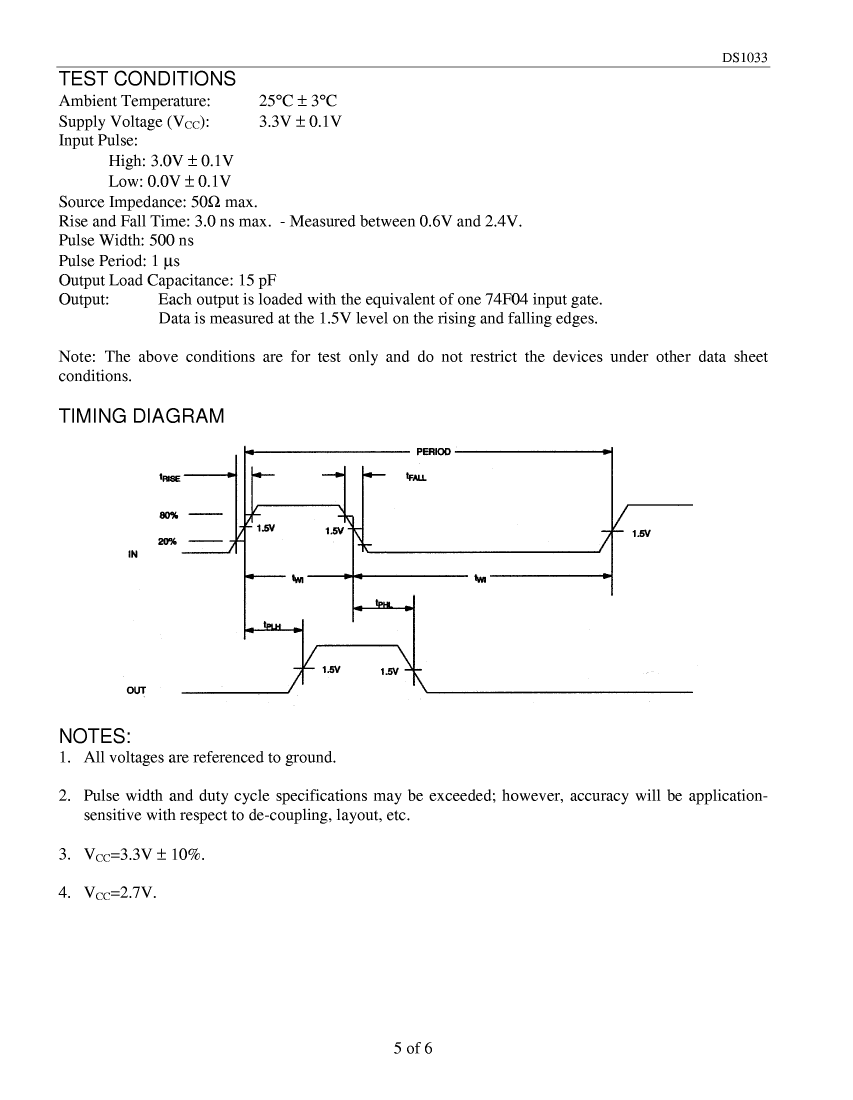

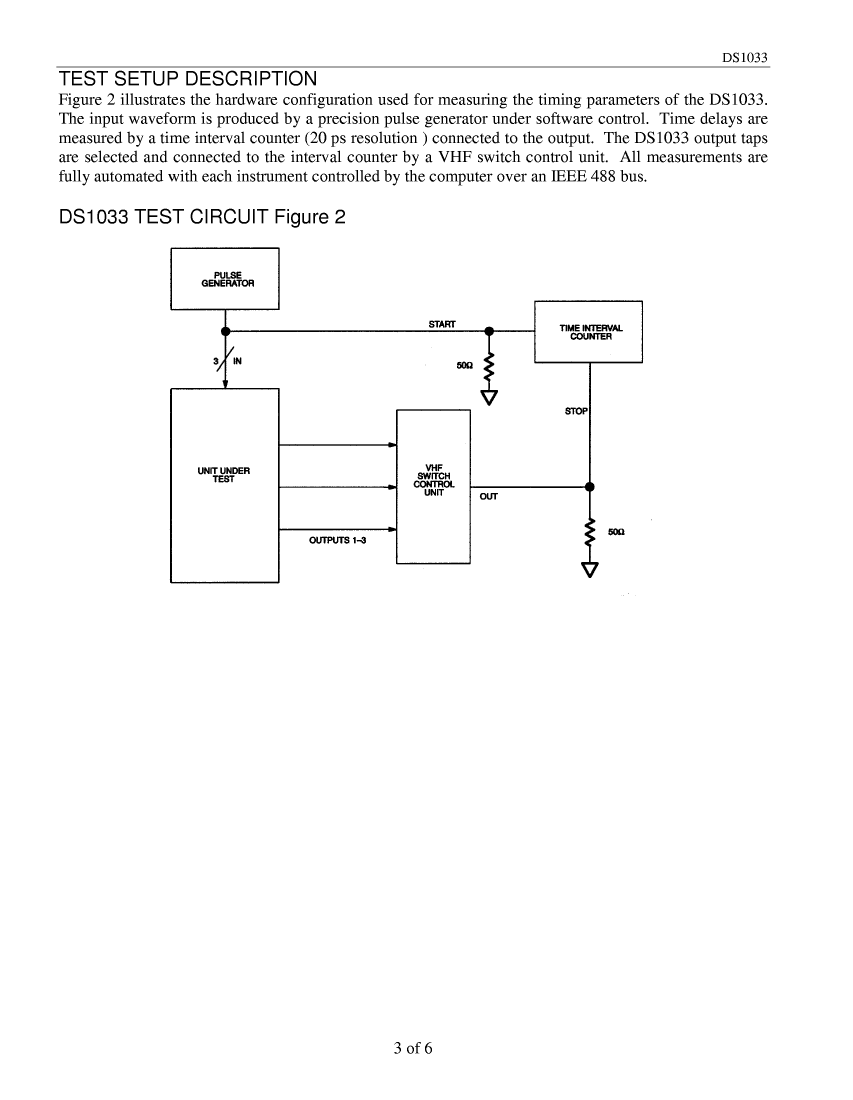

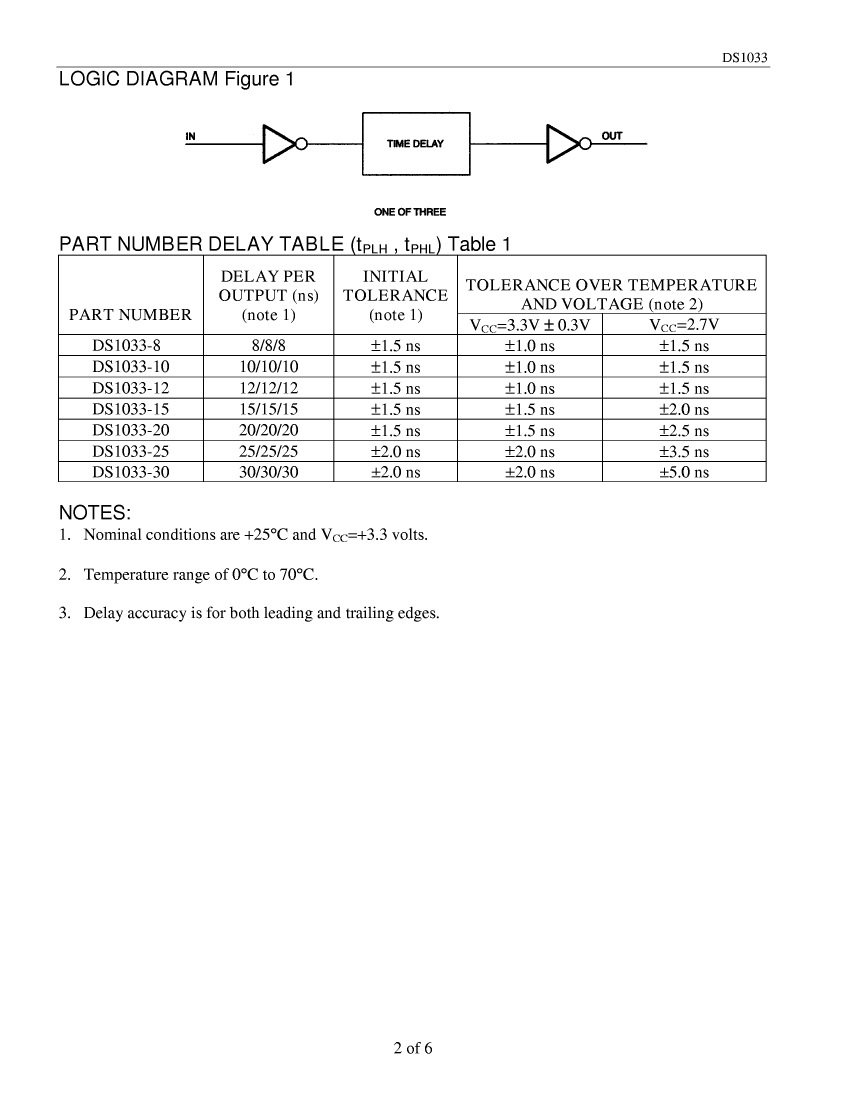

Parameter Name	Attribute value
Maker	DALLAS
Reach Compliance Code	unknown
Other features	BOTH LEADING & TRAILING EDGE ACCURACY
series	CMOS/TTL
Input frequency maximum value (fmax)	62.5 MHz
JESD-30 code	R-PDSO-G8
Load capacitance (CL)	15 pF
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	3
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Total delay nominal (td)	8 ns
Base Number Matches	1

	DS1033Z-08	DS1033M-08	DS1033Z-8	DS1033M-8
Description	Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8,	Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDIP8,	Delay Line, 3-Func, 1-Tap, CMOS, PDSO8,	Delay Line, 3-Func, 1-Tap, CMOS, PDIP8,
Maker	DALLAS	DALLAS	DALLAS	DALLAS
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8
Number of functions	3	3	3	3
Number of taps/steps	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
programmable delay line	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
encapsulated code	SOP	-	SOP	DIP
