AQ065M680JAJ1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> AQ065M680JAJ1A

AQ065M680JAJ1A: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 68pF 5% 5%; CategoryPassive components; File Size630KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

AQ065M680JAJ1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AQ065M680JAJ1A	-	-	View	Buy Now

AQ065M680JAJ1A Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 68pF 5% 5%

AQ065M680JAJ1A Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	AVX
Capacitance	68 pF
Voltage Rating DC	50 VDC
Dielectric	M
Tolerance	5 %
Case Code - in	0603
Case Code - mm	1608
Height	0.813 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	RF Microwave / High Q
Packaging	Reel
Length	1.6 mm
Package / Case	0603 (1608 metric)
Factory Pack Quantity	4000
Termination Style	SMD/SMT
Type	Microwave MLCCs
Width	0.889 mm
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

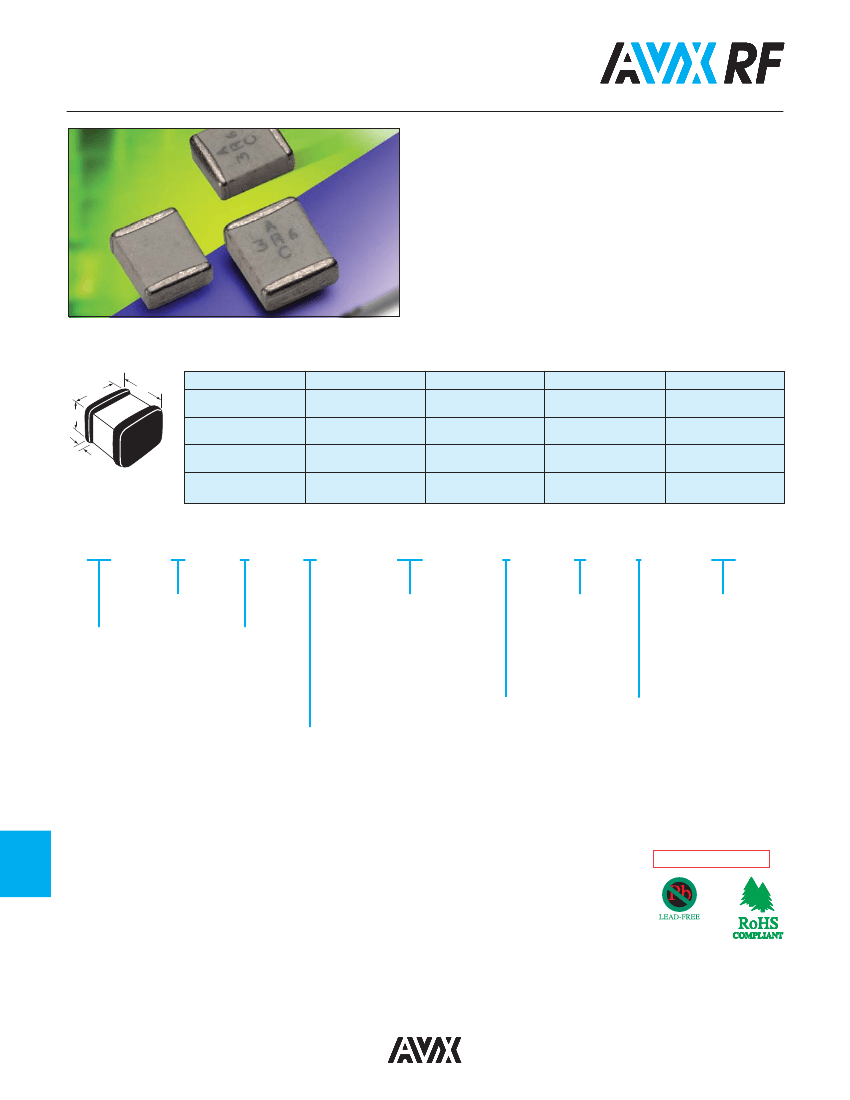

Microwave MLC’s

AQ Series

These porcelain and ceramic dielectric multilayer capacitor

(MLC) chips are best suited for RF/ Microwave applications

typically ranging from 10 MHz to 4.2 GHz. Characteristic is a

fine grained, high density, high purity dielectric material imper-

vious to moisture with heavy internal palladium electrodes.

These characteristics lend well to applications requiring:

1) high current carrying capabilities;

2) high quality factors;

3) very low equivalent series resistance;

4) very high series resonance;

5) excellent stability under stresses of changing volt-

age, frequency, time and temperature.

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.010

(2.79±.508)

Case

AQ11

AQ12

Length (L)

.055±.015

(1.40±.381)

.055 + .015 - .010

(1.40+ .381 - .254)

.110±.020

(2.79±.508)

.110 + .020 - .010

(2.79 +.889 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.015±.010

(.381±.254)

A 1J

AQ13

AQ14

HOW TO ORDER

100

Case

Size

AVX Style

AQ11, AQ12,

AQ13, AQ14

(See Chart)

Capacitance

EIA Capacitance Code in pF.

Failure Rate

Code

A = Not

Applicable

Packaging*

Code

3A = 13" Reel Unmarked

ME = 7" Reel Marked

RE = 13" Reel Marked

WE = Waffle Pack Marked

BE = Bulk Marked

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

9 = 300V

7 = 500V

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Temperature

Coefficient Code

M = +90±20ppm/°C (AQ11/12/13/14)

A = 0±30ppm/°C (AQ11/12/13/14)

C = 15% (“J” Termination only) (AQ12/14)

Capacitance

Tolerance

Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

Termination

Style Code

1 = Pd/Ag (AQ11/13 only)

7 = Ag/Ni/Au (AQ11/13 only)

J = Nickel Barrier Sn/Pb

(60/40) - (AQ12/14 only)

T = 100% Tin (AQ12/14 only)

PACKAGING

Standard Packaging = Waffle Pack (maximum quantity is 80)

Not RoHS Compliant

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481

(equivalent to IEC 286 part 3).

LEAD-FREE COMPATIBLE

COMPONENT

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel: ≤0.040" thickness = 2000 pcs

≤0.075" thickness = 2000 pcs

—13" reel: ≤0.075" thickness = 10,000 pcs

For RoHS compliant products,

please select correct termination style.

156

AQ065M680JAJ1A Related Products
