Document 481-1

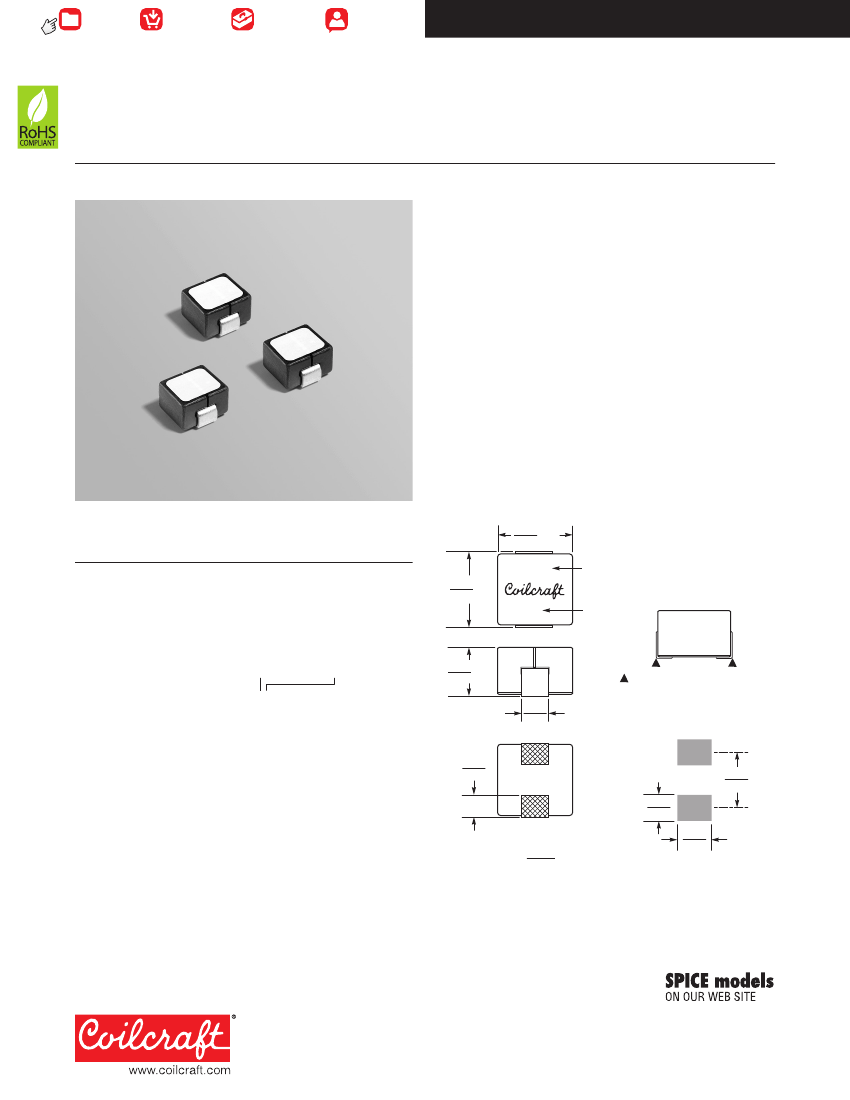

Shielded Power Inductors – SLC7649
• Designed for use in multi-phase VRM/VRD regulators and high
current/high frequency DC/DC converters.
• Requires only 60 mm
2
of board space; can handle up to 100 A
Designer’s Kit C467
contains 3 each of select values.
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight
0.9 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″reel; 1000/13″ reel Plastic tape: 16 mm wide,
0.35 mm thick, 12 mm pocket spacing, 5 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
SLC7649S-360KL_
SLC7649S-500KL_
SLC7649S-700KL_
SLC7649S-101KL_
SLC7649S-121KL_
SLC7649S-151KL_
L
DCR
SRF
±10%
2
±5%
3
typ
4
Isat
5
(nH) (mOhms) (MHz) (A)
36
50
70
100
120
150
0.17
0.17
0.17
0.17
0.17
0.17
1150
900
750
110
78
67
100
84
65
42
33
27
Irms
6
(A)
39
39
39
39
39
39
0.300 max
7,62
0.274
max
6,95
XXX
X
Dash
number
Internal
code
1. When ordering, please specify
termination
and
packaging
code:
SLC7649S-101KLC
Termination: L
= RoHS compliant matte tin over nickel over copper
Special order: T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (250 per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 per full reel). Factory order only, not
stocked.
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B
LCR meter or equivalent.
3. DCR is measured between the two points indicated on the dimen-
sional drawing.
4. SRF measured using an Agilent/HP 8753ES network analyzer or
equivalent.
5. DC current at 25°C that causes a 20% (typ) inductance drop from its
value without current.
Click for temperature derating information.
6. Current that causes a 40°C temperature rise from 25°C ambient. This
information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
0.195 max
4,96
0.105
2,67
Points used for measuring DCR
Recommended
Land Pattern
0.085
2,16
0.100
2,54
0.135
3,43
0.225
5,72
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 481-1
Revised 09/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 481-2

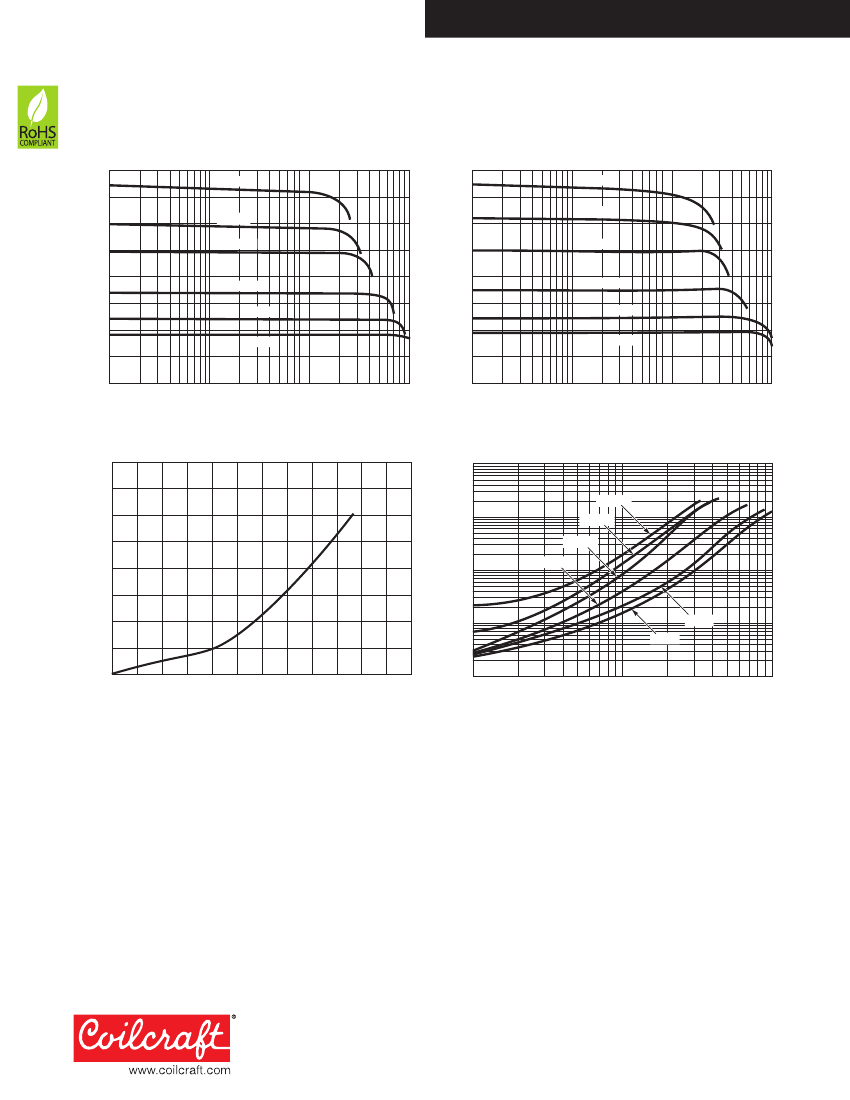

Shielded Power Inductors – SLC7649 Series
L vs Current
160
140
120
120 nH
100 nH
150 nH
L vs Frequency
160
140
120 nH
150 nH
120
Inductance (nH)
Inductance (nH)
100
80
60
40
100
80
60
40
100 nH
70 nH
50 nH
36 nH
70 nH
50 nH
36 nH
20
0
0.1
1
10
100
20
0
0.1
1
10
100
Current (A)
Frequency (MHz)
Temperature Rise vs Current
80
ESR vs Frequency
100
Temperature rise (from 25°C)
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
Equivalent Series Resistance ( )
150 nH
10
120 nH
100 nH
1
70 nH
0.1
36 nH
0.01
1
10
50 nH
100
Current (A rms)
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 481-2
Revised 09/05/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
