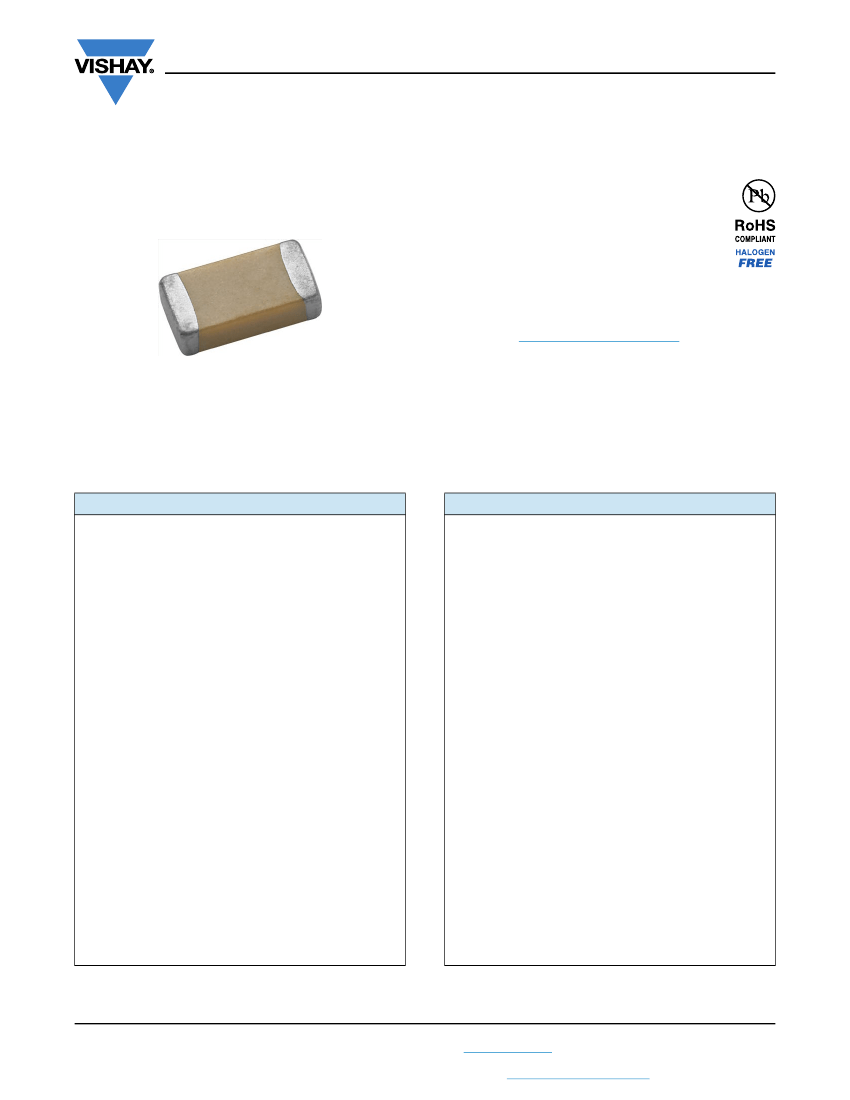

VJ Non-Magnetic Series for Epoxy Bonding
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for Non-Magnetic Applications (Epoxy Bonding)
FEATURES
•
•
•
•
•
•
•
•
Manufactured with non-magnetic materials
Safety screened for magnetic properties
C0G (NP0) and X7R / X5R dielectrics
Wide range of case sizes, voltage ratings,
and capacitance values
Suitable for conductive epoxy bonding
Wet built process
Reliable Noble Metal Electrode (NME) system
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Magnetic Resonance Imaging (MRI)
Medical test and diagnostic equipment
Hi-rel medical systems
Hi-rel aviation systems
Laboratory analysis systems
Navigation and electronic test equipment
Audio amplifiers
APPLICATIONS
•
•
•
•
•
•
•
ELECTRICAL SPECIFICATIONS
NON-MAGNETIC C0G (NP0)
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
NON-MAGNETIC X7R / X5R
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
1.0 pF to 39 nF
Voltage Range:
10 V
DC
to 3000 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
≤
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 MΩ min. or 1000
ΩF
whichever is less
at +125 °C 10 000 MΩ min. or 100
ΩF
whichever is less
Aging:
0 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 % of rated voltage
≤
200 V
DC
-rated:
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
150 % of rated voltage
1500 V
DC
to 3000 V
DC
-rated:
120 % of rated voltage
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
100 pF to 6.8 μF
Voltage Range:
6.3 V
DC
to 3000 V
DC
Temperature Coefficient of Capacitance (TCC):
X5R: ± 15 % from -55 °C to +85 °C, with 0 V
DC
applied
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
Dissipation Factor (DF):
≤
6.3 V, 10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
≥
50 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 MΩ min. or 1000
ΩF
whichever is less
at +125 °C 10 000 MΩ min. or 100
ΩF
whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
≤
200 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC,
1000 V
DC
-rated:
150 % of rated voltage
1500 V
DC
, 3000 V
DC
-rated:
120 % of rated voltage
Revision: 18-May-17
Document Number: 45128
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Non-Magnetic Series for Epoxy Bonding
www.vishay.com
ORDERING INFORMATION
VJ0603
CASE
CODE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
Y
DIELECTRIC
102
CAPACITANCE
NOMINAL CODE
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier. An “R”
indicates a
decimal point.
Examples
102 = 1000 pF
1R0 = 1.0 pF
K
CAPACITANCE
TOLERANCE
C0G(NP0):
< 10 pF
C = ± 0.25 pF
D = 0.5 pF
≥
10 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
X5R / X7R:
J=±5%
K = ± 10 %
M = ± 20 %
N
TERMINATION
A
DC VOLTAGE
RATING
(1)
Q = 10 V
J = 16 V
X = 25 V
A = 50 V
K = 75 V
B = 100 V
C = 200 V
E = 500 V
L = 630 V
G = 1000 V
R = 1500 V
F = 2000 V
H = 3000 V
A
MARKING
O
PACKAGING
Vishay Vitramon
A = C0G
Y = X7R
G = X5R
(2)
N=
non-magnetic
A=
unmarked
T = 7" reel / plastic tape
R = 11 1/4" / 13" reel / plastic tape
O = 7" reel / flamed paper tape
I = 11 1/4" / 13" reel /
flamed paper tape
J = 7" reel (low quantity)
Notes
(1)
DC voltage rating should not be exceeded in application
(2)
Selected values for X5R, see dielectric selection chart
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE
CODE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
STYLE
VJ0402
VJ0603
VJ0805
VJ1206
VJ1210
VJ1808
VJ1812
VJ1825
VJ2220
VJ2225
VJ3640
LENGTH
(L)
0.040 + 0.006 / - 0.004
(1.00 + 0.15 / - 0.10)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
0.177 ± 0.012
(4.50 ± 0.30)
0.177 ± 0.012
(4.50 ± 0.30)
0.177 ± 0.012
(4.50 ± 0.30)
0.220 ± 0.008
(5.59 ± 0.20)
0.220 ± 0.010
(5.59 ± 0.25)
0.360 ± 0.015
(9.14 ± 0.38)
WIDTH
(W)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.010
(1.60 ± 0.25)
0.098 ± 0.010
(2.50 ± 0.25)
0.080 ± 0.010
(2.03 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
0.252 ± 0.010
(6.40 ± 0.25)
0.200 ± 0.010
(5.08 ± 0.25)
0.250 ± 0.010
(6.35 ± 0.25)
0.400 ± 0.015
(10.20 ± 0.38)
MAXIMUM
THICKNESS
(T)
0.024
(0.60)
0.038
(0.92)
0.057
(1.45)
0.067
(1.70)
0.067
(1.70)
0.067
(1.70)
0.086
(2.18)
0.086
(2.18)
0.086
(2.18)
0.086
(2.18)
0.086
(2.18)
TERMINATIONS
(P)
MINIMUM
MAXIMUM
0.004
0.016
(0.10)
(0.41)
0.012
0.018
(0.30)
(0.46)
0.010
0.028
(0.25)
(0.71)
0.010
0.028
(0.25)
(0.71)
0.010
0.028
(0.25)
(0.71)
0.010
0.030
(0.25)
(0.76)
0.010
0.030
(0.25)
(0.76)
0.010
0.030
(0.25)
(0.76)
0.010
0.030
(0.25)
(0.76)
0.010
0.030
(0.25)
(0.76)
0.010
0.030
(0.25)
(0.76)
Revision: 18-May-17
Document Number: 45128
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
