PM7032S-150M-RC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PM7032S-150M-RC

Preview

PM7032S-150M-RC: DescriptionFixed Inductors 15uH 20%; CategoryPassive components inductor; File Size189KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM7032S-150M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM7032S-150M-RC	-	-	View	Buy Now

PM7032S-150M-RC Overview

Fixed Inductors 15uH 20%

PM7032S-150M-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	2828
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	2828
structure	Rectangular
core material	FERRITE
DC Resistance	0.095 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	7 mm
Package form	SMT
Package width	7 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	1.1 A
self resonant frequency	32 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

CO

M

PL

IA

N

T

Features

■

Formerly

■

Available in E6 values

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

*R

oH

S

1

50

■

Inductance value to 1000 µH

■

RoHS compliant*

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

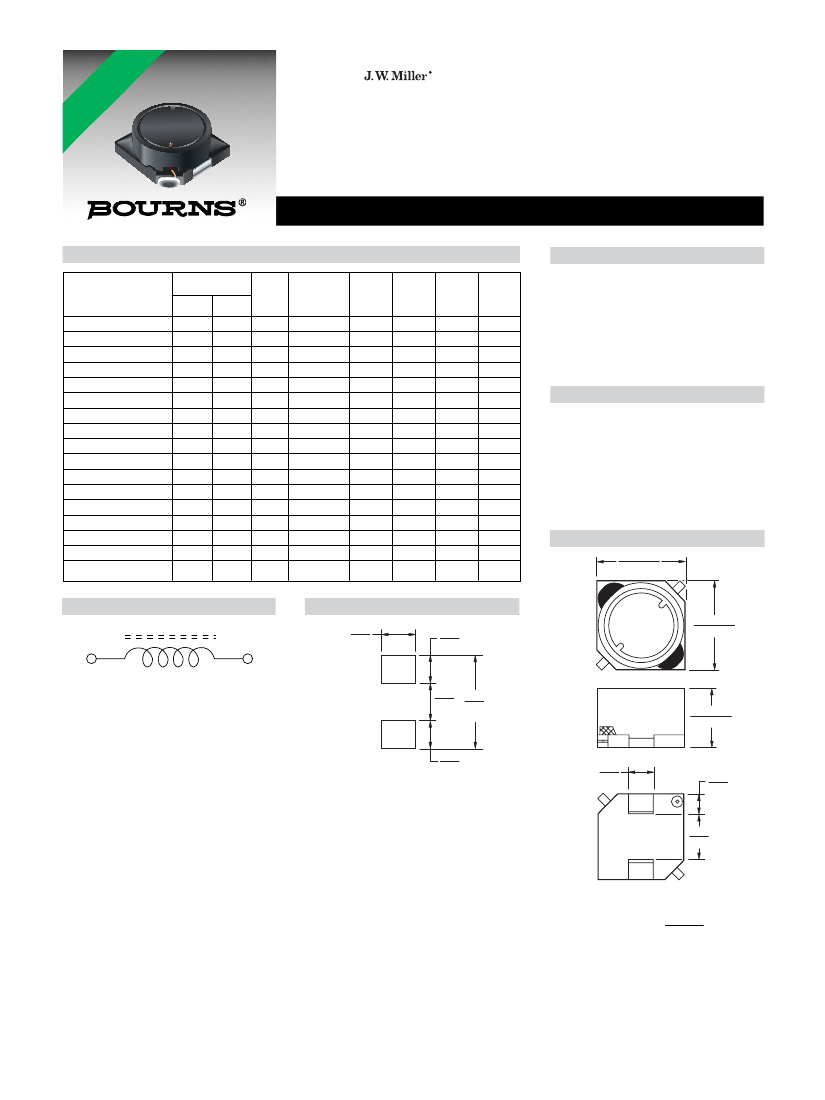

PM7032S Series - Shielded SMD Power Inductor

Electrical Speciﬁcations

Inductance 100 kHz

General Speciﬁcations

Test

Frequency

(MHz)

7.96

2.52

0.796

0.252

SRF

Min.

(MHz)

70

55

43

37

35

32

29

20

18

16

12

10

7.5

6.1

5.1

3.8

3.1

RDC

Max.

(Ω)

0.022

0.027

0.042

0.054

0.068

0.095

0.135

0.200

0.280

0.380

0.540

0.800

1.300

1.900

2.400

3.750

5.400

Irms

Max.

(A)

2.65

2.40

2.00

1.60

1.40

1.10

0.96

0.76

0.67

0.60

0.45

0.37

0.30

0.22

0.20

0.16

0.15

Isat

Typ.

(A)

2.60

2.20

2.00

1.80

1.60

1.20

1.05

0.86

0.77

0.70

0.50

0.38

0.32

0.24

0.20

0.15

0.14

Bourns Part No.

PM7032S-2R2M-RC

PM7032S-3R3M-RC

PM7032S-4R7M-RC

PM7032S-6R8M-RC

PM7032S-100M-RC

PM7032S-150M-RC

PM7032S-220M-RC

PM7032S-330M-RC

PM7032S-470M-RC

PM7032S-680M-RC

PM7032S-101M-RC

PM7032S-151M-RC

PM7032S-221M-RC

PM7032S-331M-RC

PM7032S-471M-RC

PM7032S-681M-RC

PM7032S-102M-RC

(µH)

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

470

680

1000

Tol. %

± 20

Q

Typ.

12

16

17

25

22

20

23

26

22

28

35

47

46

34

58

120

Test Voltage ....................................0.5 V

Reﬂow Soldering .. 230 °C, 50 sec. max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

............................... 260 °C for 10 sec.

Materials

Core ...........................Ferrite DR and RI

Wire ............ Enameled copper wire 130

Terminal ....................................Cu/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ................. 30 °C max.

at rated Irms

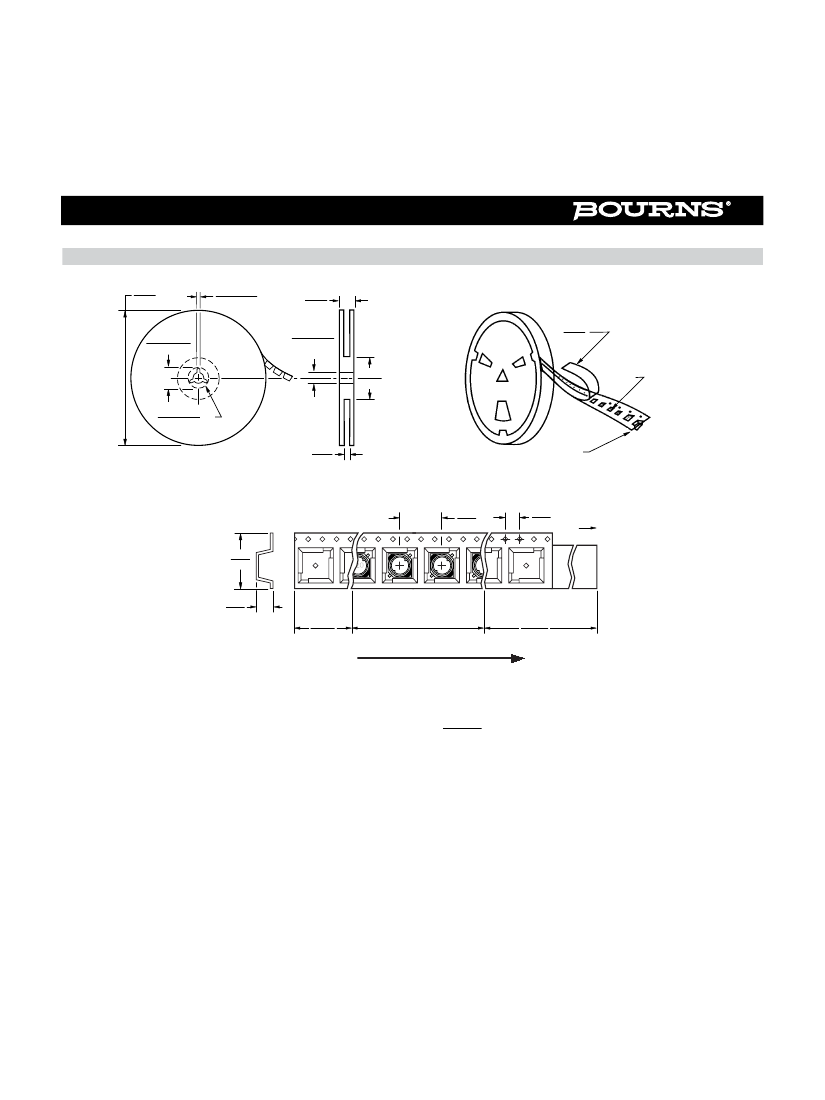

Packaging .................. 1000 pcs. per reel

Product Dimensions

7.0

±

0.3

(.276

±

.012)

Electrical Schematic

Recommended Layout

2.4

REF.

(.094)

1.8

REF.

(.071)

220

7.0

±

0.3

(.276

±

.012)

4.2

(.165)

REF.

7.80

(.307)

REF.

3.20

±

0.2

(.126

±

.008)

1.8

REF.

(.071)

TYP.

2.0

(.079)

1.5

(.059)

TYP.

4.0

TYP.

(.157)

DIMENSIONS:

MM

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PM7032S-150M-RC Related Products

	PM7032S-150M-RC	PM7032S-471M-RC	PM7032S-101M-RC	PM7032S-102M-RC
Description	Fixed Inductors 15uH 20%		Fixed Inductors 100uH 20%	Fixed Inductors 1.0mH 20%
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	2828	2828	2828	2828
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	2828	2828	2828	2828
structure	Rectangular	Rectangular	Rectangular	Rectangular
core material	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.095 Ω	2.46 Ω	0.54 Ω	5.74 Ω
Nominal inductance(L)	15 µH	470 µH	100 µH	1000 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-20 °C	-20 °C	-20 °C
Package height	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Package length	7 mm	7 mm	7 mm	7 mm
Package form	SMT	SMT	SMT	SMT
Package width	7 mm	7 mm	7 mm	7 mm
method of packing	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH
Maximum rated current	1.1 A	0.24 A	0.51 A	0.13 A
self resonant frequency	32 MHz	5.1 MHz	12 MHz	3.1 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
surface mount	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	20%	20%	20%	20%
Base Number Matches	-	1	1	1
