1-1532185-9 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1-1532185-9

Preview

1-1532185-9: DescriptionM83513/03-G03C, MCKS-C2-B-51P6G9-18.0; CategoryThe connector The connector; File Size572KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-1532185-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1532185-9	-	-	View	Buy Now

1-1532185-9 Overview

M83513/03-G03C, MCKS-C2-B-51P6G9-18.0

1-1532185-9 Parametric

Parameter Name	Attribute value
Brand Name	Microdot
Is it Rohs certified?	incompatible
Objectid	145070369117
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Samacsys Description	M83513/03-G03C, MCKS-C2-B-51P6G9-18.0
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
Body/casing type	PLUG
Cable type	STRANDED
Contactor design	PREASSEM CONN
Contact point gender	MALE
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
MIL compliance	NO
Power Connector Ratings	115/230VAC
Mixed contacts	NO
Number of connectors	ONE
Number of ports	1
Options	GENERAL PURPOSE
Panel mounting	NO
Shell surface	NICKEL
Terminal length	18 inch
Total number of contacts	51

Preview

Download Datasheet

View All

4

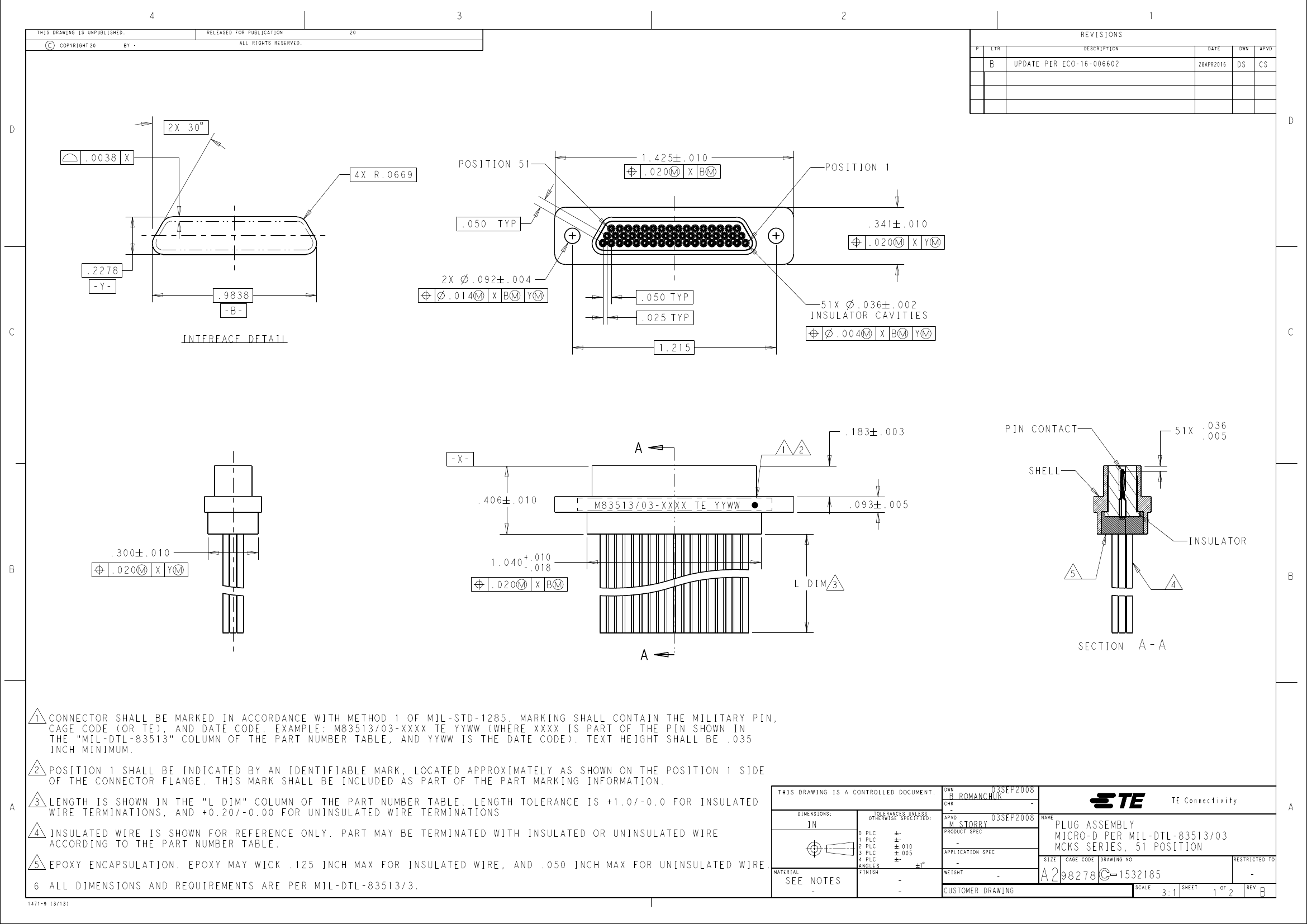

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B

UPDATE PER ECO-16-006602

28APR2016

DS

CS

D

.0038

.

X

2X 30 $

POSITION 51

1.425

.010

D

4X R.0669

.020 m

X B m

POSITION 1

.050

TYP

.341

.020 m

.010

X Y m

.2278

-Y-

.9838

-B-

2X

n .092

.004

.050 TYP

.025 TYP

1.215

51X n .036 # .002

INSULATOR CAVITIES

X B m Y m

C

X B m Y m

C

INTERFACE DETAIL

.183

-X-

1

2

.003

PIN CONTACT

51X

.036

.005

SHELL

.406

.010

M83513/03-XXXX TE YYWW

.093

.005

INSULATOR

1.040

+.010

-.018

X B m

L DIM

3

5

.300

B

.020 m

.010

X Y m

.020 m

4

B

SECTION

A-A

1

CONNECTOR SHALL BE MARKED IN ACCORDANCE WITH METHOD 1 OF MIL-STD-1285. MARKING

CAGE CODE (OR TE), AND DATE CODE. EXAMPLE: M83513/03-XXXX TE YYWW (WHERE XXXX

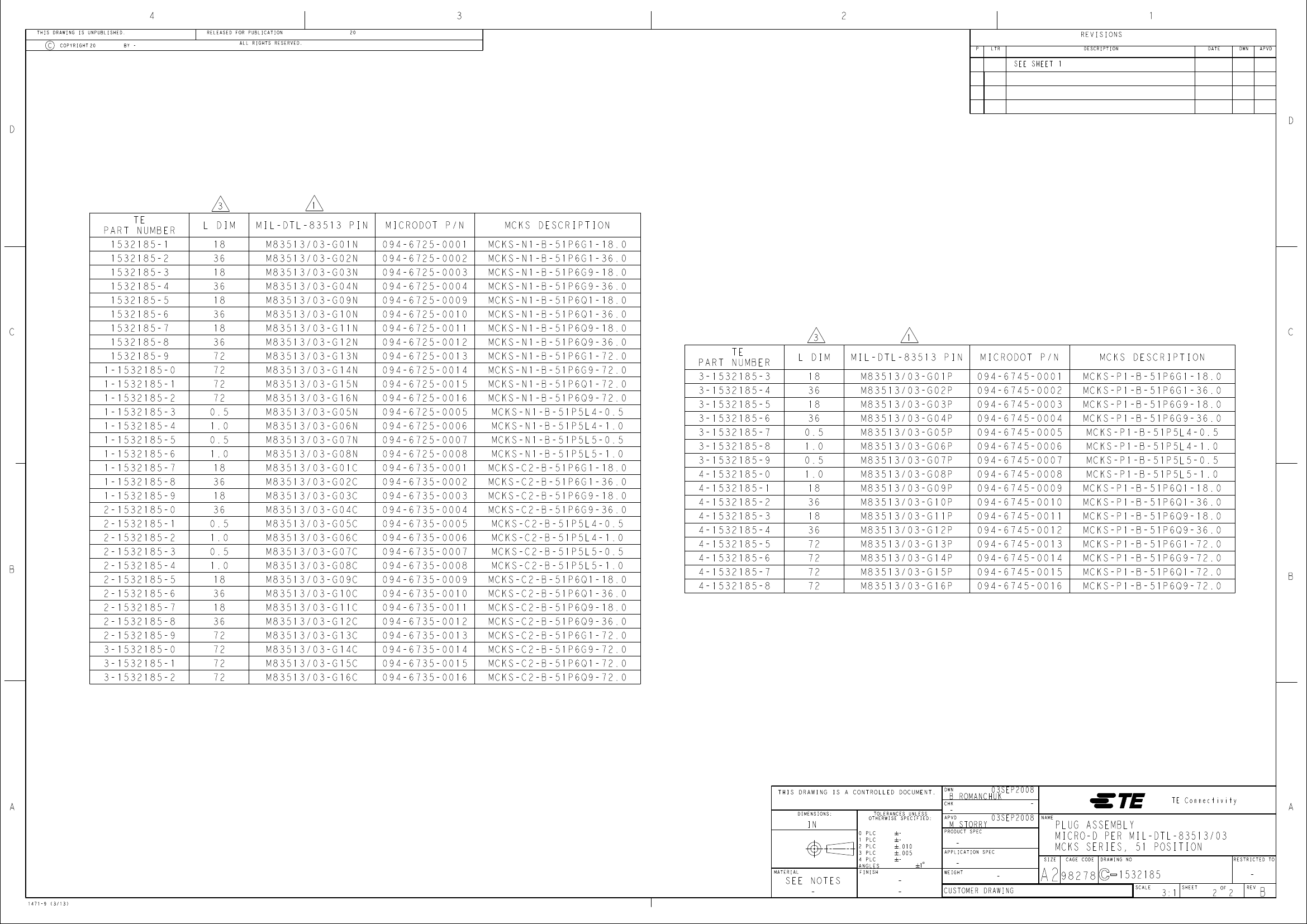

THE "MIL-DTL-83513" COLUMN OF THE PART NUMBER TABLE, AND YYWW IS THE DATE

INCH MINIMUM.

POSITION 1 SHALL BE INDICATED BY AN IDENTIFIABLE MARK, LOCATED APPROXIMATELY AS

OF THE CONNECTOR FLANGE. THIS MARK SHALL BE INCLUDED AS PART OF THE PART

LENGTH IS SHOWN IN THE "L DIM" COLUMN OF THE PART NUMBER TABLE.

WIRE TERMINATIONS, AND +0.20/-0.00 FOR UNINSULATED WIRE TERMINATIONS

INSULATED WIRE IS SHOWN FOR REFERENCE ONLY. PART MAY BE TERMINATED WITH

ACCORDING TO THE PART NUMBER TABLE.

EPOXY ENCAPSULATION. EPOXY MAY WICK .125 INCH MAX FOR INSULATED WIRE, AND .050

ALL DIMENSIONS AND REQUIREMENTS ARE PER MIL-DTL-83513/3.

SHALL CONTAIN THE MILITARY PIN,

IS PART OF THE PIN SHOWN IN

CODE). TEXT HEIGHT SHALL BE .035

SHOWN ON THE POSITION 1 SIDE

MARKING INFORMATION.

2

3

4

5

A

LENGTH TOLERANCE IS +1.0/-0.0 FOR INSULATED

INSULATED OR UNINSULATED WIRE

INCH MAX FOR UNINSULATED WIRE.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

03SEP2008

B ROMANCHUK

-

03SEP2008

-

NAME

TE Connectivity

IN

APVD

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.010

.005

-

PRODUCT SPEC

M STORRY

APPLICATION SPEC

-

1 $

6

SEE NOTES

-

1471-9 (3/13)

-

WEIGHT

-

CUSTOMER DRAWING

A2

98278

SIZE

PLUG ASSEMBLY

MICRO-D PER MIL-DTL-83513/03

MCKS SERIES, 51 POSITION

CAGE CODE

DRAWING NO

RESTRICTED TO

1532185

SCALE

3:1

SHEET

1

OF

2

REV

-

B
