440-069
EMI/RFI Banding and Shrink Boot Adapter
Self-Locking Rotatable Coupling - Standard Profile
440 F S 069 M 20 12-8 B P T
440
CONNECTOR
DESIGNATORS
Product Series
Connector Designator
Shrink Boot (Table IV -
Omit for none)
Polysulfide (Omit for none)
A-F-H-L
SELF-LOCKING
ROTATABLE
COUPLING
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Finish (Table II)
Shell Size (Table I)
Length **
B = Band
K = Precoiled Band
(Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Cable Entry (Table IV)
** Length ± .060 (1.52)
Min. Order Length 2.0 inch
.135 (3.4)
(See Note 4)
.075 (1.9) Ref.
Length ± .060 (1.52)

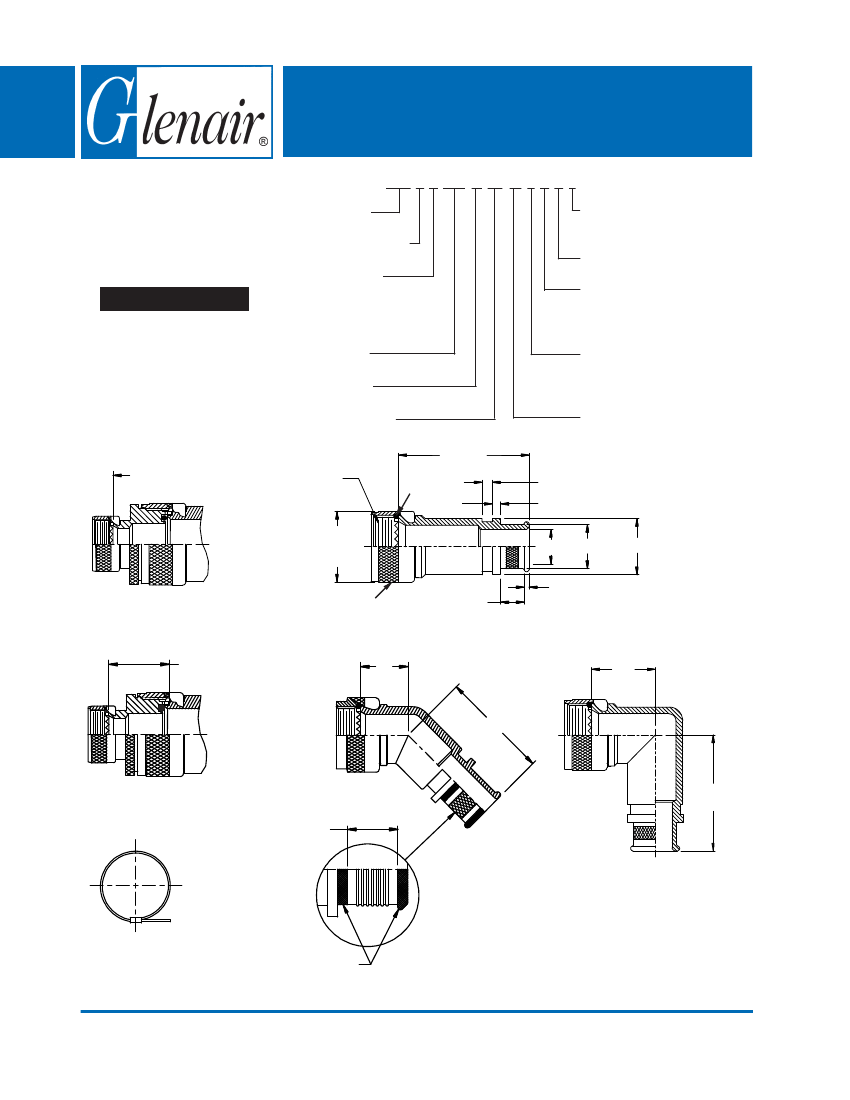

A Thread
Min. Order Length 2.5 inch (Table I)
O-Ring
E Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
K*
L*
M*
* (Table IV)
.060 (1.5)
Anti-Rotation
Device (Typ.)
.380 (9.7)
F
(Table III)
H
(Table III)
G (Table III)
STYLE 2
(45° & 90°
See Note 1)
J (Table III)
Termination Area
Free of Cadmium.
Knurl or Ridges
Mfr's Option
Band Option
(K Option Shown -
See Note 6)
© 2005 Glenair, Inc.
Polysulfide Stripes
P Option
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 22
Self-Locking Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell Size
Conn. Desig.
H
A-F-L
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
40
TABLE III: ELBOW DIMENSIONS
F
Max
.806 (20.5)
.832 (21.1)
.856 (21.7)
.882 (22.4)
.908 (23.1)
.927 (23.5)
.953 (24.2)
.979 (24.9)
1.004 (25.5)
1.197 (30.4)
1.280 (32.5)
1.294 (32.9)
1.320 (33.5)
G
Max
1.038 (26.4)
1.064 (27.0)
1.088 (27.6)
1.114 (28.3)
1.150 (29.2)
1.190 (30.2)
1.250 (31.8)
1.320 (33.5)
1.380 (35.1)
1.500 (38.1)
1.620 (41.1)
1.750 (44.5)
1.870 (47.5)
H
Max
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.076 (27.3)
1.136 (28.9)
1.176 (29.9)
1.236 (31.4)
1.296 (32.9)
1.356 (34.4)
1.422 (36.1)
1.545 (39.2)
1.652 (42.0)
1.960 (49.8)
J
Max
1.146 (29.1)
1.210 (30.7)
1.268 (32.2)
1.330 (33.8)
1.392 (35.4)
1.438 (36.5)
1.500 (38.1)
1.562 (39.7)
1.625 (41.3)
1.654 (42.0)
1.777 (45.1)
1.844 (46.8)
2.070 (52.6)
TABLE IV: CABLE ENTRY
Dash
K
No.
01 .125 (3.2)
31 .188 (4.8)
02 .250 (6.4)
32 .312 (7.9)
03 .375 (9.5)
33 .438 (11.1)
04 .500 (12.7)
34 .562 (14.3)
05 .625 (15.9)
35 .688 (17.5)
06 .750 (19.1)
36 .812 (20.6)
07 .875 (22.2)
37 .938 (23.8)
08 1.000 (25.4)
38 1.062 (27.0)
09 1.125 (28.6)
10 1.250 (31.8)
11 1.375 (34.9)
12 1.500 (38.1)
13 1.625 (41.3)
14 1.750 (44.5)
15 1.875 (47.6)
16 2.000 (50.8)
L
M
.312 (7.9)
.374 (9.5)
.437 (11.1)
.500 (12.7)
.562 (14.3)
.624 (15.8)
.687 (17.4)
.750 (19.1)
.812 (20.6)
.874 (22.2)
.937 (23.8)
1.000 (25.4)
1.062 (27.0)
1.124 (28.5)
1.187 (30.1)
1.250 (31.8)
1.312 (33.3)
1.437 (36.5)
1.562 (39.7)
1.687 (42.8)
1.812 (46.0)
1.937 (49.2)
2.062 (52.4)
2.187 (55.5)
Shrink
Boot
770-003S111
770-003S111
770-003S112
770-003S112
770-001S103
770-001S104
770-001S104
770-001S104
770-001S104
770-001S104
770-001S105
770-001S105
770-001S105
770-001S105
770-001S106
770-001S106
770-001S107
770-001S107
770-001S107
770-001S107
770-001S108
770-001S108
770-001S109
770-001S109
.250
.312
.375
.438
.500
.562
.625
.688
.750
.812
.875
.938
1.000
1.062
1.125
1.188
1.250
1.375
1.500
1.625
1.750
1.875
2.000
2.125
(6.4)
(7.9)
(9.5)
(11.1)
(12.7)
(14.3)
(15.9)
(17.5)
(19.1)
(20.6)
(22.2)
(23.8)
(25.4)
(27.0)
(28.6)
(30.2)
(31.8)
(34.9)
(38.1)
(41.3)
(44.5)
(47.6)
(50.8)
(54.0)
1. When maximum cable entry (page
21) is exceeded, Style 2 will be
supplied. Dimensions F, G, H and J
will not apply. Please consult
factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Interface O-Ring not supplied with
Connector Designator A.
4. Consult factory for shorter lengths
on straight backshells.
5. See page 40 for Shrink Boot
Reference Information.
6. Backshells supplied with 600-052-*
band, see Glenair Series 600 Tool
Catalog for installation.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 23
440
440-069
EMI/RFI Banding and Shrink Boot Adapter
