39533-8802: DescriptionPluggable Terminal Blocks 5.08MM VERT PCB HDR OPEN ENDS 2 CIRCUITS; CategoryThe connector; File Size29KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

39533-8802 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39533-8802	-	-	View	Buy Now

39533-8802 Overview

Pluggable Terminal Blocks 5.08MM VERT PCB HDR OPEN ENDS 2 CIRCUITS

39533-8802 Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	Molex
RoHS	Details
Product	Plugs
Number of Positions	2 Position
Pitch	5.08 mm
Current Rating	18 A
Voltage Rating	300 V
Wire Gauge Range	26 AWG to 12 AWG
Mounting Angle	Vertical
Factory Pack Quantity	960
Wire Gauge Max	12 AWG
Wire Gauge Min	26 AWG

Preview

Download Datasheet

View All

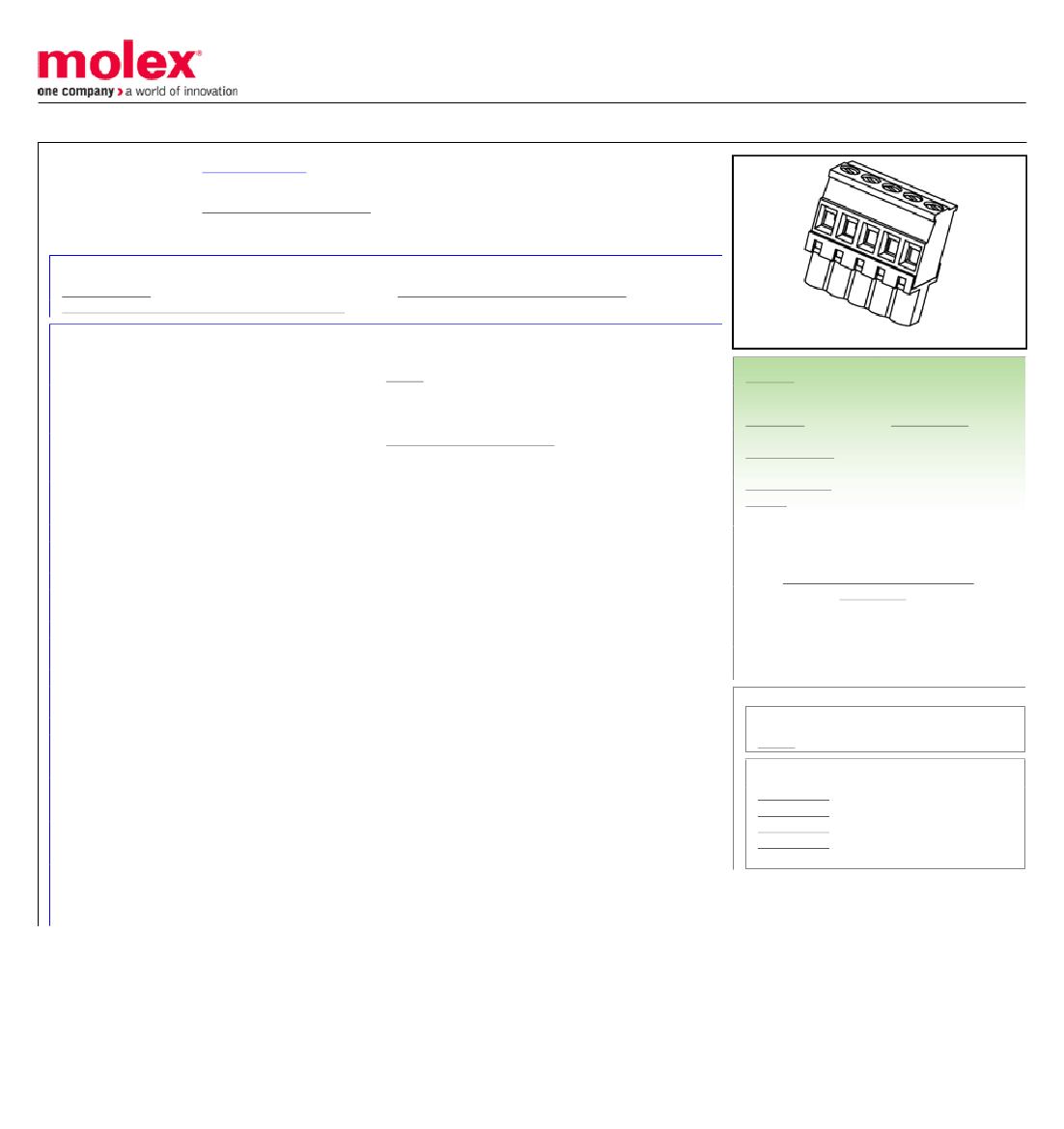

This document was generated on 10/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395338802

Active

Eurostyle™ Terminal Blocks

5.08mm Pitch Eurostyle Vertical Plug, with Standard Imprinting, Front Wire Entry,

Green Housing, Gold (Au) Plated, 2 Circuits

Documents:

Drawing (PDF)

Product Specification PS-39500-001-001 (PDF)

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Terminal Blocks

39533

N/A

with Standard Imprinting|Front Wire Entry

Plug

Eurostyle™ Terminal Blocks

ESE, Eurostyle Pluggable

Euro Block

822350536295

Horizontal

Yes

Vertical

5.08mm

Yes

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13-3.31

18.0A

300V

N/A

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Not Relevant

Not Reviewed

Search Parts in this Series

39533 Series

Mates With

39531-0010 Vertical Header, Open Ends,

39531-1010 Vertical Header, Closed Ends,

39532-0010 Horizontal Header, Open Ends,

39532-1010 Horizontal Header, Closed

Ends

PS-39500-001-001

SD-39533-001

This document was generated on 10/11/2017
