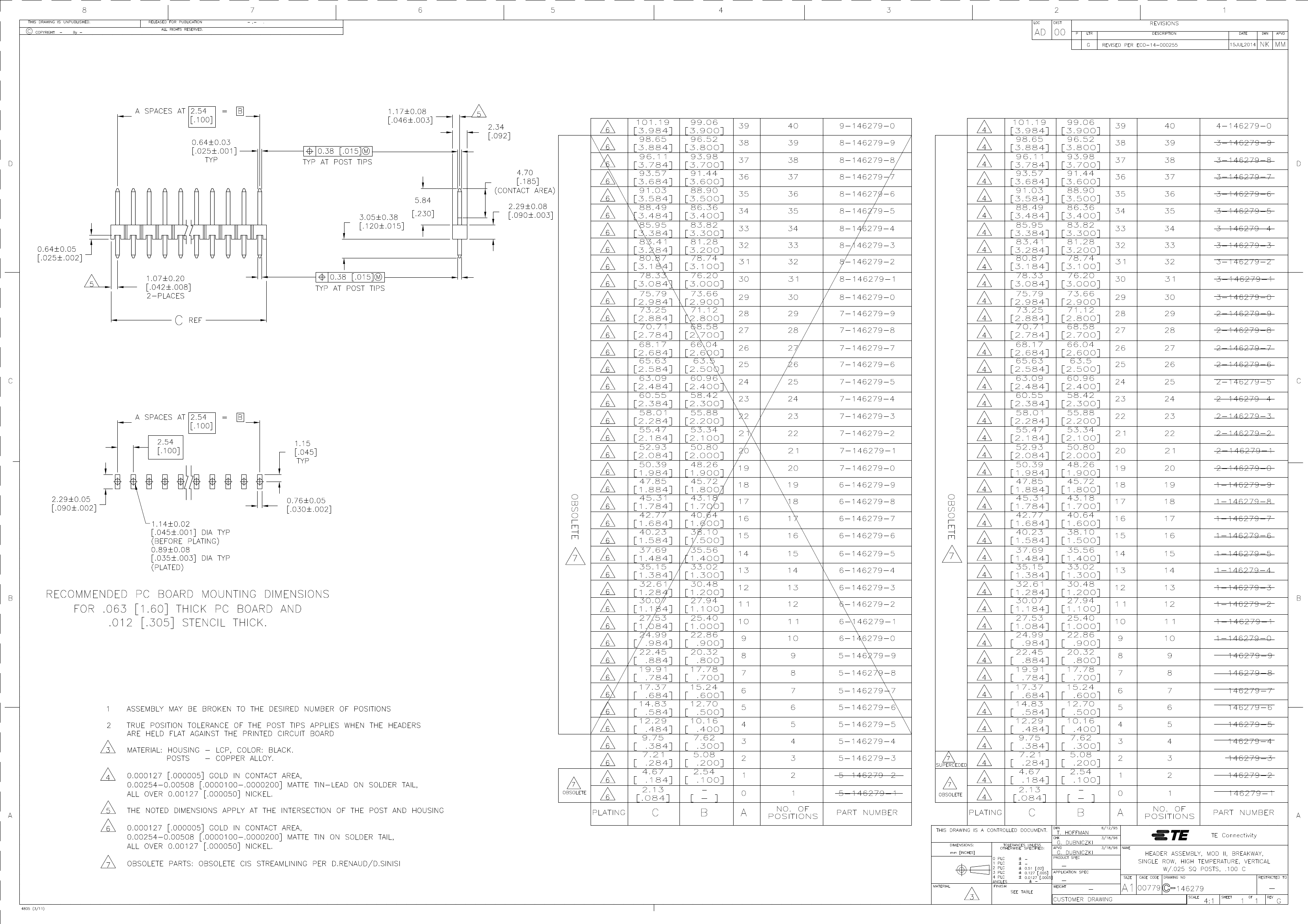

03 MODII HDR SRST B/A .100CL
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | separation |
| sealing ring | Without |
| shape | standard |
| stabilizing device | Without |
| plate support | with |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | vertical |
| Number of Positions | 3 |
| Rows | 1 |
| keying | no |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Solder tail terminal plating material surface coating | matte |
| Terminal base material | nickel |
| Terminal protection | Without |
| Terminal shape | square |
| Terminal type | Pin |
| Terminal contact plating thickness | 5 µm [ 5 µin ] |
| Terminal contact plating material | Nickel base gold plating |
| PCB Termination Methods | Through Hole - Solder |
| Termination cylinder length | 3.05 mm [ .12 in ] |
| Terminal plating thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| Terminal termination type | Through hole |
| Terminal plating materials | Nickel base tin plating |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| Engage connector latch | Without |
| PCB installation method | Through hole |
| joint alignment | Without |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell material | LCP (Liquid Crystal Polymer) |
| Shell color | black |
| PCB thickness (recommended) | 1.6 mm [ .063 in ] |
| Joint post length | 4.7 mm [ .185 in ] |
| High temperature compatible | yes |
| High temperature shell | yes |
| Applicable to | Match female end |
| High speed serial data connector | no |
| Package quantity | 500 |
| Encapsulation method | carton |
