TECHNICAL DATA SHEET
ADAPTOR
SMA JACK – BNC 50
Ω
PLUG
32K151-S00L5

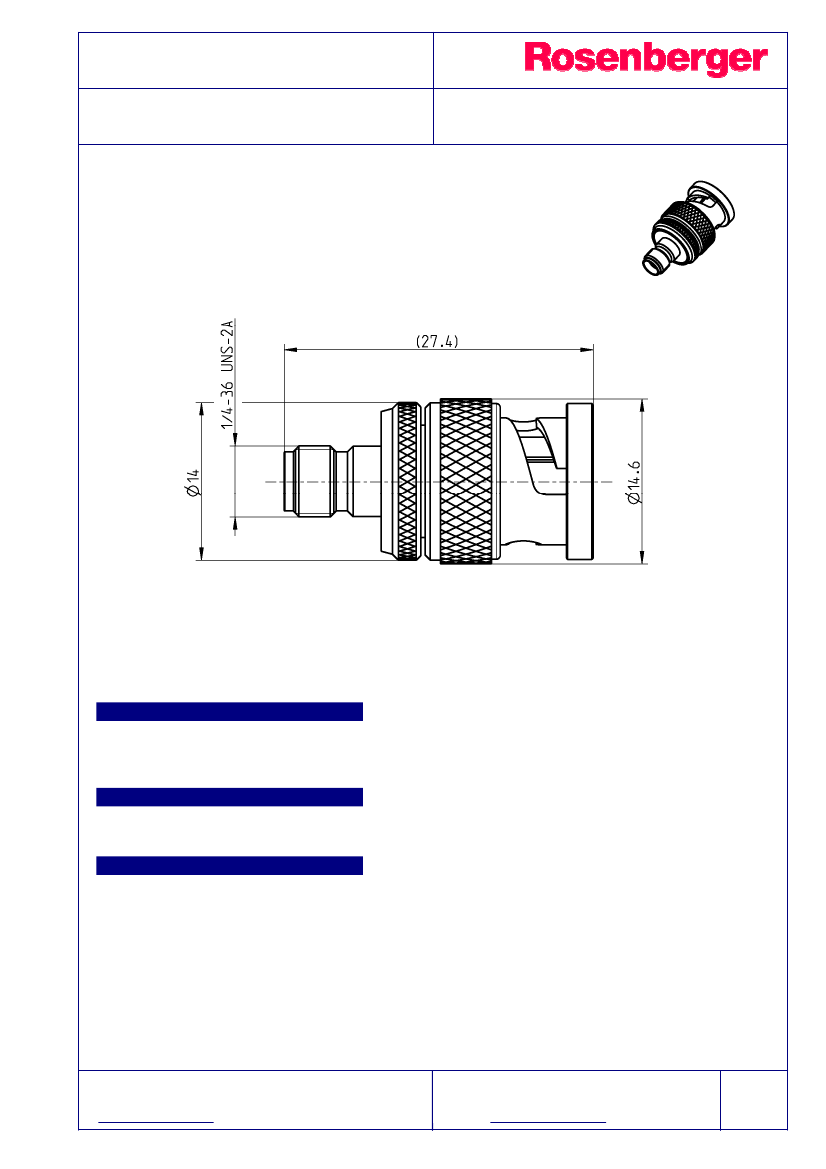

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMA side:
BNC side:
IEC 60169-15; EN 122110; MIL-STD-348
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact SMA side
Outer contact BNC side
Dielectric
Gasket
Material
CuBe
CuBe or equiv.
Brass
PTFE
Neoprene E50
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
SMA JACK – BNC 50
Ω
PLUG
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
50
Ω
DC to 10 GHz
≤
1.05 + 0.005 x f [GHz]
≤
0.04 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ, SMA side
≤
2 mΩ, SMA side
1000 V rms
400 V rms
≤
80 W @ 2 GHz
32K151-S00L5
≤
1.5 mΩ, BNC side
≤
1.0 mΩ, BNC side
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
SMA side
min. 500
≥
27 N
max. 1.7 Nm
0.8 Nm to 1.1 Nm
BNC side
min. 500
≥
27 N
N/A
N/A
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
13.6 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
13/09/04
Approved
J_Krautenbacher
Date
21.07.16
Rev.
f00
Engineering change number
15-1629
Name
I_Wallner
Date
21.07.16
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
