8315-7009

Description
D-Sub Standard Connectors DELTA 15 F N
CategoryThe connector    The connector
File Size464KB,4 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Environmental Compliance
Download Datasheet Parametric Compare View All

8315-7009 Online Shopping

Suppliers Part Number Price MOQ In stock
8315-7009 - - View Buy Now

8315-7009 Overview

D-Sub Standard Connectors DELTA 15 F N

8315-7009 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Maker3M
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other features3M, LOW PROFILE
Body/casing typeSOCKET
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL (100)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size2/A
Termination typeCRIMP
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1

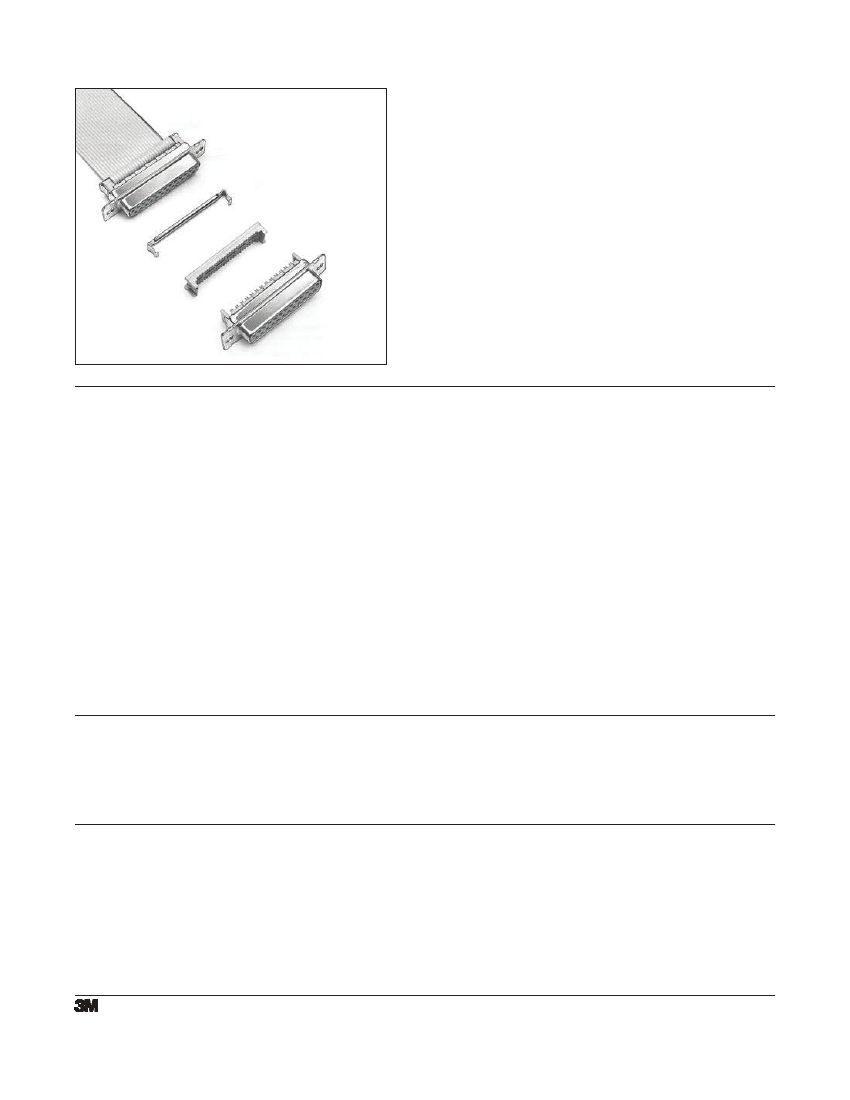

3M
D Sub Socket, 8300 Series
Socket Connector
8300 Series
• Available in either open or closed end cover
• Available in preassembled open cover
• Improved metal strain relief - hooks directly to metal
shell
Low profile
• Four mounting options
• See Regulatory Information Appendix (RIA) in the
“RoHS compliance” section www.3Mconnectors.
com for compliance information (RIA E1 & C1 apply)
Date Modified: March 15, 2017
TS-0235-G
Sheet 1 of 4
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact Material:
Copper Alloy
Plating:
Underplating:
50 μ" [1.27 μm ] min Nickel
Wiping Area:
30 μ" [ 0.76 μm ] Gold
Shell:
Material: Steel
Plating: Tin
Strain Relief Material:
Stainless Steel .016 [ 0.40 ] Thick
Wire Accommodation:
26 and 28 AWG Solid or Stranded
Marking:
3M Logo and Contact Position Numbers
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
Electronics Materials Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373

8315-7009 Related Products

8315-7009 8337-6003 8309-7000 8315-7000 8309-6000 8309-6009
Description D-Sub Standard Connectors DELTA 15 F N D-Sub Standard Connectors 9P CLOSD COVR SOCKET LOW PROFILE D-Sub Standard Connectors 15P CLOSD CVR SOCKET LOW PROFILE D-Sub Standard Connectors 9P OPEN COVER SOCKET LOW PROFILE Switching Voltage Regulators CMOS Voltage Converter
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Other features 3M, LOW PROFILE 3M, LOW PROFILE 3M, LOW PROFILE 3M, LOW PROFILE 3M, LOW PROFILE 3M, LOW PROFILE
Body/casing type SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation GOLD (30) OVER NICKEL (100) GOLD (30) OVER NICKEL (100) GOLD (30) OVER NICKEL (100) GOLD (30) OVER NICKEL (100) GOLD (30) OVER NICKEL (100) GOLD (30) OVER NICKEL (100)
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
DIN compliance NO NO NO NO NO NO
empty shell NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation type CABLE AND PANEL CABLE AND PANEL CABLE AND PANEL CABLE AND PANEL CABLE AND PANEL CABLE AND PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface TIN TIN TIN TIN TIN TIN
Shell material STEEL STEEL STEEL STEEL STEEL STEEL
Housing size 2/A 4/C 1/E 2/A 1/E 1/E
Termination type CRIMP IDC IDC IDC IDC IDC
Total number of contacts 15 37 9 15 9 9
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1
Maker 3M - 3M - 3M 3M
package instruction ROHS COMPLIANT - ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width - 0.49 inch 0.49 inch 0.49 inch 0.49 inch 0.49 inch
body length - 2.73 inch 1.23 inch 1.54 inch 1.23 inch 1.23 inch
Contactor design - PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
contact mode - STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
Contact style - RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage - 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1400VAC V
Insulation resistance - 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color - GRAY GRAY GRAY GRAY GRAY
Plug contact pitch - 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch
Match contact row spacing - 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch
Installation option 1 - #4-40 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 LOCKING
Installation option 2 - LOCKING LOCKING LOCKING LOCKING RIVET
Number of rows loaded - 2 2 2 2 2
Maximum operating temperature - 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature - -55 °C -55 °C -55 °C -55 °C -55 °C
Plating thickness - 30u inch 30u inch 30u inch 30u inch 30u inch
Rated current (signal) - 1 A 1 A 1 A 1 A 1 A
Guideline - UL UL UL UL UL
reliability - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Maximum wire diameter - 26 AWG 26 AWG 26 AWG 26 AWG 26 AWG
Minimum wire diameter - 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG
