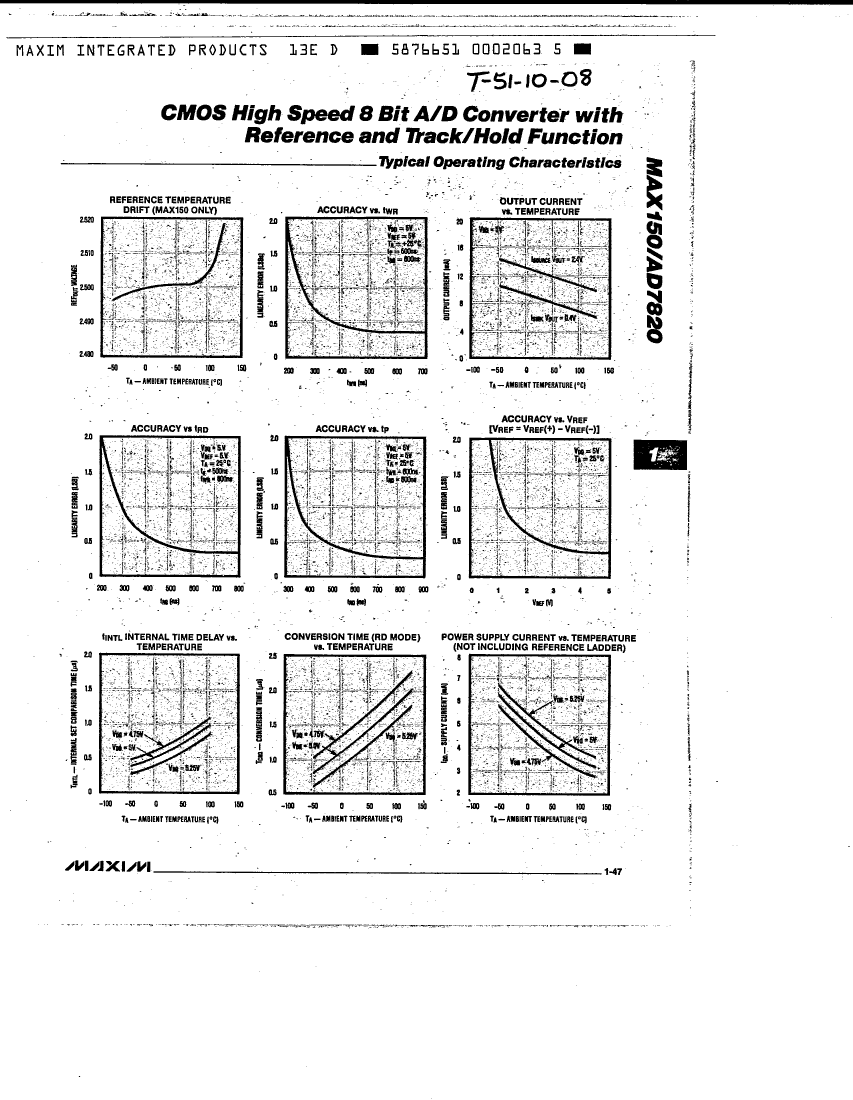

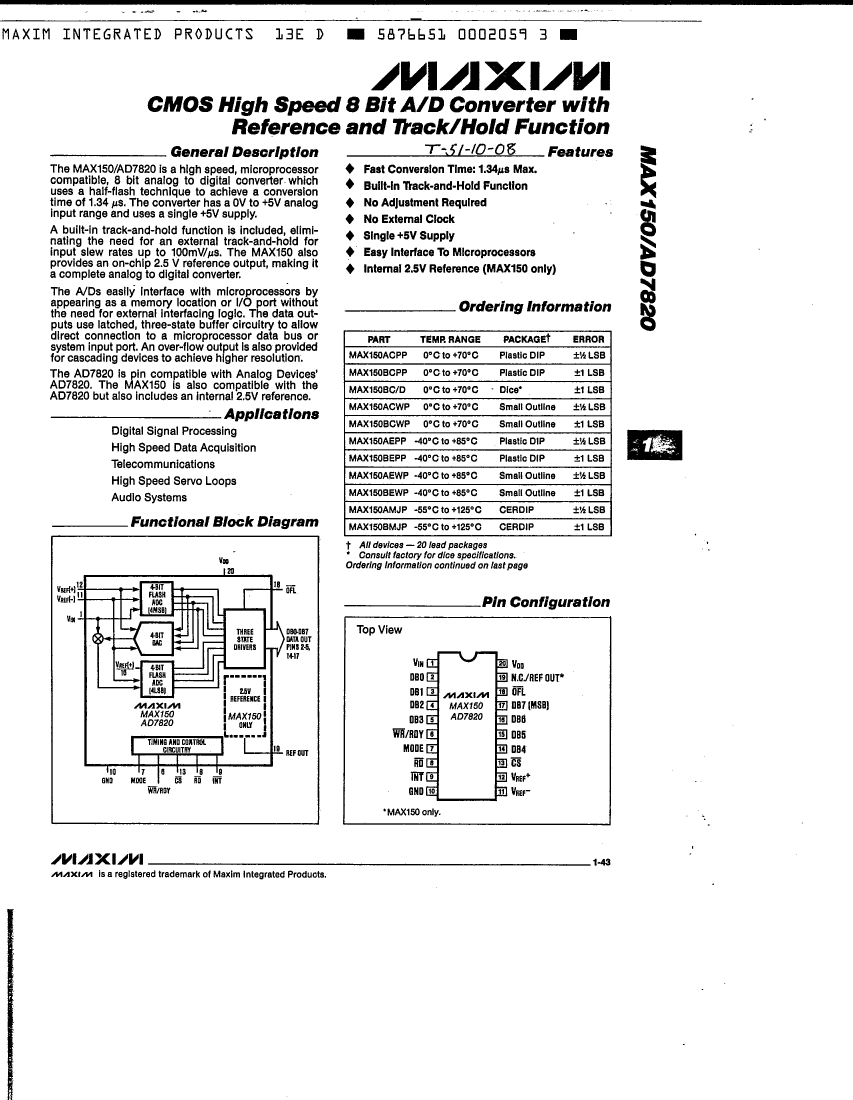

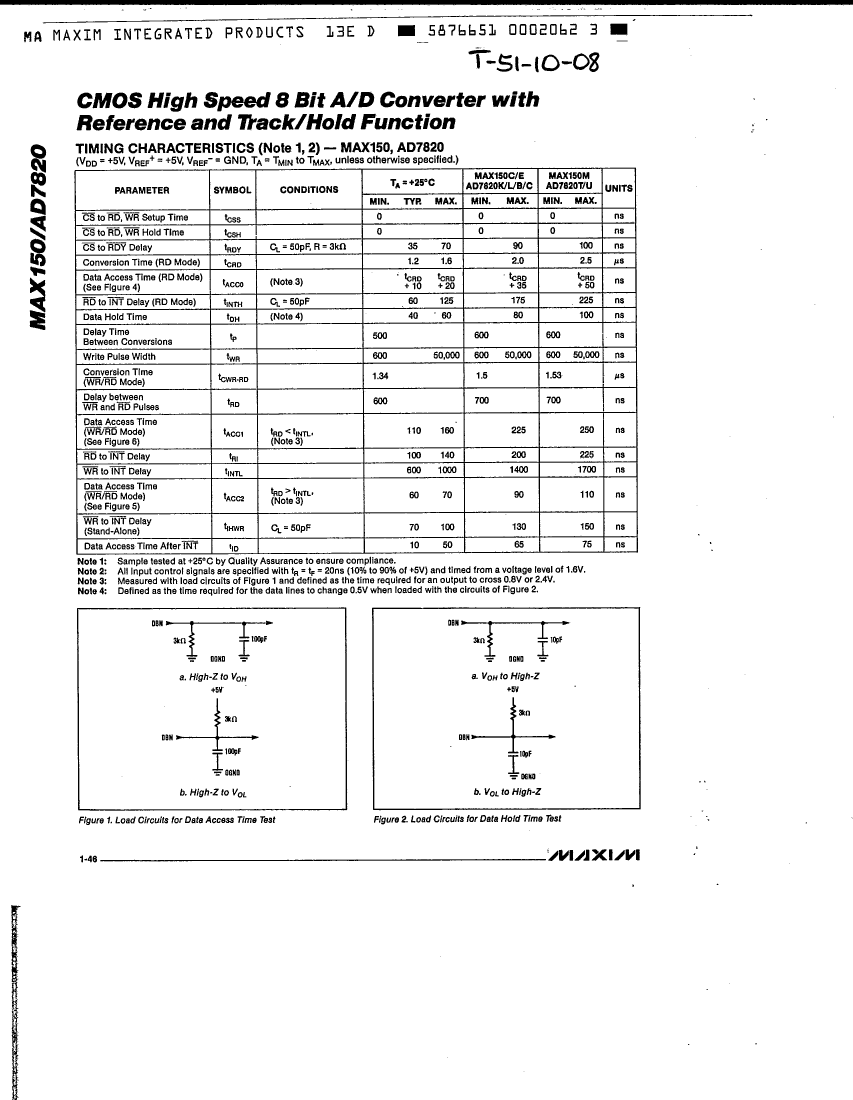

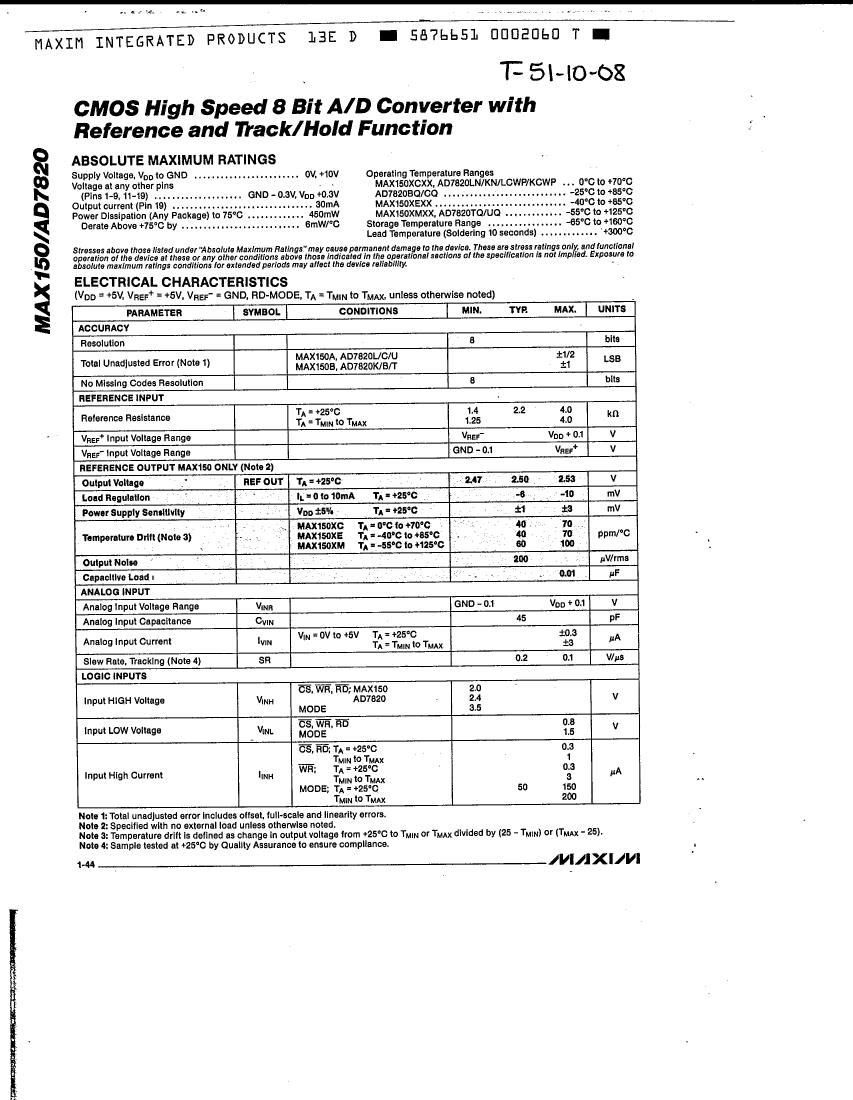

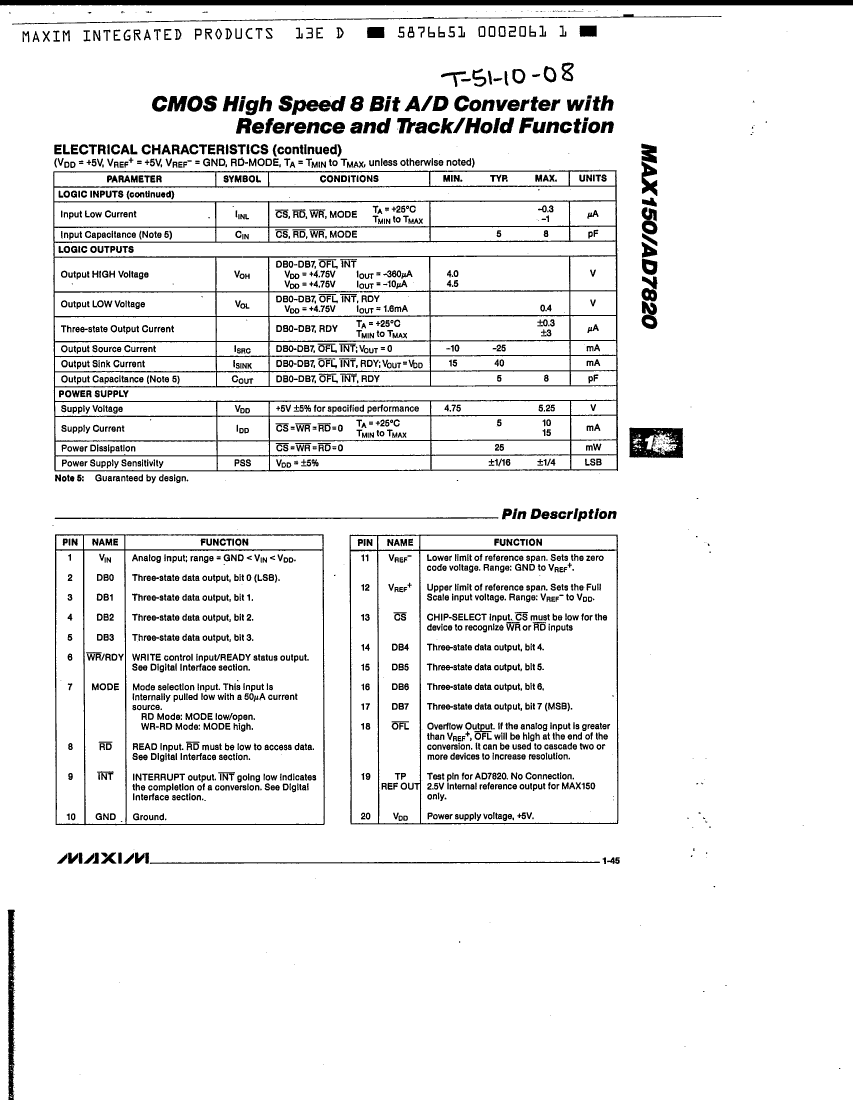

A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | DIP |
| package instruction | DIP, DIP20,.3 |
| Contacts | 20 |
| Reach Compliance Code | _compli |
| Maximum analog input voltage | 5 V |
| Converter type | A/D CONVERTER |
| JESD-30 code | R-XDIP-T20 |
| JESD-609 code | e0 |
| Number of analog input channels | 1 |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Output bit code | OFFSET BINARY |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP20,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| AD7820CQ | AD7820LN | AD7820TQ | AD7820UQ | AD7820KN | AD7820KCWP | AD7820LCWP | AD7820BQ | |
|---|---|---|---|---|---|---|---|---|
| Description | A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDIP20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDSO20, | A/D Converter, 8-Bit, 1 Func, CMOS, PDSO20, | A/D Converter, 8-Bit, 1 Func, CMOS, CDIP20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | SOIC | SOIC | DIP |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | _compli | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | _compli |
| Maximum analog input voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Converter type | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER | A/D CONVERTER |
| JESD-30 code | R-XDIP-T20 | R-PDIP-T20 | R-XDIP-T20 | R-XDIP-T20 | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 | R-XDIP-T20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 85 °C |
| Output bit code | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY | OFFSET BINARY |
| Package body material | CERAMIC | PLASTIC/EPOXY | CERAMIC | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | SOP | SOP | DIP |
| Encapsulate equivalent code | DIP20,.3 | DIP20,.3 | DIP20,.3 | DIP20,.3 | DIP20,.3 | SOP20,.4 | SOP20,.4 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | OTHER | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | Maxim | Maxim | Maxim | Maxim | - | - | - | Maxim |
| package instruction | DIP, DIP20,.3 | - | - | - | DIP, DIP20,.3 | SOP, SOP20,.4 | SOP, SOP20,.4 | DIP, DIP20,.3 |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
