Product Bulletin
PB500
FiberExpress
®
Ultra HD System
Elegantly simple yet
uncompromisingly flexible.
Ultra high-density rack-mount
fiber connectivity system,
crafted for effortless installation
and maintenance.
The FiberExpress Ultra HD
System is the Next Evolution
in Convenient, Easy-to-use,
High-density Fiber Connectivity
Key Features
•
1U, 2U, and 4U configurations
•
Feature rich housings and
entry-level fixed shelves
•
Cost effective pre-terminated cable support
and flexible field termination options
•
Ultra high cabling density: up to 72 LC
Duplex or 72 MPO adapters per rack unit
•
Clean, convenient cable management
•
Efficient one-person installation
•
Adaptable for present and future needs
•
Easy access for fast, efficient MACs
FiberExpress Ultra HD System
The Belden FiberExpress Ultra HD system
provides designers complete flexibility to
architect a fiber connectivity solution
to adapt to the varying port count
needs in Data Centers and LANs:
•
Top-of-rack configurations with
low-to-medium port counts
•
End-of-row configurations with
medium-to-high port counts
Common intuitive components and modular
design means that installers and end-users do
not have to learn different systems to support
different needs. In addition, fewer components
must be stocked for different configurations.
The result, easier to manage moves, additions,
and changes (MACs).
Maximize revenue with
the highest density connectivity
The trend toward high-density computing
and storage requires connectivity that scales
to facilitate the evolution of both Data Center
and LAN applications. FiberExpress Ultra HD
system allows the highest density connectivity
available—doubling the density over comparable
units. With FiberExpress Ultra HD, each rack
unit can accommodate up to:
FX UHD Housing (1U, 2U and 4U Density)
•
72 LC Duplex Connections (144 fibers)
per rack-unit or,
•
72 MPO Connectors per rack-unit
FX UHD Fixed Shelf (1U)
•
72 LC Duplex Connections (144 fibers)
•
72 MPO Connections
FX UHD Fixed Shelf (4U)
•
180 LC Duplex Connections (360 fibers)
•
180 MPO Connections
This 50% reduction in required rack unit space
means more active equipment per rack—and
increased revenue per square foot for Data
Center operators. Alternatively it reduces the
space required for LAN equipment, reducing
OPEX for end-users.
One Enterprise.
One Infrastructure.
One Partner.
Choose Between a FiberExpress Ultra HD System with a
Feature-Rich FX UHD Housing or Entry-Level FX UHD Fixed Shelf
FiberExpress Ultra HD System
Crafted out of highest quality materials using
innovative design and assembly techniques,
even the largest 4U FX Ultra HD housing
weighs only 2.4 kg (5.4 lb) as installed. Tool-less
removable module trays on the housing mean
that a single installer can safely maneuver
the lightweight panel housing and secure
the system into the rack.
With the high value of data on fiber-optic
networks, accidental interruption while
performing MACs can have significant financial
consequences for network operators. A sleek
unencumbered front faceplate provides plenty
of space for shelf identification labeling. Clear,
always-visible port labeling ensures the right
fiber is found every time. The sliding module
tray of the FiberExpress UHD housing provides
access and visibility to individual cassettes
and frames, further reducing the
maintenance effort.
Protect your investment while
accommodating legacy connectivity today
Meet the challenges of balancing future
needs against the need to maintain a legacy
infrastructure. The FiberExpress Ultra HD System
provides a cost-effective upgrade path from
current 1G and 10G to 40G and 100G networks.
Its flexible modular approach supports legacy
applications using ST and SC up to modern
applications using LC and MPO. The system can
be upgraded as needed with a simple cassette or
adapter frame change. With no need to replace
the entire system, it provides a cost-effective
entry point today with scalability to meet the
needs of tomorrow.
Optimize space in mixed media
environments with KeyConnect support
Combining copper and fiber connectivity,
one patch panel is ideal for some environments
when port counts may be low. Using a standard
Belden KeyConnect frame with modular inserts
makes it possible to combine fiber, copper and
multimedia connectivity all in the same rack
unit of space.
Feature-Rich FX UHD Housing
Current trends have reduced the need for
splices and splice trays. FiberExpress Ultra HD
System supports a field-upgradable, 144 splice
tray housing kit which can be easily added to
any or all of the system’s 1U module trays.
Without the splice tray, the standard
FiberExpress Ultra HD housing significantly
reduces the depth of the system by over
25 cm (>10”) versus competitive products.
The additional space allows easier, clean cable
management. It also provides additional space
for opposite-rail-mounted equipment, to
effectively increase the total rack unit
space available.
Removable front and rear cable trays add to
system flexibility. The reduced physical footprint
of the system enables additional mounting
options—including shallow racks and cabinets,
vertical mounting configurations and even floor
and ceiling boxes.

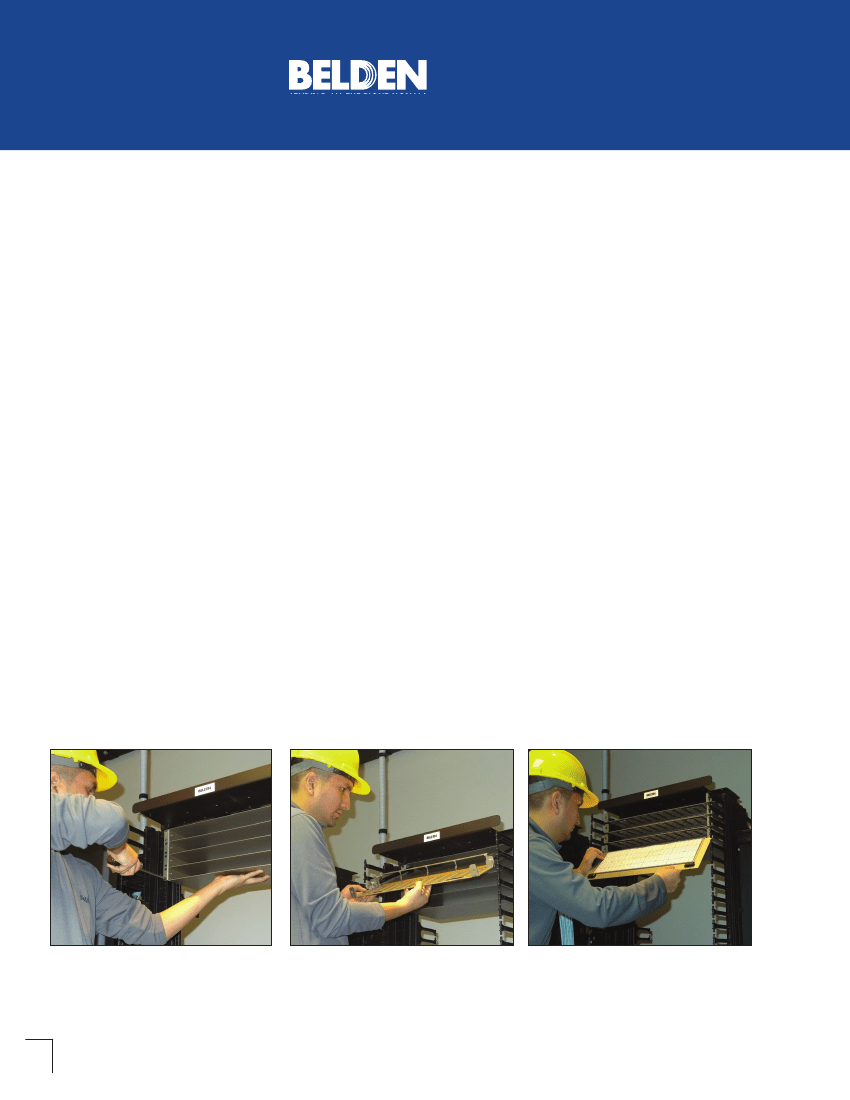

Speed up the install process and
eliminate errors with the installer-friendly
sliding and tilting module tray
A standard sliding module tray brings
the work platform out of the rack and at
a 23 degree tilt down toward the installer
to improve accessibility during installation.
A quickly installed lid and front patch cord
tray provides unprecedented visibility to the
work at hand. Improved accessibility and
visibility leads to fast, clean, error-free
installation.
A single installer can install the system.
Slide-in trays tilt outward to improve accessibility.
Shelf identification labeling is clearly visible.
2
One Enterprise.
One Infrastructure.
Enterprise.
Infrastructure.
One Partner.
One Partner.
Termination Type
Pre-Term Assemblies
MPO Trunks
Jacketed Fan-Out
900 µm Fan-Out
Field Termination
Pig-Tail w/Splicing
900 µm
Connectorization
(ie. FX Brilliance)
Jacketed
Connectorization
Feature-Rich
FX UHD
Housing
Entry-Level
FX UHD
Shelf
Entry-Level FX UHD Shelf
As the push toward higher density in the Data
Center continues, racks and cabinets are begin-
ning to shrink in depth causing other active
equipment, such as PDUs, to encroach on the
space traditionally reserved for patch panels.
To address this unique challenge, the FX UHD
shelf is available in both standard and recessed
versions. With only 65 mm (2.56”) from the
rack ear to the front of the patch cord tray the
recessed version requires little clearance. This
enables it to fit behind even the largest of PDUs.
A removable door provides both protection and
labeling without requiring any additional space
to fully open for maximum flexibility.
To Learn More...
For more information call
1.800.BELDEN.1
(1.800.235.3361) or visit our web site at
www.belden.com
for more information
on Belden FiberExpress Ultra HD Systems.
X
X
X
With the same look and feel, the cost effective FX UHD
Shelf and the feature-rich FX UHD Housing can be mixed
and matched to create unique Half Pre-Term systems that
provide field termination benefits like exact cable length,
the ability to fit in smaller conduits, and rapid cost-effective
installation of pre-term solutions.

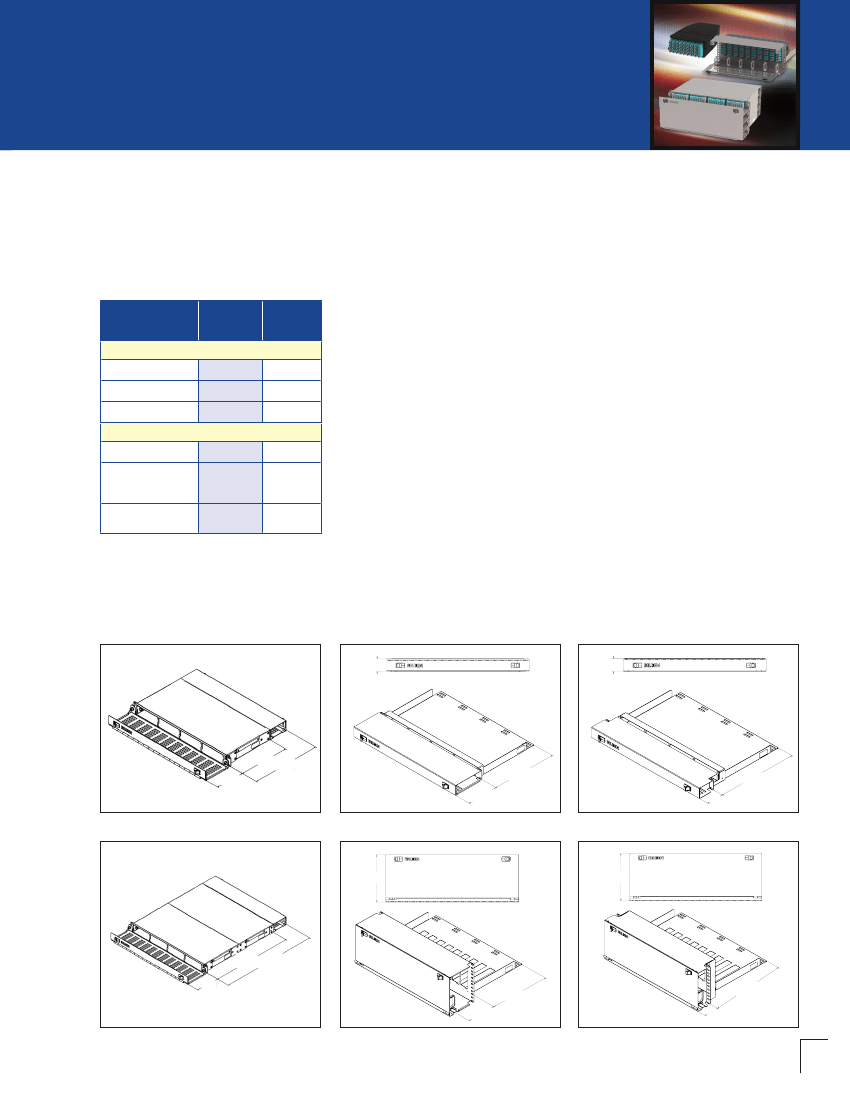

FiberExpress Ultra HD Patch Panel Dimensions
1.71 in.
(43.4 mm)
1.71 in.
(43.4 mm)
8.40 in.
(213.2 mm) 11.58 in.
(294 mm)
4.91 in.
(124.8 mm)
4.97 in.
(126.2 mm)
10.56 in.
(268.3 mm)
2.56 in.
(65 mm)
12.31 in.
(312.7 mm)
FiberExpress Ultra HD 1U Housing
FiberExpress Ultra HD 1U Standard Shelf
FiberExpress Ultra HD 1U Recessed Shelf
6.88 in.
(174.8 mm)
6.88 in.
(174.8 mm)
20.15 in.
16.91 in.
(429.39 mm) (511.7 mm)
4.91 in.
(124.8) mm
12.36 in.
(314 mm)
2.56 in.
(65 mm)
10.44 in.
(265.1 mm)
4.97 in.
(126.1 mm)
FiberExpress Ultra HD 1U Housing with mounted
Splice Housing Kit
FiberExpress Ultra HD 4U Standard Shelf
FiberExpress Ultra HD 4U Recessed Shelf
3

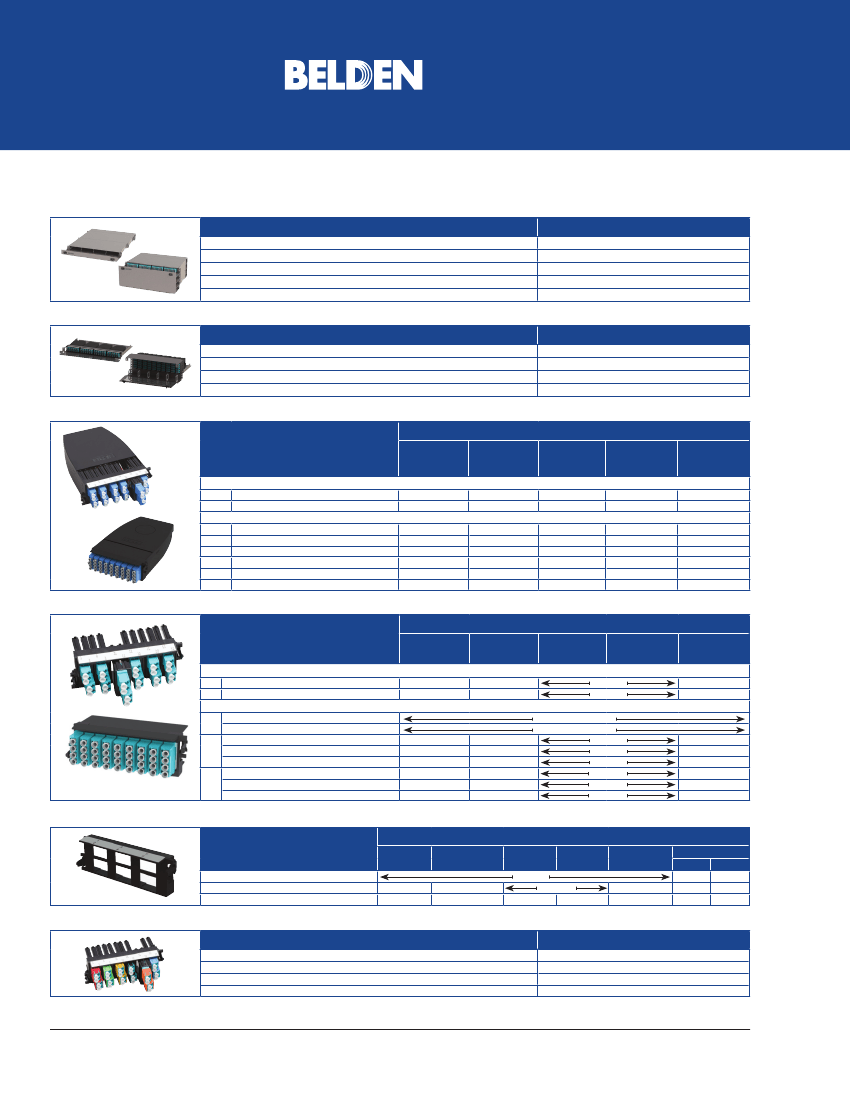

FiberExpress UHD Housing
Description
1U Housing with Front and Rear Cable Tray, Titanium Finish
2U Housing with Front and Rear Cable Tray, Titanium Finish
4U Housing with Front and Rear Cable Tray, Titanium Finish
Optional 1U Splice Housing Kit, 72 Splices, Titanium Finish (add up to 4 on the 4U Housing)
Optional 1U Splice Housing Kit, 144 splices, Titanium Finish (add up to 4 on the 4U Housing)
Belden Part Number
AX104681
AX104682
AX104683
AX105174
AX104684
FiberExpress UHD Fixed Shelf
Description
1U Standard Fixed Shelf, Titanium Finish
1U Recessed Fixed Shelf, Titanium Finish
4U Standard Fixed Shelf, Titanium Finish
4U Recessed Shelf, Titanium Finish
Belden Part Number
AX105164
AX105165
AX105166
AX105167
FiberExpress Ultra and Ultra HD Pre-Terminated Cassettes
Belden Part Number
Description
FiberExpress Ultra HD Pre-Terminated Cassettes
LC
LC
LC
LC
LC
SC
SC
ST
Call for Availability Call for Availability
18 x LC Duplex to 3 x MPO (m), 36 fibers
—
—
18 x LC Duplex to 3 x MPO (f), 36 fibers - 40G/100G
12 x LC Duplex to 2 x MPO (m), 24 fibers
6 x LC Duplex to 1 x MPO (m), 12 fibers
6 x LC Duplex w/ Shutters to 1 x MPO (m), 12 fibers
6 x SC Duplex to 1 x MPO (m), 12 fibers
3 x SC Duplex w/ shutters to 1 x MPO (m), 6 fibers
12 x ST Simplex to 1 x MPO (m), 12 fibers
AX103657
AX103641
AX103642
AX103639
AX103621
AX103638
AX103687
AX103683
AX103684
AX103681
AX103675
AX103680
AX104617
—
AX103729
AX103713
AX103714
AX103711
AX103693
AX103710
AX104658
AX105172
AX103783
AX103767
—
Call for Availability
Call for Availability
—
AX104616
—
AX103837
AX103821
AX103822
AX103819
AX103801
AX103818
Multimode, OM1,
62.5 µm, Beige
Multimode, OM2
50 µm, Black
Multimode,OM3,
50 µm, Aqua
Multimode, OM4
50 µm, Aqua,
Low Loss
Single-mode,
OS2, Blue
FiberExpress Ultra Pre-Terminated Cassettes
FiberExpress Ultra and Ultra HD Field-Terminated Frames
Belden Part Number
Description
FiberExpress Ultra HD Frames
MPO
18 x MPO to MPO Adapters
LC
18 x LC Duplex to LC Duplex Adapters, 36 fibers
Call for Availability Call for Availability
Call for Availability Call for Availability
AX104620
AX104619
AX103902 (Black Only)
AX103901 (Black Only)
AX103465
AX103463
AX103464
AX103461
AX103456
AX103459
AX104621
AX104618
Multimode, OM1,
Multimode, OM2,
Multimode, OM3,
Multimode, OM4,
50
µm,
Black
50
µm,
Aqua
62.5 µm, Beige
50 µm, Aqua
Single-mode, OS2,
LC - Blue
MPO - Black
FiberExpress Ultra Frames
MPO
LC
12 x MPO to MPO Adapters, up to 144/288 fibers
6 x MPO to MPO Adapters, up to 72/144 fibers
12 x LC Duplex to LC Duplex Adapters, 24 fibers
6 x LC Duplex to LC Duplex Adapters, 12 fibers
6 x LC Duplex to LC Duplex w/ shutter Adapters, 12 fibers
6 x SC Duplex to SC Duplex Adapters, 12 fibers
3 x SC Duplex to SC Duplex w/shutter Adapters, 6 fibers
12 x SC Simplex to SC Simplex Adapters, 12 fibers
AX103424
AX103408
AX103409
AX103406
AX103386
AX103404
AX103451
AX103449
AX103450
AX103447
AX103442
AX103445
AX103519
AX103502
AX103503
AX103496
AX103471
AX103494
SC
FiberExpress Ultra KeyConnect Frames
Belden Part Number
Description
FiberExpress Ultra KeyConnect Frame, 6-Port
1 x LC Duplex KeyConnect Adapter
COPPER, 1 x 10GX KeyConnect Modular Jack, CAT 6A
Multimode,
OM1, Beige
AX102417
—
Multimode,
OM2,
Black
Call for Availability
—
Multimode,
OM3, Aqua
Multimode,
OM4, Aqua
Single-mode,
OS2, Blue
AX102421
—
CAT 6A
Blue
Black
—
—
—
—
AX104156 AX102283
AX105160
AX104939
—
—
FiberExpress Accessories
Description
FiberExpress Ultra Blank Plate
144-Splice Accessory Kit (Shrink Tubes and Wire Markers)
FX Ultra Color-Coded Icon Kit
FiberExpress Ultra HD Patch Cord Release Tool
Belden Part Number
AX105159
AX104705
AX104572
AX104685
Refer to the Belden FiberExpress Optical Fiber Systems Catalog for information on compatible components.
Refer to the Belden IBDN Copper Systems Catalog for information on compatible components.
Belden Technical Support
1.800.BELDEN.1
(1.800.235.3361)
©
Copyright 2012, Belden Inc.
www.belden.com
PB500
京公网安备 11010802033920号
EEWORLD
