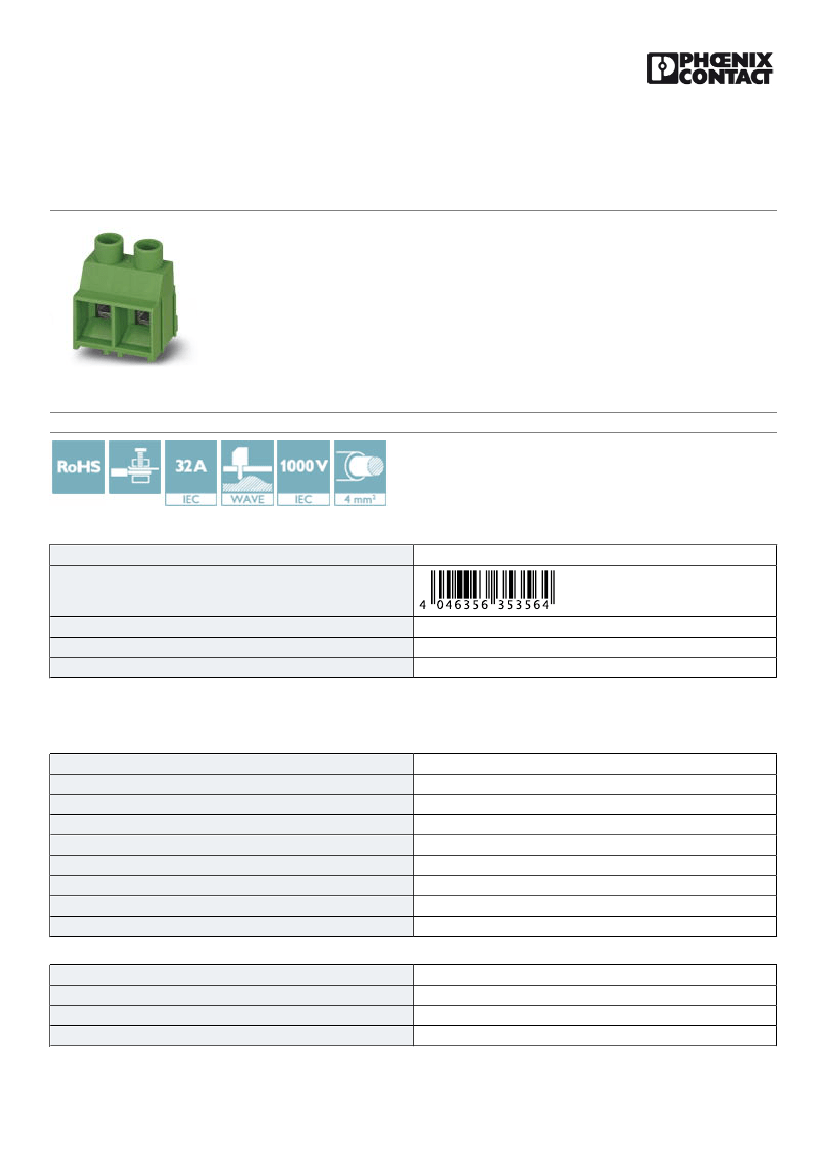

PCB terminal block - MKDS 5 HV/ 3-9,52 SZS - 1756964
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 32 A, Nom. voltage: 1000 V, Pitch: 9.52 mm, Number of positions:
3, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green
The figure shows a 2-pos. version
of the product
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356353564
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
28.56 mm
9.52 mm
19.04 mm
16 mm
22 mm
21.5 mm
5.2 mm
0,9 x 0,9 mm
1.3 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
MKDS 5 HV
I
8 kV
8 kV
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1756964
PCB terminal block - MKDS 5 HV/ 3-9,52 SZS - 1756964
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
6 kV
800 V
1000 V
1000 V
EN-VDE
32 A
4 mm²
32 A
PA
V0
A4
8 mm
3
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.2 mm²
6 mm²
0.2 mm²
4 mm²
0.25 mm²
0.25 mm²
4 mm²
24
10
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1756964
PCB terminal block - MKDS 5 HV/ 3-9,52 SZS - 1756964
Technical data
Standards and Regulations
CUL
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Drilling diagram
a
4,76
9,52
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-10
30 A
300 V
C
30-10
30 A
300 V
D
30-10
5A
600 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
