42820-6213 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42820-6213

42820-6213: DescriptionRelay Sockets u0026 Hardware PCB SOCKET CONN VF4; CategoryThe connector The connector; File Size46KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

42820-6213 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	42820-6213	-	-	View	Buy Now

42820-6213 Overview

Relay Sockets u0026 Hardware PCB SOCKET CONN VF4

42820-6213 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Other features	MINI-FIT SR, SHROUDED, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.425 inch
subject depth	1.126 inch
body length	2.512 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
Contact resistance	1.5 mΩ
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	29.3568 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE46
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	2.4464 N
Base Number Matches	1

Preview

Download Datasheet

View All

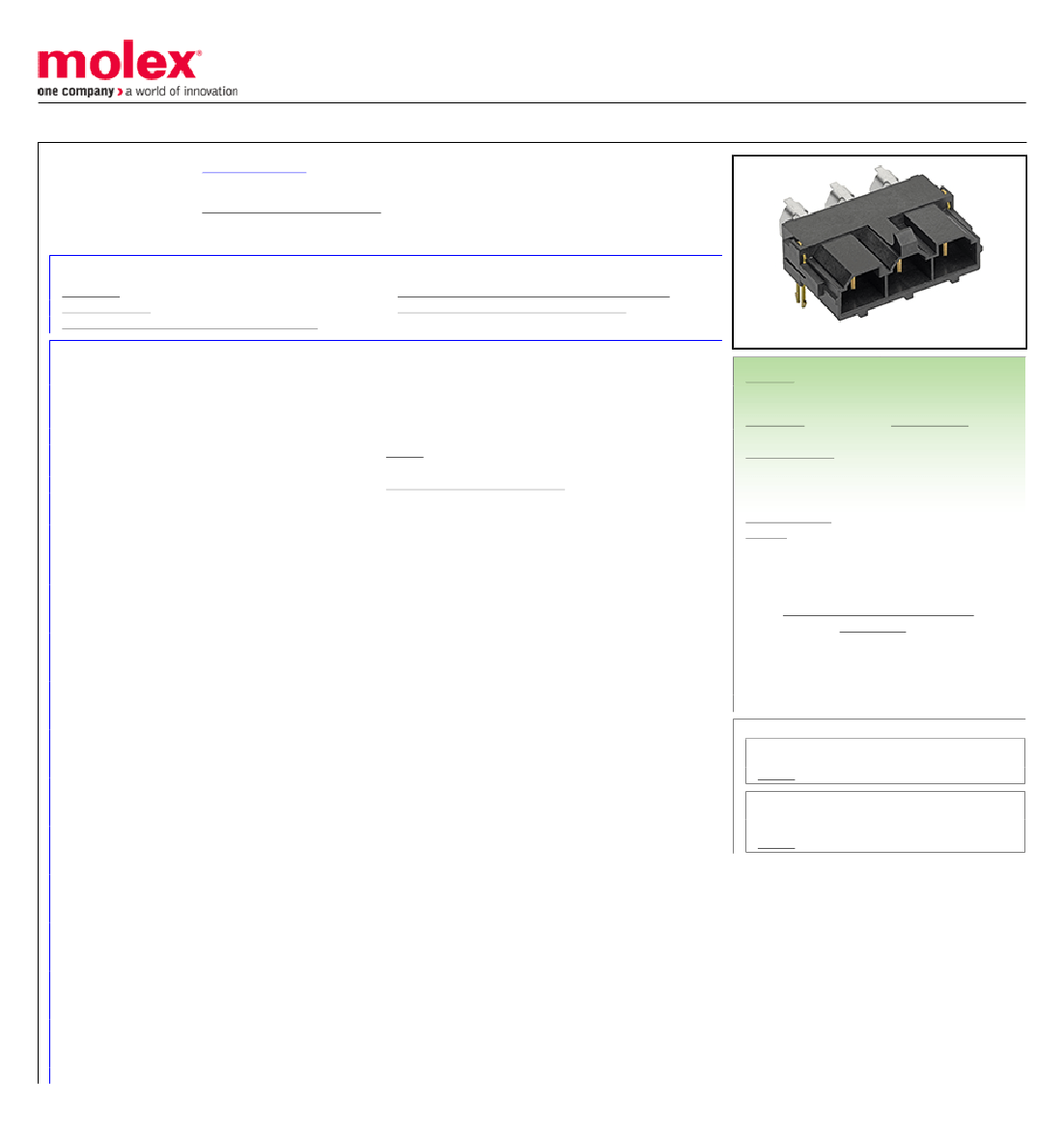

This document was generated on 12/05/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0428206213

Active

Mini-Fit Sr. Power Connectors

10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right Angle, 1.57mm PCB Thickness,

0.76µm Gold (Au) Selective Plating, 6 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-42815-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Packaging Specification PK-42820-910 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

42820

Power, Wire-to-Board

Mini-Fit Sr. Power Connectors

Mini-Fit Sr.

800756516004

Black

100

94V-0

None

Yes

Brass

Gold over Nickel

Tin over Nickel

High Temperature Thermoplastic

18.116/g

Right Angle

3.50mm

Yes

1.57mm

Tube

10.00mm

0.762µm

2.540µm

Yes

Fully

-40°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

42820 Series

Mates With

Mini-Fit Sr. Receptacle Housing with TPA

42816
