3M
™

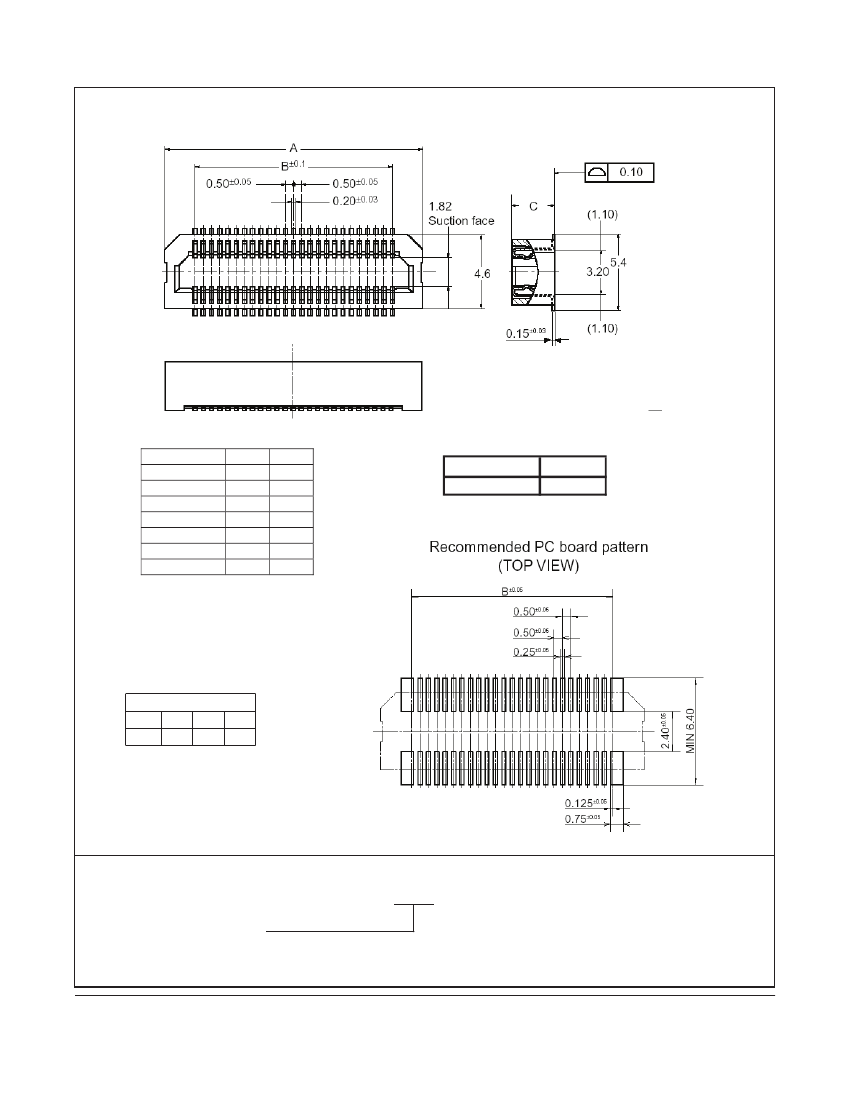

Board Stacking Connector System
0.5 mm, Vertical, Surface Mount, 4, 5, & 6 mm Stack Height
P05N Series
•

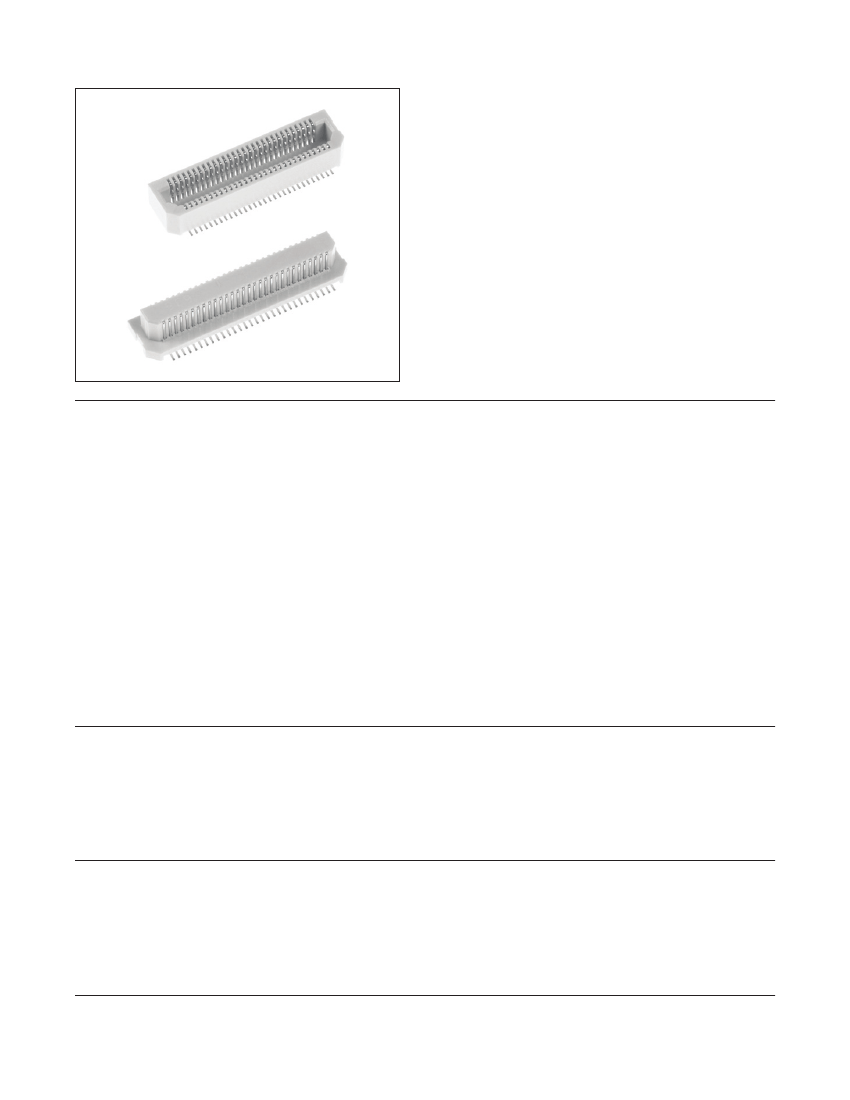

0.5 mm pitch connector system ideal for applications
with limited space
•
Mated heights of 4, 5, & 6 mm
•
Bellows type contact reduces mating stress and
insures reliability
•
“Tactile click” action assures complete mating and
assures high resistance to vibration and shock
•
Standard tape & reel packaging
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: December 15, 2008
TS-1092-C
Sheet 1 of 4
Physical
Insulator:
Material: High temperature thermoplastic
Flammability: UL 94V-0
Contact:
Material:
Copper Alloy
Plating:
Underplating: 50 µ” [ 1.27 µm ] Nickel
Wiping Area: 8 µ” [ 0.2 µm ] Gold
Solder Tails: Flash Gold
Mechanical:
Durability: 50 insertion/withdrawl cycles
Mating Forces: Maximum Insertion Force = 0.785N x no. of contacts
Minimum Withdrawl Force = 0.0588N x no. of contacts
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
0.5 A per contact
60 V
AC/DC
10
3
ΜΩ
min. at 500 V
DC
150 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
Processing:
260°C maximum
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Board Stacking Connector System
0.5 mm, Vertical, Surface Mount, 4, 5, & 6 mm Stack Height
Socket
P05N Series
# of Contacts
020
030
040
050
060
080
100
A
8.20
10.70
13.20
15.70
18.20
23.20
28.20
B
4.50
7.00
0.50
12.00
14.50
19.50
24.50

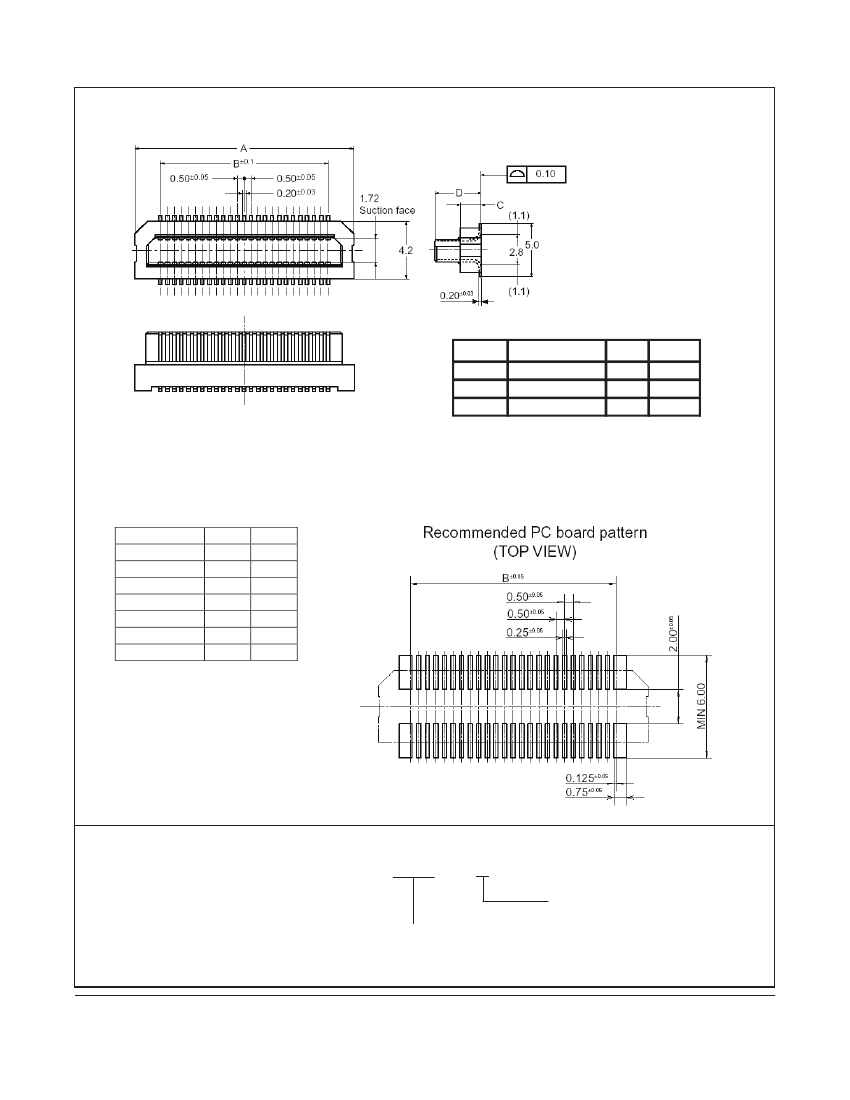

Stacking Height
4, 5, & 6 mm
Dim C
3.05
Tolerance Unless Noted
.0
mm
±
3
.00
±
.13
mm
(Inch)
.000
[ ] Dimensions for
Reference only
Ordering Information
P05N - XXXST - B - G
Contact Quantity
See Table
(RIA E1 & C1 apply)
TS-1092-C
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Board Stacking Connector System
0.5 mm, Vertical, Surface Mount, 4, 5, & 6 mm Stack Height
Plug
P05N Series
Type
B
C
D
Stacking Height Dim C Dim D
4 mm
5 mm
6 mm
0.95
1.95
2.95
3.3
4.3
5.3
# of Contacts
020
030
040
050
060
080
100
A
8.20
10.70
13.20
15.70
18.20
23.20
28.20
B
4.50
7.00
0.50
12.00
14.50
19.50
24.50
Ordering Information
P05N - XXXPT - X - G
(RIA E1 & C1 Apply)
Type (see chart above)
B = 4 mm stack height
C = 5 mm stack height
D = 6 mm stack height
TS-1092-C
Sheet 3 of 4
Contact Quantity
See Table
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Board Stacking Connector System
0.5 mm, Vertical, Surface Mount, 4, 5, & 6 mm Stack Height

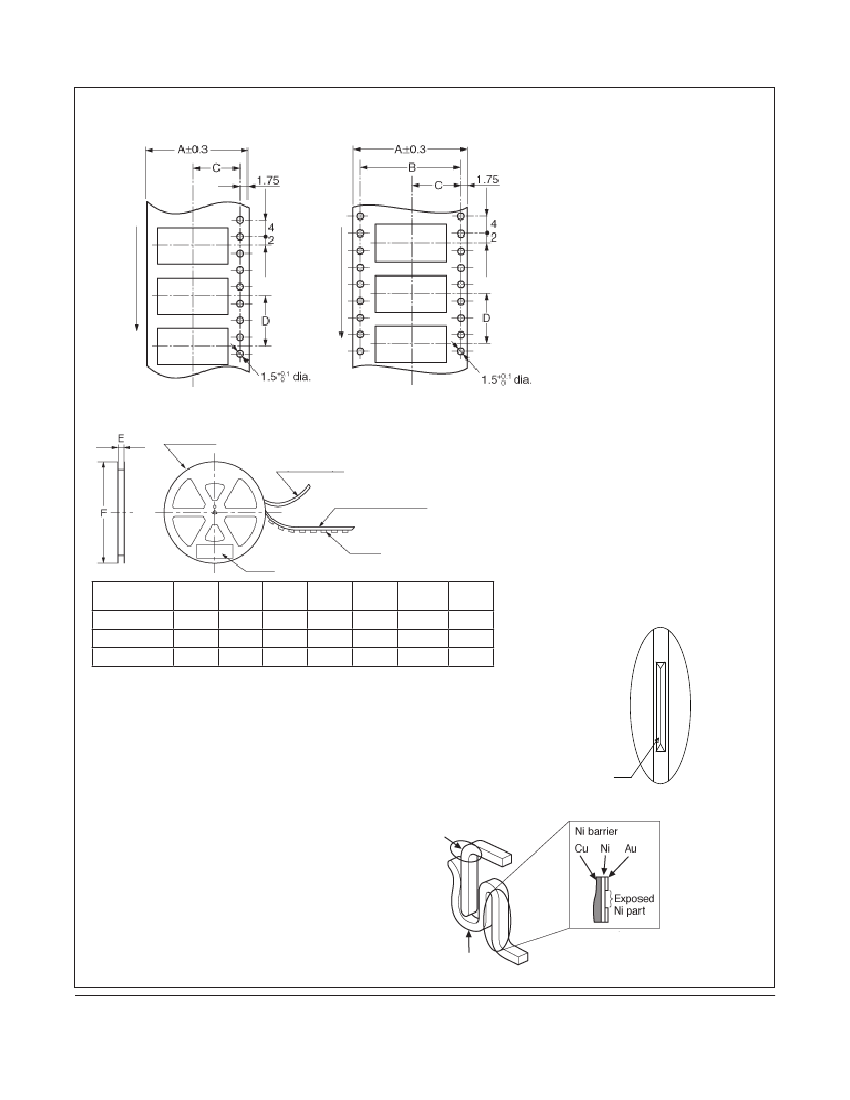

Tape and Reel Information
Tape I
Tape II
P05N Series
Leading direction after packaging
Leading direction after packaging
Notes:
1) Conforms to EIAJ ET-7200B and IEC
60286-3.
2) Chamfered end of connector will face supply
direction as shown.
Plastic Reel: EIAJ ET-7200B
Taping Reel
Top cover tape
Emboss carrier tape
Cavity
Label
Number of
Contacts
20-50
60
80-100
Type
Tape I
Tape II
Tape II
A
24.0
32.0
44.0
B
-
28.4
40.4
C
11.5
14.2
20.2
D
12.0
12.0
12.0
E
25.4 ±-1
33.4 ± 1
45.4 ± 1
F
380
380
380
4, 5, 6mm Socket = 1,500 parts/reel Maximum
4 mm Plug = 1,500 parts/reel Maximum
5, 6 mm Plug = 1,000 parts/reel Maximum
V-Notch
Application Information
1) Bellows type contact with Ni Barrier and V-Notch
Header side post
- Ni Barriers prevents solder wicking into critical wiping area of low
profile connectors
- V-Notch on plug increases contact force and is more effective at
breaking through foreign material and flux than flat contacts.
2) Suction pick up area for suction-type automatic mounting machines on
top of plug and in socket cavity.
3) Mated Height = 4.0, 5.0, 6.0 mm
4) Effective Mated Length of Contact 1.0 mm
5) Secure boards from vibration and shock.
6) Not compatible with A type P05N Series connectors.
Cross section of contact and post
TS-1092-C
Sheet 4 of 4
Socket side contact
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by
EU Court of Justice Decision 2008/C 116/04
This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished
products subject to EU RoHS that are placed on the EU market after June 30, 2008.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
