LEMO coaxial 00 and 01 Series ( 50
Ω
)
Fundamental research in particle physics as practised within CERN and other nuclear research establishments requires
more and more complex equipment of high performance in order to achieve the objectives. The needs of such research
contribute to the development of leading products for the whole of industry. For many years LEMO has participated in
this evolution. This has resulted in a range of miniature coaxial connectors (50
Ω)
with a push-pull self-latching system,
the LEMO 00.250 series. These connectors now form the basis of the NIM-CAMAC CD/N 549 standard.

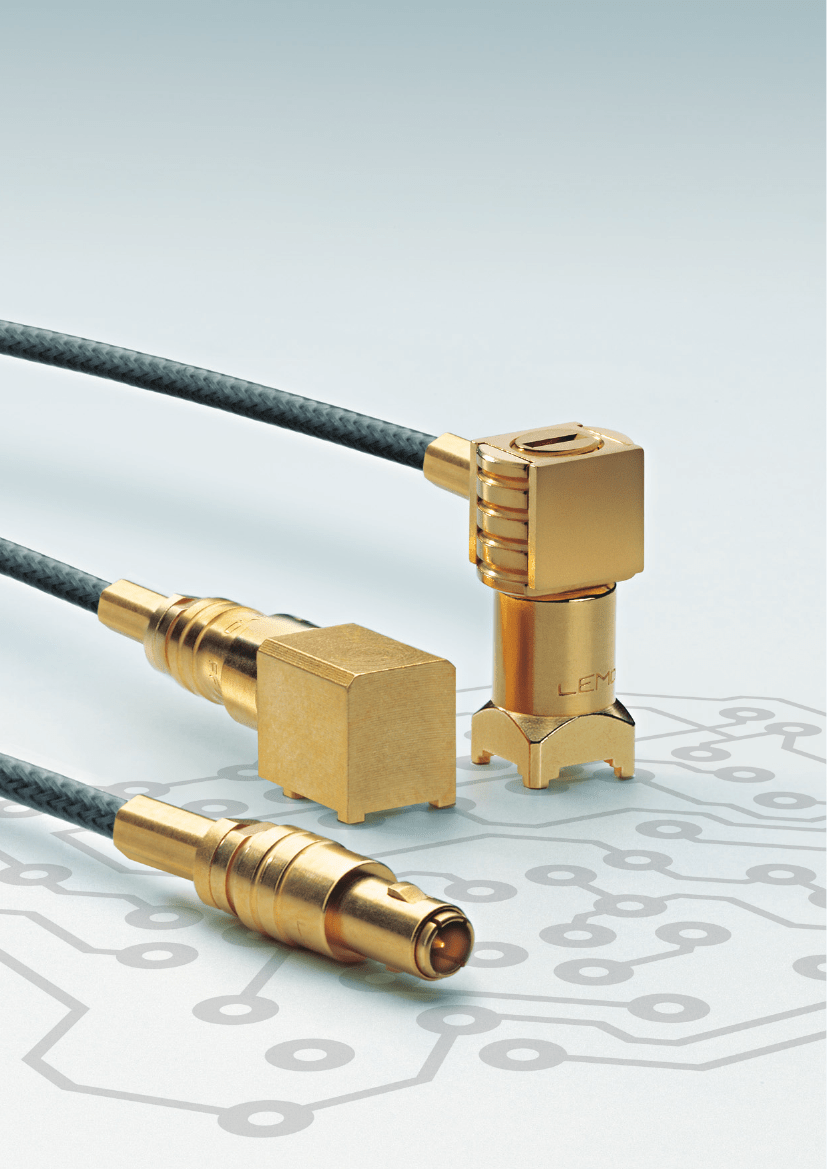

The plugs and sockets of the 01 series are amongst the smallest available 50
Ω
coaxial connectors with a self-latching
intermating capability. In spite of their small size and light weight, their technical characteristics remain excellent. Avail-
able in a wide range of housing configurations, they are especially useful when connecting onto printed circuit boards.
The LEMO 00 series and 01 are now used in many areas such as : telecommunications, sensors, medical equipment,
space research, etc...
The program covered in this catalog now includes more than 50 models suitable for many cable types.
Table of Contents
2 steps to select the right connector
................................................................................................................................................................................3
00.250 (NIM-CAMAC CD/N 549) Series
Part numbering system ........................................................................................................................................................................................... 7
Metal housing models ............................................................................................................................................................................................. 8
Plastic housing models ......................................................................................................................................................................................... 21
Watertight or vacuumtight models ....................................................................................................................................................................... 22
Metal housing models with mechanical keying .................................................................................................................................................... 24
Threaded-latching models .................................................................................................................................................................................... 26
Adaptors ............................................................................................................................................................................................................... 27
Variant .................................................................................................................................................................................................................. 30
Assembled cables ................................................................................................................................................................................................ 31
Accessories .......................................................................................................................................................................................................... 31
Spare parts ........................................................................................................................................................................................................... 33
Tooling .................................................................................................................................................................................................................. 35
Panel cut-outs ...................................................................................................................................................................................................... 38
Cable assembly .................................................................................................................................................................................................... 39
01.250 (Minax) Series
Part numbering system ......................................................................................................................................................................................... 45
Metal housing models .......................................................................................................................................................................................... 46
Threaded-latching models ................................................................................................................................................................................... 50
Adaptors ............................................................................................................................................................................................................... 50
Spare parts ........................................................................................................................................................................................................... 51
Tooling .................................................................................................................................................................................................................. 52
Panel cut-outs ...................................................................................................................................................................................................... 53
Cable assembly .................................................................................................................................................................................................... 53
Technical characteristics
Outer shell ............................................................................................................................................................................................................. 55
Insulator ................................................................................................................................................................................................................ 56
Electrical contact .................................................................................................................................................................................................. 56
Cable fixing ........................................................................................................................................................................................................... 58
Technical tables (VSWR) ....................................................................................................................................................................................... 58
Product safety notice ........................................................................................................................................................................................... 59
www.lemo.com
1
®
®
Precision modular connectors to suit your application
Since its creation in Switzerland in 1946 the LEMO Group has been recognized as a global leader of circular Push-Pull
connectors and connector solutions. Today LEMO and its affiliated companies, REDEL and COELVER, are active in
more than 80 countries with the help of over 40 subsidiaries and distributors.
Over 75’000 connectors
The modular design of the LEMO range provides over 75’000 connectors from miniature ø 3 mm to ø 50 mm, capable
of handling cable diameters up to 30 mm and for up to 106 contacts.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in
most markets, including medical devices, test and measurement instruments, machinery, audio video broadcast,
telecommunications and military.
LEMO’s Push-Pull Self-Latching Connection System

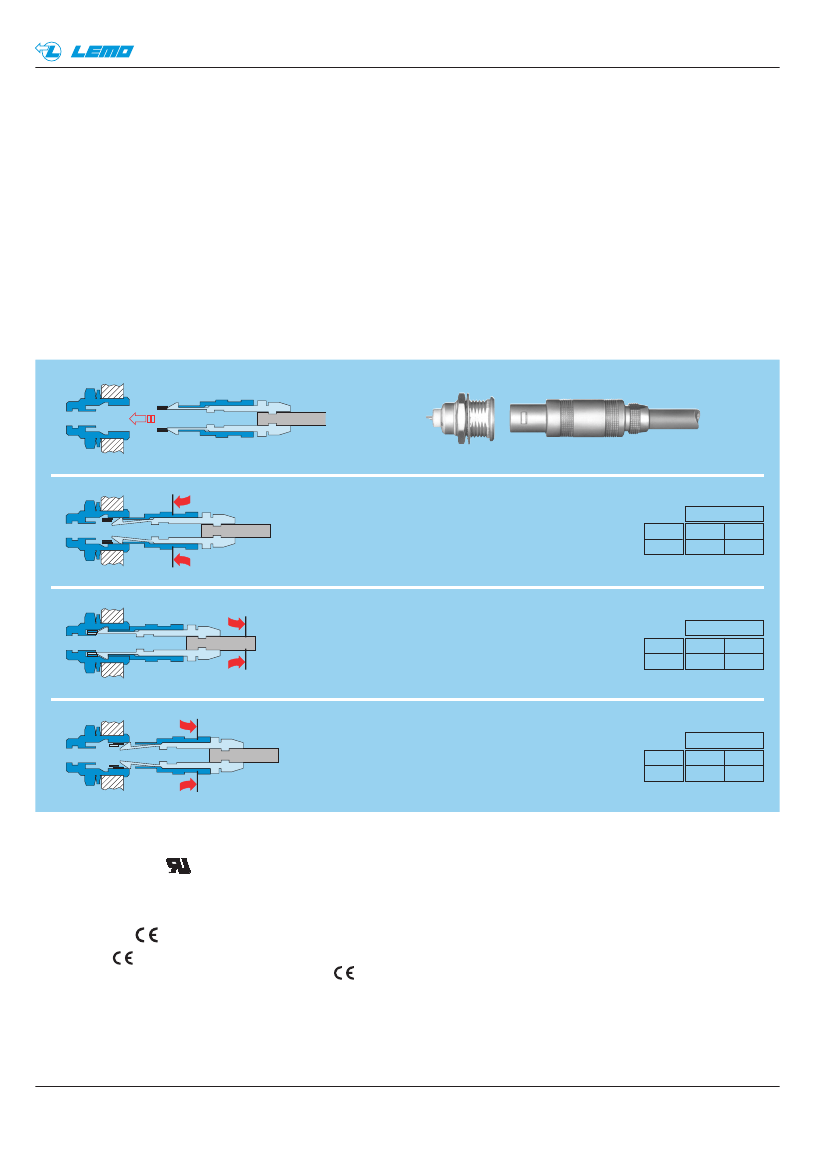

This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides
