GDX-PA-1010-50

Description
Modular Connectors / Ethernet Connectors M/JK PRPEND 10P 10C P/STP BLK 50U
CategoryThe connector
File Size1MB,1 Pages
ManufacturerKycon
Download Datasheet Parametric View All

GDX-PA-1010-50 Online Shopping

Suppliers Part Number Price MOQ In stock
GDX-PA-1010-50 - - View Buy Now

GDX-PA-1010-50 Overview

Modular Connectors / Ethernet Connectors M/JK PRPEND 10P 10C P/STP BLK 50U

GDX-PA-1010-50 Parametric

Parameter NameAttribute value
Product CategoryModular Connectors / Ethernet Connectors
ManufacturerKycon
RoHSDetailsbvfsqdawvxzzrrdzfawbaaswrv
PackagingTray
Factory Pack Quantity90
2D Drawing
Solder Profile
Certificate of Origin
IGES
CofC RoHS Compliant
Check Stock
STEP
CofC REACH Compliant
Request a Sample
3D PDF
UL Plastic File
Send Us An Email
Generated Part Number
GDX-A-44
Part Number Builder
LR78160
GDX
Series
A
Panel
Stop
44
Positions
& Contacts
Keyed
Option
Plating
Option

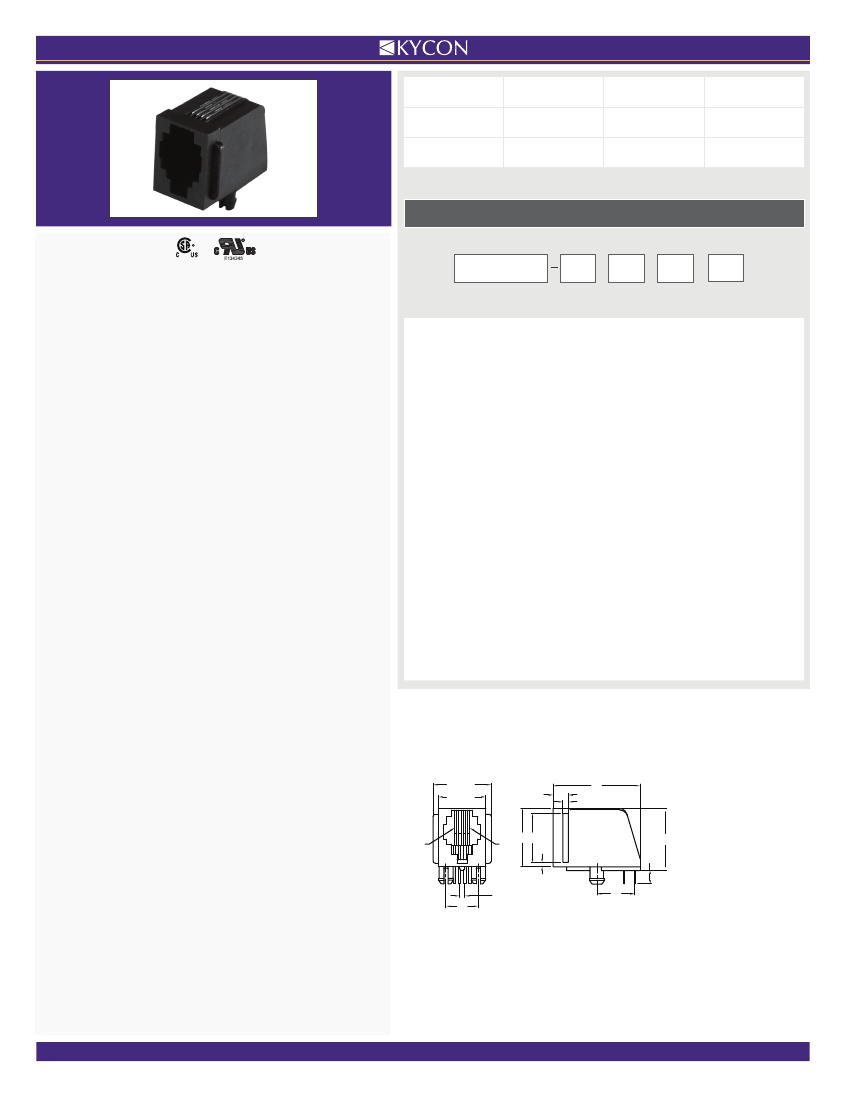

MODULAR JACKS AND PLUGS: GDX Series
Right Angle Modular Jack
Product Features
0.595" Height
Snap-In Board Retention Tabs
Panel Stops Available
Available in 4, 6 and 8 Position Housings
CSA/NRTL Certified File No. LR78160
UL File No. E134345
Series
GDX
- Right Angle Modular Jack
Panel Stop
A
- With Panel Stops
N
- Without Panel Stops
Number of Positions / Contacts
44
- 4 Positions / 4 Contacts (only with Panel Stop)
64
- 6 Positions / 4 Contacts
66
- 6 Positions / 6 Contacts
88
- 8 Positions / 8 Contacts
Keyed Option
Blank
- Not Keyed
K
- Keyed (Only for 8P8C)
Performance Specifications
Materials and Finish
Housing Material
PBT Thermoplastic, UL 94V-0 Rated, Black Color
Contact Material
Phosphor Bronze
Electrical Characteristics
1.27
7.62
8.89
Phone: +1.408.494.0330
l
Fax: +1.408.494.0325
l
WWW.KYCON.COM
l
2013
3.5±0.50
1.2
pin 1
pin 4
16.0
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V AC for 1 Minute
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Operating Temperature
-40°C to +85°C
Plating Option
Blank
- Gold Flash
50
- 50µ" Gold Plating
Contact Kycon for High Temperature and Other Options.
GDX Series
Dimensions in mm
GDX-A-44
13.72±0.25
11.18±0.25
3.7
1.27
20.6
15.1
12.5
