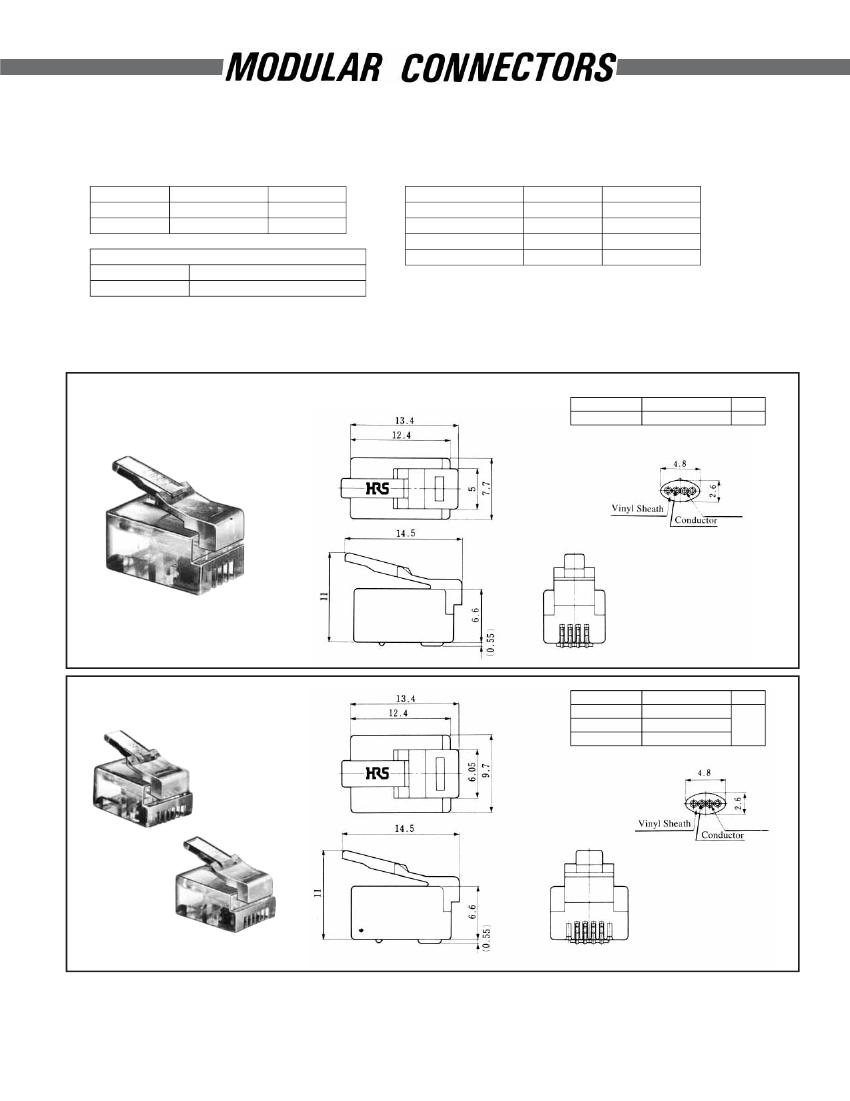

CL 222 TM
Plug for copper foil, stranded wire flat type cable
●Material・Finish
Part name
Plug case
Terminal
Material
Polycarbonate
Phosphor Bronze
Finish
Clear
Gold plated
●Electrical Performance
Item
Current rating
Voltage rating
Insulation Resistance
Condition
Per pin
Per pin
100V DC
1 minute
Specification
0.5A
125V AC
100 M Ω Min.
500V r.m.s AC
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Applicable Cable
Conductor diameter
Insulator diameter
Copper foil or AWG # 26
φ0.9-
φ1.0
Withstanding Voltage
●TM3P-44P
CL No.
222-0207-2
Part No.
TM3P-44P
RoHS
YES
Insulator
Applicable cable section
(Packing unit: 100 Pcs.)
●TM3P-62P, 64P & 66P
CL No.
222-0278-0
222-0208-5
222-0209-8
Part No.
TM3P-62P
TM3P-64P
TM3P-66P
RoHS
YES
Insulator
Applicable cable section
(Packing unit: 100 Pcs.)
Note: Shown TM3P-64P.
−31−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM

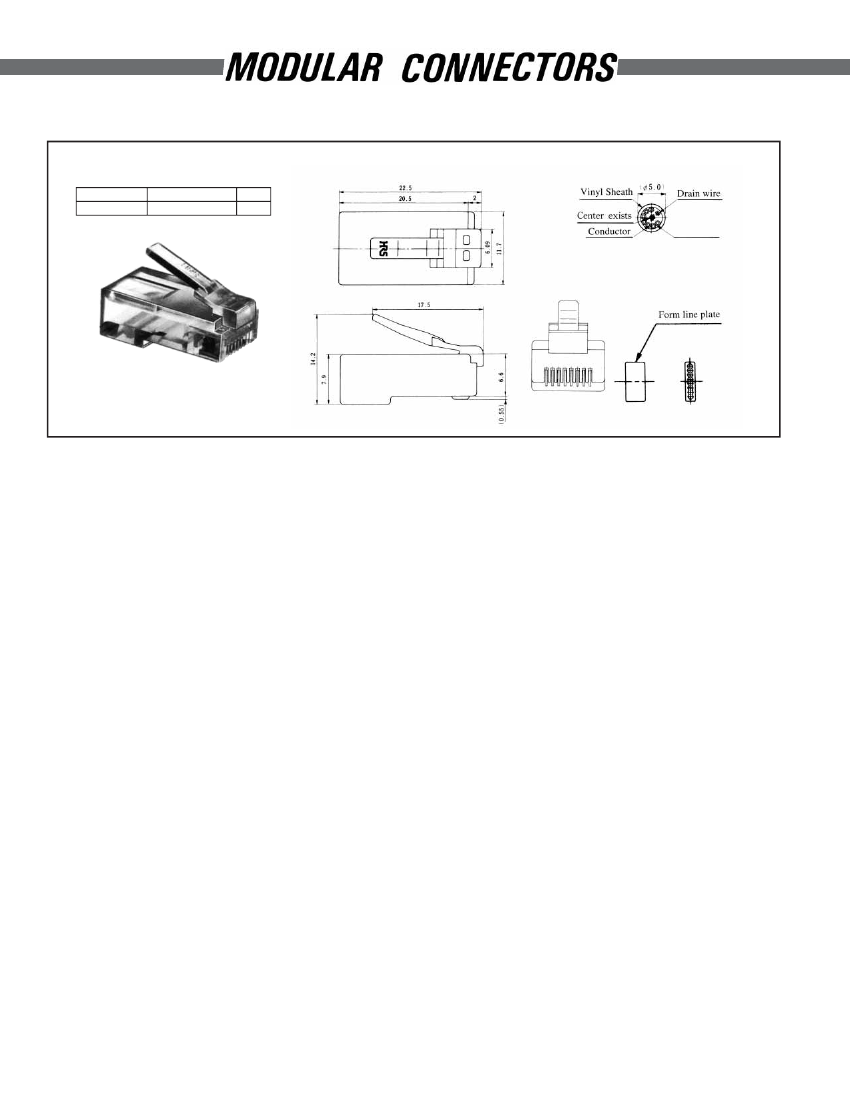

●TM8P-88P
CL No.
222-1817-9
Part No.
TM8P-88P
RoHS
YES
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Insulator
Applicable cable section
(Packing unit: 100 Pcs.)
−32−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM

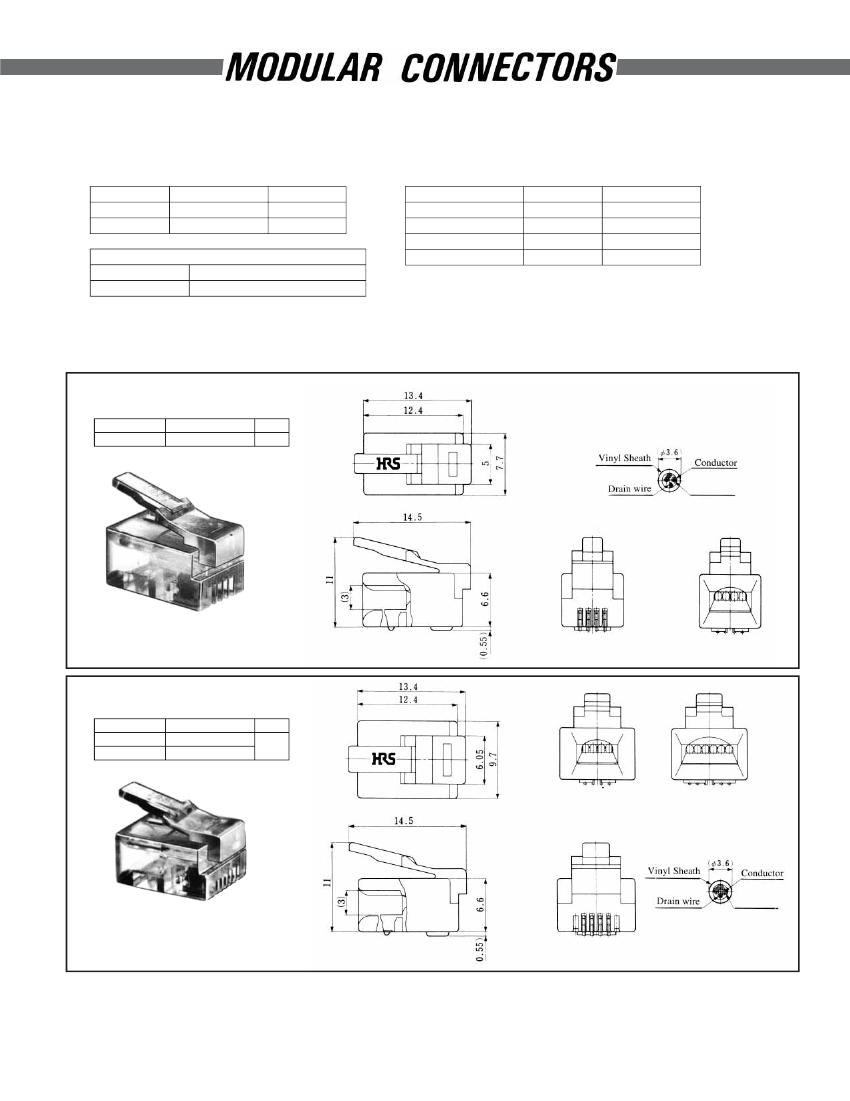

Plug for copper foil, stranded wire circular type cable
●Material・Finish
Part name
Plug case
Terminal
Material
Polycarbonate
Phosphor Bronze
Finish
Clear
Gold plated
●Electrical Performance
Item
Current rating
Voltage rating
Insulation Resistance
Condition
Per pin
Per pin
100V DC
1 minute
Specification
0.5A
125V AC
100 M Ω Min.
500V r.m.s AC
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Applicable Cable
Conductor diameter
Insulator diameter
Copper foil or AWG # 26
φ0.9-
φ1.0
Withstanding Voltage
●TM4P-44P
CL No.
222-0279-3
Part No.
TM4P-44P
RoHS
YES
Insulator
Applicable cable section
(Packing unit: 100 Pcs.)
●TM4P-64P & 66P
CL No.
222-0280-2
222-0281-5
Part No.
TM4P-64P
TM4P-66P
RoHS
YES
TM4P-64P
TM4P-66P
Insulator
Applicable cable section
(Packing unit: 100 Pcs.)
Note: Shown TM4P-64P.
−33−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CL 222 TM
●TM10P-88P
CL No.
222-1818-1
Part No.
TM10P-88P
RoHS
YES
Insulator
Applicable cable section
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(Packing unit: 100 Pcs.)
−34−
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

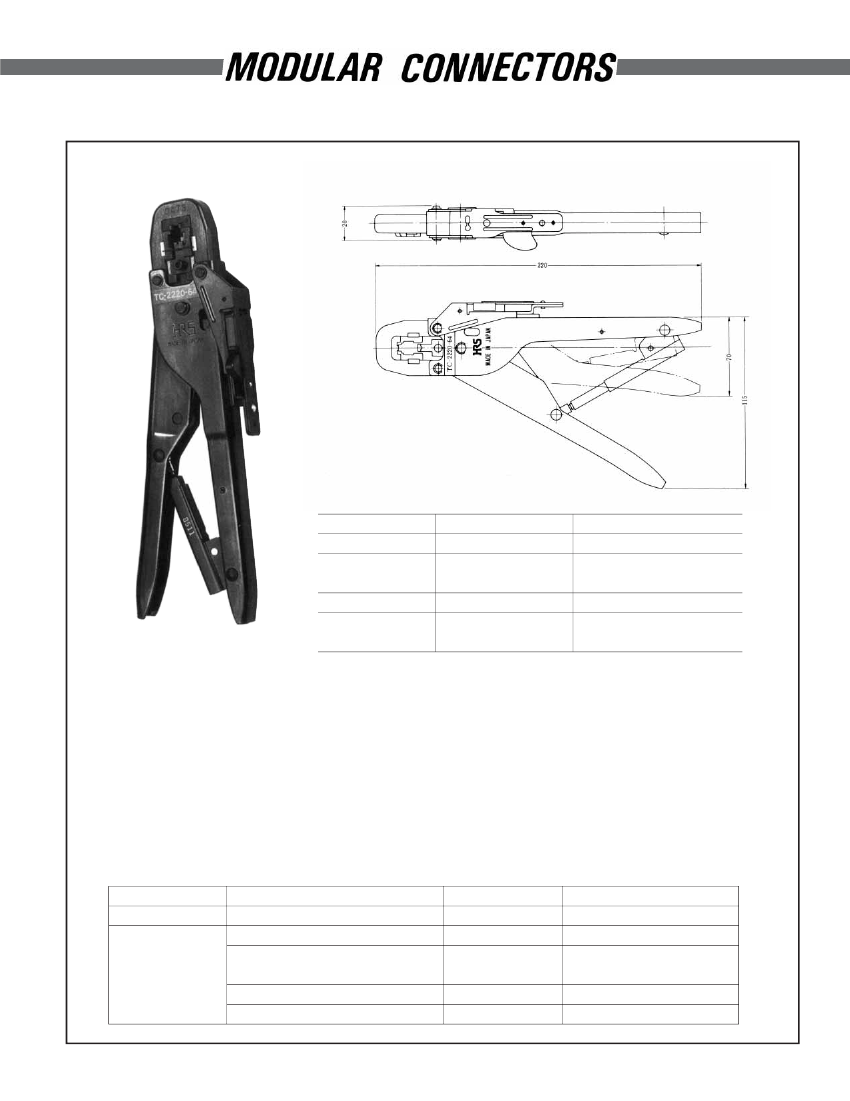

CL 222 TM
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
CL No.
902-0030-8-01
902-0031-0-01
902-0032-3-01
250-0228-1
Part No.
TC-2220-44 01）
（
TC-2220-64 01）
（
TC-2220-66 01）
（
TC-2220-8/10P-88-1
Applicable connector
TM3P-44P、TM4P-44P
TM3P-64P、TM4P-64P
TM3P-62P
TM3P-66P、TM4P-66P
TM8P-88P、TM10P-88P
TM10P1-88P
* This tool is made of metal and offers rigidity and durability. The handle is equipped with a ratchet
mechanism that allows the press fit height of the plate contact to be set uniformly, and also permits the
prevention of insufficient clamping.
* The tool can be used for insulation stripping of flat cables and round cables. Note that model TC-
2220-66(01) is for use with flat cables only. Also note that model TC-2220-8/10P-88-1 is not equipped
with an insulation stripping mechanism.
* The cable is pulled out by the lever which permits consistent insulation stripping.
Note: Please note that depending on the specifications of the cable, there may be instances in which
the insulation cannot be stripped.
When using the tool with products other than Hirose Electric modular plugs, the wiring quality cannot
be guaranteed; therefore, please be sure to use Hirose Electric plugs.
