over 50 microinches Ni over 50 microinches Ni over 50 microinches Ni over 50 microinches Ni
100 microinches Ag
100 microinches Ag
100 microinches Ag
100 microinches Ag
over 50 microinches Ni over 50 microinches Ni over 50 microinches Ni over 50 microinches Ni
7 lbf. Average
(31 Newtons)
.150" max.
15 lbf. Average
(66 Newtons)
.150" max.
7 lbf. Average
(31 Newtons)
.150" max.
4 lbf. per contact
(17 Newtons)
.250" max.
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:IDEAL
Anderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com

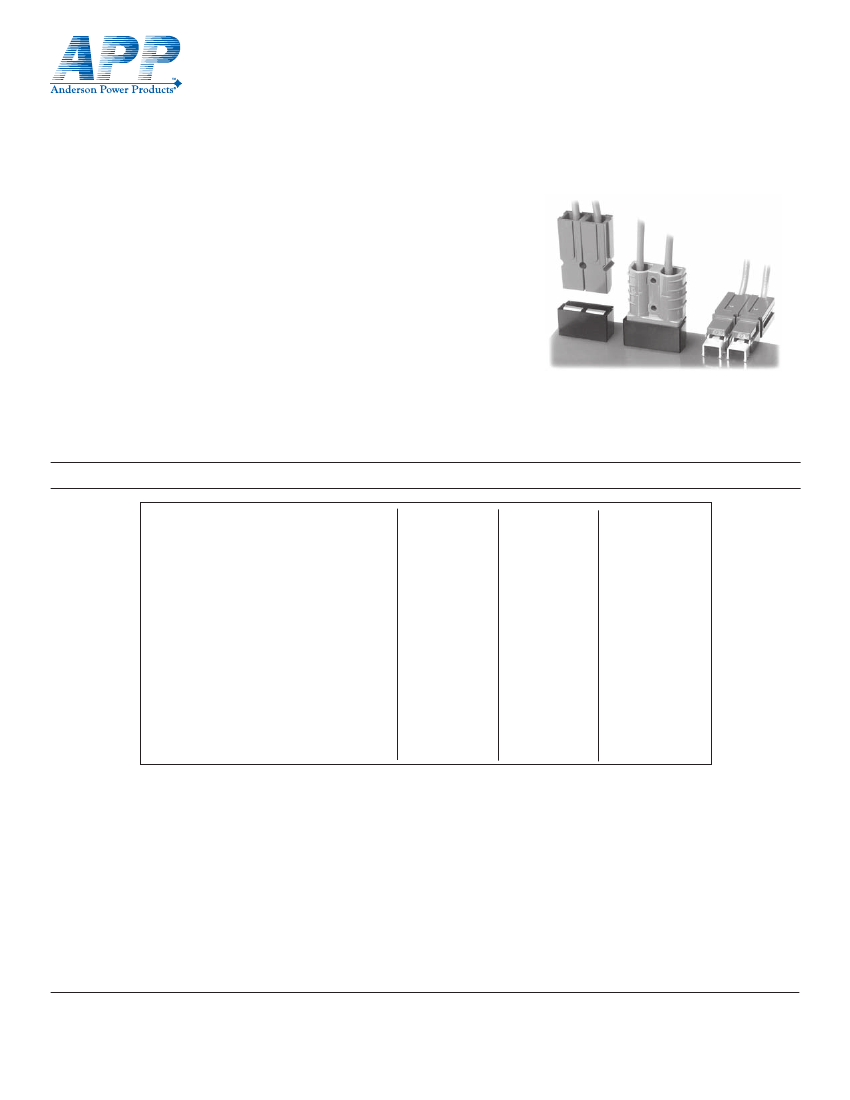

55 amp PCB Powerclaw Contacts
®
ORDERING INFORMATION
Standard Powerclaw
Position
Definition
PC
(Powerclaw)
XXX
X
XX
(Color)
(Plating) (Housing)
BLK–Black T–Tin
PP–Powerpole 75
RED–Red S–Silver LP–Locking Powerpole 75
BLU–Blue
SB–SB50
WHT–White
GRA–Gray
GRN–Green
Example: Blue 75 locking Powerclaw with tin plating (PC-BLU-T-LP)
Note: For additional colors please contact customer service
Individual Contacts and Guide Housings*
Part No.
PC5930S
PC5930T
PC5933T
PC5933S
PC5934T
PC5934S
PC-HSG-SB
PC-HSG-PP
Description
Std PC horizontal mount contact – Silver (Ag)
Std PC horizontal mount contact – Tin (Sn)
Mini-PC vertical contact – Tin (Sn)
Mini-PC vertical contact – Silver (Ag)
Mini-PC horizontal contact – Tin (Sn)
Mini-PC horizontal contact – Silver (Ag)
Guide housing for SB50 (Black)
Guide housing for PP75 (Black)
TEMPERATURE RISE CHART
Temperature Rise at Constant Currents
Powerclaw® Tested in Accordance with EIA 364-70, No enclosure, 25+/-5 deg. C. ambient (#8 AWG Foil on Board Side, #6 AWG conductor on wire side, Contact Cat. No. 5900).
Temperature Rise of Contact at exit from Housing Interface (No Air Flow over Test Loop).
30
Powerclaw
Temperature Rise at Constant Current
Temperature (°C)
25
20
15
10
5
0
0
10
20
30
Amperes Applied (DC)
Singlepole
Multipole
SB®50
40
50
60
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:
IDEALAnderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com
55 amp PCB Powerclaw Contacts
®

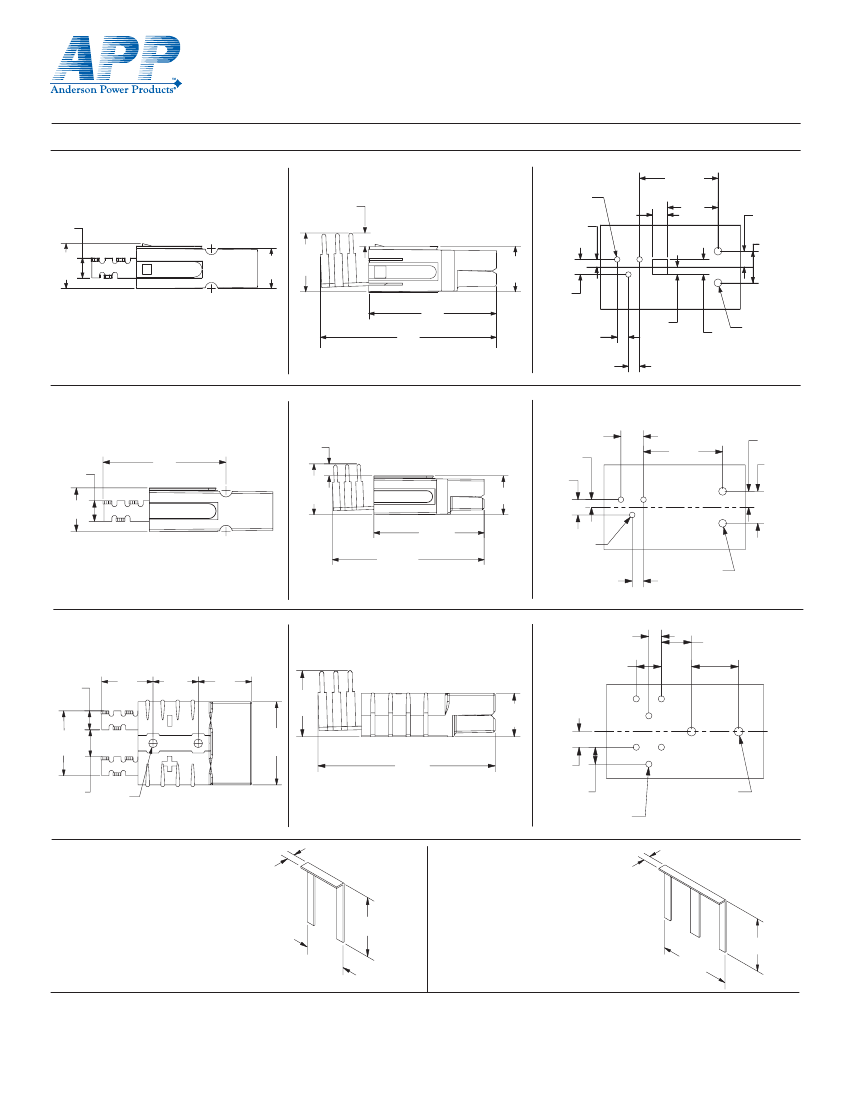

STANDARD POWERCLAW DIMENSIONS
Standard Powerclaw with
locking PP75
[8.0]
.32
[17.9]
.70
[15.9]
.63
[5.1]
.20
[2.54]
Ø .100 (3)
[3.43]
.135
[17.0]
.67
[48.0]
1.89
[6.9]
.27
[35.56]
1.40
[22.9]
.90
[7.19]
.283
[14.38]
.566
[22.0]
.87
[6.86]
.270
[5.08]
.200
[5.08]
.200
[3.4]
.14
[6.9]
.27
[3.56]
Ø .140 (2)
[66.1]
2.60
Standard Powerclaw with PP75
[10.16]
.400
[8.0]
.32
[17.0]
.67
[66.0]
2.60
[47.8]
1.88
[5.2]
.20
[22.2]
.87
[48.0]
1.89
[3.43]
.135
[17.0]
.67
[6.86]
.270
[35.56]
1.400
[7.19]
.283
[14.38]
.566
[2.54]
Ø .100 (3)
[5.08]
.200
[3.56]
Ø .140 (2)
Standard Powerclaw with SB®50
[8.0]
.32
[21.6]
.85
[19.05]
.750
[22.6]
.89
[23.7]
.93
[35.0]
1.380
[15.6]
.62
[63.6]
2.51
[5.08]
.200 TYP
[10.16]
.400 TYP
[12.19]
.480
[19.05]
.750
[27.4]
1.08
[11.4]
.45
[3.7]
Ø .14 (2)
[6.35]
.250 TYP
[6.86]
.270 TYP
[2.54]
Ø .100 (6)
[3.66]
Ø .144 (2)
Staple for single powerpole
Part Number: PCSTAPLE-1
[3.18]
.13
[25.20]
.99
[17.53]
.69
Staple for double powerpole
Part Number: PCSTAPLE-2
[3.18]
.13
[33.5]
1.32
[25.20]
.99
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:
IDEAL Anderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com
55 amp PCB Powerclaw Contacts
®

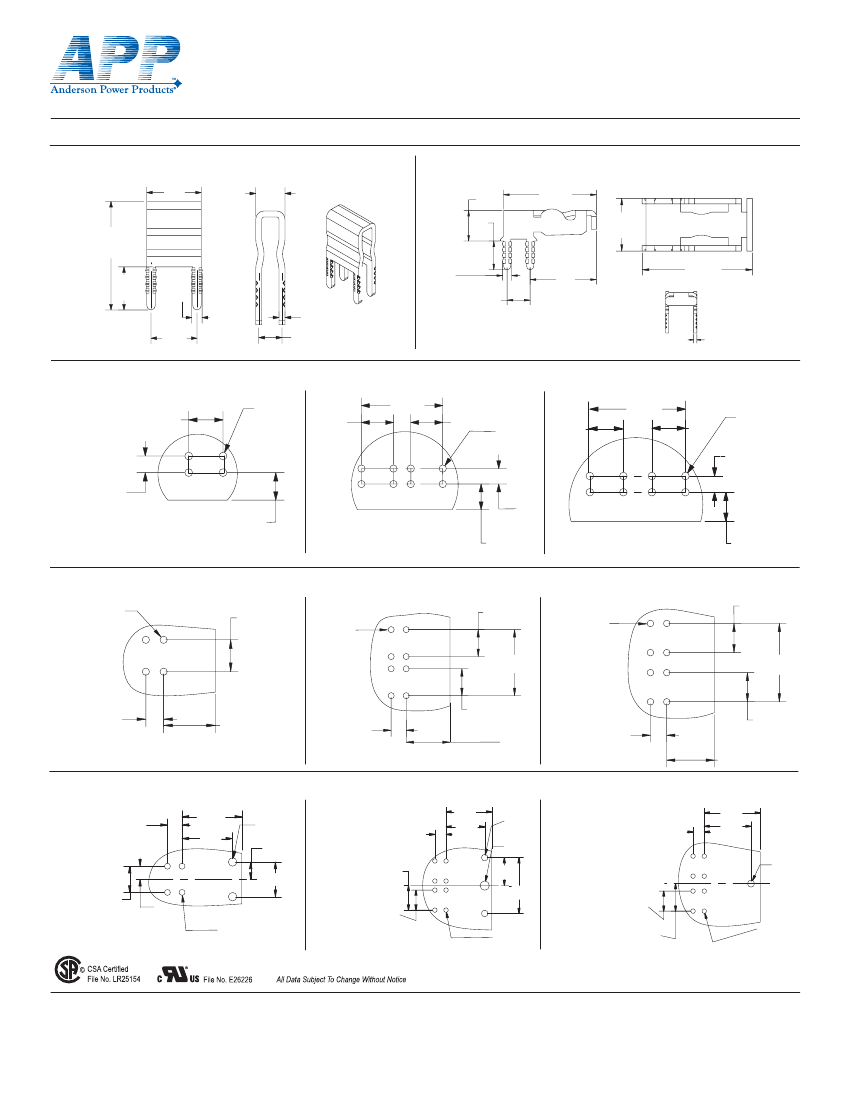

MINI-POWERCLAW DIMENSIONS
Vertical Powerclaw
[12.2]
.48
[24.3]
.96
[9.7]
.38
[2.32]
.091
[10.29]
.405
[6.25]
.246
Horizontal Powerclaw
[8.1]
.32
[7.6]
.30
[2.42]
.095
[1.27]
.050
[4.98]
.196
[6.10]
.240
[1.27]
.050
[24.6]
.97
[12.19]
.480
[17.5]
.69
[25.4]
1.00
Vertical PCB Placement - Hole Configuration
(with or without housing)
[10.29]
.405
[2.41]
[2.34]
.095
Ø .092 TYP
[10.29]
.405
[26.16]
1.030
[10.29]
.405
[2.41]
[2.34]
.095
Ø .092TYP
[10.29]
.405
[29.34]
1.155
[10.29]
.405
[2.41]
[2.34]
.095
Ø .092 TYP
[4.98]
.196
[4.98]
.196
Min to board edge
[8.26]
.325
[4.98]
.196
Vertical Contact With Double PP75's
Guide Housing Required
(catalog number PC-HSG-PP)
[8.26]
.325
Vertical Contact With SB50
Guide Housing Required
(catalog number PC-HSG-SB)
[8.94]
.352
Vertical Contact With Single PP75
Guide Housing NOT Required
Min to board edge
Min to board edge
Horizontal PCB Placement - Hole Configuration
[2.57]
[2.49]
.101
Ø .098
[10.92]
.430
[2.57]
[2.49]
.101
Ø .098
[10.92]
.430
[2.57]
[2.49]
.101
Ø .098
[10.92]
.430
[26.80]
1.055
[24.89]
[17.78]
.980
.700
To Edge
[6.10]
.240
PCB Hole Layout
for Double Powerpole
[10.92] [24.89]
.430
[17.78]
.980
.700
To Edge
[29.34]
1.155
[10.92]
.430
[6.10]
.240
PCB Hole Layout
for Singlepole Powerpole
[6.10]
.240
PCB Hole Layout
for SB50
[24.89]
[17.78]
.980
.700
To Edge
[30.48]
1.200
[6.10]
.240
[25.48]
1.003
Mated Horizontal Contacts
(board attachment)
[6.10]
.240
[24.89]
.980
[21.08]
.830
[3.56]
Ø .140 TYP
[7.24]
.285
[14.48]
.570
[5.46]
.215
[2.57]
[2.49]
.101
Ø .098
[6.10]
.240
[13.40]
.528
[10.92]
.430 TYP
For Double
Horizontal Contacts
[24.89]
.980
[21.08]
.830
[3.56]
Ø .140(2)
[5.08]
Ø .200
[15.24]
.600
[10.92]
.430
For Singlepole
Horizontal Contacts
[30.48]
1.200
[2.57]
[2.49]
.101
Ø .098
[10.92]
.430 TYP
[14.99]
.590 TYP
For SB50
Horizontal Contacts
15148
[3.81]
.150
[2.57]
[2.49]
.101
Ø .098
DS-PWRCL REV05
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:
IDEALAnderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com
