SPECIFICATION
Part No.
:
PCB.SMAFSTJ.A.HT
SMA (F) Through Hole PCB Mount Jack

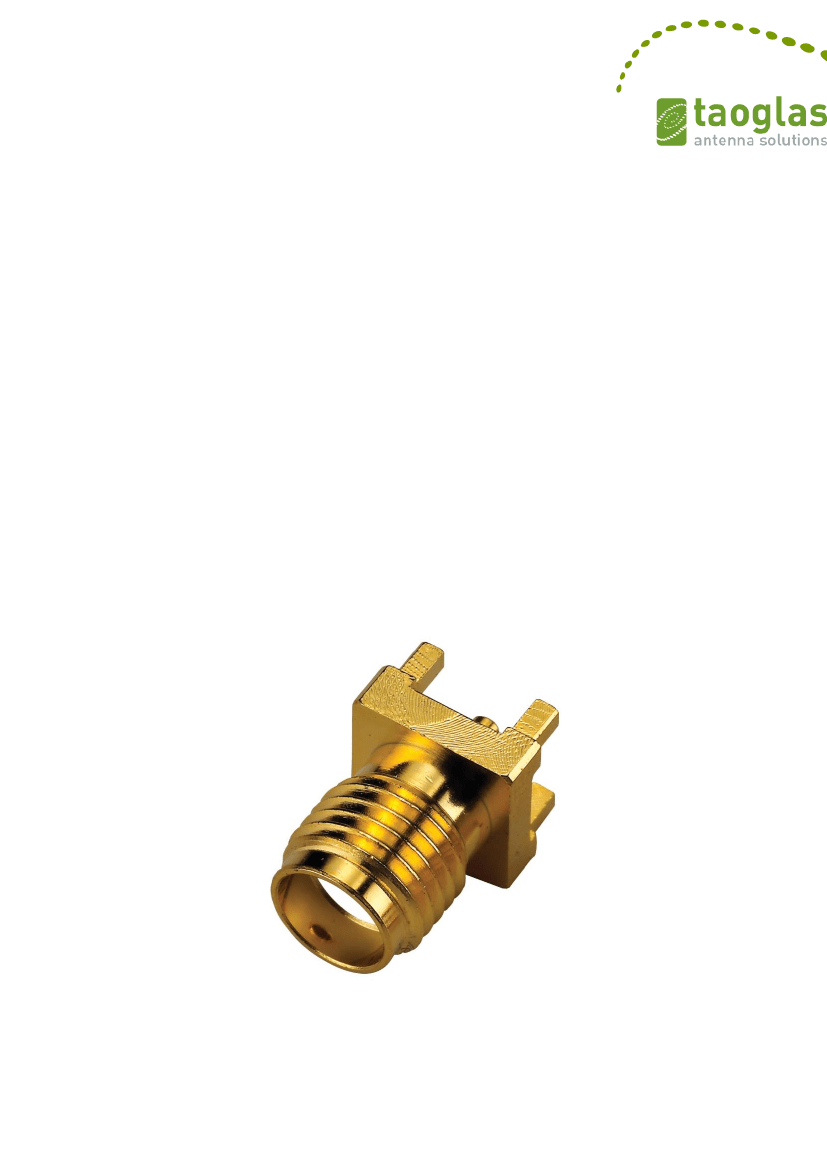

SMA(F) Jack
Through Hole PCB Jack
Frequency Range: 0~12.4GHz
Finish: Gold
Leg Length: 2mm
Total Length: 11.00mm
RoHS Compliant
Product Name
Feature
:
:
SPE-12-8-142/B/WY
Page 1 of 3
1. Introduction
The PCB.SMAFSTJ.A.HT connector was designed to be mounted on a PCB, it has a Solder Post for
connection. The connector pin is directly soldered onto pads on the PCB. The connector is a
standard SMA (F) Jack. The SMA connector is the most popular type connector for RF
applications. Taoglas connectors are all RoHS compliant.
2. Specification
ELECTRICAL
Impedance
Frequency Range
Working Voltage
Dielectric withstanding Voltage
Insulation Resistance
MECHANICAL
Connector Dimension
Connector Pin Diameter
Max. Thickness PCB acceptable
Connector Type
ENVIRONMENTAL
RoHS compliant
11 X 7 mm
1.27 mm
0.8 mm
SMA (F)
50Ω
0~12.4 GHz
Max. 335 Vrms
≤1000 Vrms
≥5000M Ω
SPE-12-8-142/B/WY
Page 2 of 3

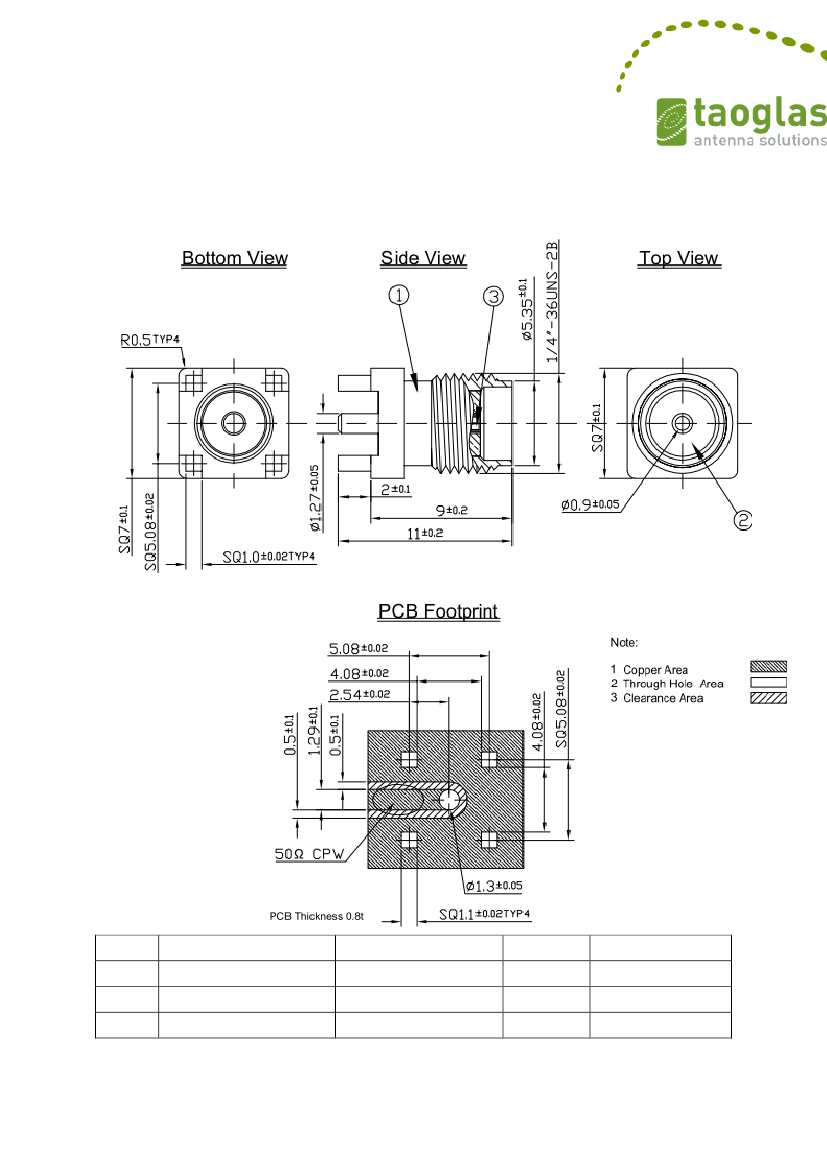

3. Connector Drawing
Name
1
2
3
Body
Insulator
Female Contact
Material
Brass
Teflon
Phosphor Bronze
Finish
Gold
White
Gold
QTY
1
1
1
